Toyota Celica

1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

10 part groups · 2 illustrations

Illustrations

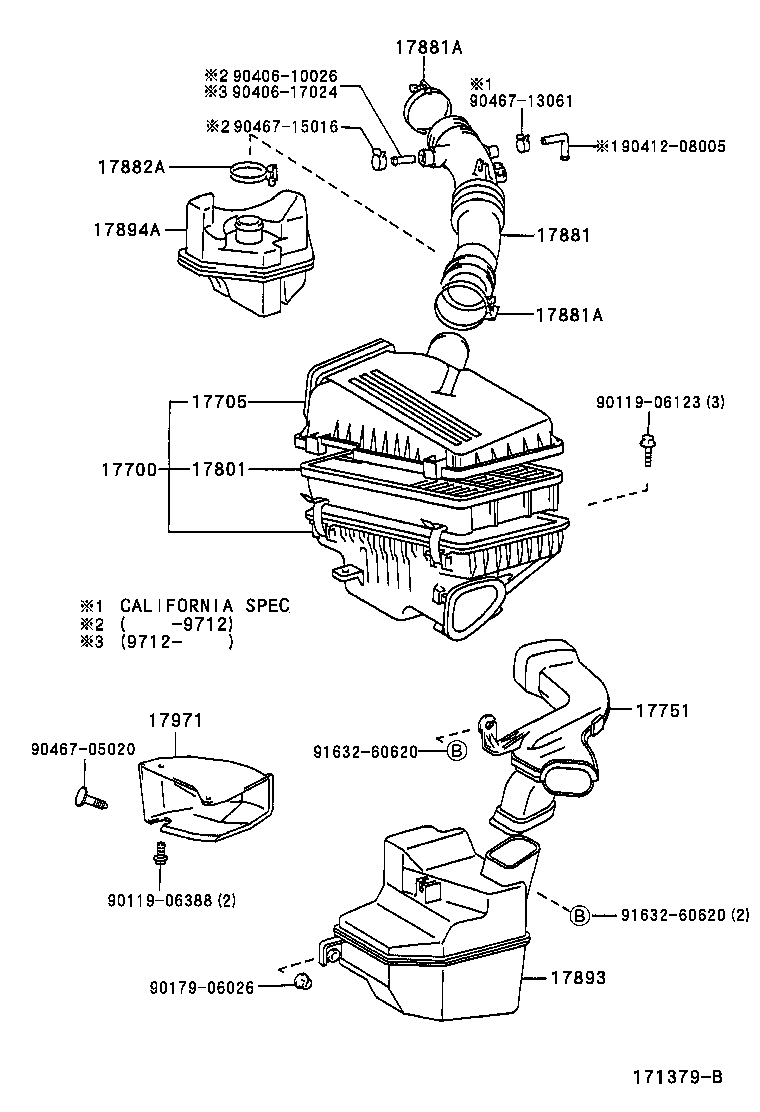

Figure MAG849A MAG849A 1993-09 → 1997-12 Figure 171379B 171379B 1993-09 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
17971 Inlet, Cool Air, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
