Toyota Celica

1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 2 illustrations

Illustrations

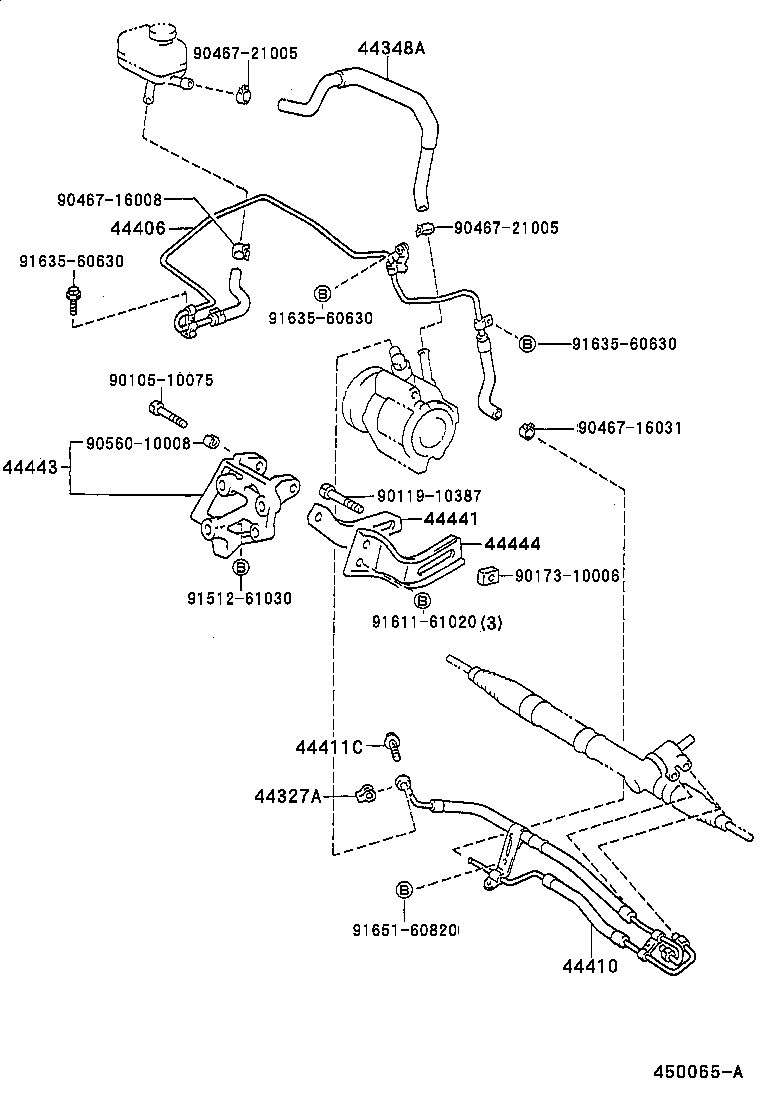

Figure MCR099C MCR099C 1993-09 → 1997-12 Figure 450065A 450065A 1993-09 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
