Toyota Celica

1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 4 illustrations

Illustrations

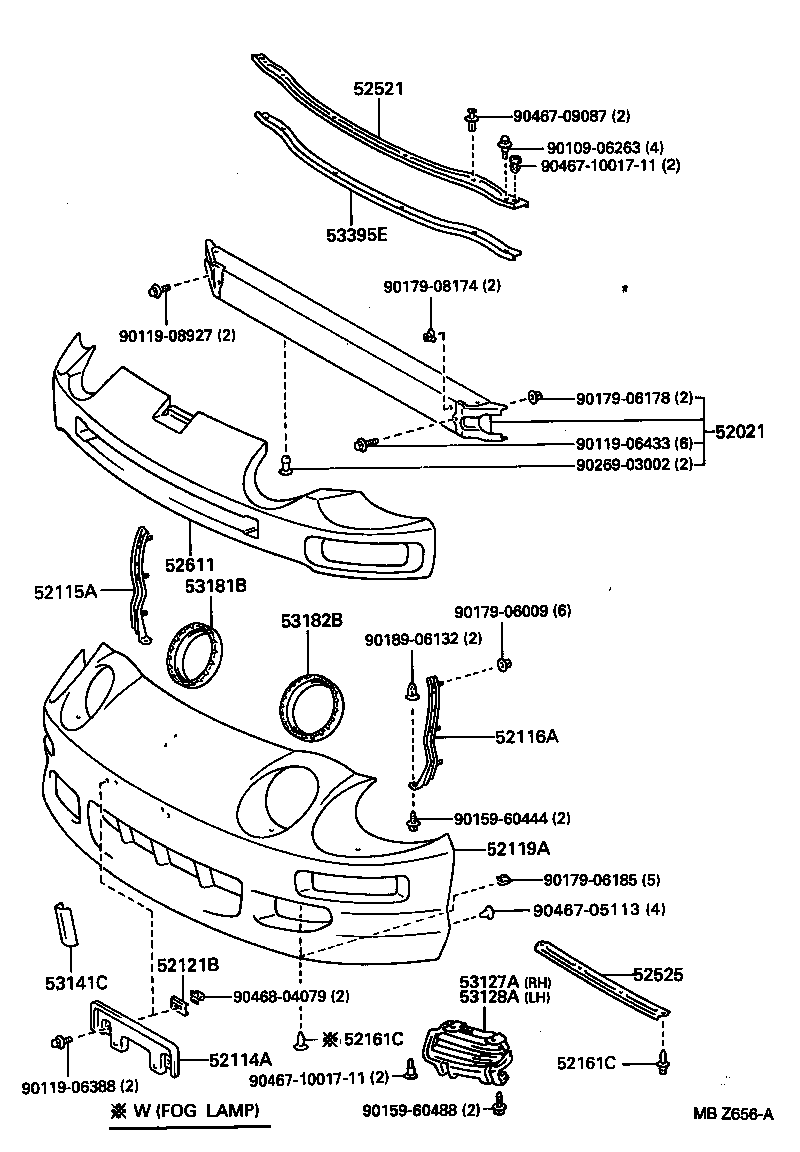

Figure MBX815D MBX815D 1993-09 → 1995-08 Figure MBX815D MBX815D 1994-08 → 1995-10 Figure MBZ656A MBZ656A 1995-08 → — Figure MBZ656A MBZ656A 1995-10 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52161C Piece, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52611 Absorber, Front Bumper Energy
53127A Grille, Radiator, Lower RH
53128A Grille, Radiator, Lower LH
53141C Garnish, Radiator Grille
53181B Seal, Headlamp Cover, NO.1, RH
53182B Seal, Headlamp Cover, NO.1, LH
53395E Seal, Hood TO Front End Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
