Toyota Celica

1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · Europe

Discontinued model Data version 2000-03

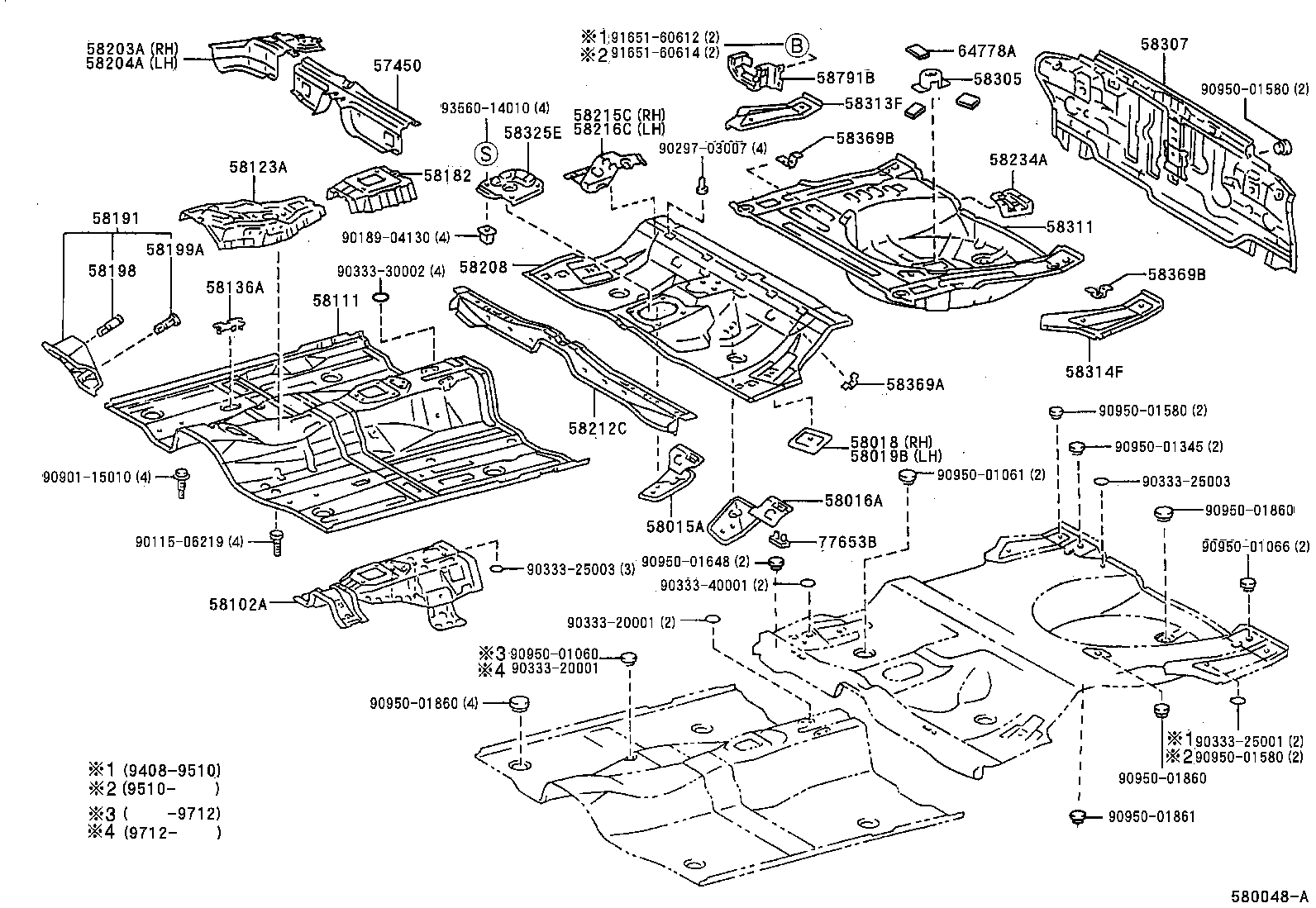

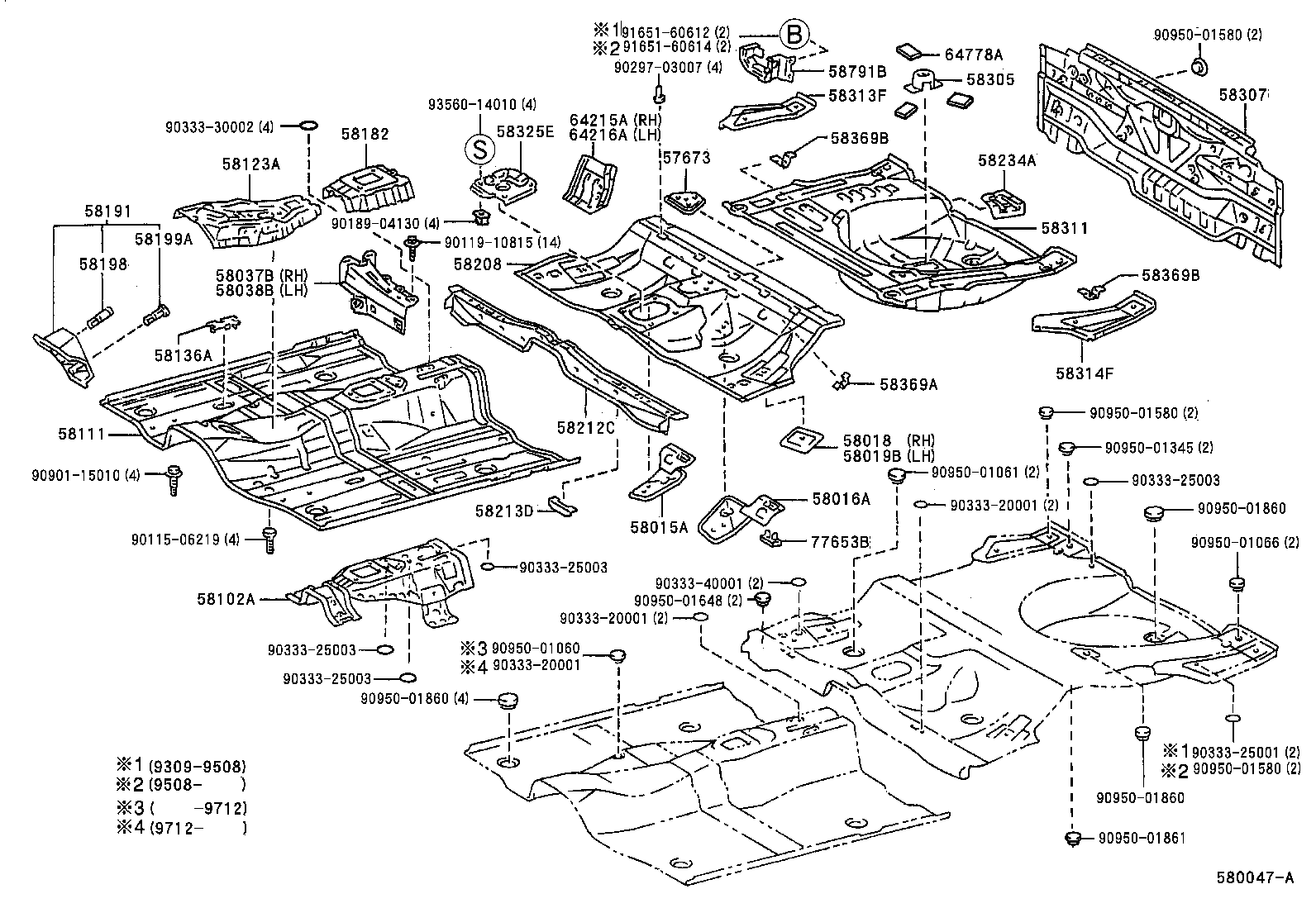

Floor Pan & Lower Back Panel

38 part groups · 3 illustrations

PNC	Description
57450	Member Assy, Front Floor Cross
57673	Bracket, Rear Seatback Hinge Mounting
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A	Reinforce Sub-assy, Belt Anchor, NO.3 LH
58018	Reinforcement Sub-assy, Belt Anchor, NO.4 RH
58019B	Reinforcement Sub-assy, Belt Anchor, NO.4 LH
58037B	Reinforce, Center Pillar TO Floor, RH
58038B	Reinforce, Center Pillar TO Floor, LH
58102A	Reinforcement Sub-assy, Front Floor
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136A	Cover, Front Floor Service Hole
58182	Bracket, Front Seat Inside Mounting, Front LH
58191	Footrest, Front Floor
58198	Clip, Footrest
58199A	Clip, Footrest, NO.2
58203A	Reinforcement Sub-assy, Center Floor Panel, RH
58204A	Reinforcement Sub-assy, Center Floor Panel, LH
58208	Pan, Center Floor
58212C	Pan, Center Floor, Front
58213D	Reinforcement, Center Floor Panel
58215C	Reinforcement, Center Floor Panel, NO.2 RH
58216C	Reinforcement, Center Floor Panel, NO.2 LH
58234A	Bracket, Exhaust Pipe Mounting, Inner
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313F	Extension, Rear Floor Pan TO Quarter Panel, RH
58314F	Extension, Rear Floor Pan TO Quarter Panel, LH
58325E	Cover, Rear Floor Service Hole
58369A	Bracket, Fuel Tube, NO.3
58369B	Bracket, Fuel Tube, NO.3
58791B	Carrier, Jack
64215A	Extension, Rear Floor TO Package Tray, RH
64216A	Extension, Rear Floor TO Package Tray, LH
64317	Reinforcement, Seat Belt Anchorage TO Package Tray
64778A	Protector, Spare Wheel
77653B	Cushion, Fuel Tank, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
