Toyota Celica

1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

15 part groups · 3 illustrations

Illustrations

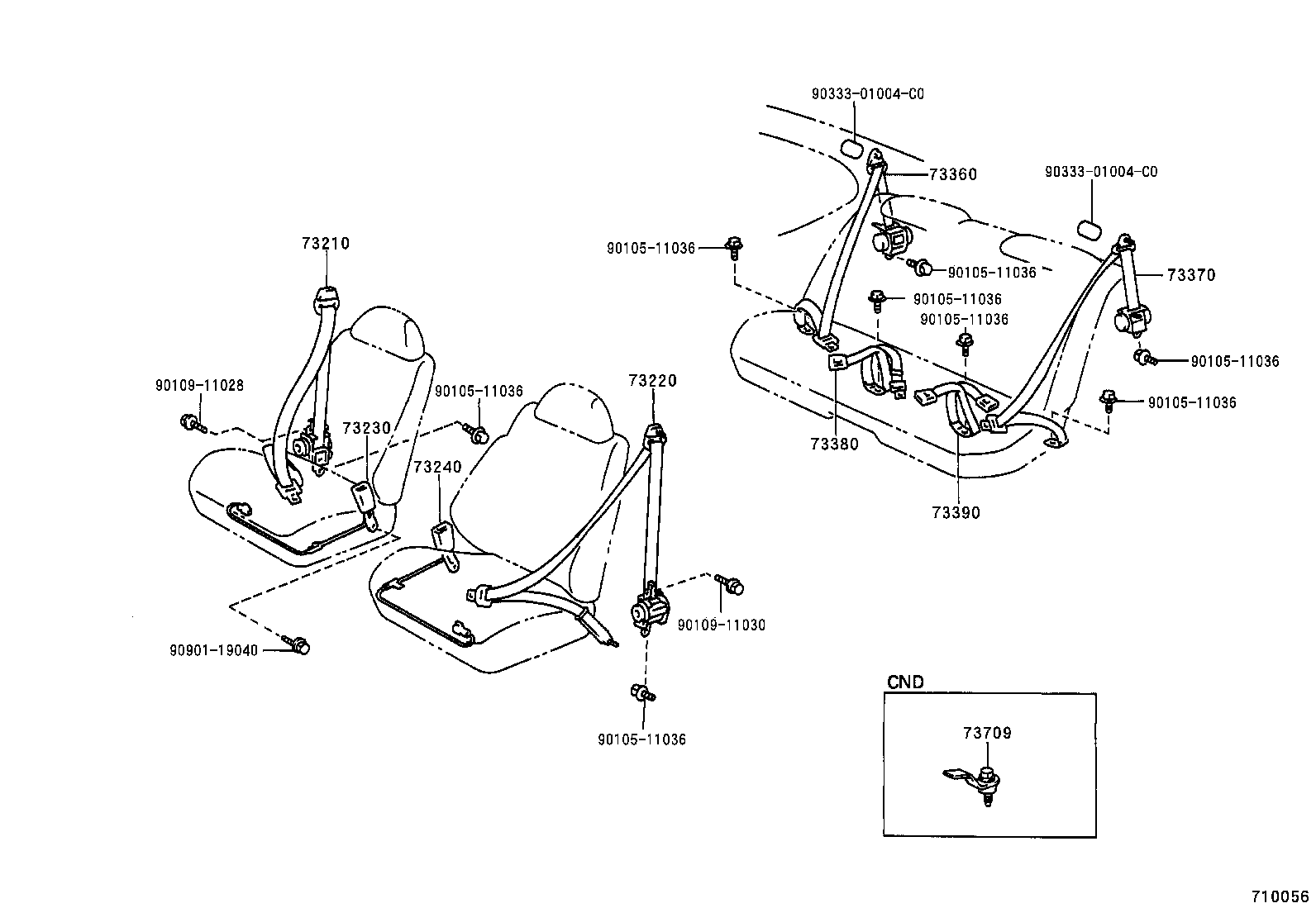

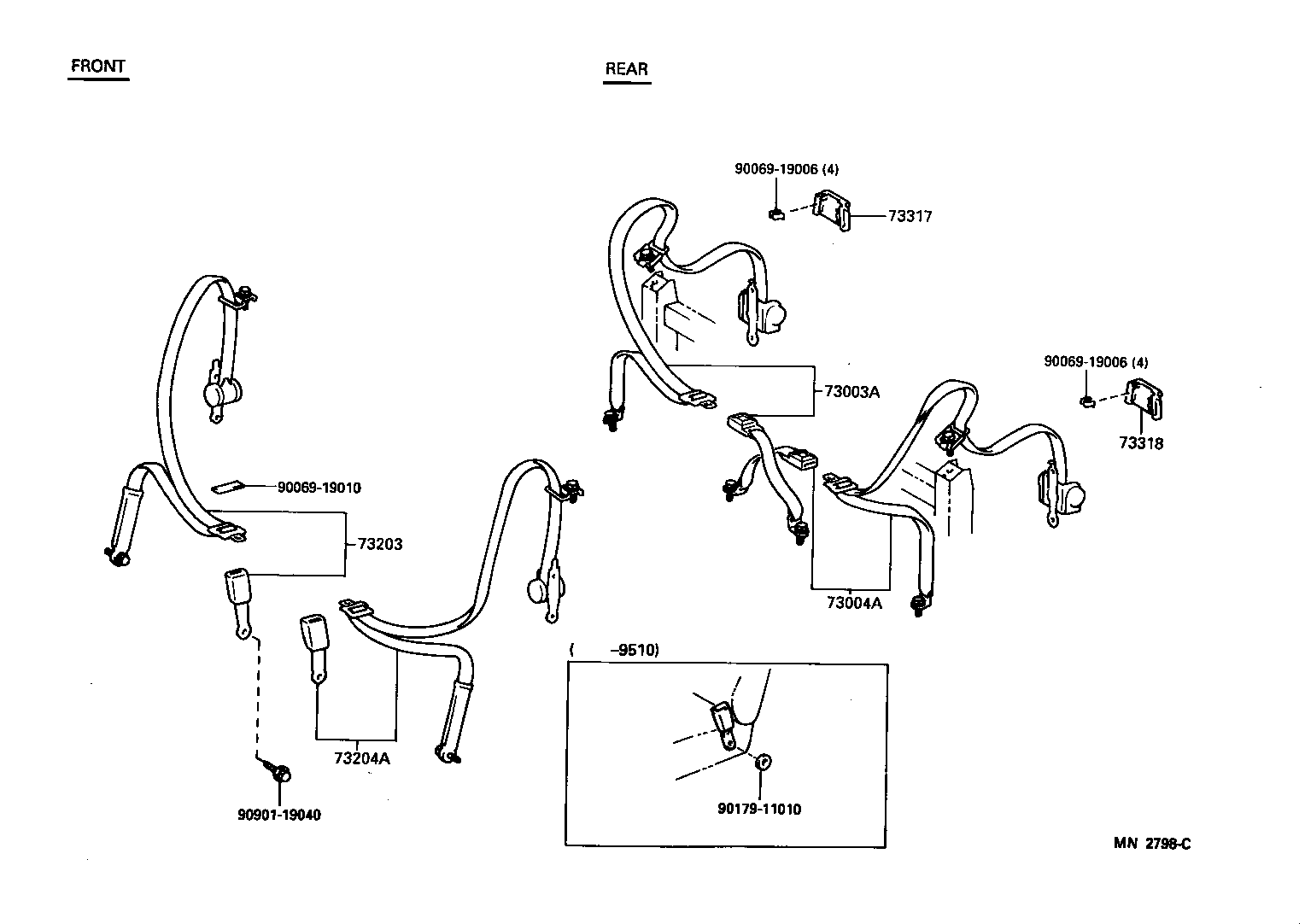

Figure 710055 710055 1993-09 → 1995-08 Figure 710056 710056 1995-08 → — Figure MN2798C MN2798C 1994-08 → —

Part groups

PNCDescription
73003A Belt Set, Rear Seat 3 Point Type, RH
73004A Belt Set, Rear Seat 3 Point Type, LH
73203 Belt Set, Front Seat, RH
73204A Belt Set, Front Seat, LH
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73317 Cap, Rear Seat Belt, RH
73318 Cap, Rear Seat Belt, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
