Toyota Celica
1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · Europe
Discontinued model
Data version 2000-03

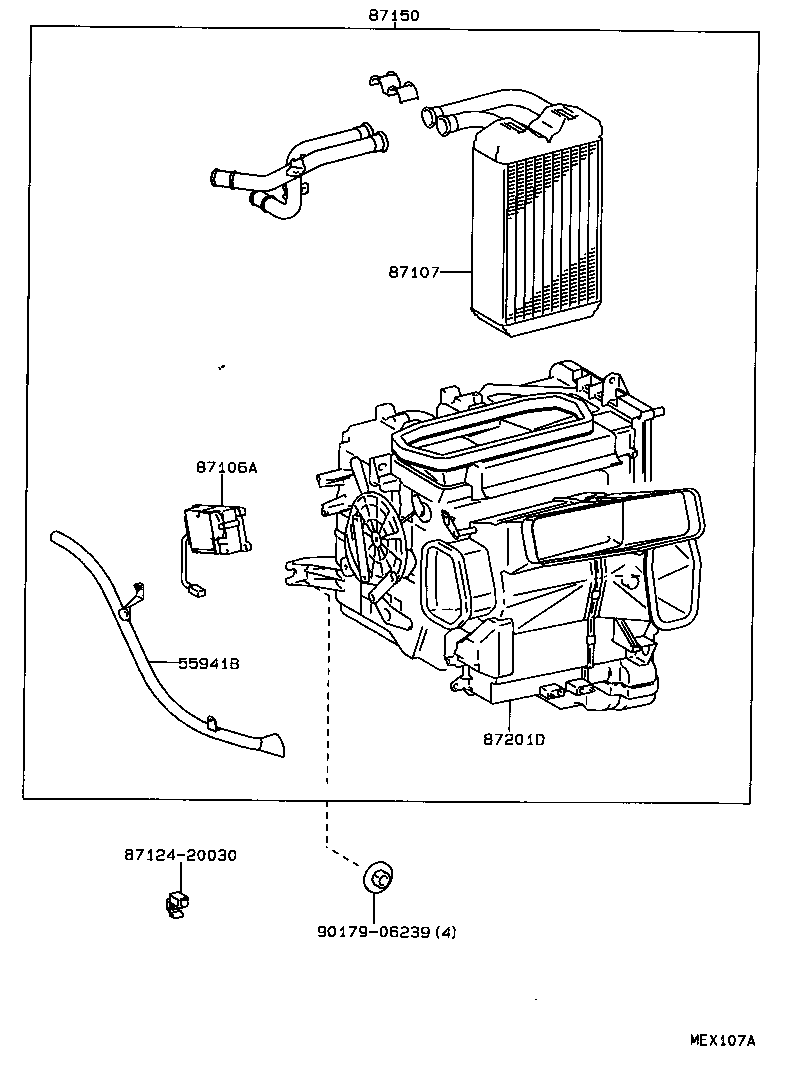

Heating & Air Conditioning - Heater Unit & Blower
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55941B | Guide, Heater Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87105 | Fan Sub-assy, Heater Blower |
| 87106A | Servo Sub-assy, Damper |
| 87106C | Servo Sub-assy, Damper(FOR BLOWER) |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87130 | Blower Assy, Heater, Front |
| 87150 | Radiator Assy, Heater |
| 87201D | Duct Sub-assy, Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
