Toyota Celica

1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

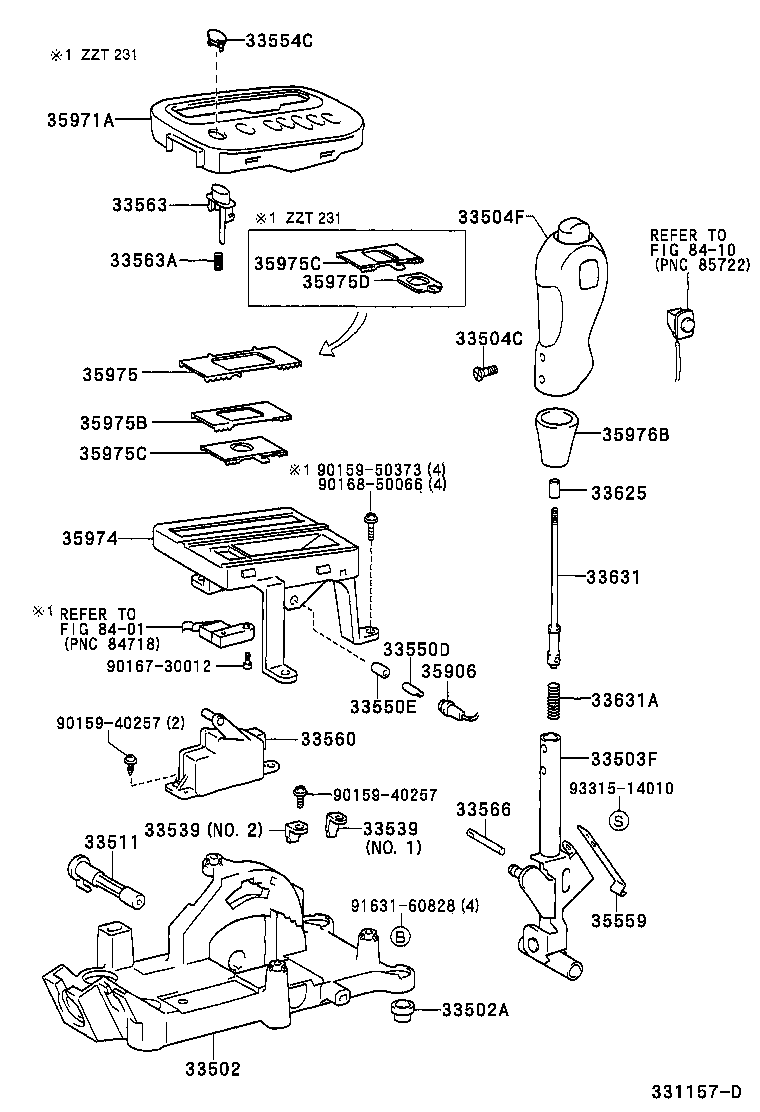

Exploded illustration 331157D 33554C — COVER, SHIFT LOCK RELEASE BUTTON (2 parts) 35971A — HOUSING, POSITION INDICATOR, UPPER (4 parts) 33563 — BUTTON, SHIFT LOCK RELEASE (2 parts) 33504F — KNOB SUB-ASSY, SHIFT LEVER (10 parts) 8410 — not listed in this catalogue 33563A — SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) (2 parts) 35975C — COVER, SLIDE, NO.3(FOR POSISION INDICATOR) (4 parts) 35975D — COVER, SLIDE, NO.4(FOR POSITION INDICATOR) (2 parts) 33504C — SCREW (FOR SHIFT LEVER KNOB SETTING) (2 parts) 35975 — COVER, SLIDE (FOR POSITION INDICATOR) (2 parts) 35975B — COVER, SLIDE, NO.2(FOR POSITION INDICATOR) (2 parts) 35976B — COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) (2 parts) 35975C — COVER, SLIDE, NO.3(FOR POSISION INDICATOR) (4 parts) 9015950373 — not listed in this catalogue 9016850066 — not listed in this catalogue 33625 — SLEEVE, SHIFT LEVER KNOB (2 parts) 35974 — HOUSING, POSITION INDICATOR, LOWER (2 parts) 33631 — ROD, DETENT (1 parts) 8401 — not listed in this catalogue 33550D — BULB, POSITION INDICATOR LAMP (2 parts) 9016730012 — not listed in this catalogue 35906 — WIRE SUB-ASSY, INDICATOR LAMP (2 parts) 33631A — SPRING, COMPRESSION (FOR DETENT ROD) (2 parts) 33550E — CAP, POSITION INDICATOR LAMP (2 parts) 9015940257 — not listed in this catalogue 33560 — UNIT ASSY, SHIFT LOCK CONTROL (3 parts) 33503F — LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) (2 parts) 9331514010 — not listed in this catalogue 9015940257 — not listed in this catalogue 33566 — PIN, SHIFT LEVER STOP (1 parts) 33539 — CUSHION, SHIFT LEVER ANTI-RATTLE (2 parts) 33539 — CUSHION, SHIFT LEVER ANTI-RATTLE (2 parts) 33511 — SHAFT, CONTROL (FOR FLOOR SHIFT) (1 parts) 9163160828 — not listed in this catalogue 35559 — SPRING, MANUAL DETENT (1 parts) 33502A — COLLAR (FOR FLOOR SHIFT SETTING) (1 parts) 33502 — PLATE SUB-ASSY, SHIFT LEVER (2 parts)
331157D · 28 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
33502 — Plate Sub-assy, Shift Lever
33521-20320 Plate Sub-assy, Shift Lever
1999-08 → 2002-08 ended
ZZT231 4FC —
33521-20320 Plate Sub-assy, Shift Lever
1999-08 → 2002-08 ended
ZZT230 4FC —
33502A — Collar (FOR FLOOR SHIFT SETTING)
33544-33010 note Collar (FOR FLOOR SHIFT SETTING)
1999-08 → 2002-08 ended
ZZT23# 4FC —
33503F — Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33055-20220 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-08 → 2002-08 ended
ZZT230 4FC —
33055-20230 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-08 → 2002-08 ended
ZZT231 4FC —
33504C — Screw (FOR SHIFT LEVER KNOB SETTING)
90159-40238 Screw (FOR SHIFT LEVER KNOB SETTING)
1999-08 → 2002-08 ended
ZZT23# 4FC —
90159-40238 Screw (FOR SHIFT LEVER KNOB SETTING)
2002-08 → 2005-07 ended
ZZT23# 4FC —
33504F — Knob Sub-assy, Shift Lever
33504-14120-C1 note Knob Sub-assy, Shift Lever
1999-08 → 2002-08 ended
ZZT230 5F —
33504-14140-C1 note Knob Sub-assy, Shift Lever
1999-08 → 2002-08 ended
ZZT230 5F —
33504-20150-C0 note Knob Sub-assy, Shift Lever
1999-08 → 2002-08 ended
ZZT231 6F —
33504-20210 Knob Sub-assy, Shift Lever
1999-08 → 2002-08 ended
ZZT230 4FC —
33504-20220 Knob Sub-assy, Shift Lever
1999-08 → 2002-08 ended
ZZT231 4FC —
33504-14120-C1 note Knob Sub-assy, Shift Lever
2002-08 → 2005-07 ended
ZZT230 5F —
33504-14140-C1 note Knob Sub-assy, Shift Lever
2002-08 → 2005-07 ended
ZZT230 5F —
33504-20150-C0 note Knob Sub-assy, Shift Lever
2002-08 → 2005-07 ended
ZZT231 6F —
33504-20210 Knob Sub-assy, Shift Lever
2002-08 → 2005-07 ended
ZZT230 4FC —
33504-20220 Knob Sub-assy, Shift Lever
2002-08 → 2005-07 ended
ZZT231 4FC —
33511 — Shaft, Control (FOR FLOOR SHIFT)
33511-20300 Shaft, Control (FOR FLOOR SHIFT)
1999-08 → 2002-08 ended
ZZT23# 4FC —
33539 — Cushion, Shift Lever Anti-rattle
33539-20020 note Cushion, Shift Lever Anti-rattle
1999-08 → 2002-08 ended
ZZT23# 4FC —
33539-33010 note Cushion, Shift Lever Anti-rattle
1999-08 → 2002-08 ended
ZZT23# 4FC —
33550D — Bulb, Position Indicator Lamp
90981-11018 note Bulb, Position Indicator Lamp
1999-08 → 2002-08 ended
ZZT23# 4FC —
90981-11018 note Bulb, Position Indicator Lamp
2002-08 → 2005-07 ended
ZZT23# 4FC —
33550E — Cap, Position Indicator Lamp
90339-04049 Cap, Position Indicator Lamp
1999-08 → 2002-08 ended
ZZT23# 4FC —
90339-04049 Cap, Position Indicator Lamp
2002-08 → 2005-07 ended
ZZT23# 4FC —
33554C — Cover, Shift Lock Release Button
33554-20080 Cover, Shift Lock Release Button
1999-08 → 2002-08 ended
ZZT23# 4FC —
33554-20090 Cover, Shift Lock Release Button
2002-08 → 2005-07 ended
ZZT23# 4FC —
33560 — Unit Assy, Shift Lock Control
33560-20040 Unit Assy, Shift Lock Control
1999-08 → 2002-08 ended
ZZT23# 4FC —
33560-20090 Unit Assy, Shift Lock Control
2002-08 → 2005-07 ended
ZZT230 4FC —
33560-20100 Unit Assy, Shift Lock Control
2002-08 → 2005-07 ended
ZZT231 4FC —
33563 — Button, Shift Lock Release
33563-20140 Button, Shift Lock Release
1999-08 → 2002-08 ended
ZZT23# 4FC —
33563-20140 Button, Shift Lock Release
2002-08 → 2005-07 ended
ZZT23# 4FC —
33563A — Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
90501-05042 Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
1999-08 → 2002-08 ended
ZZT23# 4FC —
90501-05042 Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
2002-08 → 2005-07 ended
ZZT23# 4FC —
33566 — Pin, Shift Lever Stop
33566-20030 Pin, Shift Lever Stop
1999-08 → 2002-08 ended
ZZT23# 4FC —
33625 — Sleeve, Shift Lever Knob
33625-20070 Sleeve, Shift Lever Knob
1999-08 → 2002-08 ended
ZZT23# 4FC —
33625-20070 Sleeve, Shift Lever Knob
2002-08 → —
ZZT23# 4FC —
33631 — Rod, Detent
33631-20190 Rod, Detent
1999-08 → 2002-08 ended
ZZT23# 4FC —
33631A — Spring, Compression (FOR DETENT ROD)
90501-08167 Spring, Compression (FOR DETENT ROD)
1999-08 → 2000-01 ended
ZZT23# 4FC —
90501-08200 Spring, Compression (FOR DETENT ROD)
2000-01 → 2002-08 ended
ZZT23# 4FC —
35559 — Spring, Manual Detent
35559-12040 Spring, Manual Detent
1999-08 → 2002-08 ended
ZZT23# 4FC —
35906 — Wire Sub-assy, Indicator Lamp
35906-20110 Wire Sub-assy, Indicator Lamp
1999-08 → 2002-08 ended
ZZT23# 4FC —
35906-20110 Wire Sub-assy, Indicator Lamp
2002-08 → 2005-07 ended
ZZT23# 4FC —
35971A — Housing, Position Indicator, Upper
35971-20370 Housing, Position Indicator, Upper
1999-08 → 2002-08 ended
ZZT230 4FC —
35971-20380 Housing, Position Indicator, Upper
1999-08 → 2002-08 ended
ZZT231 4FC —
35971-20420 Housing, Position Indicator, Upper
2002-08 → 2005-07 ended
ZZT230 4FC —
35971-20430 Housing, Position Indicator, Upper
2002-08 → 2005-07 ended
ZZT231 4FC —
35974 — Housing, Position Indicator, Lower
35974-20230 Housing, Position Indicator, Lower
1999-08 → 2002-08 ended
ZZT23# 4FC —
35974-20230 Housing, Position Indicator, Lower
2002-08 → 2005-07 ended
ZZT23# 4FC —
35975 — Cover, Slide (FOR POSITION INDICATOR)
35975-20180 Cover, Slide (FOR POSITION INDICATOR)
1999-08 → 2002-08 ended
ZZT23# 4FC —
35975-20180 Cover, Slide (FOR POSITION INDICATOR)
2002-08 → 2005-07 ended
ZZT23# 4FC —
35975B — Cover, Slide, NO.2(FOR POSITION INDICATOR)
35975-20190 Cover, Slide, NO.2(FOR POSITION INDICATOR)
1999-08 → 2002-08 ended
ZZT23# 4FC —
35975-20190 Cover, Slide, NO.2(FOR POSITION INDICATOR)
2002-08 → 2005-07 ended
ZZT23# 4FC —
35975C — Cover, Slide, NO.3(FOR POSISION INDICATOR)
35975-20200 Cover, Slide, NO.3(FOR POSISION INDICATOR)
1999-08 → 2002-08 ended
ZZT230 4FC —
35975-20210 Cover, Slide, NO.3(FOR POSISION INDICATOR)
1999-08 → 2002-08 ended
ZZT231 4FC —
35975-20200 Cover, Slide, NO.3(FOR POSISION INDICATOR)
2002-08 → 2005-07 ended
ZZT230 4FC —
35975-20210 Cover, Slide, NO.3(FOR POSISION INDICATOR)
2002-08 → 2005-07 ended
ZZT231 4FC —
35975D — Cover, Slide, NO.4(FOR POSITION INDICATOR)
35975-20220 Cover, Slide, NO.4(FOR POSITION INDICATOR)
1999-08 → 2002-08 ended
ZZT231 4FC —
35975-20220 Cover, Slide, NO.4(FOR POSITION INDICATOR)
2002-08 → 2005-07 ended
ZZT231 4FC —
35976B — Cover, Shift Lever Knob (FOR FLOOR SHIFT)
35976-20120 Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1999-08 → 2002-08 ended
ZZT23# 4FC —
35976-20120 Cover, Shift Lever Knob (FOR FLOOR SHIFT)
2002-08 → 2005-07 ended
ZZT23# 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
