Toyota Celica

1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

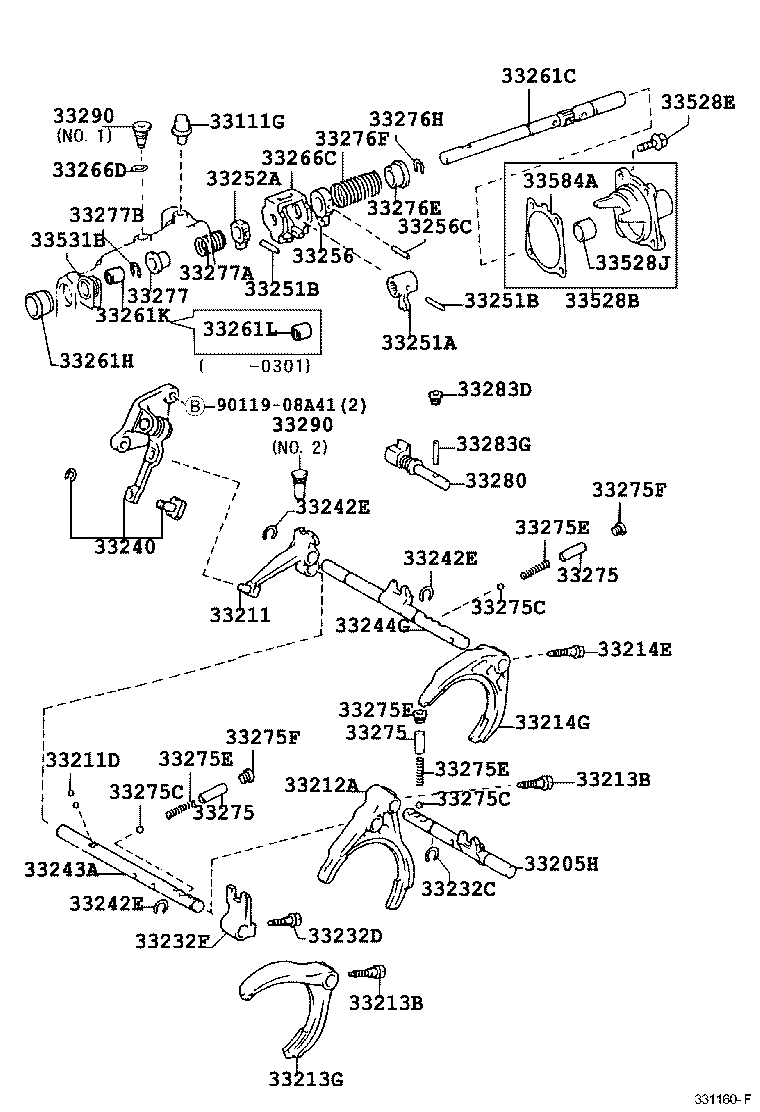

Exploded illustration 331160F 33213G — FORK, GEAR SHIFT, NO.2 (2 parts) 33205H — SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 (7 parts) 33277B — RING, E (FOR SELECT SPRING NO.2 SEAT) (2 parts) 33277 — SEAT, SELECT SPRING, NO.2 (4 parts) 33277A — SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) (6 parts) 33212A — FORK, GEAR SHIFT, NO.1 (2 parts) 33275C — BALL (FOR SHIFT DETENT) (2 parts) 33232C — RING, SNAP (FOR 1ST & 2ND SHIFT HEAD) (2 parts) 33251B — PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) (4 parts) 33528B — COVER, CONTROL SHAFT (9 parts) 33256C — PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) (2 parts) 9011908A41 — not listed in this catalogue 33213B — BOLT(FOR SHIFT FORK SET) (2 parts) 33232D — BOLT (FOR SHIFT HEAD SET) (2 parts) 33213B — BOLT(FOR SHIFT FORK SET) (2 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (4 parts) 33232F — HEAD, GEAR SHIFT, NO.1 (6 parts) 33243A — SHAFT, GEAR SHIFT FORK, NO.2 (2 parts) 33251B — PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) (4 parts) 33251A — LEVER, SHIFT, INNER NO.1 (5 parts) 33283D — PLUG (FOR REVERSE RESTRICT PIN) (4 parts) 33261C — SHAFT, SHIFT & SELECT LEVER (6 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (4 parts) 33261H — SEAL, OIL (FOR SHIFT & SELECT LEVER SHAFT) (3 parts) 33280 — PIN ASSY, REVERSE RESTRICT (2 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (2 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (4 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (2 parts) 33275C — BALL (FOR SHIFT DETENT) (2 parts) 33214E — BOLT(FOR GEAR SHIFT FORK LOCK) (3 parts) 33214G — FORK, GEAR SHIFT, NO.3 (4 parts) 33290 — BALL ASSY, LOCK, NO.1 (8 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (4 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (4 parts) 33211 — FORK, REVERSE SHIFT (4 parts) 33244G — SHAFT, GEAR SHIFT FORK, NO.3 (7 parts) 33240 — BRACKET ASSY, REVERSE SHIFT ARM (4 parts) 33211D — BALL(FOR REVERSE SHIFT FORK) (2 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (2 parts) 33275F — PLUG (FOR SHIFT DETENT BALL) (2 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (2 parts) 33275 — SEAT, SHIFT DETENT BALL SPRING, NO.1 (2 parts) 33275E — SPRING, COMPRESSION (FOR SHIFT DETENT BALL) (4 parts) 33275C — BALL (FOR SHIFT DETENT) (2 parts) 33276E — SEAT, SELECT SPRING, NO.1 (4 parts) 33276H — RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) (2 parts) 33276F — SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) (8 parts) 33266C — PLATE, SHIFT INTERLOCK (5 parts) 33256 — LEVER, SELECT INNER (2 parts) 33252A — LEVER, SHIFT, INNER NO.2 (5 parts) 33528E — BOLT (FOR CONTROL SHAFT COVER) (4 parts) 33283G — PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) (2 parts) 33290 — BALL ASSY, LOCK, NO.1 (8 parts) 33111G — PLUG, BREATHER(FOR MANUAL TRANSMISSION) (2 parts) 33584A — GASKET, CONTROL SHIFT LEVER RETAINER (2 parts) 33531B — BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) (2 parts) 33528J — BUSH, BIMETAL FORMED (FOR CONTROL SHAFT COVER) (2 parts) 33261K — BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT) (1 parts) 33261L — BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) (2 parts) 33266D — GASKET (FOR SHIFT INTERLOCK PLATE) (1 parts)
331160F · 59 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
162 parts on this figure
Part number Description Fitment Price
33111G — Plug, Breather(FOR MANUAL TRANSMISSION)
90930-03133 Plug, Breather(FOR MANUAL TRANSMISSION)
1999-08 → 2002-08 ended
ZZT23# MTM —
90930-03133 Plug, Breather(FOR MANUAL TRANSMISSION)
2002-08 → 2005-07 ended
ZZT23# MTM —
33205H — Shaft Sub-assy, Gear Shift Fork, NO.1
33205-20020 Shaft Sub-assy, Gear Shift Fork, NO.1
1999-08 → 2001-05 ended
ZZT231 6F —
33205-20021 Shaft Sub-assy, Gear Shift Fork, NO.1
2001-05 → 2002-08 ended
ZZT231 6F —
33205-20030 Shaft Sub-assy, Gear Shift Fork, NO.1
1999-08 → 2002-08 ended
ZZT230 5F —
33205-20021 Shaft Sub-assy, Gear Shift Fork, NO.1
2002-08 → 2005-07 ended
ZZT231 6F —
33205-20030 Shaft Sub-assy, Gear Shift Fork, NO.1
2002-08 → 2002-11 ended
ZZT230 5F —
33205-20040 Shaft Sub-assy, Gear Shift Fork, NO.1
2002-11 → 2005-02 ended
ZZT230 5F —
33205-52010 Shaft Sub-assy, Gear Shift Fork, NO.1
2005-02 → 2005-07 ended
ZZT230 5F —
33211 — Fork, Reverse Shift
33211-12021 Fork, Reverse Shift
1999-08 → 2002-08 ended
ZZT230 5F —
33211-12050 Fork, Reverse Shift
1999-08 → 2002-08 ended
ZZT231 6F —
33211-12021 Fork, Reverse Shift
2002-08 → 2005-07 ended
ZZT230 5F —
33211-12050 Fork, Reverse Shift
2002-08 → 2005-07 ended
ZZT231 6F —
33211D — Ball(FOR REVERSE SHIFT FORK)
90360-06004 note Ball(FOR REVERSE SHIFT FORK)
1999-08 → 2002-08 ended
ZZT230 5F —
90360-06004 note Ball(FOR REVERSE SHIFT FORK)
2002-08 → 2005-07 ended
ZZT230 5F —
33212A — Fork, Gear Shift, NO.1
33212-10013 Fork, Gear Shift, NO.1
1999-08 → 2002-08 ended
ZZT23# MTM —
33212-10013 Fork, Gear Shift, NO.1
2002-08 → 2005-07 ended
ZZT23# MTM —
33213B — Bolt(FOR SHIFT FORK SET)
90105-06115 Bolt(FOR SHIFT FORK SET)
1999-08 → 2002-08 ended
ZZT23# MTM —
90105-06115 Bolt(FOR SHIFT FORK SET)
2002-08 → 2005-07 ended
ZZT23# MTM —
33213G — Fork, Gear Shift, NO.2
33213-20050 Fork, Gear Shift, NO.2
1999-08 → 2002-08 ended
ZZT23# MTM —
33213-20050 Fork, Gear Shift, NO.2
2002-08 → 2005-07 ended
ZZT23# MTM —
33214E — Bolt(FOR GEAR SHIFT FORK LOCK)
90105-06115 Bolt(FOR GEAR SHIFT FORK LOCK)
1999-08 → 2002-08 ended
ZZT23# MTM —
90105-06115 Bolt(FOR GEAR SHIFT FORK LOCK)
2002-08 → 2005-07 ended
ZZT230 5F —
90105-06115 Bolt(FOR GEAR SHIFT FORK LOCK)
2002-08 → 2005-07 ended
ZZT231 6F —
33214G — Fork, Gear Shift, NO.3
33214-20050 Fork, Gear Shift, NO.3
1999-08 → 2002-08 ended
ZZT230 5F —
33230-20010 Fork, Gear Shift, NO.3
1999-08 → 2002-08 ended
ZZT231 6F —
33214-20050 Fork, Gear Shift, NO.3
2002-08 → 2005-07 ended
ZZT230 5F —
33230-20010 Fork, Gear Shift, NO.3
2002-08 → 2005-07 ended
ZZT231 6F —
33232C — Ring, Snap (FOR 1ST & 2ND SHIFT HEAD)
90520-12003 Ring, Snap (FOR 1ST & 2ND SHIFT HEAD)
1999-08 → 2002-08 ended
ZZT23# MTM —
90520-12003 Ring, Snap (FOR 1ST & 2ND SHIFT HEAD)
2002-08 → 2005-07 ended
ZZT23# MTM —
33232D — Bolt (FOR SHIFT HEAD SET)
90105-06115 Bolt (FOR SHIFT HEAD SET)
1999-08 → 2002-08 ended
ZZT23# MTM —
90105-06115 Bolt (FOR SHIFT HEAD SET)
2002-08 → 2005-07 ended
ZZT23# MTM —
33232F — Head, Gear Shift, NO.1
33232-12012 Head, Gear Shift, NO.1
1999-08 → 2001-05 ended
ZZT23# MTM —
33232-12012 Head, Gear Shift, NO.1
2001-05 → 2002-08 ended
ZZT230 5F —
33232-20020 Head, Gear Shift, NO.1
2001-05 → 2002-08 ended
ZZT231 6F —
33232-12012 Head, Gear Shift, NO.1
2002-08 → 2002-11 ended
ZZT230 5F —
33232-20020 Head, Gear Shift, NO.1
2002-08 → 2005-07 ended
ZZT231 6F —
33232-20030 Head, Gear Shift, NO.1
2002-11 → 2005-07 ended
ZZT230 5F —
33240 — Bracket Assy, Reverse Shift Arm
33240-16020 Bracket Assy, Reverse Shift Arm
1999-08 → 2002-08 ended
ZZT230 5F —
33240-20030 Bracket Assy, Reverse Shift Arm
1999-08 → 2002-08 ended
ZZT231 6F —
33240-16020 Bracket Assy, Reverse Shift Arm
2002-08 → 2005-07 ended
ZZT230 5F —
33240-20030 Bracket Assy, Reverse Shift Arm
2002-08 → 2005-07 ended
ZZT231 6F —
33242E — Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
1999-08 → 2002-08 ended
ZZT231 6F —
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
1999-08 → 2002-08 ended
ZZT230 5F —
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2002-08 → 2005-07 ended
ZZT231 6F —
90520-12003 Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2002-08 → 2005-07 ended
ZZT230 5F —
33243A — Shaft, Gear Shift Fork, NO.2
33243-20070 Shaft, Gear Shift Fork, NO.2
1999-08 → 2002-08 ended
ZZT23# MTM —
33243-20070 Shaft, Gear Shift Fork, NO.2
2002-08 → 2005-07 ended
ZZT23# MTM —
33244G — Shaft, Gear Shift Fork, NO.3
33244-20050 Shaft, Gear Shift Fork, NO.3
1999-08 → 2001-05 ended
ZZT231 6F —
33244-20051 Shaft, Gear Shift Fork, NO.3
2001-05 → 2002-08 ended
ZZT231 6F —
33244-20060 Shaft, Gear Shift Fork, NO.3
1999-08 → 2002-08 ended
ZZT230 5F —
33244-20051 Shaft, Gear Shift Fork, NO.3
2002-08 → 2005-07 ended
ZZT231 6F —
33244-20060 Shaft, Gear Shift Fork, NO.3
2002-08 → 2002-11 ended
ZZT230 5F —
33244-20070 Shaft, Gear Shift Fork, NO.3
2002-11 → 2005-02 ended
ZZT230 5F —
33244-52030 Shaft, Gear Shift Fork, NO.3
2005-02 → 2005-07 ended
ZZT230 5F —
33251A — Lever, Shift, Inner NO.1
33251-20060 Lever, Shift, Inner NO.1
1999-08 → 2001-05 ended
ZZT231 6F —
33251-20070 Lever, Shift, Inner NO.1
1999-08 → 2002-08 ended
ZZT230 5F —
33251-20080 Lever, Shift, Inner NO.1
2001-05 → 2002-08 ended
ZZT231 6F —
33251-20070 Lever, Shift, Inner NO.1
2002-08 → 2005-07 ended
ZZT230 5F —
33251-20080 Lever, Shift, Inner NO.1
2002-08 → 2005-07 ended
ZZT231 6F —
33251B — Pin, Slotted Spring (FOR SHIFT INNER LEVER)
90254-04005 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
2000-01 → 2002-08 ended
ZZT231 6F —
90254-05016 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
1999-08 → 2002-08 ended
ZZT23# MTM —
90254-04005 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
2002-08 → 2005-07 ended
ZZT231 6F —
90254-05016 note Pin, Slotted Spring (FOR SHIFT INNER LEVER)
2002-08 → 2005-07 ended
ZZT23# MTM —
33252A — Lever, Shift, Inner NO.2
33252-12011 Lever, Shift, Inner NO.2
1999-08 → 2002-08 ended
ZZT230 5F —
33252-20030 Lever, Shift, Inner NO.2
1999-08 → 2000-06 ended
ZZT231 6F —
33252-20040 Lever, Shift, Inner NO.2
2000-06 → 2002-08 ended
ZZT231 6F —
33252-12011 Lever, Shift, Inner NO.2
2002-08 → 2005-07 ended
ZZT230 5F —
33252-20040 Lever, Shift, Inner NO.2
2002-08 → 2005-07 ended
ZZT231 6F —
33256 — Lever, Select Inner
33256-12022 Lever, Select Inner
1999-08 → 2002-08 ended
ZZT230 5F —
33256-12022 Lever, Select Inner
2002-08 → 2005-07 ended
ZZT230 5F —
33256C — Pin, Slotted Spring (FOR SELECT INNER LEVER)
90254-05016 Pin, Slotted Spring (FOR SELECT INNER LEVER)
1999-08 → 2002-08 ended
ZZT230 5F —
90254-05016 Pin, Slotted Spring (FOR SELECT INNER LEVER)
2002-08 → 2005-07 ended
ZZT230 5F —
33261C — Shaft, Shift & Select Lever
33261-20080 Shaft, Shift & Select Lever
1999-08 → 2002-08 ended
ZZT231 6F —
33261-20100 Shaft, Shift & Select Lever
1999-08 → 2002-08 ended
ZZT230 5F —
33261-20080 Shaft, Shift & Select Lever
2002-08 → 2003-01 ended
ZZT231 6F —
33261-20081 Shaft, Shift & Select Lever
2003-01 → 2005-07 ended
ZZT231 6F —
33261-20100 Shaft, Shift & Select Lever
2002-08 → 2003-01 ended
ZZT230 5F —
33261-20101 Shaft, Shift & Select Lever
2003-01 → 2005-07 ended
ZZT230 5F —
33261H — Seal, Oil (FOR SHIFT & SELECT LEVER SHAFT)
90310-15002 Seal, Oil (FOR SHIFT & SELECT LEVER SHAFT)
1999-08 → 2002-08 ended
ZZT23# MTM —
90310-15002 Seal, Oil (FOR SHIFT & SELECT LEVER SHAFT)
2002-08 → 2002-11 ended
ZZT23# MTM —
90310-15004 Seal, Oil (FOR SHIFT & SELECT LEVER SHAFT)
2002-11 → 2005-07 ended
ZZT23# MTM —
33261K — Bearing, Needle Roller (FOR SHIFT & SELECT LEVER SHAFT)
90369-15001 Bearing, Needle Roller (FOR SHIFT & SELECT LEVER SHAFT)
2003-01 → 2005-07 ended
ZZT23# MTM —
33261L — Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
90384-15002 Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
1999-08 → 2002-08 ended
ZZT23# MTM —
90384-15002 Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT)
2002-08 → 2003-01 ended
ZZT23# MTM —
33266C — Plate, Shift Interlock
33266-20020 Plate, Shift Interlock
1999-08 → 2002-08 ended
ZZT230 5F —
33266-20030 Plate, Shift Interlock
1999-08 → 2001-05 ended
ZZT231 6F —
33266-20040 Plate, Shift Interlock
2001-05 → 2002-08 ended
ZZT231 6F —
33266-20020 Plate, Shift Interlock
2002-08 → 2005-07 ended
ZZT230 5F —
33266-20040 Plate, Shift Interlock
2002-08 → 2005-07 ended
ZZT231 6F —
33266D — Gasket (FOR SHIFT INTERLOCK PLATE)
90430-12008 Gasket (FOR SHIFT INTERLOCK PLATE)
2004-06 → 2005-01 ended
ZZT230 5F —
33275 — Seat, Shift Detent Ball Spring, NO.1
33275-12041 note Seat, Shift Detent Ball Spring, NO.1
1999-08 → 2002-08 ended
ZZT23# MTM —
33275-12041 note Seat, Shift Detent Ball Spring, NO.1
2002-08 → 2005-07 ended
ZZT23# MTM —
33275C — Ball (FOR SHIFT DETENT)
90360-10003 Ball (FOR SHIFT DETENT)
1999-08 → 2002-08 ended
ZZT23# MTM —
90360-10003 Ball (FOR SHIFT DETENT)
2002-08 → 2005-07 ended
ZZT23# MTM —
33275E — Spring, Compression (FOR SHIFT DETENT BALL)
90501-12173 Spring, Compression (FOR SHIFT DETENT BALL)
1999-08 → 2002-08 ended
ZZT23# MTM —
90501-12173 Spring, Compression (FOR SHIFT DETENT BALL)
2002-08 → 2002-11 ended
ZZT230 5F —
90501-12173 Spring, Compression (FOR SHIFT DETENT BALL)
2002-08 → 2005-07 ended
ZZT231 6F —
90501-12187 Spring, Compression (FOR SHIFT DETENT BALL)
2002-11 → 2005-07 ended
ZZT230 5F —
33275F — Plug (FOR SHIFT DETENT BALL)
90341-12004 Plug (FOR SHIFT DETENT BALL)
1999-08 → 2002-08 ended
ZZT23# MTM —
90341-12004 Plug (FOR SHIFT DETENT BALL)
2002-08 → 2005-07 ended
ZZT23# MTM —
33276E — Seat, Select Spring, NO.1
33276-12022 Seat, Select Spring, NO.1
1999-08 → 2002-08 ended
ZZT230 5F —
33276-12030 Seat, Select Spring, NO.1
1999-08 → 2002-08 ended
ZZT231 6F —
33276-12022 Seat, Select Spring, NO.1
2002-08 → 2005-07 ended
ZZT230 5F —
33276-12030 Seat, Select Spring, NO.1
2002-08 → 2005-07 ended
ZZT231 6F —
33276F — Spring, Compression, NO.1 (FOR SELECT RETURN)
90501-16142 Spring, Compression, NO.1 (FOR SELECT RETURN)
1999-08 → 2002-08 ended
ZZT230 5F —
90501-16167 Spring, Compression, NO.1 (FOR SELECT RETURN)
1999-08 → 2000-01 ended
ZZT231 6F —
90501-18122 Spring, Compression, NO.1 (FOR SELECT RETURN)
2000-06 → 2001-05 ended
ZZT231 6F —
90501-20169 Spring, Compression, NO.1 (FOR SELECT RETURN)
2000-01 → 2000-06 ended
ZZT231 6F —
90501-27035 Spring, Compression, NO.1 (FOR SELECT RETURN)
2001-05 → 2002-08 ended
ZZT231 6F —
90501-16142 Spring, Compression, NO.1 (FOR SELECT RETURN)
2002-08 → 2005-02 ended
ZZT230 5F —
90501-17040 Spring, Compression, NO.1 (FOR SELECT RETURN)
2005-02 → 2005-07 ended
ZZT230 5F —
90501-27035 Spring, Compression, NO.1 (FOR SELECT RETURN)
2002-08 → 2005-07 ended
ZZT231 6F —
33276H — Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
90520-15003 Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
1999-08 → 2002-08 ended
ZZT230 5F —
90520-15003 Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT)
2002-08 → 2005-07 ended
ZZT230 5F —
33277 — Seat, Select Spring, NO.2
33277-12011 Seat, Select Spring, NO.2
1999-08 → 2002-08 ended
ZZT230 5F —
33277-12020 Seat, Select Spring, NO.2
1999-08 → 2002-08 ended
ZZT231 6F —
33277-12011 Seat, Select Spring, NO.2
2002-08 → 2005-07 ended
ZZT230 5F —
33277-12020 Seat, Select Spring, NO.2
2002-08 → 2005-07 ended
ZZT231 6F —
33277A — Spring, Compression, NO.2 (FOR SELECT RETURN)
90501-16136 Spring, Compression, NO.2 (FOR SELECT RETURN)
1999-08 → 2002-08 ended
ZZT230 5F —
90501-16152 Spring, Compression, NO.2 (FOR SELECT RETURN)
1999-08 → 2000-01 ended
ZZT231 6F —
90501-18123 Spring, Compression, NO.2 (FOR SELECT RETURN)
2000-06 → 2002-08 ended
ZZT231 6F —
90501-20170 Spring, Compression, NO.2 (FOR SELECT RETURN)
2000-01 → 2000-06 ended
ZZT231 6F —
90501-16136 Spring, Compression, NO.2 (FOR SELECT RETURN)
2002-08 → 2005-07 ended
ZZT230 5F —
90501-18123 Spring, Compression, NO.2 (FOR SELECT RETURN)
2002-08 → 2005-07 ended
ZZT231 6F —
33277B — Ring, E (FOR SELECT SPRING NO.2 SEAT)
90523-12003 Ring, E (FOR SELECT SPRING NO.2 SEAT)
1999-08 → 2002-08 ended
ZZT23# MTM —
90523-12003 Ring, E (FOR SELECT SPRING NO.2 SEAT)
2002-08 → 2005-07 ended
ZZT23# MTM —
33280 — Pin Assy, Reverse Restrict
33280-12061 Pin Assy, Reverse Restrict
1999-08 → 2002-08 ended
ZZT230 5F —
33280-12061 Pin Assy, Reverse Restrict
2002-08 → 2005-07 ended
ZZT230 5F —
33283D — Plug (FOR REVERSE RESTRICT PIN)
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
1999-08 → 2002-08 ended
ZZT230 5F —
90341-14008 Plug (FOR REVERSE RESTRICT PIN)
1999-08 → 2002-08 ended
ZZT231 6F —
90341-10065 Plug (FOR REVERSE RESTRICT PIN)
2002-08 → 2005-07 ended
ZZT230 5F —
90341-14008 Plug (FOR REVERSE RESTRICT PIN)
2002-08 → 2005-07 ended
ZZT231 6F —
33283G — Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
90254-05003 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
1999-08 → 2002-08 ended
ZZT230 5F —
90254-05003 Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2002-08 → 2005-07 ended
ZZT230 5F —
33290 — Ball Assy, Lock, NO.1
33290-12011 note Ball Assy, Lock, NO.1
1999-08 → 2002-08 ended
ZZT230 5F —
33290-33011 note Ball Assy, Lock, NO.1
1999-08 → 2002-08 ended
ZZT230 5F —
33290-33011 Ball Assy, Lock, NO.1
1999-08 → 2002-08 ended
ZZT231 6F —
33290-12011 note Ball Assy, Lock, NO.1
2002-08 → 2005-07 ended
ZZT230 5F —
33290-33011 note Ball Assy, Lock, NO.1
2002-08 → 2004-06 ended
ZZT230 5F —
33290-33011 Ball Assy, Lock, NO.1
2002-08 → 2004-08 ended
ZZT231 6F —
33290-52040 Ball Assy, Lock, NO.1
2004-08 → 2005-07 ended
ZZT231 6F —
33290-52040 note Ball Assy, Lock, NO.1
2004-06 → 2005-07 ended
ZZT230 5F —
33528B — Cover, Control Shaft
33506-20280 Cover, Control Shaft
1999-08 → 2000-01 ended
ZZT231 6F —
33506-20290 Cover, Control Shaft
1999-08 → 2002-08 ended
ZZT230 5F —
33506-20300 Cover, Control Shaft
2000-01 → 2000-06 ended
ZZT231 6F —
33506-20301 Cover, Control Shaft
2000-06 → 2001-05 ended
ZZT231 6F —
33506-20302 Cover, Control Shaft
2001-05 → 2002-08 ended
ZZT231 6F —
33506-20290 Cover, Control Shaft
2002-08 → 2003-01 ended
ZZT230 5F —
33506-20291 Cover, Control Shaft
2003-01 → 2005-07 ended
ZZT230 5F —
33506-20302 Cover, Control Shaft
2002-08 → 2003-01 ended
ZZT231 6F —
33506-20303 Cover, Control Shaft
2003-01 → 2005-07 ended
ZZT231 6F —
33528E — Bolt (FOR CONTROL SHAFT COVER)
90119-10288 note Bolt (FOR CONTROL SHAFT COVER)
1999-08 → 2002-08 ended
ZZT23# MTM —
91611-61025 note Bolt (FOR CONTROL SHAFT COVER)
1999-08 → 2002-08 ended
ZZT23# MTM —
90119-10288 note Bolt (FOR CONTROL SHAFT COVER)
2002-08 → 2005-07 ended
ZZT23# MTM —
91612-61025 note Bolt (FOR CONTROL SHAFT COVER)
2002-08 → 2005-07 ended
ZZT23# MTM —
33528J — Bush, Bimetal Formed (FOR CONTROL SHAFT COVER)
90384-18017 Bush, Bimetal Formed (FOR CONTROL SHAFT COVER)
1999-08 → 2002-08 ended
ZZT23# MTM —
90384-18017 Bush, Bimetal Formed (FOR CONTROL SHAFT COVER)
2002-08 → 2003-01 ended
ZZT23# MTM —
33531B — Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
33531-17010 Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
1999-08 → 2002-08 ended
ZZT23# MTM —
33531-17010 Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT)
2002-08 → 2005-07 ended
ZZT23# MTM —
33584A — Gasket, Control Shift Lever Retainer
33584-12060 Gasket, Control Shift Lever Retainer
1999-08 → 2002-08 ended
ZZT23# MTM —
33584-12060 Gasket, Control Shift Lever Retainer
2002-08 → 2005-07 ended
ZZT23# MTM —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
