Toyota Celica
1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · Europe
Discontinued model
Data version 2006-01

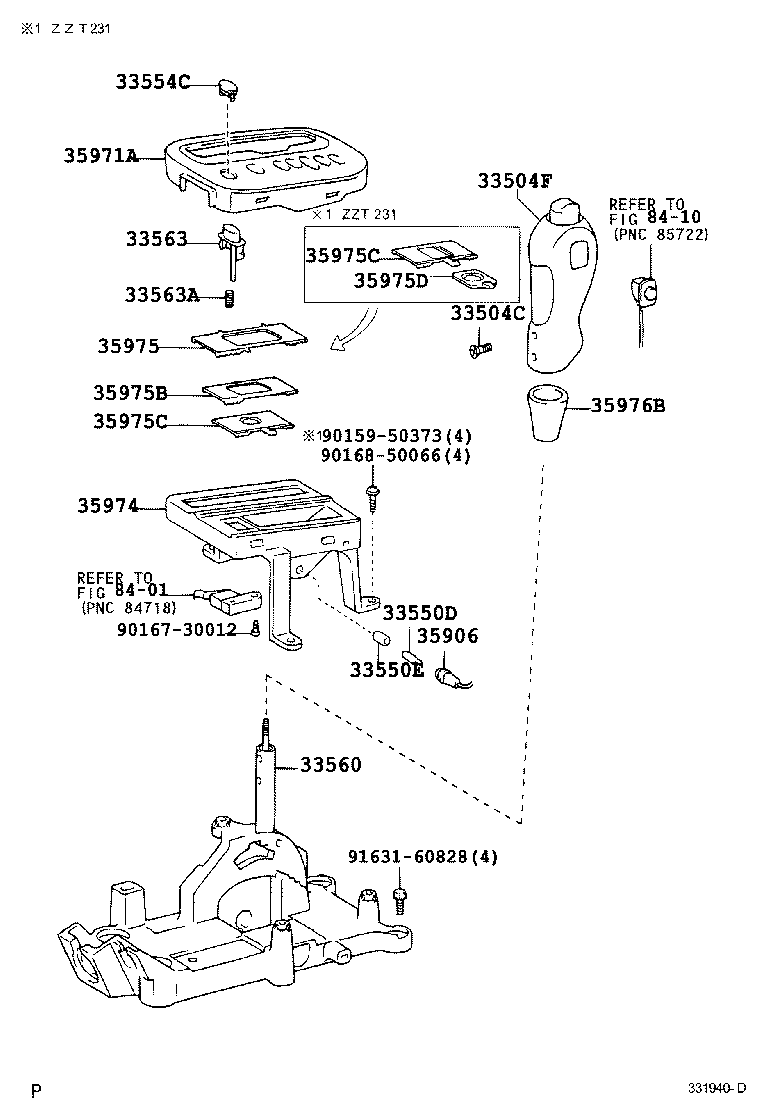

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504C — Screw (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
Screw (FOR SHIFT LEVER KNOB SETTING)
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 90159-40238 |
Screw (FOR SHIFT LEVER KNOB SETTING)
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-14120-C1 note |
Knob Sub-assy, Shift Lever
1999-08 → 2002-08
ended
|
ZZT230 5F | — | |
| 33504-14140-C1 note |
Knob Sub-assy, Shift Lever
1999-08 → 2002-08
ended
|
ZZT230 5F | — | |
| 33504-20150-C0 note |
Knob Sub-assy, Shift Lever
1999-08 → 2002-08
ended
|
ZZT231 6F | — | |
| 33504-20210 |
Knob Sub-assy, Shift Lever
1999-08 → 2002-08
ended
|
ZZT230 4FC | — | |
| 33504-20220 |
Knob Sub-assy, Shift Lever
1999-08 → 2002-08
ended
|
ZZT231 4FC | — | |
| 33504-14120-C1 note |
Knob Sub-assy, Shift Lever
2002-08 → 2005-07
ended
|
ZZT230 5F | — | |
| 33504-14140-C1 note |
Knob Sub-assy, Shift Lever
2002-08 → 2005-07
ended
|
ZZT230 5F | — | |
| 33504-20150-C0 note |
Knob Sub-assy, Shift Lever
2002-08 → 2005-07
ended
|
ZZT231 6F | — | |
| 33504-20210 |
Knob Sub-assy, Shift Lever
2002-08 → 2005-07
ended
|
ZZT230 4FC | — | |
| 33504-20220 |
Knob Sub-assy, Shift Lever
2002-08 → 2005-07
ended
|
ZZT231 4FC | — | |
| 33550D — Bulb, Position Indicator Lamp | ||||
| 90981-11018 note |
Bulb, Position Indicator Lamp
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 90981-11018 note |
Bulb, Position Indicator Lamp
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 33550E — Cap, Position Indicator Lamp | ||||
| 90339-04049 |
Cap, Position Indicator Lamp
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 90339-04049 |
Cap, Position Indicator Lamp
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 33554C — Cover, Shift Lock Release Button | ||||
| 33554-20080 |
Cover, Shift Lock Release Button
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 33554-20090 |
Cover, Shift Lock Release Button
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 33560 — Unit Assy, Shift Lock Control | ||||
| 33560-20040 |
Unit Assy, Shift Lock Control
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 33560-20090 |
Unit Assy, Shift Lock Control
2002-08 → 2005-07
ended
|
ZZT230 4FC | — | |
| 33560-20100 |
Unit Assy, Shift Lock Control
2002-08 → 2005-07
ended
|
ZZT231 4FC | — | |
| 33563 — Button, Shift Lock Release | ||||
| 33563-20140 |
Button, Shift Lock Release
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 33563-20140 |
Button, Shift Lock Release
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 33563A — Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05042 |
Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 90501-05042 |
Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 35906 — Wire Sub-assy, Indicator Lamp | ||||
| 35906-20110 |
Wire Sub-assy, Indicator Lamp
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 35906-20110 |
Wire Sub-assy, Indicator Lamp
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 35971A — Housing, Position Indicator, Upper | ||||
| 35971-20370 |
Housing, Position Indicator, Upper
1999-08 → 2002-08
ended
|
ZZT230 4FC | — | |
| 35971-20380 |
Housing, Position Indicator, Upper
1999-08 → 2002-08
ended
|
ZZT231 4FC | — | |
| 35971-20420 |
Housing, Position Indicator, Upper
2002-08 → 2005-07
ended
|
ZZT230 4FC | — | |
| 35971-20430 |
Housing, Position Indicator, Upper
2002-08 → 2005-07
ended
|
ZZT231 4FC | — | |
| 35974 — Housing, Position Indicator, Lower | ||||
| 35974-20230 |
Housing, Position Indicator, Lower
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 35974-20230 |
Housing, Position Indicator, Lower
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 35975 — Cover, Slide (FOR POSITION INDICATOR) | ||||
| 35975-20180 |
Cover, Slide (FOR POSITION INDICATOR)
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 35975-20180 |
Cover, Slide (FOR POSITION INDICATOR)
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 35975B — Cover, Slide, NO.2(FOR POSITION INDICATOR) | ||||
| 35975-20190 |
Cover, Slide, NO.2(FOR POSITION INDICATOR)
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 35975-20190 |
Cover, Slide, NO.2(FOR POSITION INDICATOR)
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
| 35975C — Cover, Slide, NO.3(FOR POSISION INDICATOR) | ||||
| 35975-20200 |
Cover, Slide, NO.3(FOR POSISION INDICATOR)
1999-08 → 2002-08
ended
|
ZZT230 4FC | — | |
| 35975-20210 |
Cover, Slide, NO.3(FOR POSISION INDICATOR)
1999-08 → 2002-08
ended
|
ZZT231 4FC | — | |
| 35975-20200 |
Cover, Slide, NO.3(FOR POSISION INDICATOR)
2002-08 → 2005-07
ended
|
ZZT230 4FC | — | |
| 35975-20210 |
Cover, Slide, NO.3(FOR POSISION INDICATOR)
2002-08 → 2005-07
ended
|
ZZT231 4FC | — | |
| 35975D — Cover, Slide, NO.4(FOR POSITION INDICATOR) | ||||
| 35975-20220 |
Cover, Slide, NO.4(FOR POSITION INDICATOR)
1999-08 → 2002-08
ended
|
ZZT231 4FC | — | |
| 35975-20220 |
Cover, Slide, NO.4(FOR POSITION INDICATOR)
2002-08 → 2005-07
ended
|
ZZT231 4FC | — | |
| 35976B — Cover, Shift Lever Knob (FOR FLOOR SHIFT) | ||||
| 35976-20120 |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1999-08 → 2002-08
ended
|
ZZT23# 4FC | — | |
| 35976-20120 |
Cover, Shift Lever Knob (FOR FLOOR SHIFT)
2002-08 → 2005-07
ended
|
ZZT23# 4FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
