Toyota Celica

1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

22 part groups · 2 illustrations

Illustrations

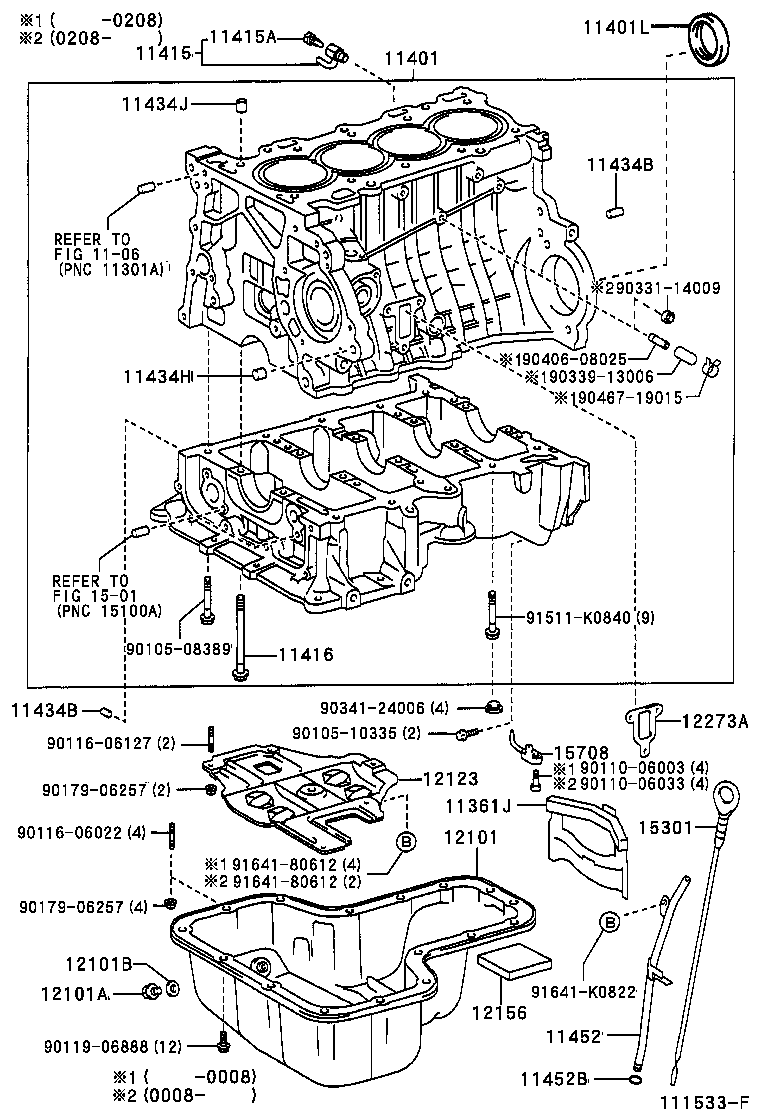

Figure 111516F 111516F 1999-08 → 2005-07 Figure 111533F 111533F 1999-08 → 2005-07

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11401 Block Sub-assy, Cylinder
11401L Seal, Engine Rear Oil
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434R Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12123 Plate, Oil Pan Baffle NO.3
12156 Insulator, Oil Pan
12273A Gasket, Oil Separator
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
