Toyota Celica
1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · Europe
Discontinued model
Data version 2006-01

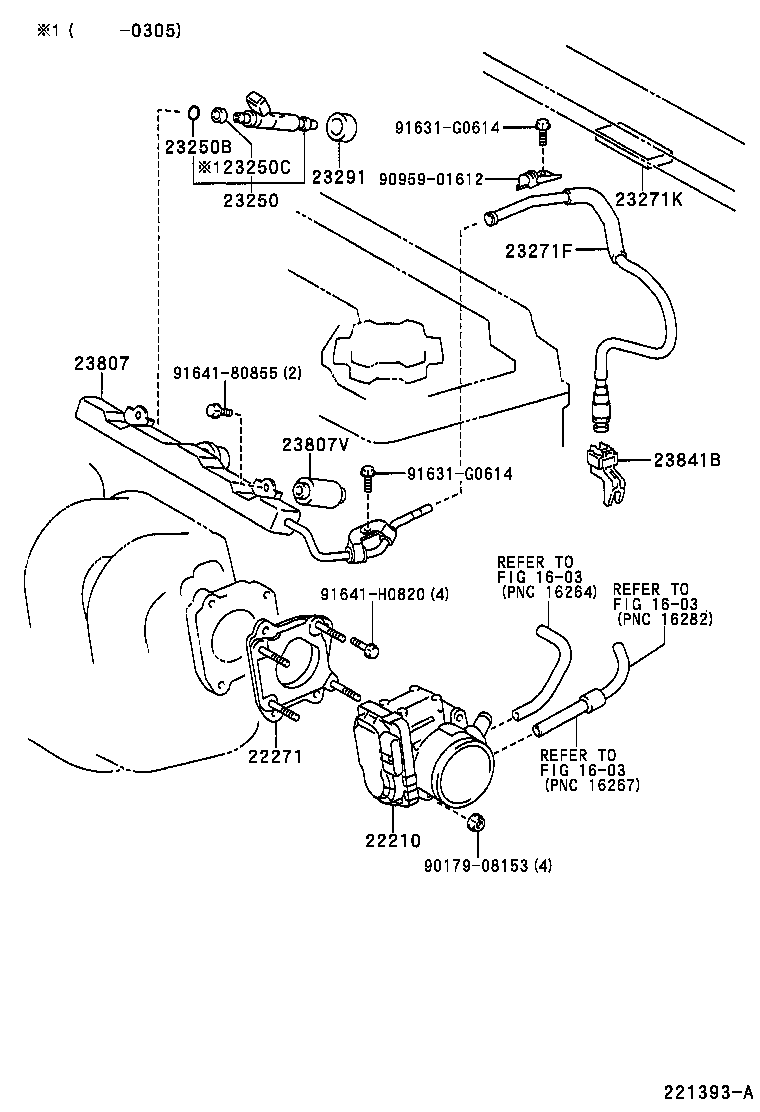

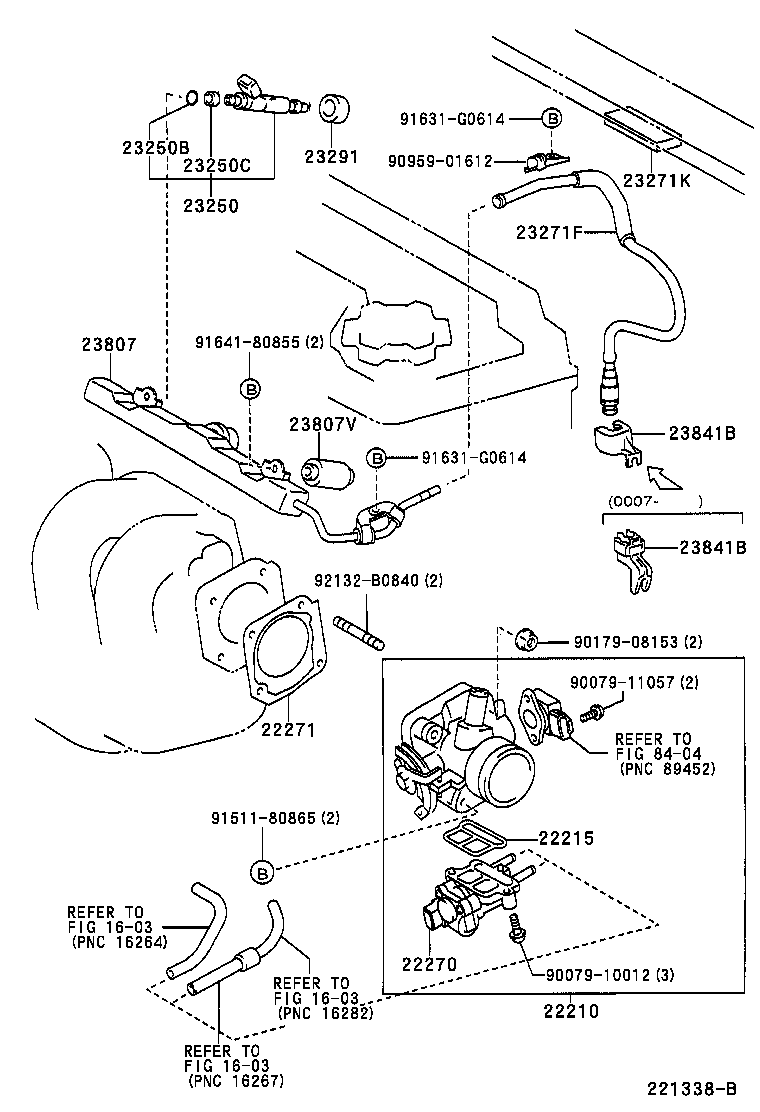

Fuel Injection System
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 22210 | Body Assy, Throttle |
| 22215 | Gasket, Throttle Body Cover |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22271 | Gasket, Throttle Body |
| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23225 | Spacer, Fuel Pump |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23239B | Seal, Fuel Pump Filter |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23271F | Hose, Fuel |
| 23271K | Insulator(FOR FUEL HOSE) |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280E | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23300Z | Filter, Fuel(FOR FUEL TANK) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23901 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
