Valve Body & Oil Strainer (ATM)

179 part groups · 12 illustrations

Illustrations

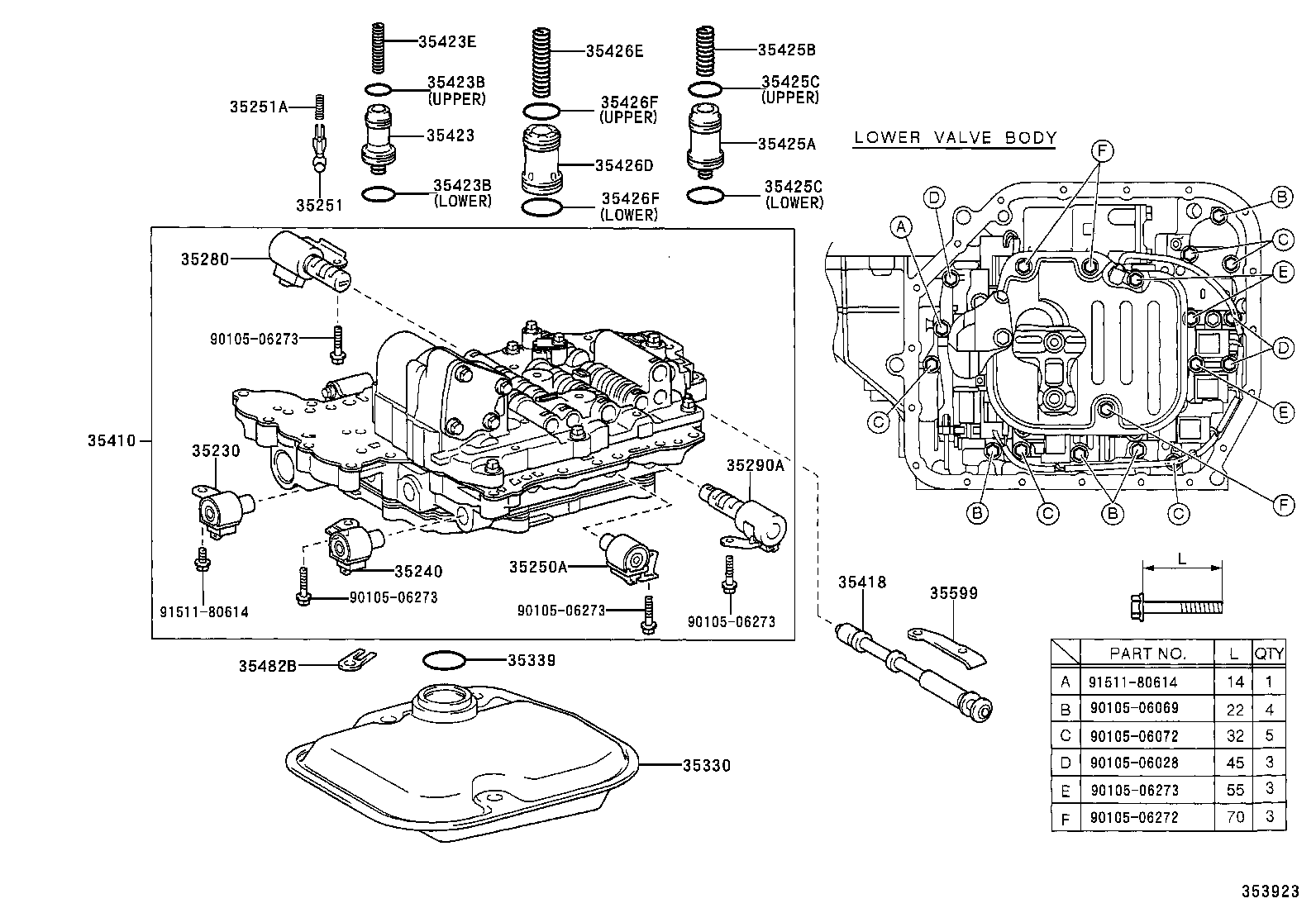

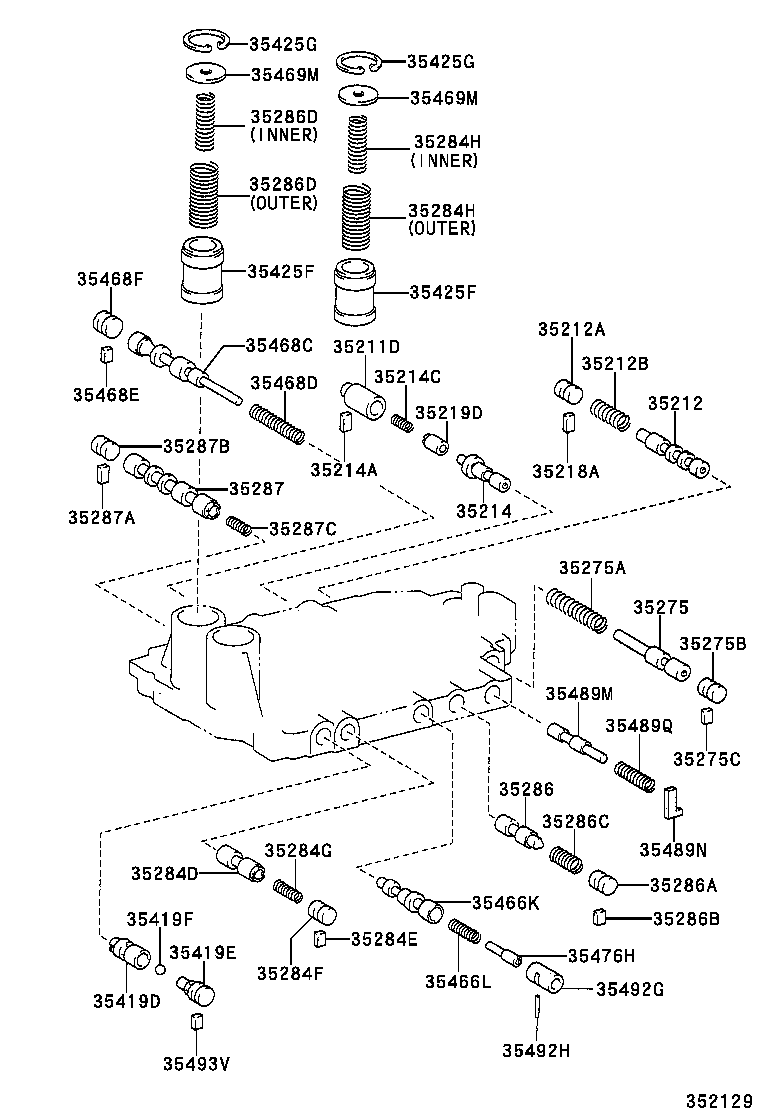

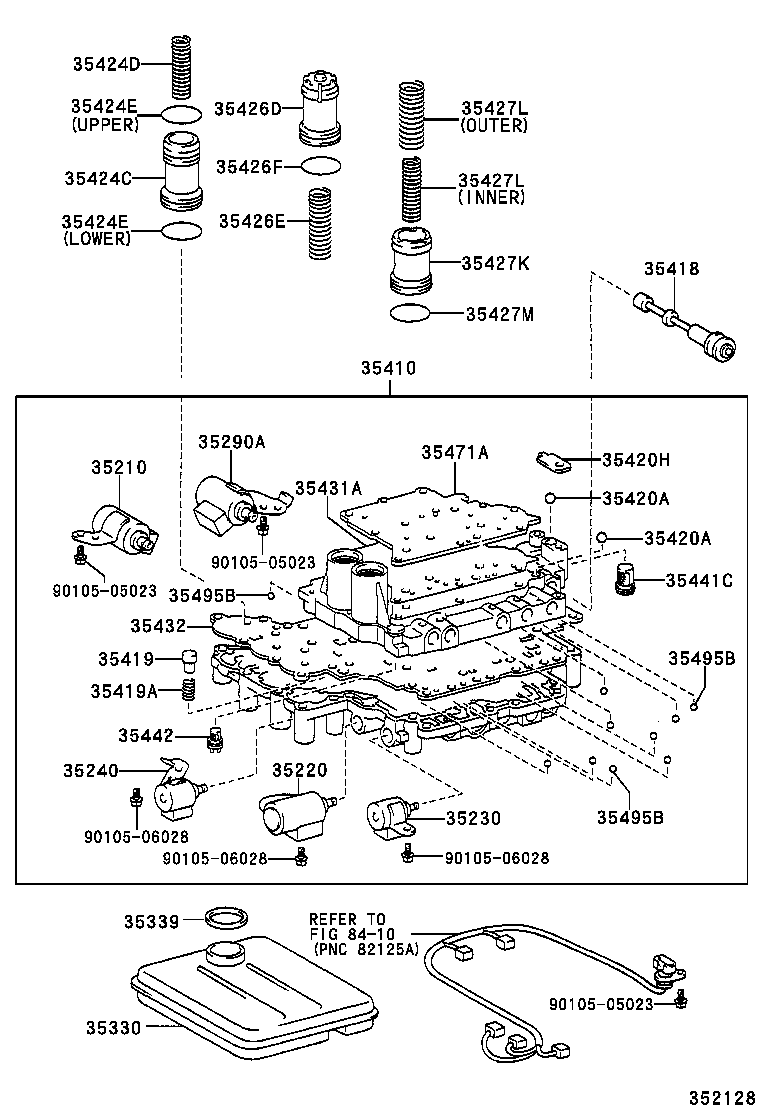

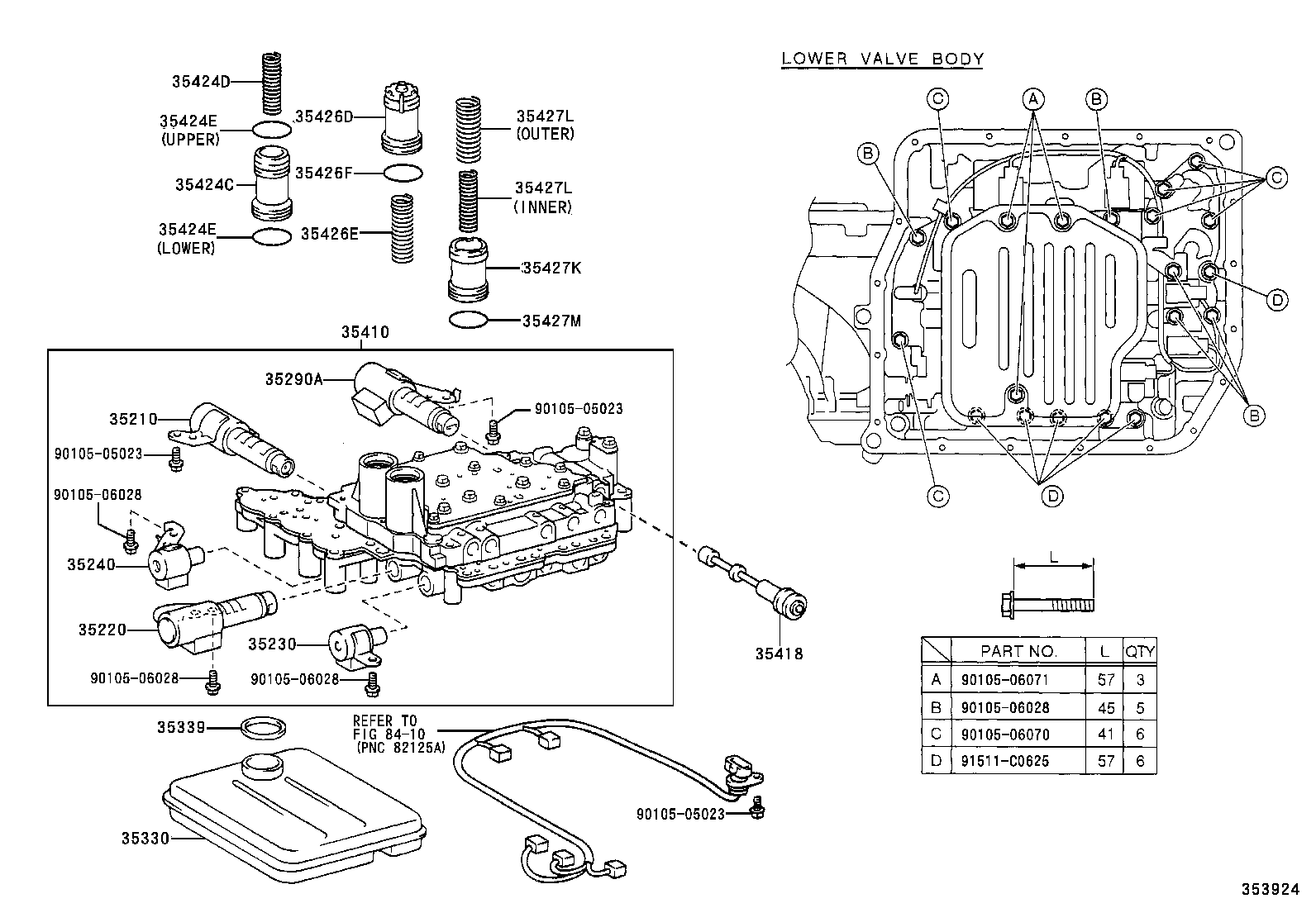

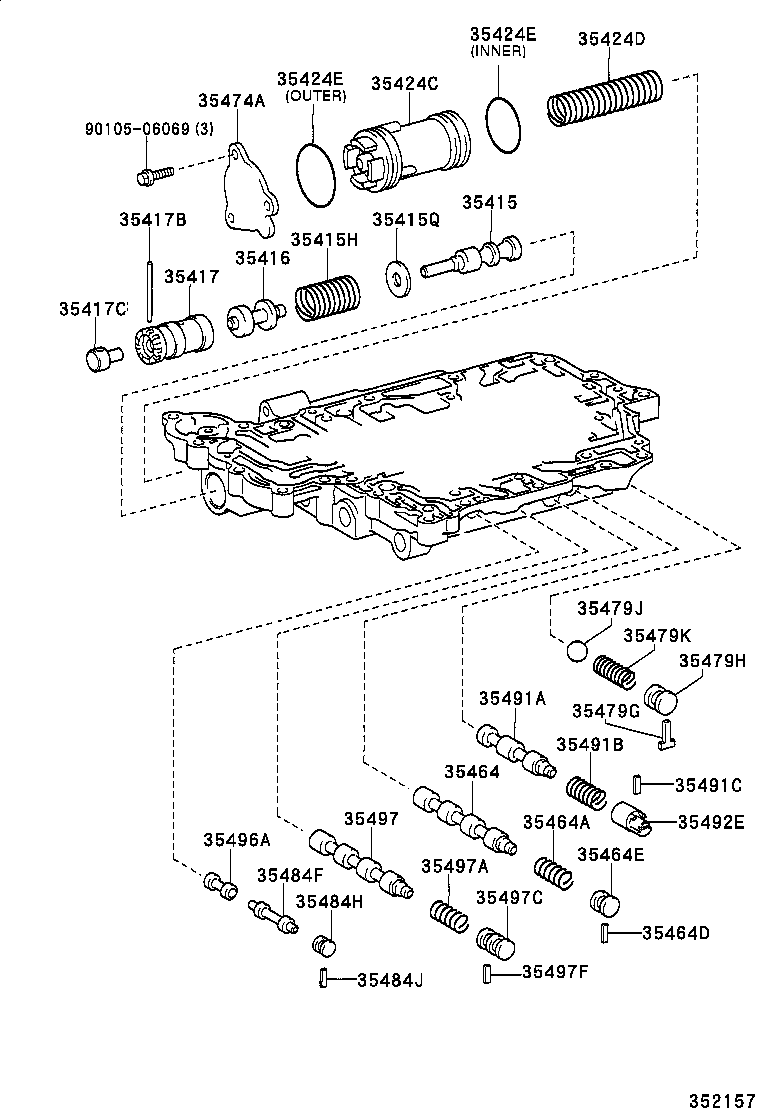

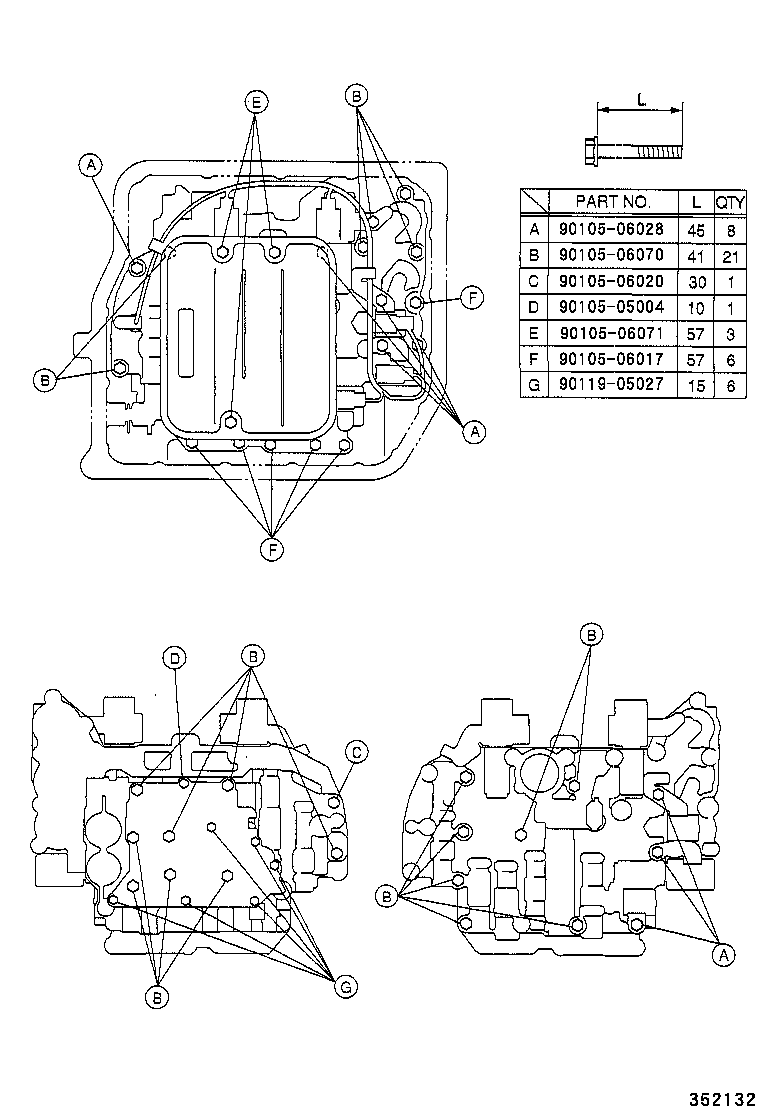

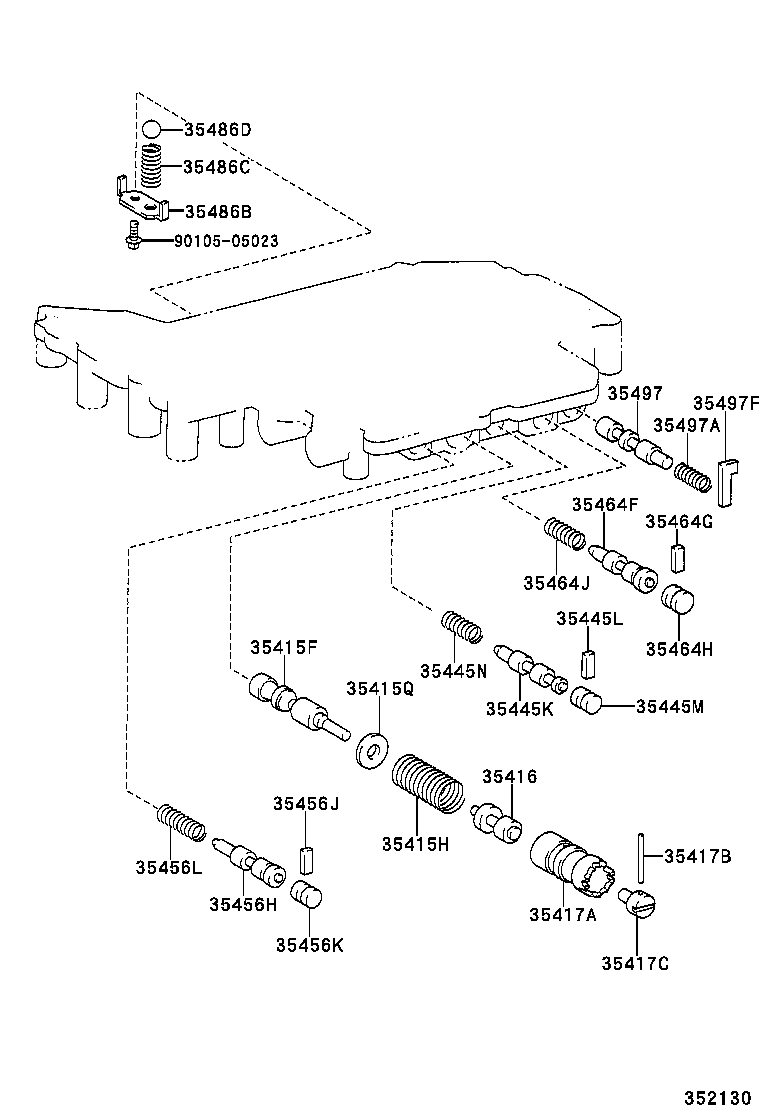

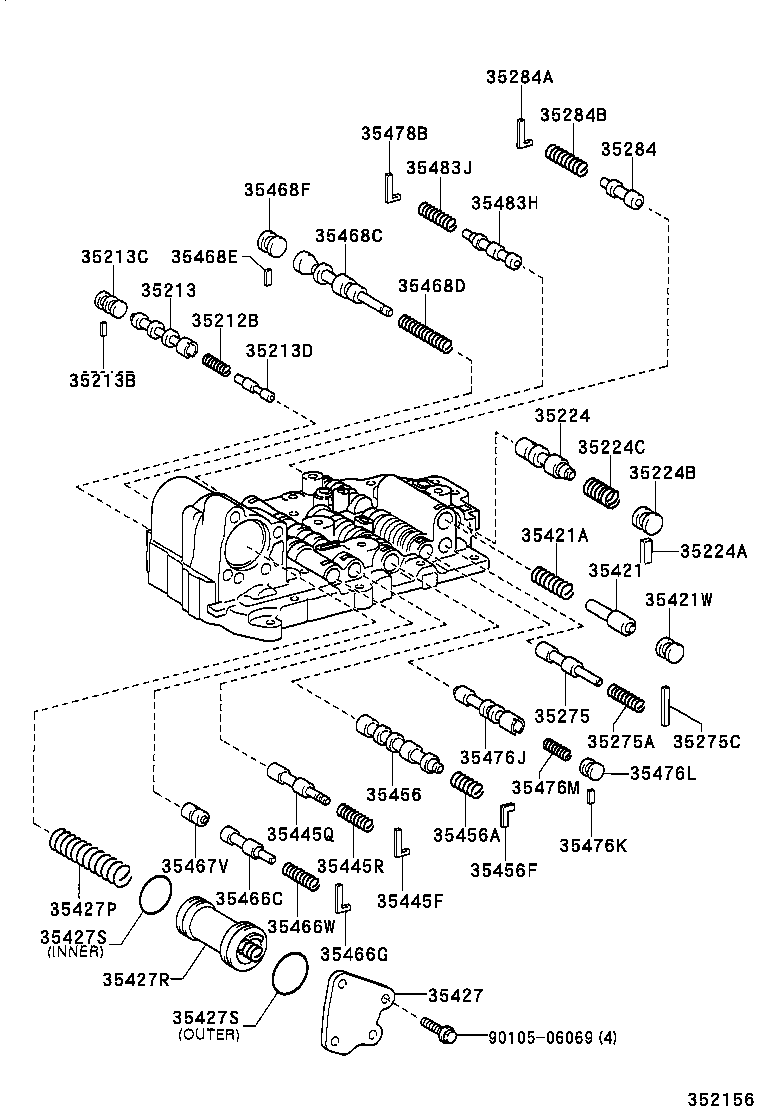

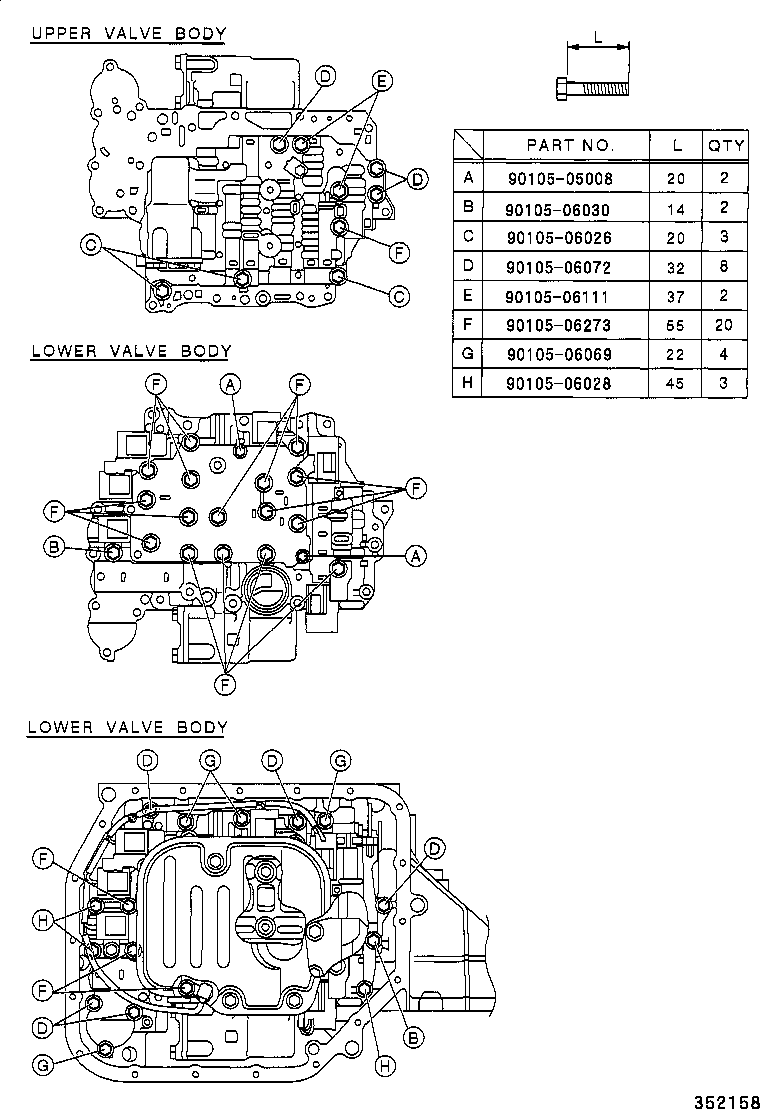

Figure 352155 352155 1999-08 → 2002-08 Figure 352156 352156 1999-08 → 2002-08 Figure 352157 352157 1999-08 → 2002-08 Figure 352158 352158 1999-08 → 2002-08 Figure 352128 352128 1999-08 → 2002-08 Figure 352129 352129 1999-08 → 2002-08 Figure 352130 352130 1999-08 → 2002-08 Figure 352131 352131 1999-08 → 2002-08 Figure 352132 352132 1999-08 → 2002-08 Figure 353923 353923 2002-08 → 2005-07 Figure 353924 353924 2002-08 → 2005-07 Figure 353925 353925 2002-08 → 2005-07

Part groups

PNCDescription
35195A Clamp, Transaxle Apply Tube, NO.1
35196 Clamp, Transaxle Apply Tube, NO.2
35210 Solenoid Assy, Clutch Control, NO.1
35211D Sleeve, Lock UP Control Valve
35212 Valve, Lock UP Relay
35212A Seat, Plug (FOR LOCK UP RELAY VALVE)
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213 Valve, Lock UP Relay Control
35213B Key, Straight (FOR LOCK UP CONTROL VALVE)
35213C Plug (FOR LOCK UP CONTROL VALVE)
35213D Plunger, Lock UP Relay Valve
35214 Valve, Lock UP Control
35214A Key, Straight (FOR LOCK UP CONTROL VALVE)
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35218A Key, Straight (FOR LOCK UP RELAY VALVE PLUG)
35219D Plunger, Lock UP Control Valve
35220 Solenoid Assy, Clutch Control, NO.2
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35230 Solenoid Assy, Transmission 3Way, NO.2
35240 Solenoid Assy, Automatic Transmission 3Way
35250A Solenoid Assy, Transmission, NO.3
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35275 Valve, Solenoid Modulator
35275A Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275B Plug (FOR SOLENOID MODULATOR VALVE)
35275C Key, Straight
35280 Solenoid Assy, Lock UP Control
35284 Valve, Solenoid Relay
35284A Key, Straight (FOR SOLENOID RELAY VALVE)
35284B Spring, Compression (FOR SOLENOID RELAY VALVE)
35284D Valve, C-2 Exhaust Check
35284E Key, Straight (FOR C-2 EXHAUST CHECK VALVE)
35284F Plug (FOR C-2 EXHAUST CHECK VALVE)
35284G Spring, Compression (FOR C-2 EXHAUST CHECK VALVE)
35284H Spring, Compression (FOR C-2 LOCK VALVE)
35286 Valve, B-1 Lock
35286A Plug (FOR B-1 LOCK VALVE)
35286B Key, Straight (FOR B-1 LOCK VALVE)
35286C Spring, Compression (FOR B-1 LOCK VALVE)
35286D Spring, Compression (FOR B-1 LOCK VALVE)
35287 Valve, C-2 Lock
35287A Key, Straight (FOR C-2 LOCK VALVE)
35287B Plug (FOR C-2 LOCK VALVE)
35287C Spring, Compression (FOR C-2 LOCK VALVE)
35290A Solenoid Assy, Line Pressure Control
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35415 Valve, Pressure Regulator
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415Q Spacer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417 Sleeve, Pressure Regulator Valve
35417A Sleeve, Primary Regulator Valve
35417B Pin, Straight (FOR PRIMARY REGULATOR VALVE SLEEVE)
35417C Plug(FOR PRIMARY REGULATOR VALVE)
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419D Valve, Check, NO.2
35419E Valve, Check, NO.3
35419F Ball, Check Valve
35420A Ball (FOR PRESSURE RELIEF)
35420F Ball, Check, NO.1
35420H Cover, Check Ball
35421 Piston, Accumulator, NO.1
35421A Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421W Plug, C-1 Accumulator Valve
35423 Piston, B-2 Accumulator
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35423E Spring, Compression (FOR B-2 ACCMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35425F Valve, Accumulator
35425G Ring, Snap (FOR ACCUMULATOR VALVE)
35426D Piston, C-3 Accumulator
35426E Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
35426F Ring, O (FOR C-3 ACCUMULATOR PISTON)
35427 Cover, Accumulator
35427K Piston, B-3 Accumulator
35427L Spring, Compression (FOR B-3 ACCUMULATOR PISTON)
35427M Ring, O (FOR B-3 ACCUMULATOR PISTON)
35427P Spring, Compression, NO.1(FOR B-1 ACCUMULATOR PISTON)
35427R Piston B-1 Accumulator
35427S Ring, O(FOR B-1 ACCUMULATOR PISTON)
35431A Gasket, Upper Valve Body Cover
35432 Plate, Valve Body, NO.1
35438G Plate, Valve Body, NO.2
35441C Strainer, Solenoid Oil
35442 Strainer, Throttle Modulator Oil
35442A Strainer, Solenoid Oil, NO.2
35445F Key, Straight (FOR LOW MODULATOR VALVE)
35445K Valve, B-2 Control
35445L Key, Straight (FOR B-2 CONTROL VALVE)
35445M Plug (FOR B-2 CONTROL VALVE)
35445N Spring, Compression (FOR B-2 CONTROL VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35450E Ball (FOR UPPER VALVE BODY)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35456H Valve, C-2 Control
35456J Key, Straight (FOR C-2 CONTROL VALVE)
35456K Plug (FOR C-2 CONTROL VALVE)
35456L Spring, Compression (FOR C-2 CONTROL VALVE)
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464D Key, Straight (FOR 1-2 SHIFT VALVE)
35464E Plug (FOR 1-2 SHIFT VALVE)
35464F Valve, B-1 Control
35464G Key, Straight (FOR B-1 CONTROL VALVE)
35464H Plug (FOR B-1 CONTROL VALVE)
35464J Spring, Compression (FOR B-1 CONTROL VALVE)
35466C Valve, 3-4 Shift Timing
35466G Key, Straight (FOR 2ND LOCK VALVE)
35466K Valve, Clutch Apply Control
35466L Spring, Compression (FOR CLUTCH APPLY CONTROL VALVE)
35466W Spring, Compression(FOR 3-4 SHIFT TIMING VALVE)
35467V Plunger, 3-4 Shift Timing Valve
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35469M Spacer (FOR ACCUMULATOR VALVE)
35471A Cover, Upper Valve Body
35472A Cover, Lower Valve Body
35474A Cover, Accumulator
35476H Plunger, Clutch Apply Control Valve
35476J Valve, Coast Relay
35476K Key, Straight(FOR COAST RELAY VALVE)
35476L Plug(FOR COAST RELAY VALVE)
35476M Spring, Compression(FOR COAST RELAY VALVE)
35477 Gasket, Valve Body Cover
35478B Key, Valve Spring, NO.2
35479G Key, Valve Spring, NO.1
35479H Plug(FOR VALVE SPRING KEY)
35479J Ball(FOR VALVE SPRING KEY)
35479K Spring, Compression(FOR VALVE SPRING KEY)
35482B Clamp, Temperature Sensor
35483H Valve, 4-3 Shift Timing, NO.1
35483J Spring, Compression(FOR 4-3 SHIFT TIMING VALVE)
35484F Valve, 4-3 Shift Timing, NO.2
35484H Plug(FOR 4-3 SHIFT TIMING VALVE)
35484J Key, Straight(FOR 4-3 SHIFT VALVE)
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D Ball (FOR PRESSURE RELIFE VALVE)
35488C Gasket, Valve Body Cover, NO.2
35489M Valve, B-3 Orifice Control
35489N Key, Straight (FOR B-3 ORIFICE CONTROL VALVE)
35489Q Spring, Compression (FOR B-3 ORIFICE CONTROL VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E Sleeve, Accumulator Control Valve
35492G Sleeve, Clutch Apply Control Valve
35492H Pin, Straight (FOR CLUTCH APPLY CONTROL VALVE)
35493V Seat, Check Valve, NO.2
35495B Ball, Check, NO.1
35496A Plunger, 4-3 Shift Timing Valve, NO.2
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35599 Cover, Manual Detent Spring
35666D Tube, Brake Apply
35882A Tube, Differential Gear Lube Apply
35895 Tube, Front Clutch Apply
