Toyota Celica
1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · Europe
Discontinued model
Data version 2006-01

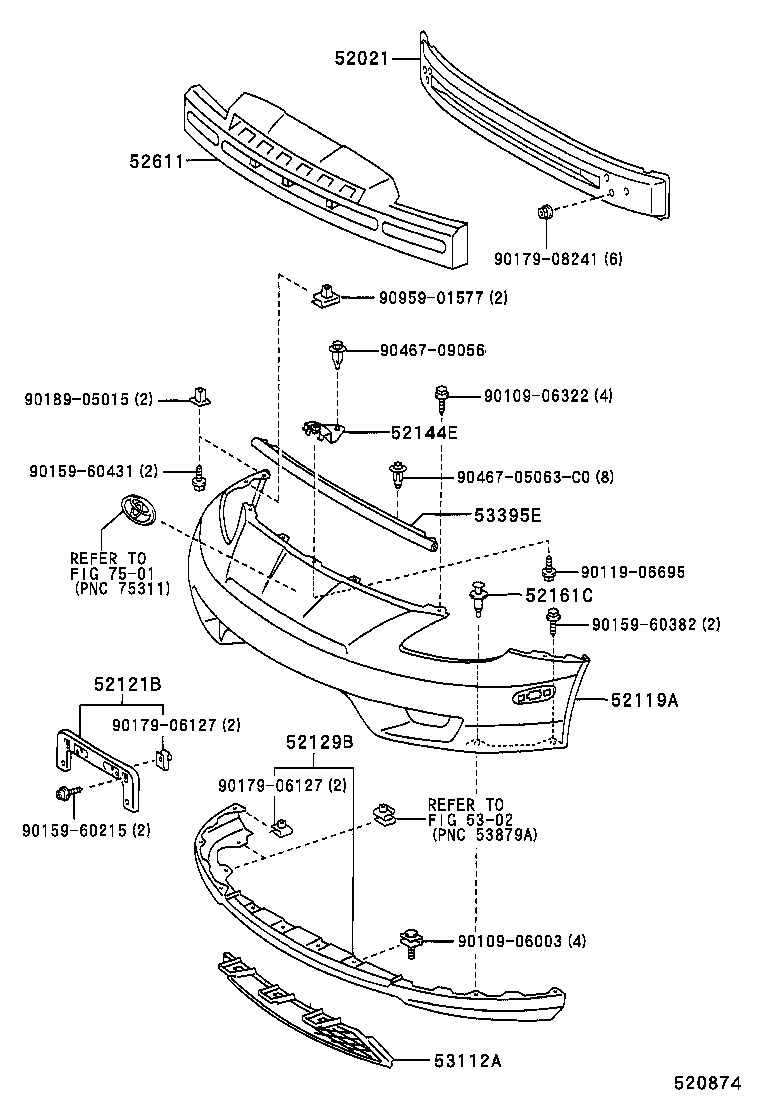

Front Bumper & Bumper Stay
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52119A | Cover, Front Bumper |
| 52121B | Bracket, Front Licence Plate Mounting |
| 52129B | Cover, Front Bumper, Lower |
| 52144E | Stay, Front Bumper, Center |
| 52161C | Piece, Front Bumper |
| 52162C | Piece, Front Bumper |
| 52611 | Absorber, Front Bumper Energy |
| 53112A | Grille, Radiator, Lower |
| 53395E | Seal, Hood TO Front End Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
