Toyota Celica
1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · Europe
Discontinued model
Data version 2006-01
Fuel Tank & Tube

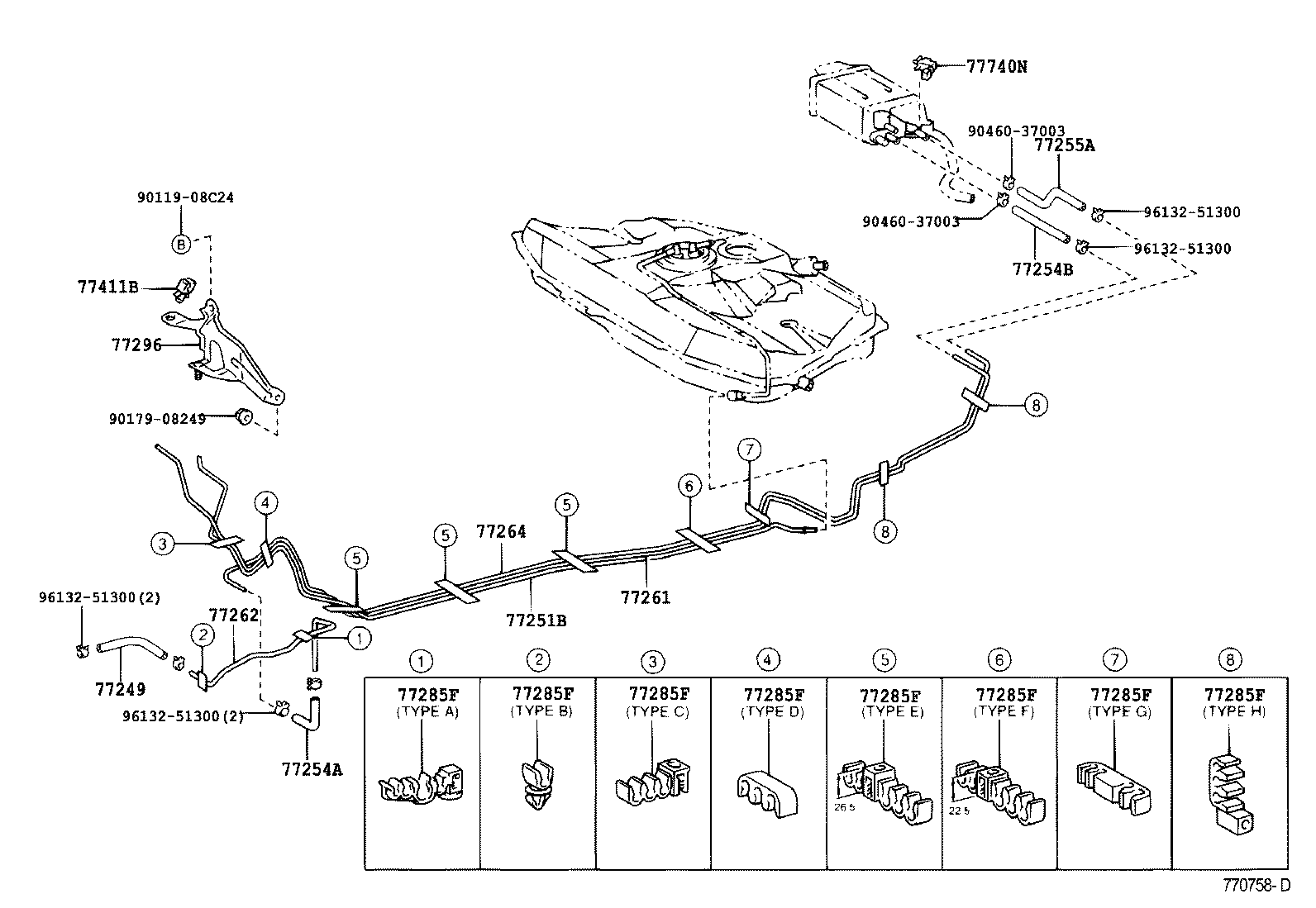

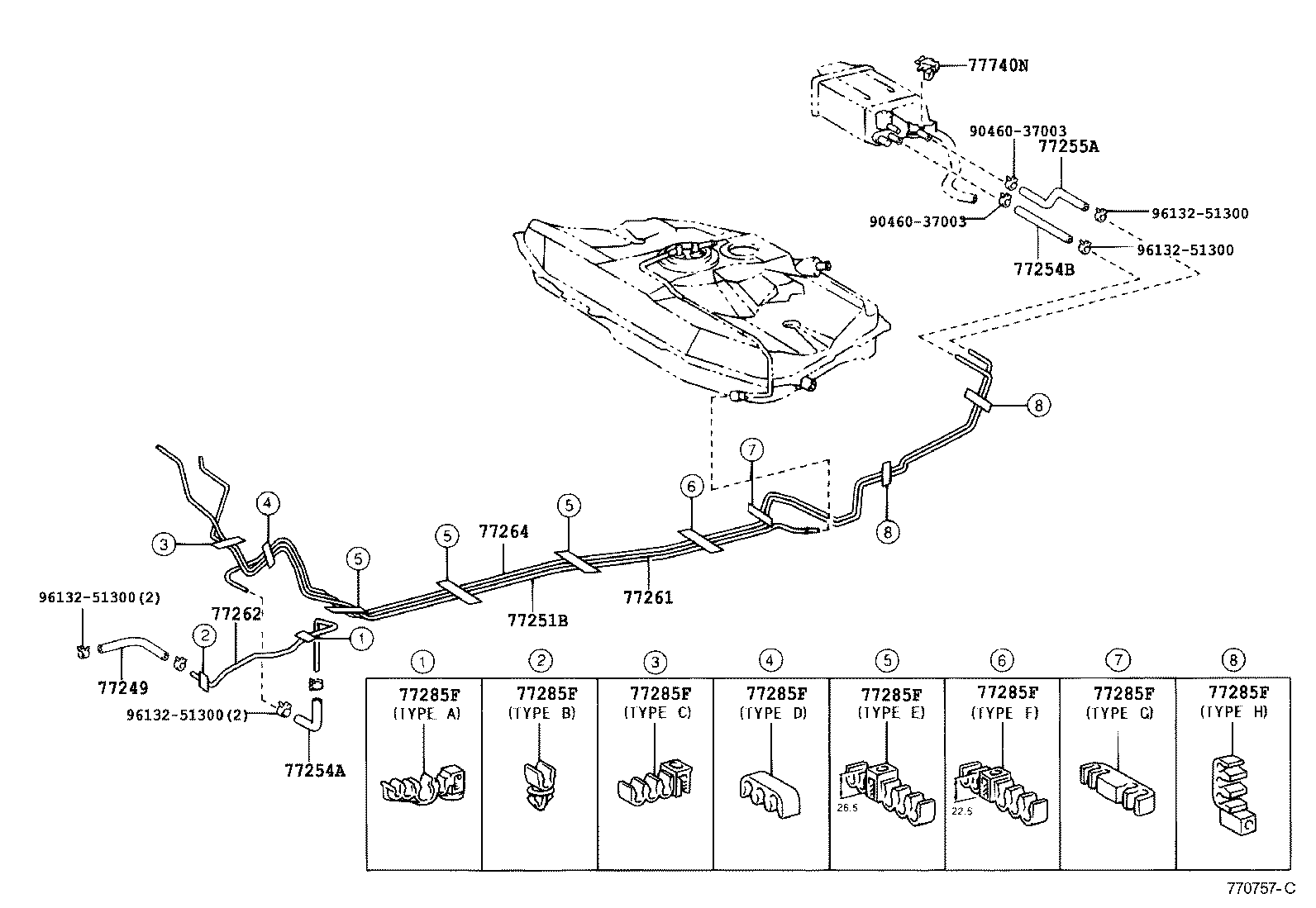

56 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 77024A | Plate Sub-assy, Fuel Suction |
| 77027 | Tube Sub-assy, Fuel Evaporation, NO.2 |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77177 | Gasket, Check Valve |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77229C | Clamp, Breather Tube |
| 77229D | Support, Fuel Tank Filler Pipe, NO.4 |
| 77241W | Clip, Tube Joint |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77255A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2) |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77264 | Tube, Canister TO Front Side Member |
| 77269A | Hose, Fuel Tank Breather |
| 77272B | Support, Breather Tube, NO.1 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77289C | Clamp, Fuel Tube, NO.4 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77296 | Plate, Fuel Tube Grommet Support |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77390D | Valve Assy, Fuel Tank Over Fill Check |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77393 | Protector, Check Valve |
| 77394 | Hose, Valve TO Fuel Filler Pipe |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77444 | Hose, Fuel Tank Vent |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77682 | Seat, Fuel Tank Band, LH |
| 77740 | Canister Assy, Charcoal |
| 77740N | Valve, Vacuum Switching(FOR CHARCOAL CANISTER) |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
