Toyota Celica

1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · Europe

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

7 part groups · 2 illustrations

Illustrations

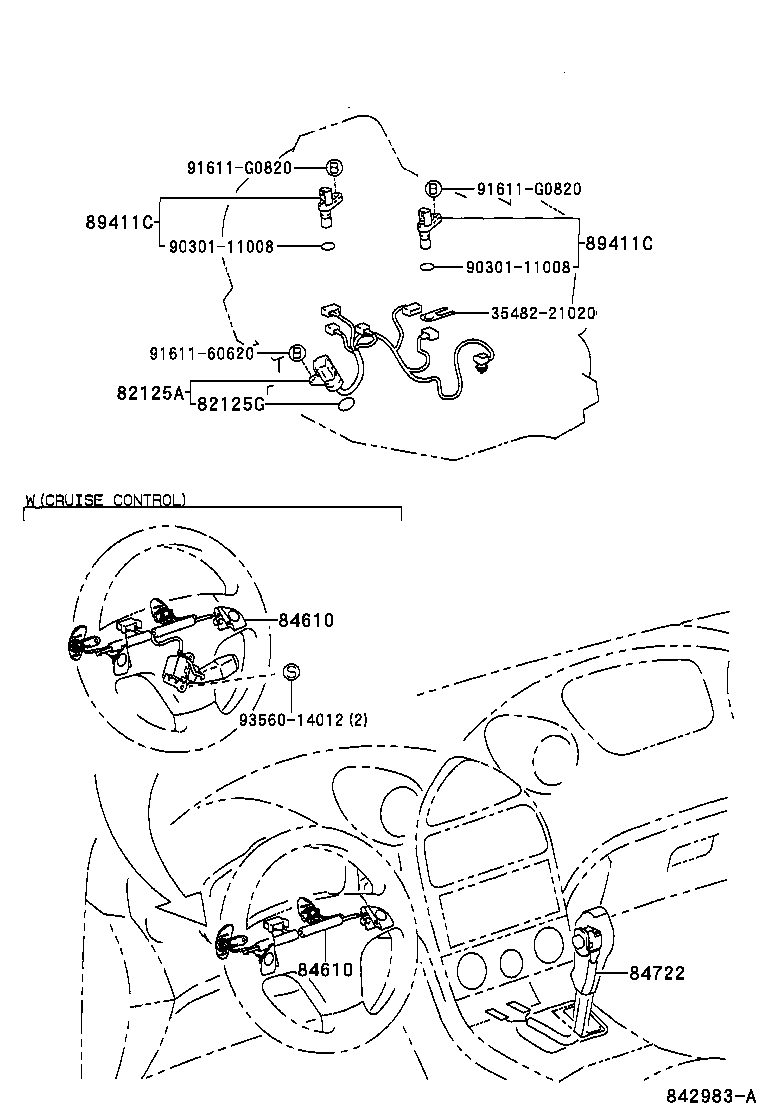

Figure 842982A 842982A 1999-08 → 2005-07 Figure 842983A 842983A 1999-08 → 2005-07

Part groups

PNCDescription
82125A Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
84610 Switch Assy, Transmission Shift
84722 Switch, Transmission Control
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
