Toyota Celica
1999-08 → 2005-07 · chassis ZZT23# · catalogue 252480 · Europe
Discontinued model
Data version 2006-01

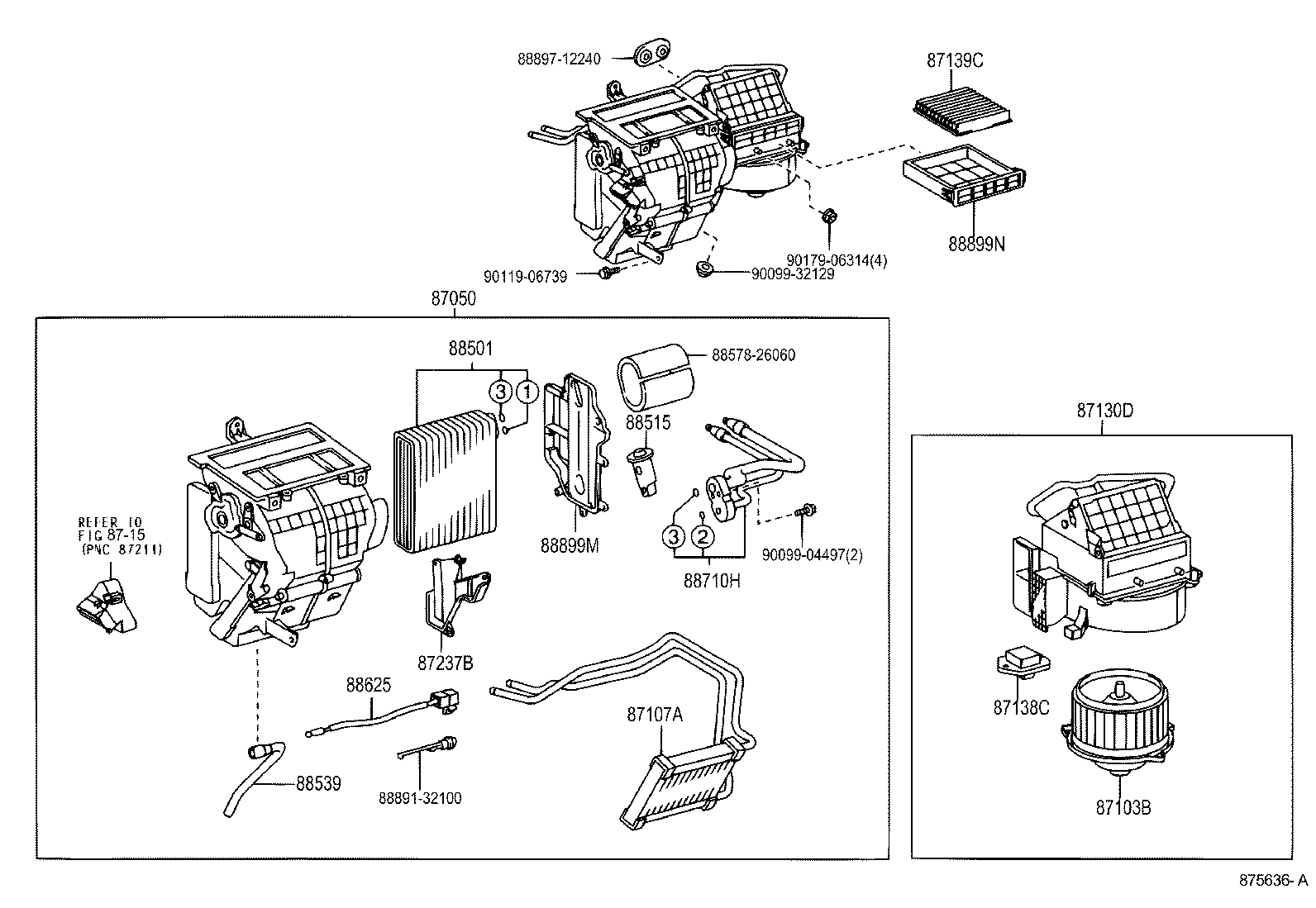

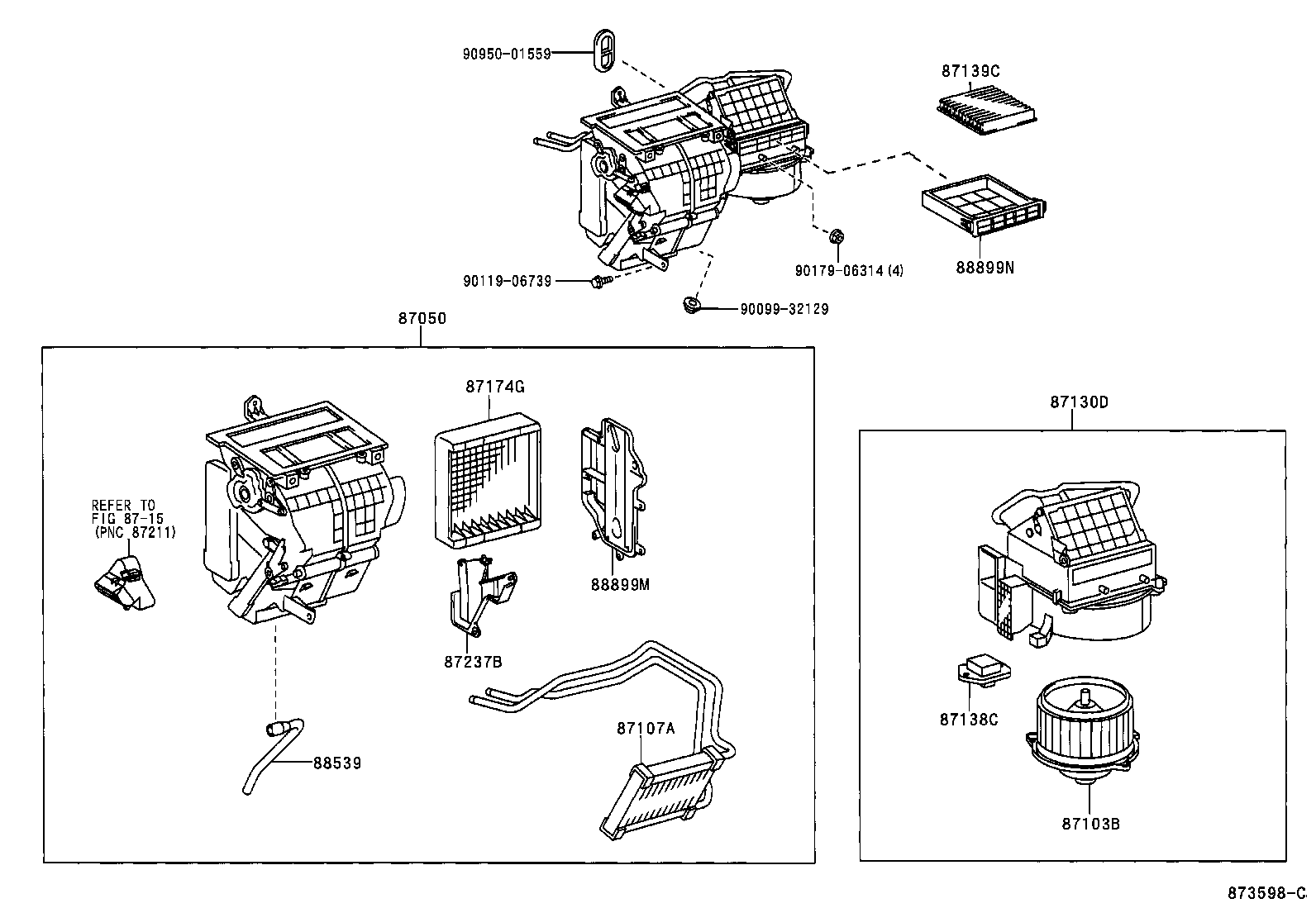

Heating & Air Conditioning - Cooler Unit
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87174G | Guide, Air Heater |
| 87237B | Cover, Heater Piping |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88710H | Tube & Accessory Assy, Air Conditioner |
| 88899K | Plate, Cover |
| 88899M | Plate, Cover(FOR AIR FILTER) |
| 88899N | Plate, Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
