Toyota Celica
1985-08 → 1987-08 · chassis AT160,ST162 · catalogue 252540 · Europe
Discontinued model
Data version 1987-12

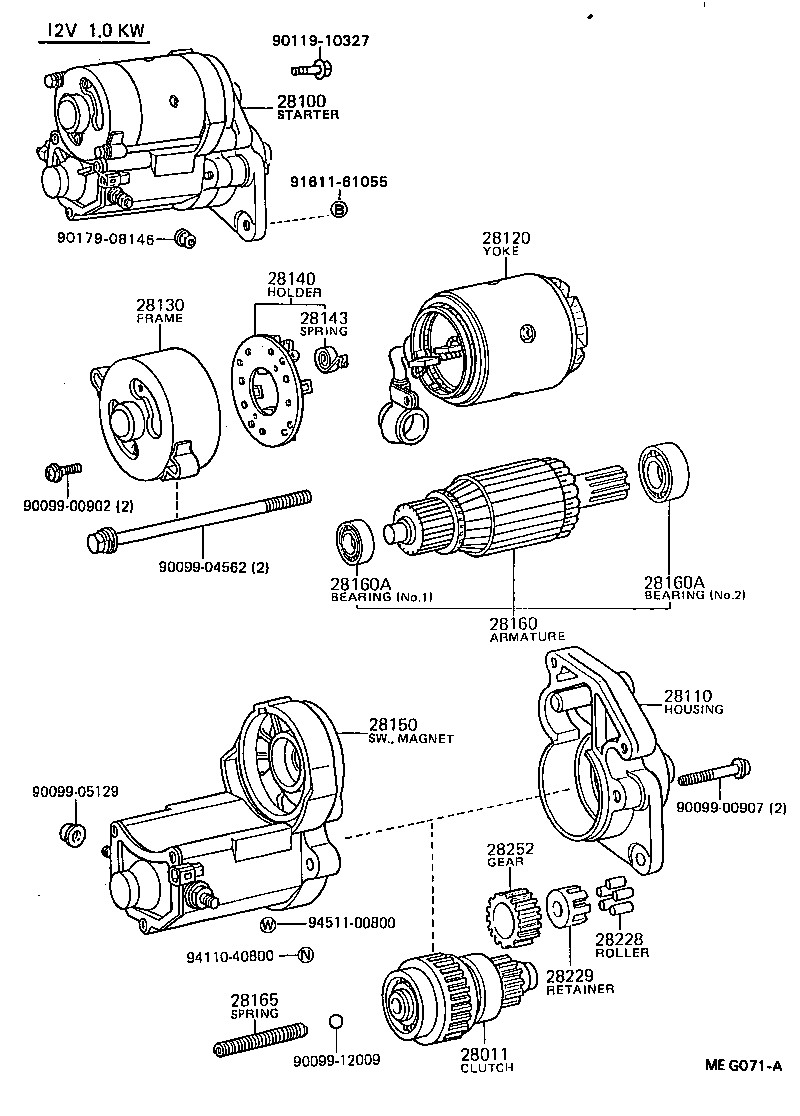

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28011 — Clutch Sub-assy, Starter | ||||
| 28011-15010 note |
Clutch Sub-assy, Starter
1985-08 → 1987-08
ended
|
4A# AT160 | — | |
| 28011-26042 note |
Clutch Sub-assy, Starter
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 28100 — Starter Assy | ||||
| 28100-15060 note |
Starter Assy
1985-08 → 1987-08
ended
|
4AL AT160 | — | |
| 28100-15070 note |
Starter Assy
1985-08 → 1987-08
ended
|
4AL AT160 | — | |
| 28100-15170 note |
Starter Assy
1985-08 → 1987-08
ended
|
4AGEL AT160 | — | |
| 28100-15180 note |
Starter Assy
1985-08 → 1987-08
ended
|
4AGEL AT160 | — | |
| 28100-63050 note |
Starter Assy
1985-08 → 1987-08
ended
|
3SG# ST162 | — | |
| 28110 — Housing Assy, Starter Drive | ||||
| 28110-15060 note |
Housing Assy, Starter Drive
1985-08 → 1987-08
ended
|
4AL AT160 | — | |
| 28110-15070 note |
Housing Assy, Starter Drive
1985-08 → 1987-08
ended
|
4AL AT160 | — | |
| 28110-15110 note |
Housing Assy, Starter Drive
1985-08 → 1987-08
ended
|
4AGEL AT160 | — | |
| 28110-15130 note |
Housing Assy, Starter Drive
1985-08 → 1987-08
ended
|
4AGEL AT160 | — | |
| 28110-63050 note |
Housing Assy, Starter Drive
1985-08 → 1987-08
ended
|
3SG# ST162 | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-15010 note |
Yoke Assy, Starter
1985-08 → 1987-08
ended
|
4AL AT160 | — | |
| 28120-26071 note |
Yoke Assy, Starter
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 28120-26140 note |
Yoke Assy, Starter
1985-08 → 1987-08
ended
|
4AGEL AT160 | — | |
| 28130 — Frame Assy, Starter Commutator End | ||||
| 28130-13010 note |
Frame Assy, Starter Commutator End
1985-08 → 1987-08
ended
|
4AGEL,3SG# AT160,ST162 | — | |
| 28130-13020 note |
Frame Assy, Starter Commutator End
1985-08 → 1987-08
ended
|
4AGEL AT160 | — | |
| 28130-15010 note |
Frame Assy, Starter Commutator End
1985-08 → 1987-08
ended
|
4AL AT160 | — | |
| 28130-15040 note |
Frame Assy, Starter Commutator End
1985-08 → 1987-08
ended
|
4AL AT160 | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-15010 note |
Holder Assy, Starter Brush
1985-08 → 1987-08
ended
|
4A# AT160 | — | |
| 28140-26070 note |
Holder Assy, Starter Brush
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 28143 — Spring, Starter Brush | ||||
| 90099-17112 note |
Spring, Starter Brush
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 28150 — Switch Assy, Magnet Starter | ||||
| 28150-13011 note |
Switch Assy, Magnet Starter
1985-08 → 1987-08
ended
|
4AGEL AT160 | — | |
| 28150-15070 note |
Switch Assy, Magnet Starter
1985-08 → 1987-08
ended
|
4AL AT160 | — | |
| 28150-37010 note |
Switch Assy, Magnet Starter
1985-08 → 1987-08
ended
|
4A# AT160 | — | |
| 28150-63050 note |
Switch Assy, Magnet Starter
1985-08 → 1987-08
ended
|
3SG# ST162 | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-15010 note |
Armature Assy, Starter
1985-08 → 1987-08
ended
|
4A# AT160 | — | |
| 28160-26070 note |
Armature Assy, Starter
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 28160A — Bearing, Starter Armature | ||||
| 28253-45020 note |
Bearing, Starter Armature
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 90099-10113 note |
Bearing, Starter Armature
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 28165 — Spring, Starter Magnet Switch Return | ||||
| 28165-26040 note |
Spring, Starter Magnet Switch Return
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 28228 — Roller, Starter Idle Gear Clutch | ||||
| 28228-26040 note |
Roller, Starter Idle Gear Clutch
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 28229 — Retainer, Starter Idle Gear | ||||
| 28229-26040 note |
Retainer, Starter Idle Gear
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
| 28252 — Gear, Starter Idle | ||||
| 28254-45020 note |
Gear, Starter Idle
1985-08 → 1987-08
ended
|
4A#,3SG# AT160,ST162 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
