Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST162 · catalogue 252540 · Europe

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

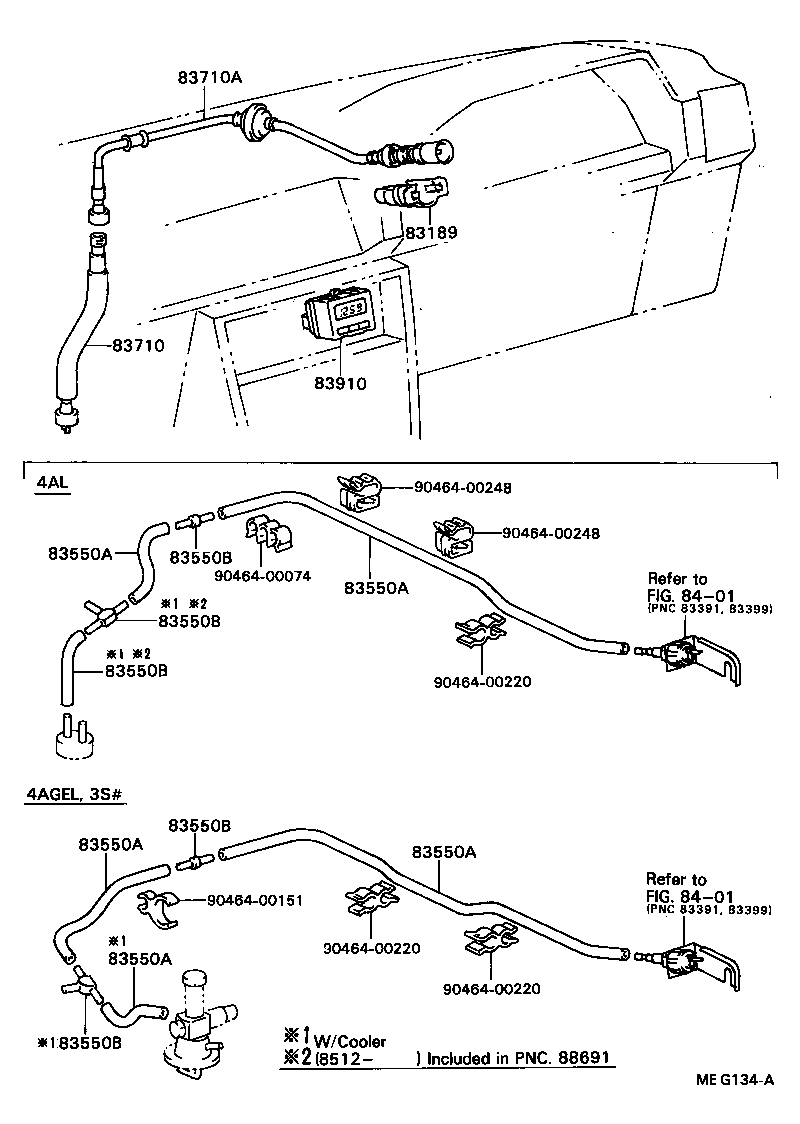

Exploded illustration MEG134A 83710A — CABLE ASSY, SPEEDOMETER DRIVE, NO.2 (2 parts) 83189 — BRACKET, METER (1 parts) 83710 — CABLE ASSY, SPEEDOMETER DRIVE, NO.1 (2 parts) 83910 — CLOCK ASSY (1 parts) 9046400248 — not listed in this catalogue 9046400248 — not listed in this catalogue 83550A — HOSE, ED MONITOR GAGE (8 parts) 83550B — UNION OR WAY, ED MONITOR GAGE (3 parts) 9046400074 — not listed in this catalogue 83550A — HOSE, ED MONITOR GAGE (8 parts) 8401 — not listed in this catalogue 83550B — UNION OR WAY, ED MONITOR GAGE (3 parts) 83550B — UNION OR WAY, ED MONITOR GAGE (3 parts) 9046400220 — not listed in this catalogue 83550B — UNION OR WAY, ED MONITOR GAGE (3 parts) 83550A — HOSE, ED MONITOR GAGE (8 parts) 83550A — HOSE, ED MONITOR GAGE (8 parts) 8401 — not listed in this catalogue 9046400151 — not listed in this catalogue 9046400220 — not listed in this catalogue 83550A — HOSE, ED MONITOR GAGE (8 parts) 9046400220 — not listed in this catalogue 83550B — UNION OR WAY, ED MONITOR GAGE (3 parts)
MEG134A · 14 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
83189 — Bracket, Meter
83189-20020 Bracket, Meter
1985-08 → 1987-08 ended
AT160,ST162 —
83550A — Hose, ED Monitor Gage
95411-10030 note Hose, ED Monitor Gage
1985-08 → 1985-12 ended
AT160 CBR —
95411-10030 note Hose, ED Monitor Gage
1985-08 → 1987-08 ended
AT160 CBR —
95411-10030 note Hose, ED Monitor Gage
1985-08 → 1987-08 ended
AT160 TWC —
95411-10030 note Hose, ED Monitor Gage
1985-08 → 1987-08 ended
ST162 LHD —
95411-10030 note Hose, ED Monitor Gage
1985-08 → 1987-08 ended
ST162 LHD (EUG,FRG) —
95411-10060 note Hose, ED Monitor Gage
1985-08 → 1987-08 ended
ST162 LHD —
95411-10095 note Hose, ED Monitor Gage
1985-08 → 1987-08 ended
AT160 CBR —
95411-19995 note Hose, ED Monitor Gage
1985-08 → 1987-08 ended
AT160 TWC —
83550B — Union OR Way, ED Monitor Gage
90412-05001 note Union OR Way, ED Monitor Gage
1985-08 → 1987-08 ended
AT160,ST162 LHD —
90413-04001 note Union OR Way, ED Monitor Gage
1985-08 → 1985-12 ended
AT160 CBR —
90413-04001 note Union OR Way, ED Monitor Gage
1985-08 → 1987-08 ended
ST162 LHD (EUG,FRG) —
83710 — Cable Assy, Speedometer Drive, NO.1
83710-20510 Cable Assy, Speedometer Drive, NO.1
1985-08 → 1987-08 ended
AT160,ST162 LHD —
83710-20610 Cable Assy, Speedometer Drive, NO.1
1985-08 → 1987-08 ended
ST162 RHD —
83710A — Cable Assy, Speedometer Drive, NO.2
83710-20521 Cable Assy, Speedometer Drive, NO.2
1985-08 → 1987-08 ended
ST162 RHD —
83710-20530 Cable Assy, Speedometer Drive, NO.2
1985-08 → 1987-08 ended
AT160,ST162 LHD —
83910 — Clock Assy
83910-20580 Clock Assy
1985-08 → 1987-08 ended
AT160,ST162 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
