Toyota Celica
1985-08 → 1987-08 · chassis AT160,ST162 · catalogue 252540 · Europe
Discontinued model
Data version 1987-12

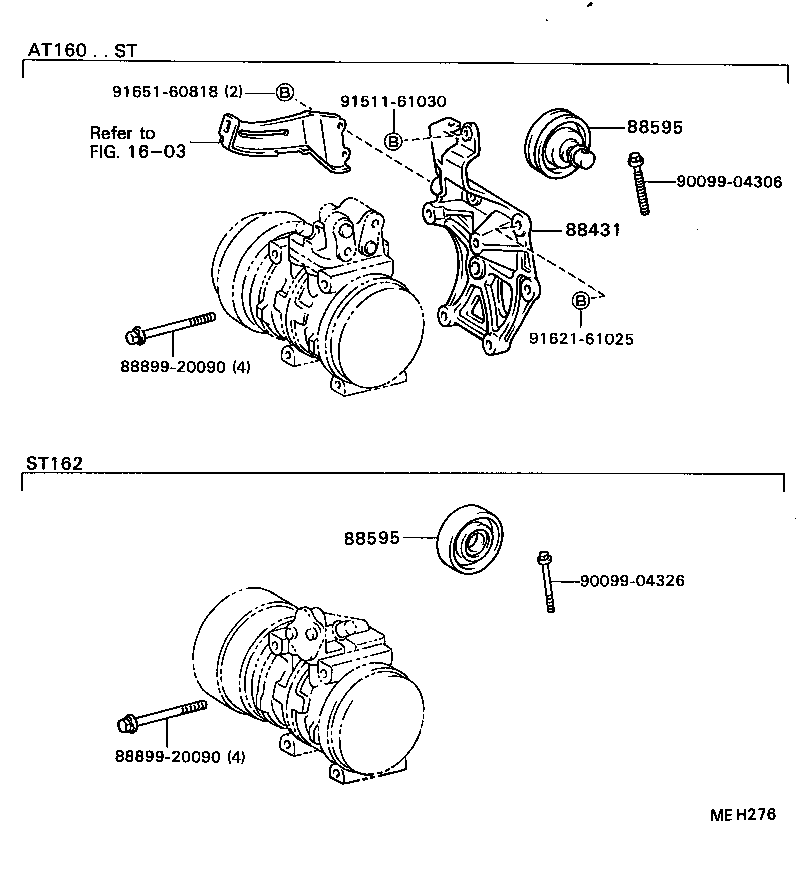

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 88431-20260 |
Bracket, Compressor Mounting, NO.1
1985-08 → 1987-08
ended
|
AT160 CBR | — | |
| 88595 — Pulley, Cooler Compressor Idle | ||||
| 88440-12160 |
Pulley, Cooler Compressor Idle
1985-08 → 1987-08
ended
|
AT160 CBR | — | |
| 88440-20110 note |
Pulley, Cooler Compressor Idle
1985-08 → 1987-08
ended
|
ST162 (CP,LB) RHD | — | |
| 88440-20120 |
Pulley, Cooler Compressor Idle
1985-08 → 1987-08
ended
|
ST162 EUG,FRG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
