Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST162 · catalogue 252540 · Europe

Discontinued model Data version 1987-12

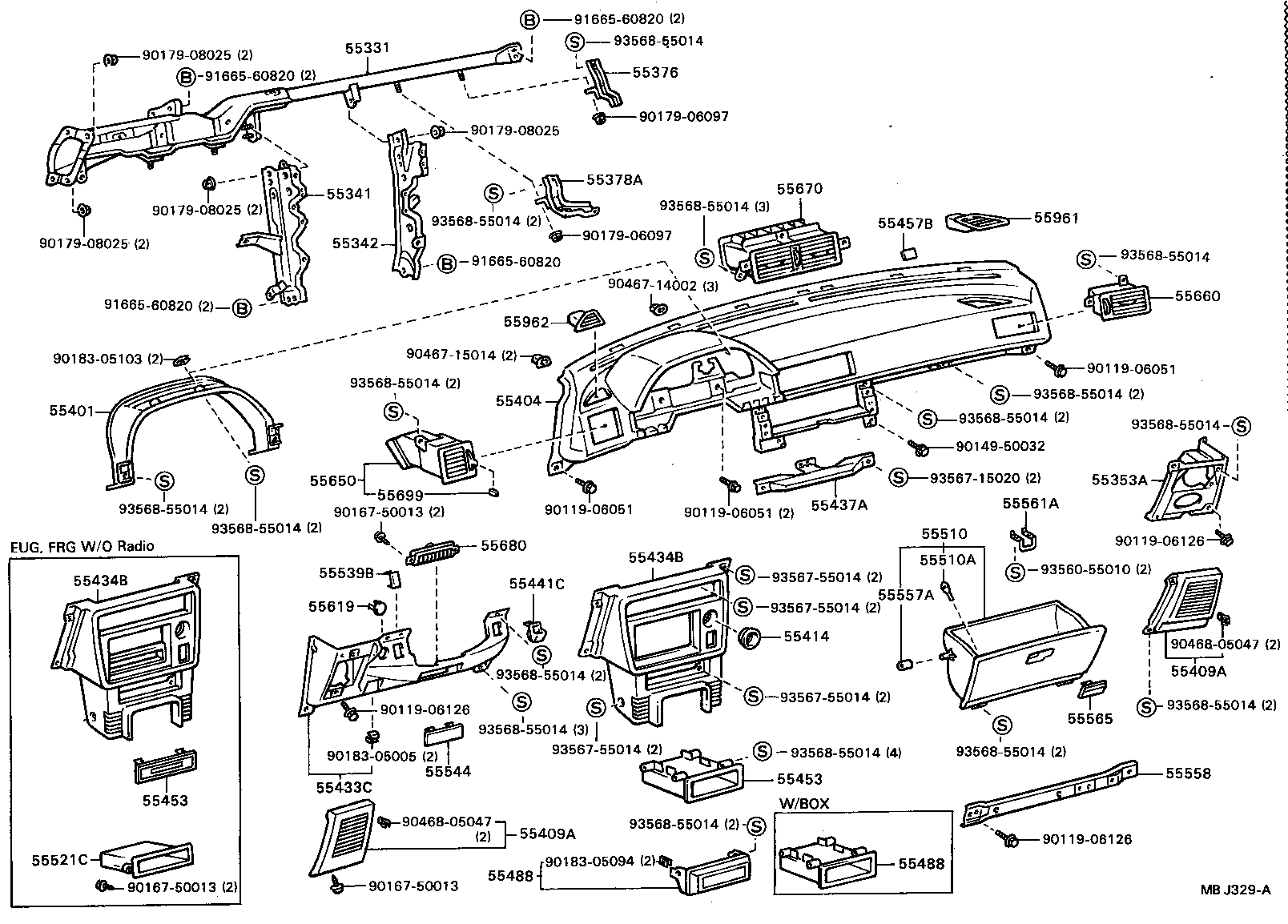

Instrument Panel & Glove Compartment

36 part groups · 2 illustrations

PNC	Description
55331	Reinforcement, Instrument Panel
55341	Brace, Instrument Panel, NO.1
55342	Brace, Instrument Panel, NO.2
55353A	Bracket, Speaker Mounting, NO.1
55376	Bracket, Instrument Panel Mounting, NO.1
55378A	Bracket, Glove Compartment Door Lock Mounting
55401	Panel Sub-assy, Instrument Cluster Finish
55404	Safety Pad Sub-assy, Instrument Panel, Upper
55409A	Panel Sub-assy, Instrument Panel Speaker
55414	Bezel, Cigar Lighter Hole
55432A	Panel, Instrument Panel Finish, Lower RH
55433C	Panel, Instrument Panel Finish, Lower LH
55434B	Panel, Instrument Panel Finish, Lower Center
55437A	Retainer, Instrument Panel Finish Panel, NO.1
55441C	Box, Instrument Panel Coin
55453	Cover, Radio Tuner Opening
55457B	Spacer, Instrument Panel Safety Pad
55488	Cover, Stereo Opening
55510	Door Assy, Glove Compartment
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55521C	Cover, Stereo Opening
55538A	Cover, Cooler Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55544	Cover, Instrument Panel Register Hole
55557A	Cushion, Glove Compartment Door Check
55558	Reinforcement, Glove Compartment Door
55561A	Striker, Glove Compartment Door Lock
55565	Handle, Glove Compartment Door Lock
55619	Cover, Switch Hole
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55680	Register Assy, Instrument Panel, Lower NO.1
55699	Knob, Instrument Panel Register Control
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
