Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST162 · catalogue 252540 · Europe

Discontinued model Data version 1987-12

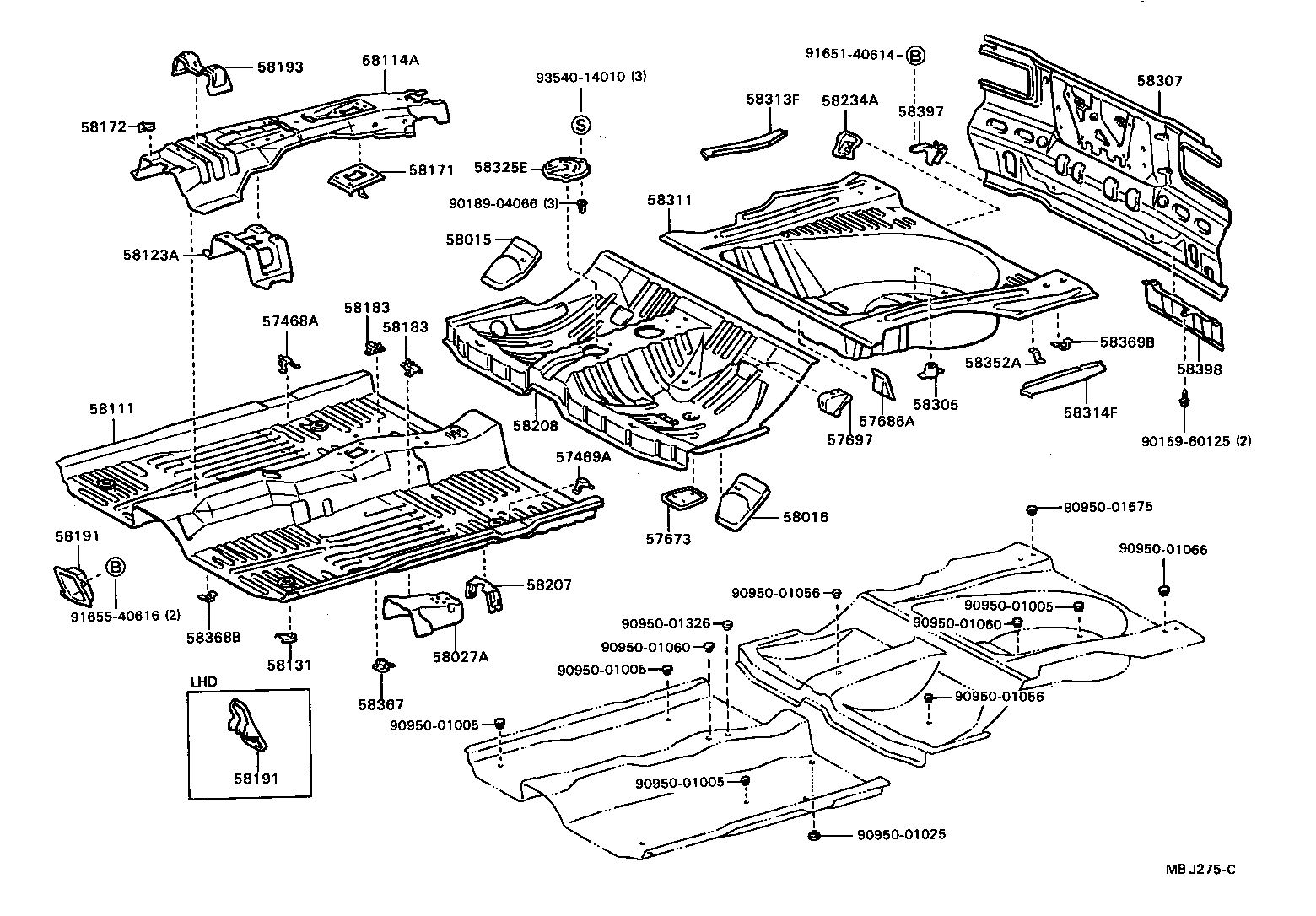

Floor Pan & Lower Back Panel

34 part groups · 2 illustrations

PNC	Description
57468A	Bracket, Front Seat, Outside, Rear RH
57469A	Bracket, Front Seat, Outside, Rear LH
57673	Bracket, Rear Seatback Hinge Mounting
57686A	Bracket, Fuel Tank Mounting, Rear RH
57697	Retainer, Rear Seat Cushion
58015	Reinforcement, Belt Anchor TO Floor Pan, RH
58016	Reinforcement, Belt Anchor TO Floor Pan, LH
58027A	Reinforce Sub-assy, Seat Belt Anchor
58111	Pan, Front Floor
58114A	Reinforcement, Front Floor Panel
58123A	Support, Shift & Select Lever
58131	Bracket, Front Floor Heat Insulator, NO.1
58171	Reinforcement, Parking Brake Base
58172	Bracket, Computer Mounting, NO.3
58183	Bracket, Front Seat Mounting, Inner
58191	Footrest, Front Floor
58193	Bracket, Instrument Panel Brace Mounting
58207	Bracket Sub-assy, Parking Brake Cable, NO.1
58208	Pan, Center Floor
58234A	Bracket, Exhaust Pipe Mounting, Inner
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313F	Extension, Rear Floor Pan TO Quarter Panel, RH
58314F	Extension, Rear Floor Pan TO Quarter Panel, LH
58325E	Cover, Rear Floor Service Hole
58352A	Bracket, Rear Floor Stay
58367	Bracket, Fuel Tube Clamp
58368B	Bracket, Fuel Tube, NO.2
58369B	Bracket, Fuel Tube, NO.3
58397	Cover, Lower Back, Outer RH
58398	Cover, Lower Back, Outer LH
64215A	Extension, Rear Floor TO Package Tray, RH
64216A	Extension, Rear Floor TO Package Tray, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
