Toyota Celica
1985-08 → 1987-08 · chassis AT160,ST162 · catalogue 252540 · Europe
Discontinued model
Data version 1987-12

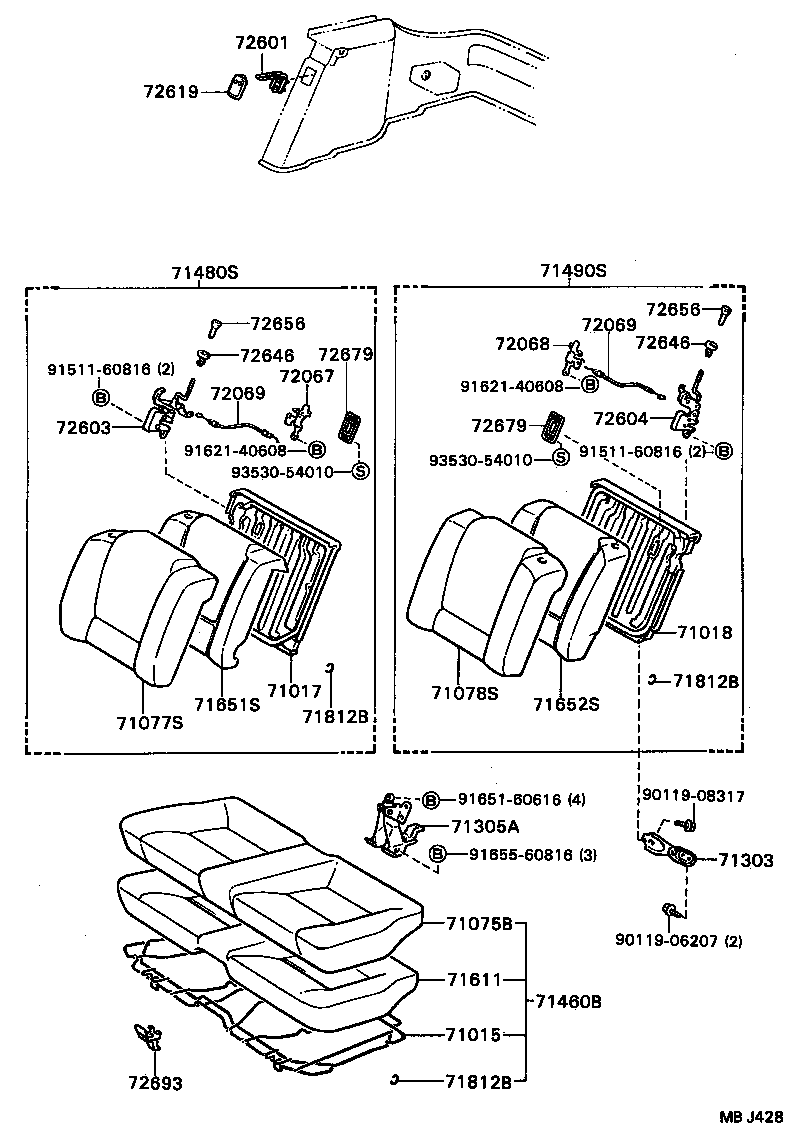

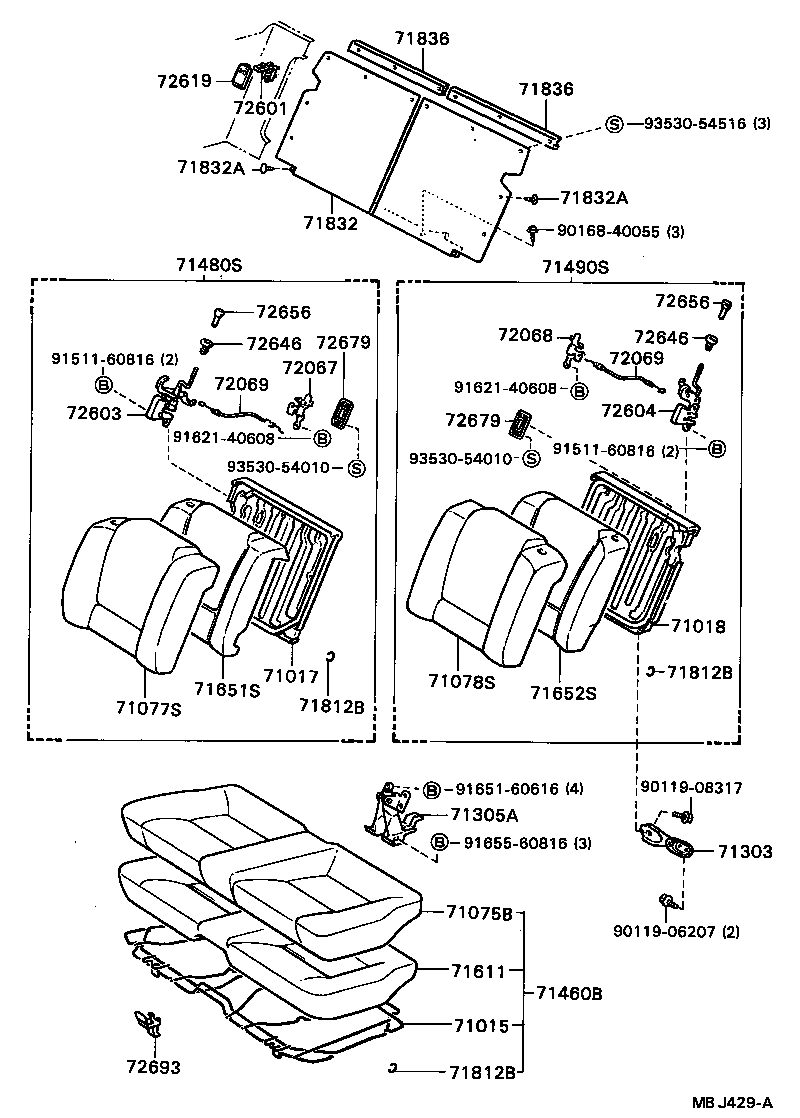

Rear Seat & Seat Track
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015 | Frame Sub-assy, Rear Seat Cushion |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71087 | Board Sub-assy, Rear Seatback |
| 71303 | Hinge Sub-assy, Rear Seatback |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71832 | Carpet OR Mat, Rear Seatback |
| 71832A | Clip, Rear Seatback Carpet OR Mat |
| 71836 | Plate, Rear Seatback Carpet OR Mat Support, Upper |
| 72067 | Lever Sub-assy, Rear Back Lock Control, RH |
| 72068 | Lever Sub-assy, Rear Back Lock Control, LH |
| 72069 | Cable Sub-assy, Rear Seatback Lock Control |
| 72601 | Striker Sub-assy, Rear Seat Lock |
| 72603 | Lock Sub-assy, Rear Seatback, RH |
| 72604 | Lock Sub-assy, Rear Seatback, LH |
| 72619 | Cover, Rear Seatback Lock Striker |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72656 | Button, Rear Seatback Stop Release |
| 72679 | Bezel, Rear Seatback Lock Control |
| 72693 | Hook, Rear Seat Cushion Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
