Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST162 · catalogue 252540 · Europe

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

14 part groups · 2 illustrations

Illustrations

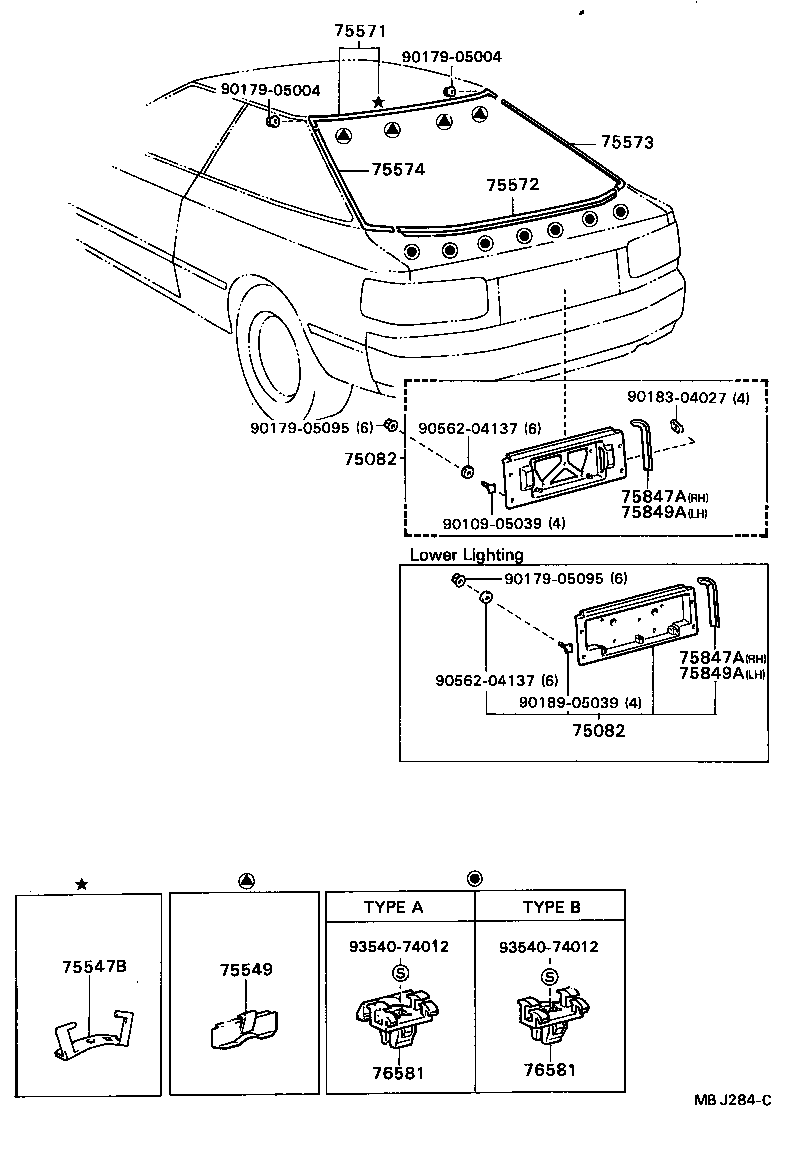

Figure MBJ283D MBJ283D 1985-08 → — Figure MBJ284C MBJ284C 1985-08 → —

Part groups

PNCDescription
75049A Clip Sub-assy, Outside Moulding, NO.2
75082 Panel Sub-assy, Lower Back Finish, Center
75496 Clip, Back Window Outside Moulding, NO.1
75547B Clip, Windshield Outside Moulding, NO.3
75548B Fastener, Back Window Outside Moulding
75549 Fastener, Back Window Outside Moulding, NO.2
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75572B Clip(FOR BACK WINDOW MOULDING SET)
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75847A Pad, Lower Back Panel Moulding, RH
75849A Pad, Lower Back Panel Moulding, LH
76581 Retainer, Back Window Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
