Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST162 · catalogue 252540 · Europe

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

11 part groups · 4 illustrations

Illustrations

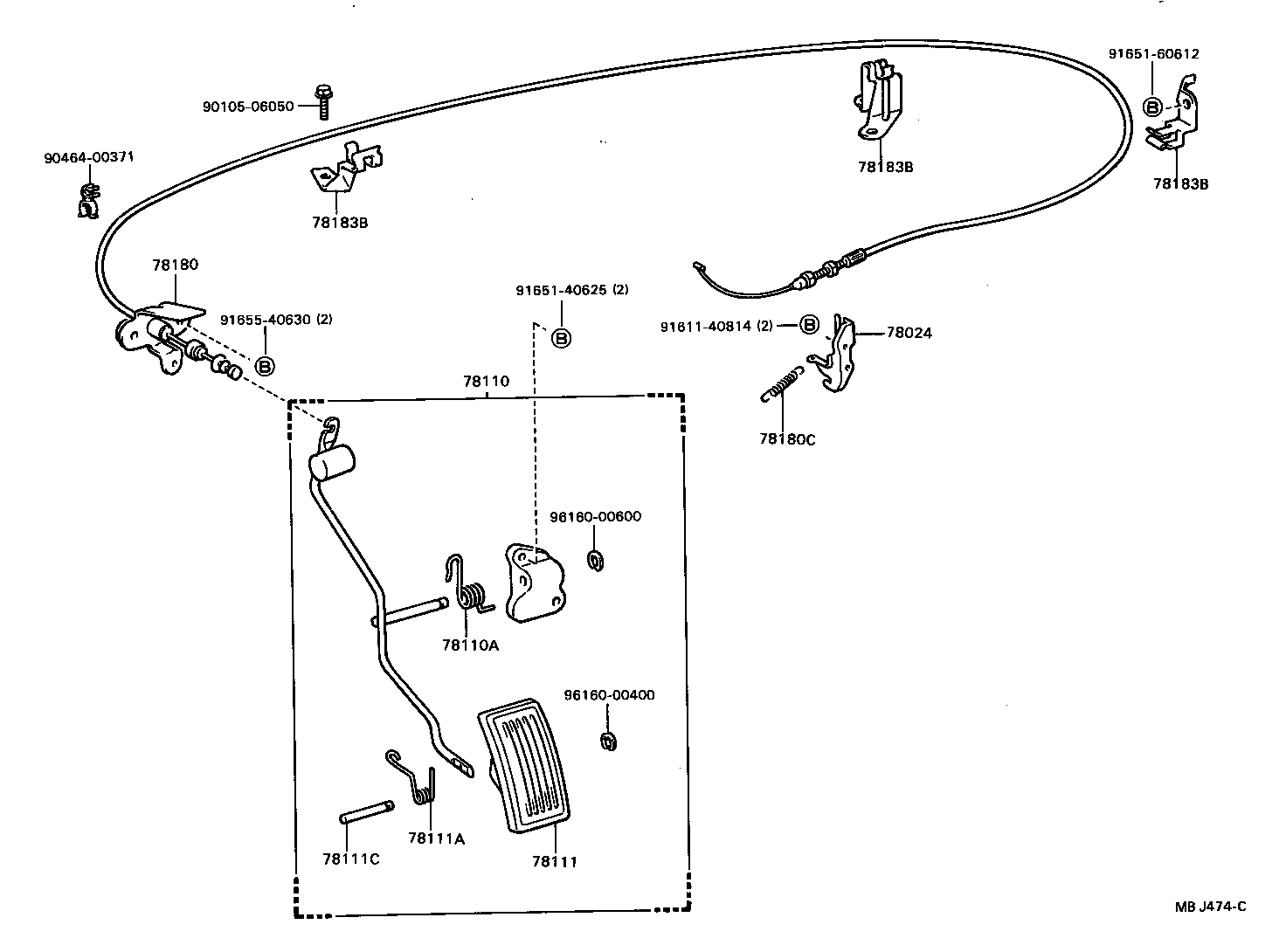

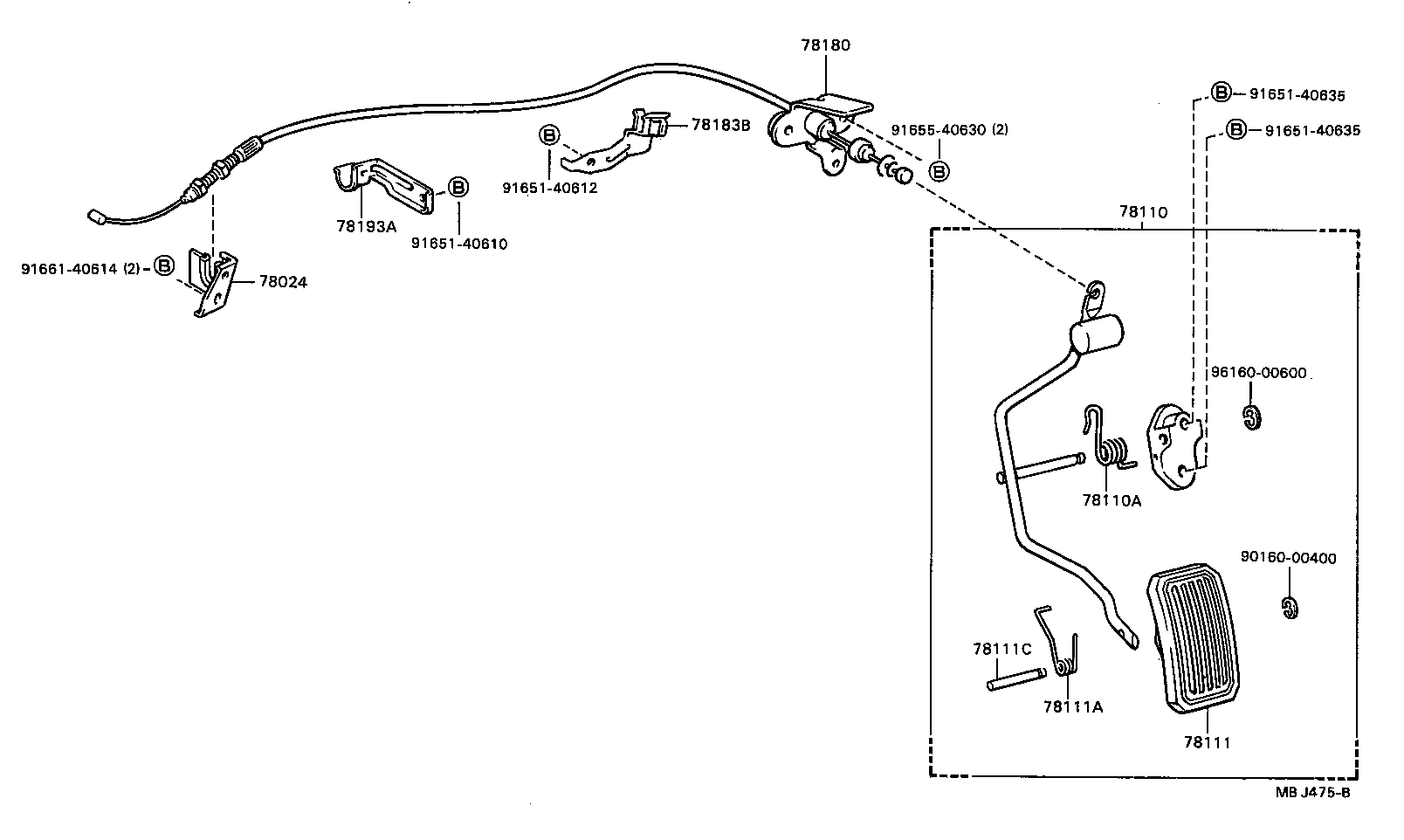

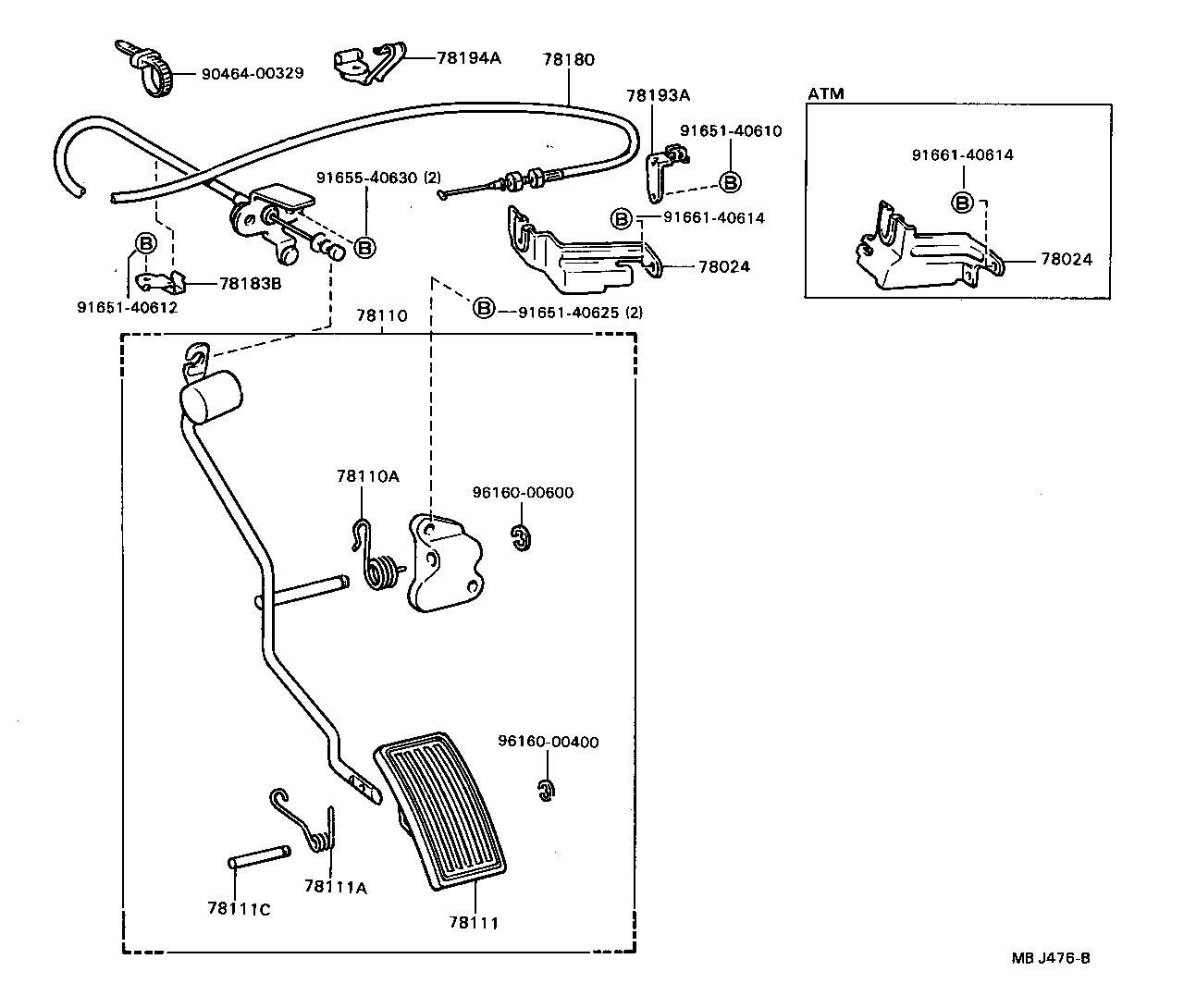

Figure MBJ472B MBJ472B 1985-08 → — Figure MBJ474C MBJ474C 1985-08 → — Figure MBJ475B MBJ475B 1985-08 → — Figure MBJ476B MBJ476B 1985-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78180 Wire Assy, Accelerator
78180C Spring, Tension (FOR ACCELERATOR WIRE)
78183B Clamp, Accelerator Control Cable
78193A Support, Accelerator Control Cable, NO.3
78194A Support, Accelerator Control Cable, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
