Factory parts data · Europe

Toyota Celica

1985-08 → 1987-08 · chassis AT160,ST162 · catalogue 252540 · Europe

Discontinued model Data version 1987-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 2 illustrations

Illustrations

Figure MEG230C

MEG230C 1985-08 → —

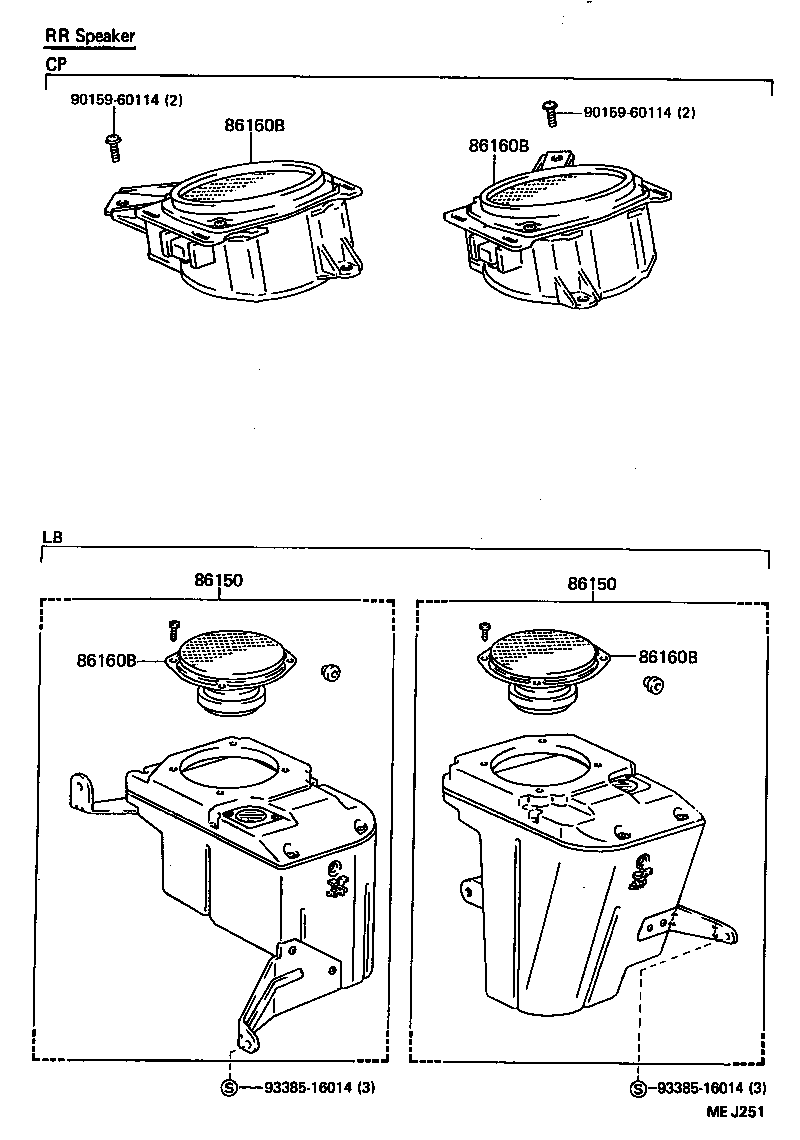

Figure MEJ251

MEJ251 1985-08 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
