Toyota Celica
1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe
Discontinued model
Data version 1990-03

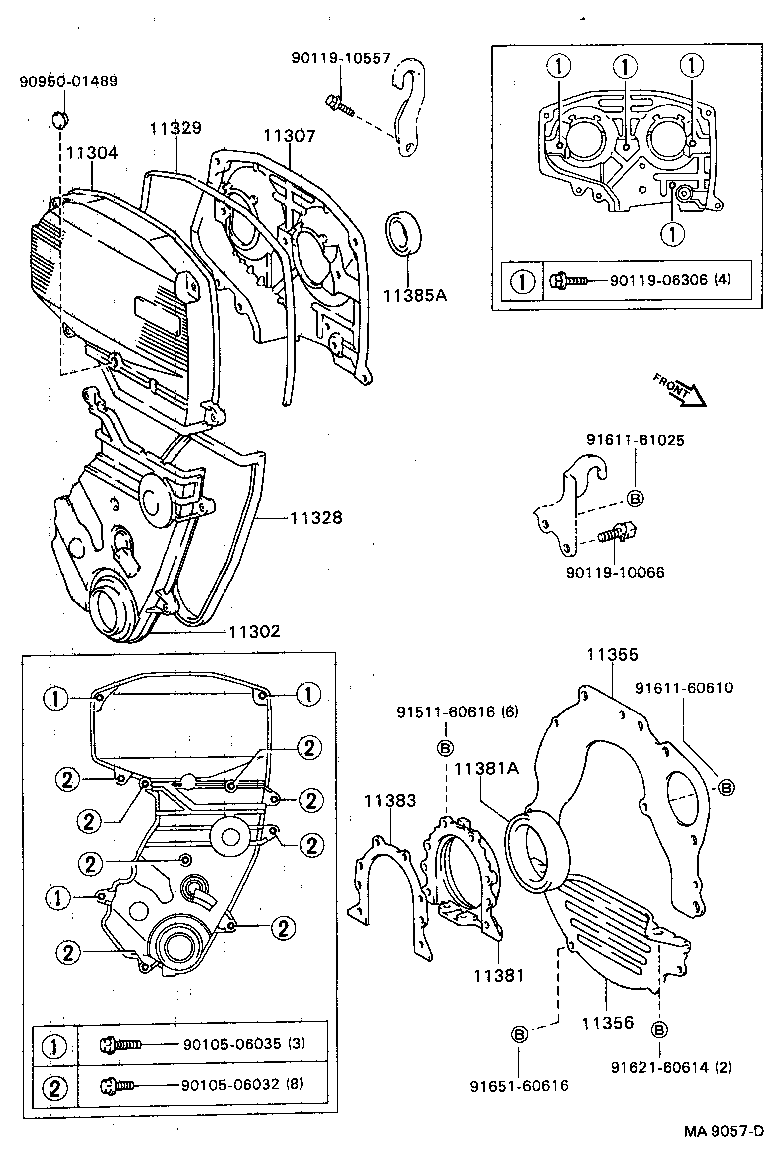

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11321-88360 |
Cover Sub-assy, Timing Chain OR Belt
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 11304 — Cover, Timing Chain OR Belt, NO.2 | ||||
| 11322-88361 |
Cover, Timing Chain OR Belt, NO.2
1987-08 → 1989-08
ended
|
3SGEL,3SGELC ST162 | — | |
| 11307 — Cover, Sub-assy, Timing Belt, NO.3 | ||||
| 11304-16030 |
Cover, Sub-assy, Timing Belt, NO.3
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 11323-88360 |
Cover, Sub-assy, Timing Belt, NO.3
1987-08 → 1989-07
ended
|
3SGEL,3SGELC ST162 | — | |
| 11323-88361 |
Cover, Sub-assy, Timing Belt, NO.3
1989-07 → 1989-08
ended
|
3SGEL,3SGELC ST162 | — | |
| 11328 — Gasket, Timing Gear OR Chain Cover | ||||
| 11328-88361 |
Gasket, Timing Gear OR Chain Cover
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 11329 — Gasket, Timing Gear Rear Cover | ||||
| 11329-88360 |
Gasket, Timing Gear Rear Cover
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 11355 — Plate, Rear End | ||||
| 11355-15060 |
Plate, Rear End
1987-08 → 1989-08
ended
|
4AG#,4AL AT160 | — | |
| 11355-63021 |
Plate, Rear End
1987-08 → 1989-08
ended
|
3SGEL,3SGELC ST162 | — | |
| 11355-74030 |
Plate, Rear End
1987-10 → 1989-08
ended
|
3SGTE ST165 | — | |
| 11356 — Plate, Rear End, NO.2 | ||||
| 11356-63030 |
Plate, Rear End, NO.2
1987-08 → 1989-07
ended
|
3SG# ST16# | — | |
| 11356-63031 |
Plate, Rear End, NO.2
1989-07 → 1989-08
ended
|
3SG# ST16# | — | |
| 11381 — Retainer, Engine Rear Oil Seal | ||||
| 11381-15010 |
Retainer, Engine Rear Oil Seal
1987-08 → 1989-08
ended
|
4AG#,4AL AT160 | — | |
| 11381-63011 |
Retainer, Engine Rear Oil Seal
1987-08 → 1989-07
ended
|
3SG# ST16# | — | |
| 11381-63012 |
Retainer, Engine Rear Oil Seal
1989-07 → 1989-08
ended
|
3SG# ST16# | — | |
| 11381A — Seal, Engine Rear Oil | ||||
| 90311-70004 |
Seal, Engine Rear Oil
1987-08 → 1989-08
ended
|
4AG#,4AL AT160 | — | |
| 90311-85003 |
Seal, Engine Rear Oil
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 11383 — Gasket, Engine Rear Oil Seal Retainer | ||||
| 11383-15010 |
Gasket, Engine Rear Oil Seal Retainer
1987-08 → 1989-08
ended
|
4AG#,4AL AT160 | — | |
| 11383-88380 |
Gasket, Engine Rear Oil Seal Retainer
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 11385A — Seal, Oil(FOR CAMSHAFT) | ||||
| 90311-35008 |
Seal, Oil(FOR CAMSHAFT)
1987-08 → 1989-08
ended
|
3SGEL,3SGELC ST162 | — | |
| 90311-35013 |
Seal, Oil(FOR CAMSHAFT)
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
