Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

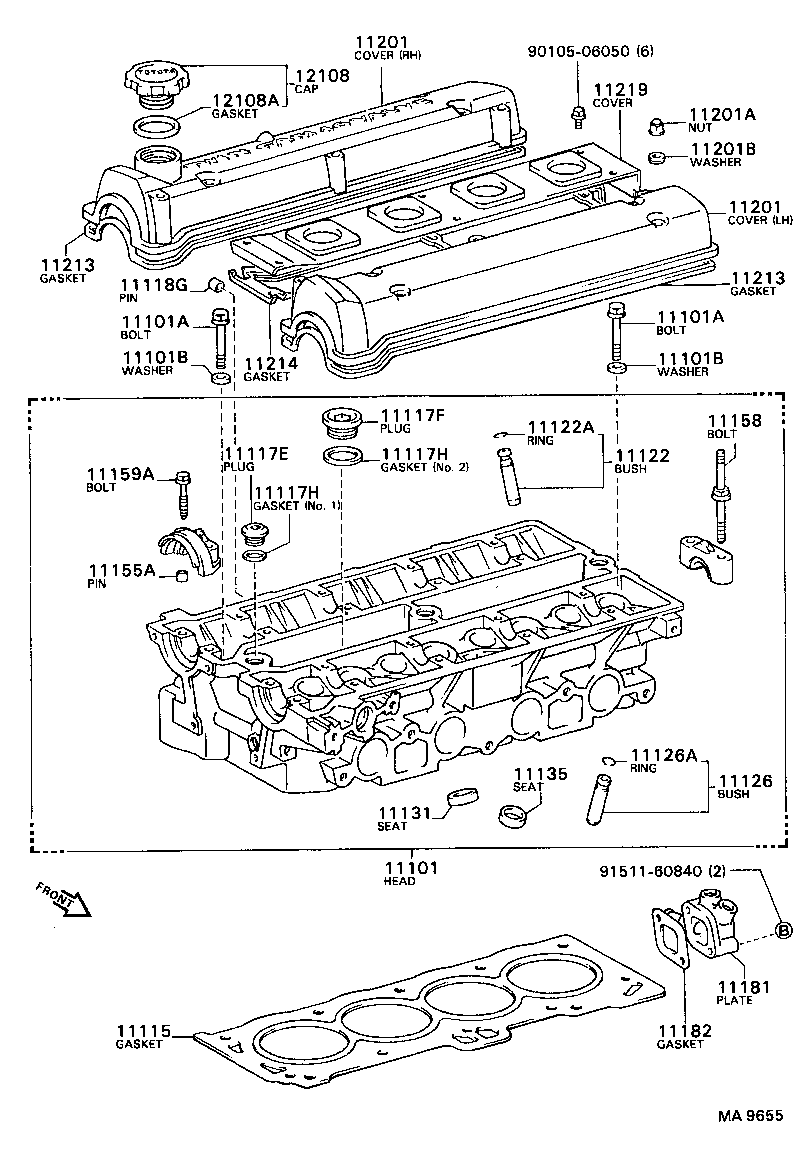

Exploded illustration MA9655 11201 — COVER SUB-ASSY, CYLINDER HEAD (9 parts) 9010506050 — not listed in this catalogue 12108 — CAP SUB-ASSY, OIL FILLER (3 parts) 11219 — COVER, CYLINDER HEAD, NO.3 (2 parts) 12108A — GASKET(FOR OIL FILLER CAP) (2 parts) 11201A — NUT, CAP(FOR CYLINDER HEAD COVER) (2 parts) 11201B — WASHER, SEAL(FOR CYLINDER HEAD COVER) (4 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (9 parts) 11213 — GASKET, CYLINDER HEAD COVER (5 parts) 11213 — GASKET, CYLINDER HEAD COVER (5 parts) 11118G — PIN, SLOTTED SPRING, NO.1 (2 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (5 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (5 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (3 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (4 parts) 11117F — PLUG, W/HEAD STRAIGHT SCREW, NO.2 (1 parts) 11158 — BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) (1 parts) 11122A — RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) (3 parts) 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (1 parts) 11117H — GASKET(FOR WATER HOLE) (3 parts) 11122 — BUSH, INTAKE VALVE GUIDE (6 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (4 parts) 11117H — GASKET(FOR WATER HOLE) (3 parts) 11155A — PIN, RING W/HEAD (2 parts) 11126A — RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) (3 parts) 11135 — SEAT, EXHAUST VALVE (6 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (6 parts) 11131 — SEAT, INTAKE VALVE (6 parts) 11101 — HEAD SUB-ASSY, CYLINDER (4 parts) 9151160840 — not listed in this catalogue 11181 — PLATE, CYLINDER HEAD, REAR (3 parts) 11115 — GASKET, CYLINDER HEAD (4 parts) 11182 — GASKET, CYLINDER HEAD REAR PLATE (2 parts)
MA9655 · 32 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
96 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-15080 Head Sub-assy, Cylinder
1987-08 → 1989-08 ended
4AL AT160 —
11101-16030 Head Sub-assy, Cylinder
1987-08 → 1989-08 ended
4AG# AT160 —
11101-88381 Head Sub-assy, Cylinder
1987-08 → 1989-08 ended
3SGEL ST162 —
11101-88382 Head Sub-assy, Cylinder
1987-08 → 1989-08 ended
3SGELC,3SGTE ST16# —
11101A — Bolt(FOR CYLINDER HEAD SET)
90109-10025 Bolt(FOR CYLINDER HEAD SET)
1987-08 → 1989-08 ended
4AL AT160 —
90109-10058 note Bolt(FOR CYLINDER HEAD SET)
1987-08 → 1989-08 ended
4AG# AT160 —
90109-10059 note Bolt(FOR CYLINDER HEAD SET)
1987-08 → 1989-08 ended
4AG# AT160 —
90110-10006 Bolt(FOR CYLINDER HEAD SET)
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
90110-10010 Bolt(FOR CYLINDER HEAD SET)
1987-10 → 1989-08 ended
3SGTE ST165 —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-10050 Washer, Plate(FOR CYLINDER HEAD SET)
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
90201-10060 Washer, Plate(FOR CYLINDER HEAD SET)
1987-10 → 1989-08 ended
3SGTE ST165 —
90201-10344 Washer, Plate(FOR CYLINDER HEAD SET)
1987-08 → 1989-08 ended
4AG#,4AL AT160 —
11115 — Gasket, Cylinder Head
11115-16050 Gasket, Cylinder Head
1987-08 → 1989-08 ended
4AL AT160 —
11115-16070 note Gasket, Cylinder Head
1987-08 → 1989-08 ended
4AG# AT160 —
11115-88362 Gasket, Cylinder Head
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
11115-88381 Gasket, Cylinder Head
1987-10 → 1989-08 ended
3SGTE ST165 —
11117E — Plug, W/Head Straight Screw, NO.1
90341-24008 Plug, W/Head Straight Screw, NO.1
1987-08 → 1989-08 ended
4AG# AT160 —
11117F — Plug, W/Head Straight Screw, NO.2
90341-32001 Plug, W/Head Straight Screw, NO.2
1987-08 → 1989-08 ended
4AG# AT160 —
11117H — Gasket(FOR WATER HOLE)
90430-20004 Gasket(FOR WATER HOLE)
1987-08 → 1989-08 ended
4AL AT160 —
90430-24007 note Gasket(FOR WATER HOLE)
1987-08 → 1989-08 ended
4AG# AT160 —
90430-33133 note Gasket(FOR WATER HOLE)
1987-08 → 1989-08 ended
4AG# AT160 —
11118G — Pin, Slotted Spring, NO.1
90249-06052 Pin, Slotted Spring, NO.1
1987-08 → 1989-08 ended
3SG# ST16# —
90254-11002 Pin, Slotted Spring, NO.1
1987-08 → 1989-08 ended
4AG# AT160 —
11122 — Bush, Intake Valve Guide
11122-15011 note Bush, Intake Valve Guide
1987-08 → 1989-08 ended
4AL AT160 —
11122-16020 note Bush, Intake Valve Guide
1987-08 → 1989-08 ended
4AG# AT160 —
11122-88320 note Bush, Intake Valve Guide
1987-08 → 1989-08 ended
3SG# ST16# —
11123-15011 note Bush, Intake Valve Guide
1987-08 → 1989-08 ended
4AL AT160 —
11123-16020 note Bush, Intake Valve Guide
1987-08 → 1989-08 ended
4AG# AT160 —
11123-88320 note Bush, Intake Valve Guide
1987-08 → 1989-08 ended
3SG# ST16# —
11122A — Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
90520-10004 Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1987-08 → 1989-03 ended
4AG# AT160 —
90520-10004 Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1987-08 → 1989-03 ended
3SG# ST16# —
90520-10004 Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1989-03 → 1989-08 ended
4AG# AT160 —
11126 — Bush, Exhaust Valve Guide
11122-16020 note Bush, Exhaust Valve Guide
1987-08 → 1989-08 ended
4AG# AT160 —
11122-88320 note Bush, Exhaust Valve Guide
1987-08 → 1989-08 ended
3SG# ST16# —
11123-16020 note Bush, Exhaust Valve Guide
1987-08 → 1989-08 ended
4AG# AT160 —
11123-88320 note Bush, Exhaust Valve Guide
1987-08 → 1989-08 ended
3SG# ST16# —
11126-15011 note Bush, Exhaust Valve Guide
1987-08 → 1989-08 ended
4AL AT160 —
11127-15011 note Bush, Exhaust Valve Guide
1987-08 → 1989-08 ended
4AL AT160 —
11126A — Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
90520-10004 Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1987-08 → 1989-03 ended
4AG# AT160 —
90520-10004 Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1987-08 → 1989-03 ended
3SG# ST16# —
90520-10004 Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1989-03 → 1989-08 ended
4AG# AT160 —
11131 — Seat, Intake Valve
11131-15020 note Seat, Intake Valve
1987-08 → 1989-08 ended
4AL AT160 —
11131-16010 note Seat, Intake Valve
1987-08 → 1989-08 ended
4AG# AT160 —
11131-74010 note Seat, Intake Valve
1987-08 → 1989-08 ended
3SG# ST16# —
11132-15020 note Seat, Intake Valve
1987-08 → 1989-08 ended
4AL AT160 —
11132-16010 note Seat, Intake Valve
1987-08 → 1989-08 ended
4AG# AT160 —
11132-74010 note Seat, Intake Valve
1987-08 → 1989-08 ended
3SGELC ST162 —
11135 — Seat, Exhaust Valve
11135-15021 note Seat, Exhaust Valve
1987-08 → 1989-08 ended
4AL AT160 —
11135-16010 note Seat, Exhaust Valve
1987-08 → 1989-08 ended
4AG# AT160 —
11135-74010 note Seat, Exhaust Valve
1987-08 → 1989-08 ended
3SG# ST16# —
11136-15021 note Seat, Exhaust Valve
1987-08 → 1989-08 ended
4AL AT160 —
11136-16010 note Seat, Exhaust Valve
1987-08 → 1989-08 ended
4AG# AT160 —
11136-74010 note Seat, Exhaust Valve
1987-08 → 1989-08 ended
3SGELC ST162 —
11155A — Pin, Ring W/Head
90253-09001 Pin, Ring W/Head
1987-08 → 1989-08 ended
4AG# AT160 —
90253-10004 Pin, Ring W/Head
1987-08 → 1989-08 ended
3SG# ST16# —
11158 — Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
90109-06079 note Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
1987-08 → 1989-08 ended
4AG# AT160 —
11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1987-08 → 1989-08 ended
4AG# AT160 —
90119-07001 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1987-08 → 1989-08 ended
3SG# ST16# —
90119-07002 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1987-08 → 1989-08 ended
3SG# ST16# —
90119-07003 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1987-08 → 1989-08 ended
3SG# ST16# —
11181 — Plate, Cylinder Head, Rear
11181-15040 Plate, Cylinder Head, Rear
1987-08 → 1989-08 ended
4AL AT160 —
11181-16060 Plate, Cylinder Head, Rear
1987-08 → 1989-08 ended
4AGELC AT160 —
11181-16070 Plate, Cylinder Head, Rear
1987-08 → 1989-08 ended
4AGEL AT160 —
11182 — Gasket, Cylinder Head Rear Plate
11182-15011 Gasket, Cylinder Head Rear Plate
1987-08 → 1989-08 ended
4AL AT160 —
11182-16020 Gasket, Cylinder Head Rear Plate
1989-03 → 1989-08 ended
4AG# AT160 —
11201 — Cover Sub-assy, Cylinder Head
11201-88381 Cover Sub-assy, Cylinder Head
1987-10 → 1989-08 ended
3SGTE ST165 —
11202-88360 note Cover Sub-assy, Cylinder Head
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
11210-15040 Cover Sub-assy, Cylinder Head
1987-08 → 1989-08 ended
4AL AT160 —
11210-16140 note Cover Sub-assy, Cylinder Head
1988-10 → 1989-08 ended
4AG# AT160 —
11210-16140 note Cover Sub-assy, Cylinder Head
1987-08 → 1988-10 ended
4AG# AT160 —
11210-16150 note Cover Sub-assy, Cylinder Head
1989-05 → 1989-06 ended
4AG# AT160 —
11211-88361 note Cover Sub-assy, Cylinder Head
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
11212-16010 note Cover Sub-assy, Cylinder Head
1987-08 → 1988-10 ended
4AG# AT160 —
11212-16050 note Cover Sub-assy, Cylinder Head
1988-10 → 1989-08 ended
4AG# AT160 —
11201A — Nut, Cap(FOR CYLINDER HEAD COVER)
90176-06012 Nut, Cap(FOR CYLINDER HEAD COVER)
1987-08 → 1989-08 ended
4AG# AT160 —
90176-08007 Nut, Cap(FOR CYLINDER HEAD COVER)
1987-08 → 1989-08 ended
4AL AT160 —
11201B — Washer, Seal(FOR CYLINDER HEAD COVER)
90210-06008 Washer, Seal(FOR CYLINDER HEAD COVER)
1987-08 → 1989-08 ended
4AG# AT160 —
90210-07001 Washer, Seal(FOR CYLINDER HEAD COVER)
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
90210-07001 Washer, Seal(FOR CYLINDER HEAD COVER)
1987-10 → 1989-08 ended
3SGTE ST165 —
90210-09001 Washer, Seal(FOR CYLINDER HEAD COVER)
1987-08 → 1989-08 ended
4AL AT160 —
11213 — Gasket, Cylinder Head Cover
11213-15040 Gasket, Cylinder Head Cover
1987-08 → 1989-08 ended
4AL AT160 —
11213-16010 Gasket, Cylinder Head Cover
1987-08 → 1989-08 ended
4AG# AT160 —
11213-88360 note Gasket, Cylinder Head Cover
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
11213-88360 Gasket, Cylinder Head Cover
1987-08 → 1989-08 ended
3SGTE ST165 —
11214-88380 note Gasket, Cylinder Head Cover
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
11214 — Gasket, Cylinder Head Cover, NO.2
11214-16020 Gasket, Cylinder Head Cover, NO.2
1987-08 → 1989-08 ended
4AG# AT160 —
11214-88380 Gasket, Cylinder Head Cover, NO.2
1987-10 → 1989-08 ended
3SGTE ST165 —
11229-88360 note Gasket, Cylinder Head Cover, NO.2
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
11239-88360 note Gasket, Cylinder Head Cover, NO.2
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
11219 — Cover, Cylinder Head, NO.3
11219-16030 Cover, Cylinder Head, NO.3
1987-08 → 1989-08 ended
4AG# AT160 —
11219-88361 Cover, Cylinder Head, NO.3
1987-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
12108 — Cap Sub-assy, Oil Filler
12180-13030 Cap Sub-assy, Oil Filler
1987-08 → 1989-08 ended
4AG# AT160 —
12180-13030 Cap Sub-assy, Oil Filler
1987-08 → 1989-08 ended
3SG# ST16# —
12180-62010 Cap Sub-assy, Oil Filler
1987-08 → 1989-08 ended
4AL AT160 —
12108A — Gasket(FOR OIL FILLER CAP)
90430-37140 Gasket(FOR OIL FILLER CAP)
1987-08 → 1989-08 ended
4AG#,4AL AT160 —
90430-37140 Gasket(FOR OIL FILLER CAP)
1987-08 → 1989-08 ended
3SG# ST16# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
