Toyota Celica
1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe
Discontinued model
Data version 1990-03

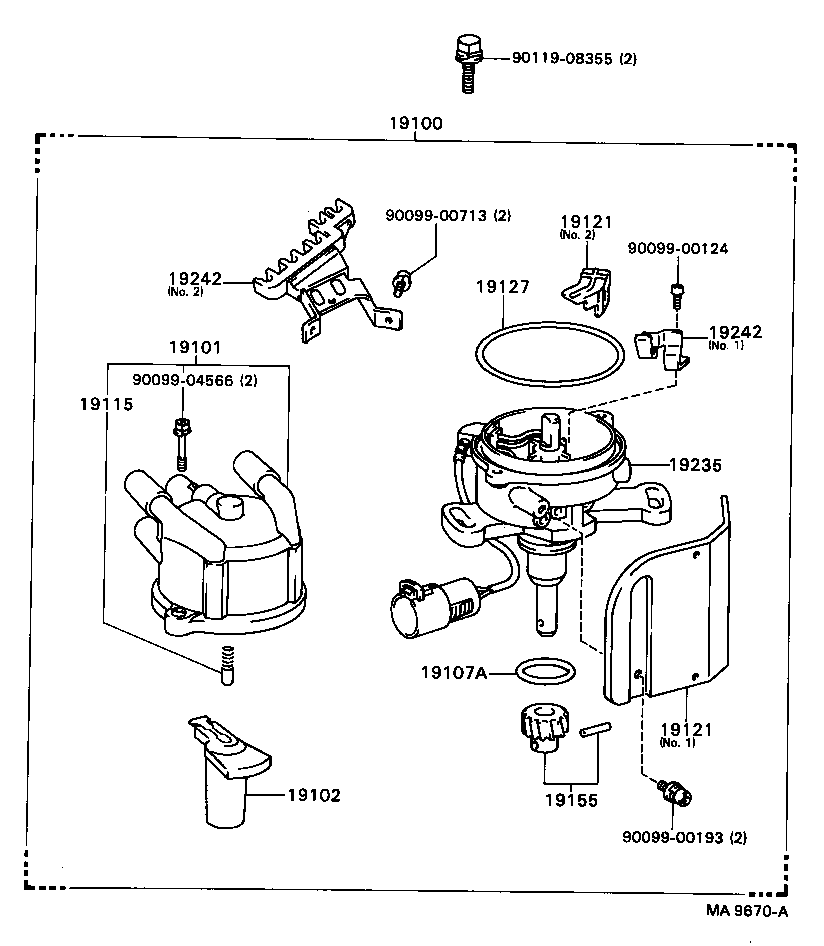

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100 — Distributor Assy | ||||
| 19020-16060 |
Distributor Assy
1987-08 → 1989-08
ended
|
4AL AT160 | — | |
| 19100-16200 |
Distributor Assy
1987-08 → 1989-08
ended
|
4AGEL AT160 | — | |
| 19100-16210 |
Distributor Assy
1987-08 → 1989-08
ended
|
4AGELC AT160 | — | |
| 19100-88362 |
Distributor Assy
1987-08 → 1989-08
ended
|
3SGEL,3SGELC ST162 | — | |
| 19100-88381 |
Distributor Assy
1987-10 → 1989-08
ended
|
3SGTE ST165 | — | |
| 19101 — Cap Sub-assy, Distributor | ||||
| 19101-11010 |
Cap Sub-assy, Distributor
1987-08 → 1989-08
ended
|
4AL AT160 | — | |
| 19101-16220 |
Cap Sub-assy, Distributor
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 19101-88360 |
Cap Sub-assy, Distributor
1987-08 → 1989-08
ended
|
3SGEL,3SGELC ST162 | — | |
| 19101-88380 |
Cap Sub-assy, Distributor
1987-10 → 1989-08
ended
|
3SGTE ST165 | — | |
| 19102 — Rotor Sub-assy, Distributor | ||||
| 19102-11031 |
Rotor Sub-assy, Distributor
1987-08 → 1989-08
ended
|
4AL AT160 | — | |
| 19102-16060 |
Rotor Sub-assy, Distributor
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 19102-73021 |
Rotor Sub-assy, Distributor
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 19107A — Ring, O, Distributor Housing | ||||
| 90099-14020 |
Ring, O, Distributor Housing
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 96711-35030 |
Ring, O, Distributor Housing
1987-08 → 1989-08
ended
|
4AG#,4AL AT160 | — | |
| 19115 — Piece, Distributor Cap, Center | ||||
| 19115-50010 |
Piece, Distributor Cap, Center
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 19115-50010 |
Piece, Distributor Cap, Center
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 19115-63010 |
Piece, Distributor Cap, Center
1987-08 → 1989-08
ended
|
4AL AT160 | — | |
| 19121 — Cover, Dust Proof | ||||
| 19121-11080 |
Cover, Dust Proof
1987-08 → 1989-08
ended
|
4AL AT160 | — | |
| 19121-16040 note |
Cover, Dust Proof
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 19121-16040 |
Cover, Dust Proof
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 19121-16080 note |
Cover, Dust Proof
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 19127 — Packing, Dust Proof | ||||
| 19127-15021 |
Packing, Dust Proof
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 19127-15021 |
Packing, Dust Proof
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
| 19127-15120 |
Packing, Dust Proof
1987-08 → 1989-08
ended
|
4AL AT160 | — | |
| 19155 — Gear, Spiral, Distributor | ||||
| 19195-16040 |
Gear, Spiral, Distributor
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 19235 — Housing, Distributor | ||||
| 19235-14040 |
Housing, Distributor
1987-08 → 1989-08
ended
|
4AL AT160 | — | |
| 19235-16080 |
Housing, Distributor
1987-08 → 1989-08
ended
|
4AGEL AT160 | — | |
| 19235-16130 |
Housing, Distributor
1987-08 → 1989-08
ended
|
4AGELC AT160 | — | |
| 19242 — Clamp, Cord | ||||
| 19242-16030 note |
Clamp, Cord
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 19242-16080 note |
Clamp, Cord
1987-08 → 1989-08
ended
|
4AG# AT160 | — | |
| 19242-88361 |
Clamp, Cord
1987-08 → 1989-08
ended
|
3SG# ST16# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
