Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

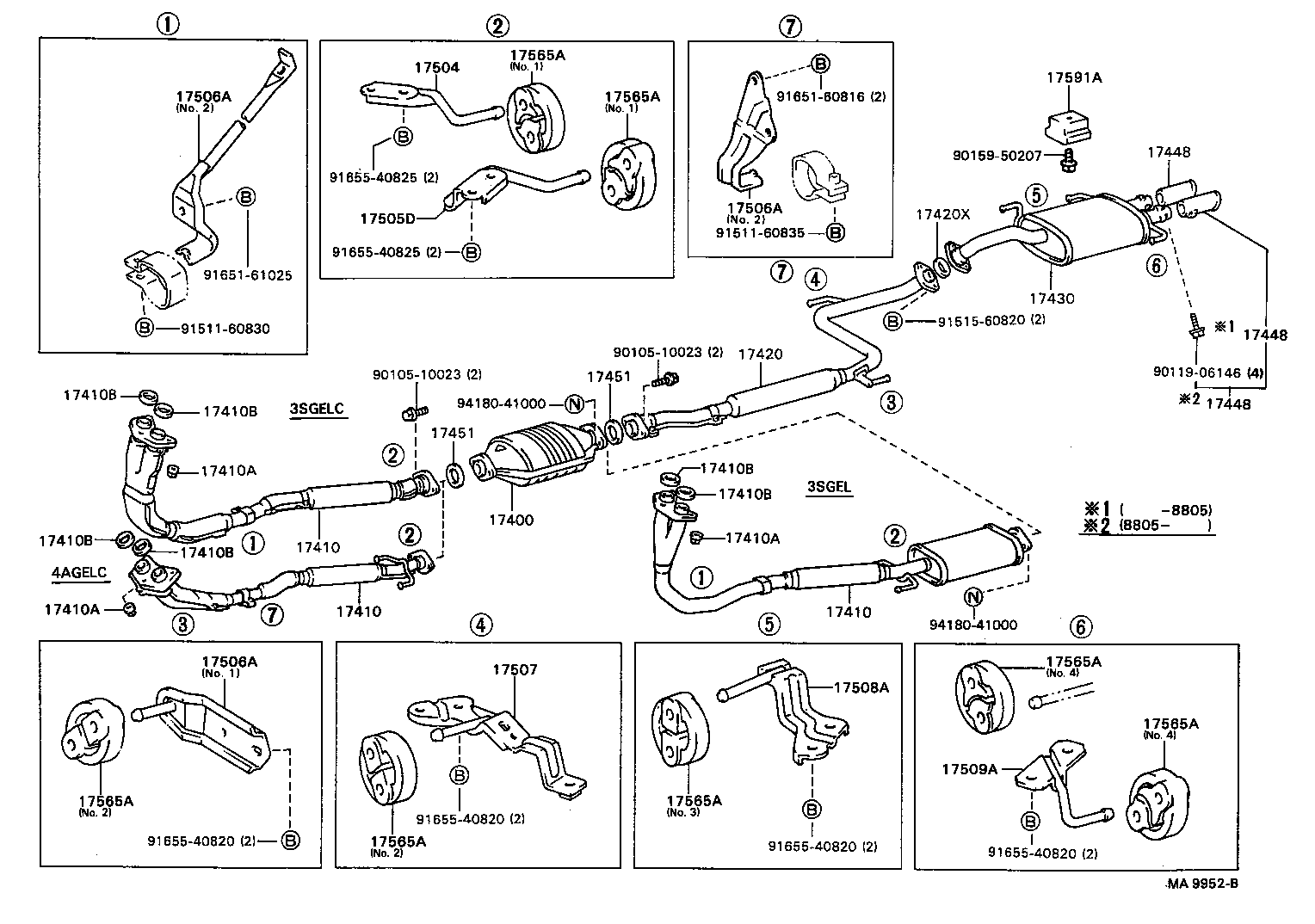

Exploded illustration MA9952B 17565A — SUPPORT, EXHAUST PIPE, NO.4 (9 parts) 17504 — BRACKET SUB-ASSY, CATALYTIC CONVERTER (2 parts) 17591A — STOPPER, EXHAUST PIPE SUPPORT (1 parts) 17506A — BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT (3 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (9 parts) 9165160816 — not listed in this catalogue 17448 — BAFFLE, TAILPIPE (3 parts) 9015950207 — not listed in this catalogue 9165540825 — not listed in this catalogue 17506A — BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT (3 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (1 parts) 17505D — BRACKET SUB-ASSY, CONVERTER SUPPORT, LH (1 parts) 9151160835 — not listed in this catalogue 9165540825 — not listed in this catalogue 9165161025 — not listed in this catalogue 17430 — PIPE ASSY, EXHAUST, TAIL (5 parts) 9151560820 — not listed in this catalogue 9151160830 — not listed in this catalogue 17448 — BAFFLE, TAILPIPE (3 parts) 9010510023 — not listed in this catalogue 17420 — PIPE ASSY, EXHAUST, CENTER (4 parts) 9011906146 — not listed in this catalogue 9010510023 — not listed in this catalogue 17451 — GASKET, EXHAUST PIPE (6 parts) 17410B — GASKET, EXHAUST PIPE (3 parts) 9418041000 — not listed in this catalogue 17448 — BAFFLE, TAILPIPE (3 parts) 17410B — GASKET, EXHAUST PIPE (3 parts) 17451 — GASKET, EXHAUST PIPE (6 parts) 17410B — GASKET, EXHAUST PIPE (3 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 17410B — GASKET, EXHAUST PIPE (3 parts) 17400 — CONVERTER ASSY, W/CATALYST (4 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 17410B — GASKET, EXHAUST PIPE (3 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (6 parts) 17410B — GASKET, EXHAUST PIPE (3 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (6 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (6 parts) 9418041000 — not listed in this catalogue 17506A — BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT (3 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (9 parts) 17507 — BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT (1 parts) 17508A — BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT (2 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (9 parts) 17509A — BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT (2 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (9 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (9 parts) 9165540820 — not listed in this catalogue 9165540820 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (9 parts) 9165540820 — not listed in this catalogue 9165540820 — not listed in this catalogue
MA9952B · 37 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
17400 — Converter Assy, W/Catalyst
18450-16140 Converter Assy, W/Catalyst
1987-08 → 1988-07 ended
4AGELC AT160 —
18450-16340 Converter Assy, W/Catalyst
1988-07 → 1989-08 ended
4AGELC AT160 —
18450-74100 Converter Assy, W/Catalyst
1987-08 → 1988-07 ended
3SGELC ST162 —
18450-74200 Converter Assy, W/Catalyst
1988-07 → 1989-08 ended
3SGELC ST162 —
17410 — Pipe Assy, Exhaust, Front
17410-16240 Pipe Assy, Exhaust, Front
1987-08 → 1989-08 ended
4AL AT160 —
17410-16260 Pipe Assy, Exhaust, Front
1987-08 → 1989-08 ended
4AGEL AT160 —
17410-16470 Pipe Assy, Exhaust, Front
1987-08 → 1989-08 ended
4AGELC AT160 —
17410-74070 Pipe Assy, Exhaust, Front
1987-08 → 1989-08 ended
3SGEL ST162 —
17410-74340 Pipe Assy, Exhaust, Front
1987-08 → 1989-08 ended
3SGELC ST162 —
17410-74390 Pipe Assy, Exhaust, Front
1987-10 → 1989-08 ended
3SGTE ST165 —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1987-08 → 1989-08 ended
4AG#,4AL,3SG# AT160,ST16# —
17410B — Gasket, Exhaust Pipe
90917-06001 Gasket, Exhaust Pipe
1987-08 → 1989-08 ended
4AL AT160 —
90917-06004 Gasket, Exhaust Pipe
1987-08 → 1989-08 ended
4AG#,3SGEL,3SGELC AT160,ST162 —
90917-06013 Gasket, Exhaust Pipe
1987-10 → 1989-08 ended
3SGTE ST165 —
17420 — Pipe Assy, Exhaust, Center
17420-74080 Pipe Assy, Exhaust, Center
1987-08 → 1989-08 ended
4AGEL,3SGEL AT160,ST162 —
17420-74090 Pipe Assy, Exhaust, Center
1987-08 → 1989-08 ended
3SGELC ST162 —
17420-74180 Pipe Assy, Exhaust, Center
1987-10 → 1989-08 ended
3SGTE ST165 —
17420-74250 Pipe Assy, Exhaust, Center
1987-08 → 1989-08 ended
4AGELC AT160 —
17420X — Gasket, Exhaust Pipe, Center
90917-06012 Gasket, Exhaust Pipe, Center
1987-08 → 1989-08 ended
4AG#,3SGEL,3SGELC AT160,ST162 —
17430 — Pipe Assy, Exhaust, Tail
17430-16300 Pipe Assy, Exhaust, Tail
1987-08 → 1989-08 ended
4AL AT160 —
17430-74070 Pipe Assy, Exhaust, Tail
1987-08 → 1988-08 ended
4AGEL,3SGEL AT160,ST162 —
17430-74071 Pipe Assy, Exhaust, Tail
1988-08 → 1989-08 ended
4AGEL,3SGEL AT160,ST162 —
17430-74080 Pipe Assy, Exhaust, Tail
1987-08 → 1989-08 ended
4AGELC,3SGELC AT160,ST162 —
17430-74330 Pipe Assy, Exhaust, Tail
1987-10 → 1989-08 ended
3SGTE ST165 —
17448 — Baffle, Tailpipe
17448-74030 Baffle, Tailpipe
1987-08 → 1988-05 ended
4AG#,3SGEL,3SGELC AT160,ST162 —
17448-74040 Baffle, Tailpipe
1987-10 → 1989-08 ended
3SGTE ST165 —
17448-79015 Baffle, Tailpipe
1988-05 → 1989-08 ended
4AG#,3SGEL,3SGELC AT160,ST162 —
17451 — Gasket, Exhaust Pipe
90917-06004 Gasket, Exhaust Pipe
1987-08 → 1989-08 ended
4AL AT160 —
90917-06012 Gasket, Exhaust Pipe
1987-08 → 1989-08 ended
4AGELC AT160 —
90917-06012 Gasket, Exhaust Pipe
1987-08 → 1989-08 ended
4AGEL,3SGEL AT160,ST162 —
90917-06031 note Gasket, Exhaust Pipe
1987-08 → 1989-08 ended
3SGELC ST162 —
90917-06032 note Gasket, Exhaust Pipe
1987-08 → 1989-08 ended
3SGELC ST162 —
90917-06032 Gasket, Exhaust Pipe
1987-10 → 1989-08 ended
3SGTE ST165 —
17504 — Bracket Sub-assy, Catalytic Converter
17504-74020 Bracket Sub-assy, Catalytic Converter
1987-10 → 1989-08 ended
3SGTE ST165 —
17504-74040 Bracket Sub-assy, Catalytic Converter
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 —
17505D — Bracket Sub-assy, Converter Support, LH
17505-74020 Bracket Sub-assy, Converter Support, LH
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 —
17506A — Bracket Sub-assy, Exhaust Pipe NO.1 Support
17506-16050 note Bracket Sub-assy, Exhaust Pipe NO.1 Support
1987-08 → 1989-08 ended
4AG# AT160 —
17506-74010 note Bracket Sub-assy, Exhaust Pipe NO.1 Support
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 —
17506-74020 note Bracket Sub-assy, Exhaust Pipe NO.1 Support
1989-08 → 1989-08 ended
3SGEL,3SGELC ST162 —
17507 — Bracket Sub-assy, Exhaust Pipe NO.2 Support
17507-74010 Bracket Sub-assy, Exhaust Pipe NO.2 Support
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 —
17508A — Bracket Sub-assy, Exhaust Pipe NO.3 Support
17508-74010 Bracket Sub-assy, Exhaust Pipe NO.3 Support
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 —
17508-74020 Bracket Sub-assy, Exhaust Pipe NO.3 Support
1987-10 → 1989-08 ended
3SGTE ST165 —
17509A — Bracket Sub-assy, Exhaust Pipe NO.4 Support
17509-74010 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 —
17509-74020 Bracket Sub-assy, Exhaust Pipe NO.4 Support
1987-10 → 1989-08 ended
3SGTE ST165 —
17565A — Support, Exhaust Pipe, NO.4
17565-16080 note Support, Exhaust Pipe, NO.4
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 5F —
17565-63020 note Support, Exhaust Pipe, NO.4
1987-08 → 1989-08 ended
3SGTE ST165 —
17565-63020 note Support, Exhaust Pipe, NO.4
1987-08 → 1989-08 ended
3SGEL ST162 4FC —
17565-63030 note Support, Exhaust Pipe, NO.4
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 5F —
17565-63030 note Support, Exhaust Pipe, NO.4
1987-08 → 1989-08 ended
3SGTE ST165 —
17565-63030 note Support, Exhaust Pipe, NO.4
1987-08 → 1989-08 ended
3SGEL ST162 4FC —
17565-63060 note Support, Exhaust Pipe, NO.4
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 5F —
17565-63060 note Support, Exhaust Pipe, NO.4
1987-08 → 1989-08 ended
3SGEL ST162 4FC —
17565-63071 note Support, Exhaust Pipe, NO.4
1987-08 → 1989-08 ended
4AG#,4AL,3SGEL,3SGELC AT160,ST162 5F —
17591A — Stopper, Exhaust Pipe Support
17591-74010 Stopper, Exhaust Pipe Support
1987-08 → 1989-08 ended
4AG#,4AL,3SG# AT160,ST16# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
