Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

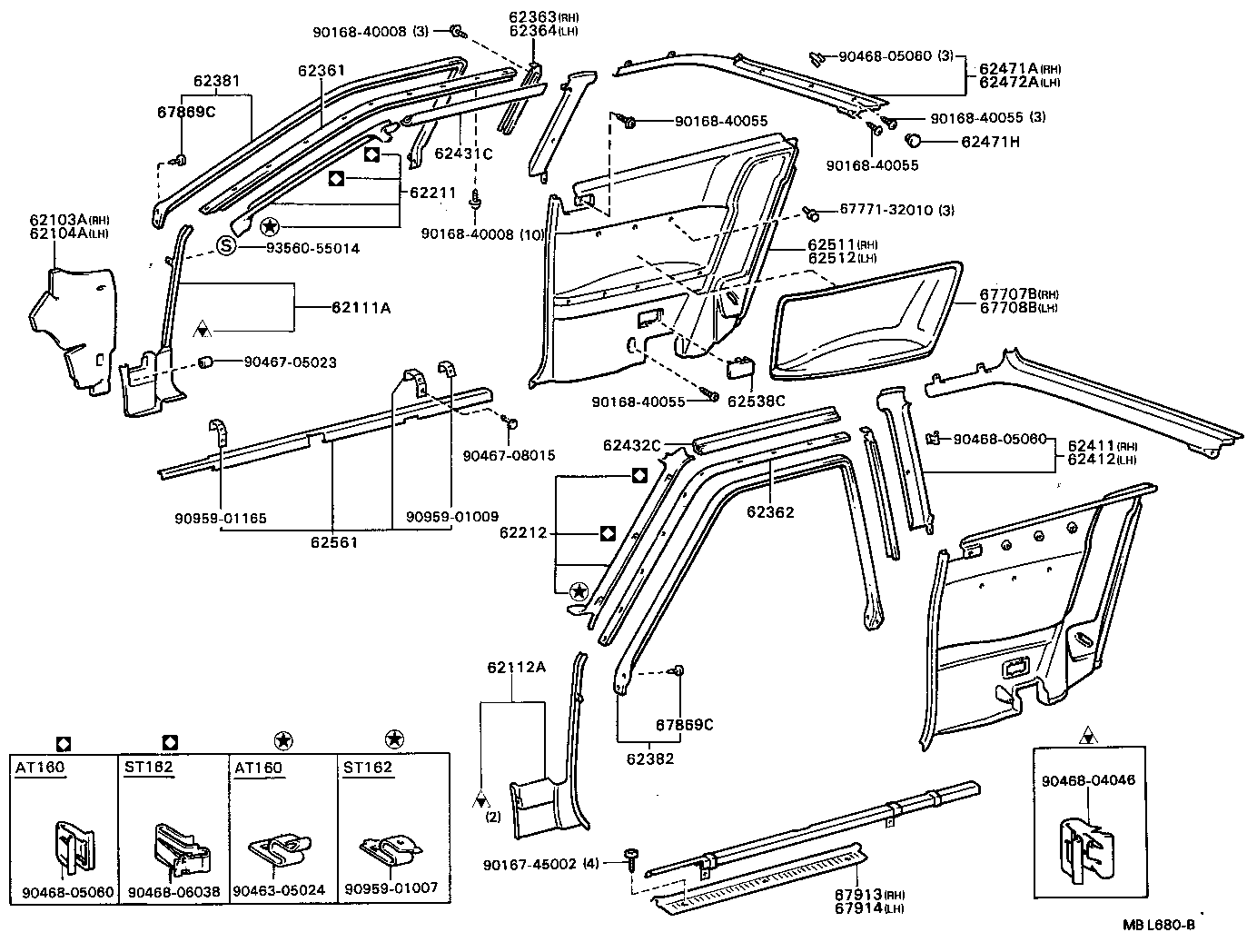

Exploded illustration MBL680B 62363 — RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH (1 parts) 62364 — RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH (1 parts) 9016840008 — not listed in this catalogue 9046805060 — not listed in this catalogue 62471A — GARNISH, ROOF SIDE, INNER RH (12 parts) 62361 — RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH (1 parts) 62381 — WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH (1 parts) 62472A — GARNISH, ROOF SIDE, INNER LH (12 parts) 67869C — CLIP, ROOF SIDE RAIL WEATHERSTRIP (1 parts) 9016840055 — not listed in this catalogue 9016840055 — not listed in this catalogue 62471H — PLUG, HOLE(FOR ROOF SIDE INNER GARNISH) (3 parts) 62431C — GARNISH, ROOF SIDE RAIL, FRONT RH (4 parts) 9016840055 — not listed in this catalogue 62211 — GARNISH, FRONT PILLAR, RH (6 parts) 6777132010 — not listed in this catalogue 62103A — INSULATOR SUB-ASSY, COWL SIDE, RH (2 parts) 62104A — INSULATOR SUB-ASSY, COWL SIDE, LH (2 parts) 9016840008 — not listed in this catalogue 62511 — BOARD, QUARTER INSIDE TRIM, RH (18 parts) 9356055014 — not listed in this catalogue 62512 — BOARD, QUARTER INSIDE TRIM, LH (18 parts) 67707B — ORNAMENT SUB-ASSY, QUARTER TRIM, RH (6 parts) 62111A — TRIM SUB-ASSY, COWL SIDE, RH (6 parts) 67708B — ORNAMENT SUB-ASSY, QUARTER TRIM, LH (6 parts) 9046705023 — not listed in this catalogue 62538C — COVER, QUARTER TRIM, HOLE (3 parts) 9016840055 — not listed in this catalogue 9046805060 — not listed in this catalogue 62432C — GARNISH, ROOF SIDE RAIL, FRONT LH (4 parts) 62411 — GARNISH, CENTER PILLAR, RH (3 parts) 9046708015 — not listed in this catalogue 62412 — GARNISH, CENTER PILLAR, LH (3 parts) 62362 — RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH (1 parts) 9095901009 — not listed in this catalogue 9095901165 — not listed in this catalogue 62212 — GARNISH, FRONT PILLAR, LH (6 parts) 62561 — PROTECTOR, ROCKER PANEL, INNER FRONT (4 parts) 62112A — TRIM SUB-ASSY, COWL SIDE, LH (6 parts) 67869C — CLIP, ROOF SIDE RAIL WEATHERSTRIP (1 parts) 62382 — WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH (1 parts) 9046804046 — not listed in this catalogue 9016745002 — not listed in this catalogue 9095901007 — not listed in this catalogue 9046805060 — not listed in this catalogue 9046305024 — not listed in this catalogue 9046806038 — not listed in this catalogue 67913 — PLATE, FRONT DOOR SCUFF, RH (3 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (3 parts)
MBL680B · 29 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
137 parts on this figure
Part number Description Fitment Price
62103A — Insulator Sub-assy, Cowl Side, RH
62105-20080 Insulator Sub-assy, Cowl Side, RH
1987-08 → 1989-08 ended
ST16# RHD —
62105-20090 Insulator Sub-assy, Cowl Side, RH
1987-08 → 1989-08 ended
AT160,ST16# LHD —
62104A — Insulator Sub-assy, Cowl Side, LH
62106-20080 Insulator Sub-assy, Cowl Side, LH
1987-08 → 1989-08 ended
ST16# RHD —
62106-20090 Insulator Sub-assy, Cowl Side, LH
1987-08 → 1989-08 ended
AT160,ST16# LHD —
62111A — Trim Sub-assy, Cowl Side, RH
62101-20150-01 note Trim Sub-assy, Cowl Side, RH
1987-08 → 1989-08 ended
ST16# RHD —
62101-20150-04 note Trim Sub-assy, Cowl Side, RH
1987-08 → 1989-08 ended
ST16# (CP,LB) RHD —
62101-20150-05 note Trim Sub-assy, Cowl Side, RH
1987-08 → 1989-08 ended
ST16# (CP,LB) RHD —
62101-20160-01 note Trim Sub-assy, Cowl Side, RH
1987-08 → 1989-08 ended
AT160,ST16# LHD —
62101-20160-04 note Trim Sub-assy, Cowl Side, RH
1987-08 → 1989-08 ended
AT160,ST16# (CP,LB) LHD —
62101-20160-05 note Trim Sub-assy, Cowl Side, RH
1987-08 → 1989-08 ended
AT160,ST16# (CP,LB) LHD —
62112A — Trim Sub-assy, Cowl Side, LH
62102-20120-01 note Trim Sub-assy, Cowl Side, LH
1987-08 → 1989-08 ended
ST16# RHD —
62102-20120-04 note Trim Sub-assy, Cowl Side, LH
1987-08 → 1989-08 ended
ST16# (CP,LB) RHD —
62102-20120-05 note Trim Sub-assy, Cowl Side, LH
1987-08 → 1989-08 ended
ST16# (CP,LB) RHD —
62102-20130-01 note Trim Sub-assy, Cowl Side, LH
1987-08 → 1989-08 ended
AT160,ST16# LHD —
62102-20130-04 note Trim Sub-assy, Cowl Side, LH
1987-08 → 1989-08 ended
AT160,ST16# (CP,LB) LHD —
62102-20130-05 note Trim Sub-assy, Cowl Side, LH
1987-08 → 1989-08 ended
AT160,ST16# (CP,LB) LHD —
62211 — Garnish, Front Pillar, RH
62210-20020-01 note Garnish, Front Pillar, RH
1987-08 → 1989-08 ended
ST16# —
62210-20020-04 note Garnish, Front Pillar, RH
1987-08 → 1989-08 ended
ST16# CP,LB —
62210-20020-05 note Garnish, Front Pillar, RH
1987-08 → 1989-08 ended
ST16# CP,LB —
62211-20140-01 note Garnish, Front Pillar, RH
1987-08 → 1989-08 ended
AT160 —
62211-20140-04 note Garnish, Front Pillar, RH
1987-08 → 1989-08 ended
AT160 —
62211-20140-05 note Garnish, Front Pillar, RH
1987-08 → 1989-08 ended
AT160 —
62212 — Garnish, Front Pillar, LH
62212-20140-01 note Garnish, Front Pillar, LH
1987-08 → 1989-08 ended
AT160 —
62212-20140-04 note Garnish, Front Pillar, LH
1987-08 → 1989-08 ended
AT160 —
62212-20140-05 note Garnish, Front Pillar, LH
1987-08 → 1989-08 ended
AT160 —
62220-20020-01 note Garnish, Front Pillar, LH
1987-08 → 1989-08 ended
ST16# —
62220-20020-04 note Garnish, Front Pillar, LH
1987-08 → 1989-08 ended
ST16# CP,LB —
62220-20020-05 note Garnish, Front Pillar, LH
1987-08 → 1989-08 ended
ST16# CP,LB —
62361 — Retainer, Roof Side Rail Weatherstrip, Front RH
62361-20030 Retainer, Roof Side Rail Weatherstrip, Front RH
1987-08 → 1989-08 ended
AT160,ST16# —
62362 — Retainer, Roof Side Rail Weatherstrip, Front LH
62362-20030 Retainer, Roof Side Rail Weatherstrip, Front LH
1987-08 → 1989-08 ended
AT160,ST16# —
62363 — Retainer, Roof Side Rail Weatherstrip, Rear RH
62371-20040 Retainer, Roof Side Rail Weatherstrip, Rear RH
1987-08 → 1989-08 ended
AT160,ST16# —
62364 — Retainer, Roof Side Rail Weatherstrip, Rear LH
62372-20030 Retainer, Roof Side Rail Weatherstrip, Rear LH
1987-08 → 1989-08 ended
AT160,ST16# —
62381 — Weatherstrip, Roof Side Rail, Front RH
62381-20040 Weatherstrip, Roof Side Rail, Front RH
1987-08 → 1989-08 ended
AT160,ST16# —
62382 — Weatherstrip, Roof Side Rail, Front LH
62382-20040 Weatherstrip, Roof Side Rail, Front LH
1987-08 → 1989-08 ended
AT160,ST16# —
62411 — Garnish, Center Pillar, RH
62411-20230-01 note Garnish, Center Pillar, RH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62411-20230-04 note Garnish, Center Pillar, RH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62411-20230-05 note Garnish, Center Pillar, RH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62412 — Garnish, Center Pillar, LH
62412-20230-01 note Garnish, Center Pillar, LH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62412-20230-04 note Garnish, Center Pillar, LH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62412-20230-05 note Garnish, Center Pillar, LH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62431C — Garnish, Roof Side Rail, Front RH
62431-20030-01 note Garnish, Roof Side Rail, Front RH
1987-08 → 1987-10 ended
AT160,ST162 CP,LB —
62431-20030-01 note Garnish, Roof Side Rail, Front RH
1987-10 → 1989-08 ended
AT160,ST16# —
62431-20030-04 note Garnish, Roof Side Rail, Front RH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62431-20030-05 note Garnish, Roof Side Rail, Front RH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62432C — Garnish, Roof Side Rail, Front LH
62431-20030-01 note Garnish, Roof Side Rail, Front LH
1987-08 → 1987-10 ended
AT160,ST162 CP,LB —
62431-20030-01 note Garnish, Roof Side Rail, Front LH
1987-10 → 1989-08 ended
AT160,ST16# —
62431-20030-04 note Garnish, Roof Side Rail, Front LH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62431-20030-05 note Garnish, Roof Side Rail, Front LH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62471A — Garnish, Roof Side, Inner RH
62471-20210-01 note Garnish, Roof Side, Inner RH
1987-08 → 1989-08 ended
AT160,ST162 CP —
62471-20210-01 note Garnish, Roof Side, Inner RH
1989-08 → 1989-08 ended
AT160,ST162 CP —
62471-20210-04 note Garnish, Roof Side, Inner RH
1987-08 → 1989-08 ended
AT160,ST162 CP —
62471-20210-04 note Garnish, Roof Side, Inner RH
1989-08 → 1989-08 ended
AT160,ST162 CP —
62471-20210-05 note Garnish, Roof Side, Inner RH
1989-08 → 1989-08 ended
AT160,ST162 CP —
62471-20210-05 note Garnish, Roof Side, Inner RH
1987-08 → 1989-08 ended
AT160,ST162 CP —
62471-20230-01 note Garnish, Roof Side, Inner RH
1987-08 → 1989-08 ended
AT160,ST16# LB —
62471-20230-01 note Garnish, Roof Side, Inner RH
1989-08 → 1989-08 ended
AT160,ST16# LB —
62471-20230-04 note Garnish, Roof Side, Inner RH
1987-08 → 1989-08 ended
AT160,ST16# LB —
62471-20230-04 note Garnish, Roof Side, Inner RH
1989-08 → 1989-08 ended
AT160,ST16# LB —
62471-20230-05 note Garnish, Roof Side, Inner RH
1989-08 → 1989-08 ended
AT160,ST16# LB —
62471-20230-05 note Garnish, Roof Side, Inner RH
1987-08 → 1989-08 ended
AT160,ST16# LB —
62471H — Plug, Hole(FOR ROOF SIDE INNER GARNISH)
90950-01503-01 note Plug, Hole(FOR ROOF SIDE INNER GARNISH)
1987-08 → 1988-07 ended
AT160,ST16# LB —
90950-01503-04 note Plug, Hole(FOR ROOF SIDE INNER GARNISH)
1987-08 → 1988-07 ended
AT160,ST16# LB —
90950-01503-05 note Plug, Hole(FOR ROOF SIDE INNER GARNISH)
1987-08 → 1988-07 ended
AT160,ST16# LB —
62472A — Garnish, Roof Side, Inner LH
62472-20230-01 note Garnish, Roof Side, Inner LH
1987-08 → 1989-08 ended
AT160,ST162 CP —
62472-20230-01 note Garnish, Roof Side, Inner LH
1989-08 → 1989-08 ended
AT160,ST162 CP —
62472-20230-04 note Garnish, Roof Side, Inner LH
1987-08 → 1989-08 ended
AT160,ST162 CP —
62472-20230-04 note Garnish, Roof Side, Inner LH
1989-08 → 1989-08 ended
AT160,ST162 CP —
62472-20230-05 note Garnish, Roof Side, Inner LH
1987-08 → 1989-08 ended
AT160,ST162 CP —
62472-20230-05 note Garnish, Roof Side, Inner LH
1989-08 → 1989-08 ended
AT160,ST162 CP —
62472-20250-01 note Garnish, Roof Side, Inner LH
1987-08 → 1989-08 ended
AT160,ST16# LB —
62472-20250-01 note Garnish, Roof Side, Inner LH
1989-08 → 1989-08 ended
AT160,ST16# LB —
62472-20250-04 note Garnish, Roof Side, Inner LH
1987-08 → 1989-08 ended
AT160,ST16# LB —
62472-20250-04 note Garnish, Roof Side, Inner LH
1989-08 → 1989-08 ended
AT160,ST16# LB —
62472-20250-05 note Garnish, Roof Side, Inner LH
1987-08 → 1989-08 ended
AT160,ST16# LB —
62472-20250-05 note Garnish, Roof Side, Inner LH
1989-08 → 1989-08 ended
AT160,ST16# LB —
62511 — Board, Quarter Inside Trim, RH
62511-20090-01 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160 CP CBR —
62511-20090-04 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160 CP CBR —
62511-20090-05 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160 CP CBR —
62511-20100-01 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160,ST162 (CP,CVT) TWC —
62511-20100-04 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62511-20100-05 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62511-20110-01 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160 CP CBR —
62511-20110-04 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160 CP CBR —
62511-20110-05 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160 CP CBR —
62511-20120-01 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62511-20120-04 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62511-20120-05 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62511-20130-01 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160 LB CBR —
62511-20130-04 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160 LB CBR —
62511-20130-05 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160 LB CBR —
62511-20140-01 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160,ST16# LB TWC —
62511-20140-04 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160,ST16# LB TWC —
62511-20140-05 note Board, Quarter Inside Trim, RH
1987-08 → 1989-08 ended
AT160,ST16# LB TWC —
62512 — Board, Quarter Inside Trim, LH
62512-20090-01 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160 CP CBR —
62512-20090-04 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160 CP CBR —
62512-20090-05 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160 CP CBR —
62512-20100-01 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160,ST162 (CP,CVT) TWC —
62512-20100-04 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62512-20100-05 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62512-20110-01 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160 CP CBR —
62512-20110-04 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160 CP CBR —
62512-20110-05 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160 CP CBR —
62512-20120-01 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62512-20120-04 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62512-20120-05 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160,ST162 CP TWC —
62512-20130-01 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160 LB CBR —
62512-20130-04 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160 LB CBR —
62512-20130-05 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160 LB CBR —
62512-20140-01 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160,ST16# LB TWC —
62512-20140-04 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160,ST16# LB TWC —
62512-20140-05 note Board, Quarter Inside Trim, LH
1987-08 → 1989-08 ended
AT160,ST16# LB TWC —
62538C — Cover, Quarter Trim, Hole
62538-14010-05 note Cover, Quarter Trim, Hole
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62538-14010-11 note Cover, Quarter Trim, Hole
1987-08 → 1989-08 ended
AT160,ST16# —
62538-14010-14 note Cover, Quarter Trim, Hole
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62561 — Protector, Rocker Panel, Inner Front
62561-20061 note Protector, Rocker Panel, Inner Front
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62561-20080 note Protector, Rocker Panel, Inner Front
1987-08 → 1989-08 ended
ST162 CVT —
62562-20041 note Protector, Rocker Panel, Inner Front
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
62562-20060 note Protector, Rocker Panel, Inner Front
1987-08 → 1989-08 ended
ST162 CVT —
67707B — Ornament Sub-assy, Quarter Trim, RH
67707-20130-04 note Ornament Sub-assy, Quarter Trim, RH
1987-10 → 1989-08 ended
ST165 —
67707-20130-05 note Ornament Sub-assy, Quarter Trim, RH
1987-10 → 1989-08 ended
ST165 —
67707-20130-13 note Ornament Sub-assy, Quarter Trim, RH
1987-10 → 1989-08 ended
ST165 —
67707-20140-04 note Ornament Sub-assy, Quarter Trim, RH
1987-08 → 1989-08 ended
AT160,ST162 (CP,LB) TWC —
67707-20140-05 note Ornament Sub-assy, Quarter Trim, RH
1987-08 → 1989-08 ended
AT160,ST162 (CP,LB) TWC —
67707-20140-13 note Ornament Sub-assy, Quarter Trim, RH
1987-08 → 1989-08 ended
AT160,ST162 TWC —
67708B — Ornament Sub-assy, Quarter Trim, LH
67708-20140-04 note Ornament Sub-assy, Quarter Trim, LH
1987-10 → 1989-08 ended
ST165 —
67708-20140-05 note Ornament Sub-assy, Quarter Trim, LH
1987-10 → 1989-08 ended
ST165 —
67708-20140-13 note Ornament Sub-assy, Quarter Trim, LH
1987-10 → 1989-08 ended
ST165 —
67708-20150-04 note Ornament Sub-assy, Quarter Trim, LH
1987-08 → 1989-08 ended
AT160,ST162 (CP,LB) TWC —
67708-20150-05 note Ornament Sub-assy, Quarter Trim, LH
1987-08 → 1989-08 ended
AT160,ST162 (CP,LB) TWC —
67708-20150-13 note Ornament Sub-assy, Quarter Trim, LH
1987-08 → 1989-08 ended
AT160,ST162 TWC —
67869C — Clip, Roof Side Rail Weatherstrip
67869-30020 Clip, Roof Side Rail Weatherstrip
1987-08 → 1989-08 ended
AT160,ST16# —
67913 — Plate, Front Door Scuff, RH
67913-20140-01 note Plate, Front Door Scuff, RH
1987-08 → 1989-08 ended
AT160,ST16# —
67913-20140-04 note Plate, Front Door Scuff, RH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
67913-20140-05 note Plate, Front Door Scuff, RH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
67914 — Plate, Front Door Scuff, LH
67913-20140-01 note Plate, Front Door Scuff, LH
1987-08 → 1989-08 ended
AT160,ST16# —
67913-20140-04 note Plate, Front Door Scuff, LH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
67913-20140-05 note Plate, Front Door Scuff, LH
1987-08 → 1989-08 ended
AT160,ST16# CP,LB —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
