Toyota Celica
1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe
Discontinued model
Data version 1990-03

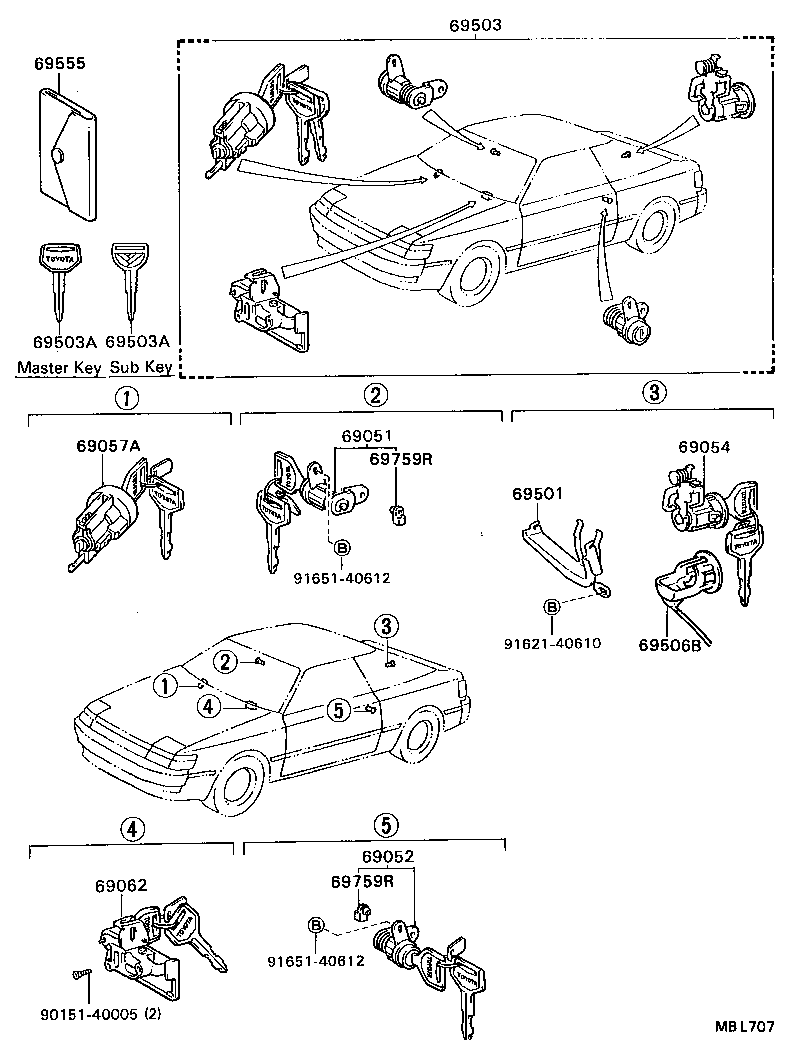

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-20140 |
Cylinder & Key Set, Door Lock, RH
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 69051-20170 |
Cylinder & Key Set, Door Lock, RH
1987-08 → 1989-08
ended
|
AT160,ST162 CP,CVT | — | |
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-20140 |
Cylinder & Key Set, Door Lock, LH
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 69052-20170 |
Cylinder & Key Set, Door Lock, LH
1987-08 → 1989-08
ended
|
AT160,ST162 CP,CVT | — | |
| 69054 — Cylinder & Key Set, Back Door Lock | ||||
| 69055-20191 |
Cylinder & Key Set, Back Door Lock
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 69057A — Cylinder & Key Set, Ignition Switch Lock | ||||
| 69057-20090 |
Cylinder & Key Set, Ignition Switch Lock
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 69057-20130 |
Cylinder & Key Set, Ignition Switch Lock
1987-08 → 1989-08
ended
|
AT160,ST162 CP,CVT | — | |
| 69062 — Cylinder & Key Set, Glove Compartment Lock | ||||
| 69056-20080 |
Cylinder & Key Set, Glove Compartment Lock
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 69056-20100 |
Cylinder & Key Set, Glove Compartment Lock
1987-08 → 1989-08
ended
|
AT160,ST162 CP,CVT | — | |
| 69501 — Retainer Sub-assy, Back Door Cylinder | ||||
| 69501-20030 |
Retainer Sub-assy, Back Door Cylinder
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-20390 |
Cylinder Set, Lock
1987-08 → 1989-08
ended
|
AT160,ST162 CP,CVT | — | |
| 69005-20451 |
Cylinder Set, Lock
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 69503A — Key, Blank | ||||
| 90999-00092 note |
Key, Blank
1987-08 → 1989-08
ended
|
AT160,ST162 CP,CVT | — | |
| 90999-00093 note |
Key, Blank
1987-08 → 1989-08
ended
|
AT160,ST162 CP,CVT | — | |
| 90999-00113 note |
Key, Blank
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 90999-00115 note |
Key, Blank
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 69506B — Hose Sub-assy, Back Door Lock Cylinder | ||||
| 69506-20010 |
Hose Sub-assy, Back Door Lock Cylinder
1987-08 → 1989-08
ended
|
AT160,ST16# LB | — | |
| 69555 — Cover, Key | ||||
| 69555-20010 |
Cover, Key
1987-08 → 1989-08
ended
|
AT160,ST16# | — | |
| 69759R — Snap, Front Door Lock Cylinder | ||||
| 69759-30040 note |
Snap, Front Door Lock Cylinder
1987-08 → 1989-08
ended
|
AT160,ST16# | — | |
| 69759-30050 note |
Snap, Front Door Lock Cylinder
1987-08 → 1989-08
ended
|
AT160,ST16# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
