Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

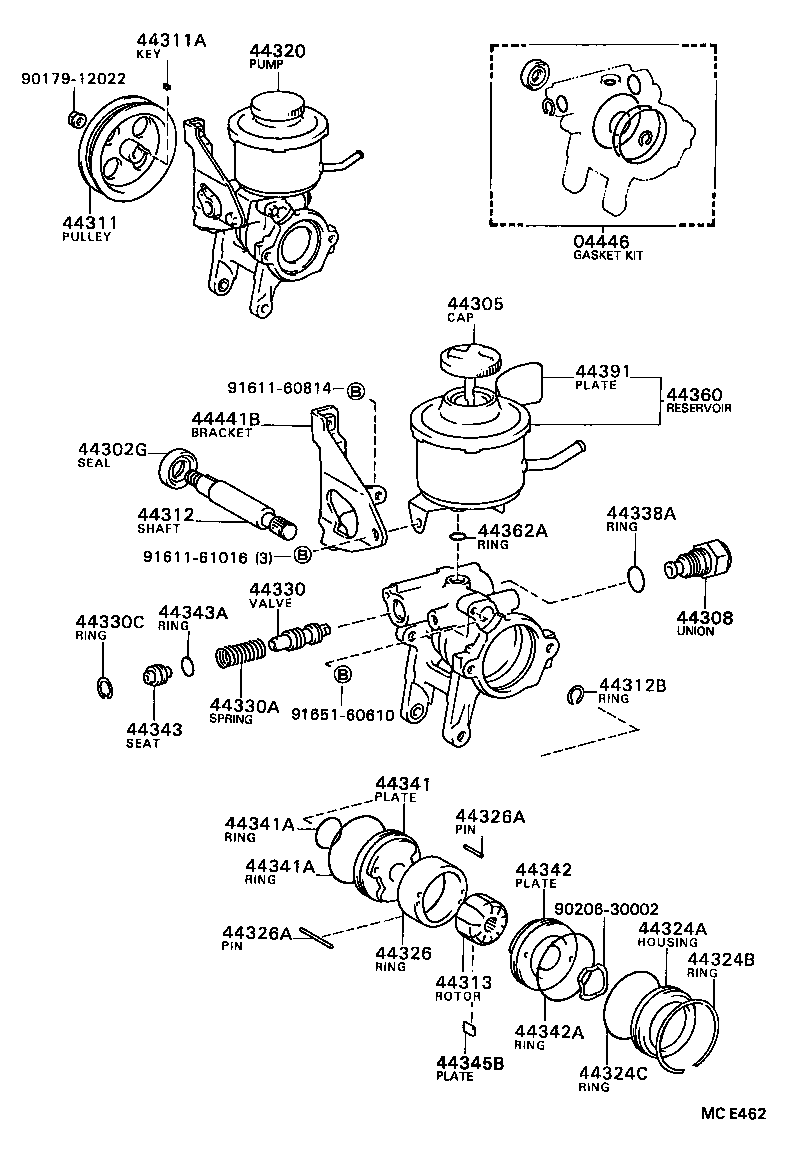

Exploded illustration MCE462 44311A — KEY, VANE PUMP PULLEY (2 parts) 44320 — PUMP ASSY, VANE (8 parts) 9017912022 — not listed in this catalogue 44311 — PULLEY, VANE PUMP (3 parts) 04446 — GASKET KIT, POWER STEERING PUMP (5 parts) 44305 — CAP SUB-ASSY, VANE PUMP OIL RESERVOIR (2 parts) 44391 — PLATE, POWER STEERING OIL RESERVOIR CAUTION (1 parts) 9161160814 — not listed in this catalogue 44360 — RESERVOIR ASSY, VANE PUMP OIL (4 parts) 44441B — BRACKET, PUMP, FRONT (1 parts) 44302G — SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) (2 parts) 44338A — RING, O(FOR PRESSURE PORT UNION) (2 parts) 44312 — SHAFT, VANE PUMP (2 parts) 44362A — RING, O(FOR VANE PUMP OIL RESERVOIR) (1 parts) 9161161016 — not listed in this catalogue 44330 — VALVE ASSY, FLOW CONTROL (24 parts) 44343A — RING, O(FOR FLOW CONTROL SPRING SEAT) (2 parts) 44308 — UNION SUB-ASSY, PRESSURE PORT (4 parts) 44330C — RING, SNAP(FOR FLOW CONTROL VALVE) (2 parts) 44312B — RING, SNAP, NO.1(FOR VANE PUMP SHAFT) (2 parts) 44330A — SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) (2 parts) 9165160610 — not listed in this catalogue 44343 — SEAT, FLOW CONTROL SPRING (2 parts) 44341 — PLATE, VANE PUMP SIDE, FRONT (5 parts) 44326A — PIN, STRAIGHT(FOR VANE PUMP CAM RING) (4 parts) 44341A — RING, O(FOR VANE PUMP FRONT SIDE PLATE) (4 parts) 44341A — RING, O(FOR VANE PUMP FRONT SIDE PLATE) (4 parts) 44342 — PLATE, VANE PUMP SIDE, REAR (5 parts) 9020630002 — not listed in this catalogue 44324A — HOUSING, PUMP, REAR (2 parts) 44326A — PIN, STRAIGHT(FOR VANE PUMP CAM RING) (4 parts) 44326 — RING, CAM(FOR VANE PUMP) (15 parts) 44324B — RING, HOLE SNAP(FOR PUMP HOUSING REAR) (2 parts) 44313 — ROTOR, VANE PUMP (25 parts) 44342A — RING, O(FOR VANE PUMP SIDE PLATE REAR) (2 parts) 44345B — PLATE, VANE PUMP (10 parts) 44324C — RING, O(FOR PUMP HOUSING REAR) (2 parts)
MCE462 · 32 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
147 parts on this figure
Part number Description Fitment Price
04446 — Gasket Kit, Power Steering Pump
04446-16030 Gasket Kit, Power Steering Pump
1987-08 → 1988-11 ended
AT160 TWC —
04446-16030 Gasket Kit, Power Steering Pump
1987-08 → 1988-11 ended
AT160 CBR —
04446-20030 Gasket Kit, Power Steering Pump
1988-11 → 1989-08 ended
AT160 CBR —
04446-20030 Gasket Kit, Power Steering Pump
1987-08 → 1988-11 ended
ST162;ST165 LHD —
04446-20030 Gasket Kit, Power Steering Pump
1988-11 → 1989-08 ended
ST165 LHD;AT160,ST162 TWC —
44302G — Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
90311-18007 Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1987-08 → 1988-08 ended
AT160 CBR —
90311-18007 Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44305 — Cap Sub-assy, Vane Pump Oil Reservoir
44305-30020 Cap Sub-assy, Vane Pump Oil Reservoir
1987-08 → 1988-08 ended
AT160 CBR —
44305-32010 Cap Sub-assy, Vane Pump Oil Reservoir
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44308 — Union Sub-assy, Pressure Port
44308-12042 Union Sub-assy, Pressure Port
1987-08 → 1988-08 ended
AT160 CBR —
44308-12042 Union Sub-assy, Pressure Port
1987-08 → 1989-08 ended
AT160 TWC —
44308-20030 Union Sub-assy, Pressure Port
1987-08 → 1989-08 ended
ST162 —
44308-20040 Union Sub-assy, Pressure Port
1987-10 → 1989-08 ended
ST165 —
44311 — Pulley, Vane Pump
44311-12040 Pulley, Vane Pump
1987-08 → 1988-08 ended
AT160 CBR —
44311-12070 Pulley, Vane Pump
1987-08 → 1989-08 ended
AT160 TWC —
44311-20060 Pulley, Vane Pump
1987-08 → 1989-08 ended
ST16# —
44311A — Key, Vane Pump Pulley
90280-05008 Key, Vane Pump Pulley
1987-08 → 1988-08 ended
AT160 CBR —
90280-05008 Key, Vane Pump Pulley
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44312 — Shaft, Vane Pump
44312-12030 Shaft, Vane Pump
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44312-12030 Shaft, Vane Pump
1987-08 → 1988-08 ended
AT160 CBR —
44312B — Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
90520-10003 Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1987-08 → 1988-08 ended
AT160 CBR —
90520-10003 Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44313 — Rotor, Vane Pump
44313-12010 note Rotor, Vane Pump
1987-08 → 1987-12 ended
AT160,ST16# —
44313-12010 note Rotor, Vane Pump
1987-12 → 1988-04 ended
AT160,ST162 —
44313-12020 note Rotor, Vane Pump
1987-12 → 1988-04 ended
AT160,ST162 —
44313-12020 note Rotor, Vane Pump
1987-08 → 1987-12 ended
AT160,ST16# —
44313-12030 note Rotor, Vane Pump
1987-08 → 1987-12 ended
AT160,ST16# —
44313-12030 note Rotor, Vane Pump
1987-12 → 1988-04 ended
AT160,ST162 —
44313-12040 note Rotor, Vane Pump
1987-08 → 1987-12 ended
AT160,ST16# —
44313-12040 note Rotor, Vane Pump
1987-12 → 1988-04 ended
AT160,ST162 —
44313-12050 note Rotor, Vane Pump
1987-08 → 1987-12 ended
AT160,ST16# —
44313-12050 note Rotor, Vane Pump
1987-12 → 1988-04 ended
AT160,ST162 —
44313-22040 note Rotor, Vane Pump
1988-04 → 1988-08 ended
AT160,ST162 —
44313-22040 note Rotor, Vane Pump
1988-08 → 1989-08 ended
AT160,ST162 TWC —
44313-22040 note Rotor, Vane Pump
1987-12 → 1989-08 ended
ST165 —
44313-22050 note Rotor, Vane Pump
1987-12 → 1989-08 ended
ST165 —
44313-22050 note Rotor, Vane Pump
1988-08 → 1989-08 ended
AT160,ST162 TWC —
44313-22050 note Rotor, Vane Pump
1988-04 → 1988-08 ended
AT160,ST162 —
44313-22060 note Rotor, Vane Pump
1987-12 → 1989-08 ended
ST165 —
44313-22060 note Rotor, Vane Pump
1988-04 → 1988-08 ended
AT160,ST162 —
44313-22060 note Rotor, Vane Pump
1988-08 → 1989-08 ended
AT160,ST162 TWC —
44313-22070 note Rotor, Vane Pump
1988-04 → 1988-08 ended
AT160,ST162 —
44313-22070 note Rotor, Vane Pump
1987-12 → 1989-08 ended
ST165 —
44313-22070 note Rotor, Vane Pump
1988-08 → 1989-08 ended
AT160,ST162 TWC —
44313-22080 note Rotor, Vane Pump
1988-04 → 1988-08 ended
AT160,ST162 —
44313-22080 note Rotor, Vane Pump
1988-08 → 1989-08 ended
AT160,ST162 TWC —
44313-22080 note Rotor, Vane Pump
1987-12 → 1989-08 ended
ST165 —
44320 — Pump Assy, Vane
44320-12061 Pump Assy, Vane
1987-08 → 1988-04 ended
AT160 CBR —
44320-12062 Pump Assy, Vane
1988-04 → 1988-08 ended
AT160 CBR —
44320-12121 Pump Assy, Vane
1987-08 → 1988-04 ended
AT160 TWC —
44320-12122 Pump Assy, Vane
1988-04 → 1989-08 ended
AT160 TWC —
44320-20120 Pump Assy, Vane
1987-08 → 1988-04 ended
ST162 —
44320-20121 Pump Assy, Vane
1988-04 → 1989-08 ended
ST162 —
44320-20130 Pump Assy, Vane
1987-10 → 1987-12 ended
ST165 —
44320-20131 Pump Assy, Vane
1987-12 → 1989-08 ended
ST165 —
44324A — Housing, Pump, Rear
44324-12031 Housing, Pump, Rear
1987-08 → 1988-08 ended
AT160 CBR —
44324-12031 Housing, Pump, Rear
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44324B — Ring, Hole Snap(FOR PUMP HOUSING REAR)
90521-62002 Ring, Hole Snap(FOR PUMP HOUSING REAR)
1987-08 → 1988-08 ended
AT160 CBR —
90521-62002 Ring, Hole Snap(FOR PUMP HOUSING REAR)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44324C — Ring, O(FOR PUMP HOUSING REAR)
90301-52001 Ring, O(FOR PUMP HOUSING REAR)
1987-08 → 1988-08 ended
AT160 CBR —
90301-52001 Ring, O(FOR PUMP HOUSING REAR)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44326 — Ring, Cam(FOR VANE PUMP)
44325-12110 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1988-08 ended
AT160 CBR —
44325-12110 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1989-08 ended
AT160,ST162 TWC —
44325-12120 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1988-08 ended
AT160 CBR —
44325-12120 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1989-08 ended
AT160,ST162 TWC —
44325-12130 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1988-08 ended
AT160 CBR —
44325-12130 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1989-08 ended
AT160,ST162 TWC —
44325-12140 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1988-08 ended
AT160 CBR —
44325-12140 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1989-08 ended
AT160,ST162 TWC —
44325-12150 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1988-08 ended
AT160 CBR —
44325-12150 note Ring, Cam(FOR VANE PUMP)
1987-08 → 1989-08 ended
AT160,ST162 TWC —
44325-30100 note Ring, Cam(FOR VANE PUMP)
1987-10 → 1989-08 ended
ST165 —
44325-30110 note Ring, Cam(FOR VANE PUMP)
1987-10 → 1989-08 ended
ST165 —
44325-30120 note Ring, Cam(FOR VANE PUMP)
1987-10 → 1989-08 ended
ST165 —
44325-30130 note Ring, Cam(FOR VANE PUMP)
1987-10 → 1989-08 ended
ST165 —
44325-30140 note Ring, Cam(FOR VANE PUMP)
1987-10 → 1989-08 ended
ST165 —
44326A — Pin, Straight(FOR VANE PUMP CAM RING)
90250-04047 note Pin, Straight(FOR VANE PUMP CAM RING)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
90250-04047 note Pin, Straight(FOR VANE PUMP CAM RING)
1987-08 → 1988-08 ended
AT160 CBR —
90250-04049 note Pin, Straight(FOR VANE PUMP CAM RING)
1987-08 → 1988-08 ended
AT160 CBR —
90250-04049 note Pin, Straight(FOR VANE PUMP CAM RING)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44330 — Valve Assy, Flow Control
44330-12130 note Valve Assy, Flow Control
1987-08 → 1989-08 ended
ST16# —
44330-12140 note Valve Assy, Flow Control
1987-08 → 1989-08 ended
ST16# —
44330-12150 note Valve Assy, Flow Control
1987-08 → 1989-08 ended
ST16# —
44330-12160 note Valve Assy, Flow Control
1987-08 → 1989-08 ended
ST16# —
44330-12170 note Valve Assy, Flow Control
1987-08 → 1989-08 ended
ST16# —
44330-12180 note Valve Assy, Flow Control
1987-08 → 1989-08 ended
ST16# —
44330-14010 note Valve Assy, Flow Control
1987-08 → 1989-06 ended
AT160 TWC —
44330-14010 note Valve Assy, Flow Control
1987-08 → 1988-08 ended
AT160 CBR —
44330-14020 note Valve Assy, Flow Control
1987-08 → 1989-06 ended
AT160 TWC —
44330-14020 note Valve Assy, Flow Control
1987-08 → 1988-08 ended
AT160 CBR —
44330-14030 note Valve Assy, Flow Control
1987-08 → 1988-08 ended
AT160 CBR —
44330-14030 note Valve Assy, Flow Control
1987-08 → 1989-06 ended
AT160 TWC —
44330-14040 note Valve Assy, Flow Control
1987-08 → 1988-08 ended
AT160 CBR —
44330-14040 note Valve Assy, Flow Control
1987-08 → 1989-06 ended
AT160 TWC —
44330-14050 note Valve Assy, Flow Control
1987-08 → 1989-06 ended
AT160 TWC —
44330-14050 note Valve Assy, Flow Control
1987-08 → 1988-08 ended
AT160 CBR —
44330-14060 note Valve Assy, Flow Control
1987-08 → 1988-08 ended
AT160 CBR —
44330-14060 note Valve Assy, Flow Control
1987-08 → 1989-06 ended
AT160 TWC —
44330-20010 note Valve Assy, Flow Control
1989-06 → 1989-08 ended
AT160 TWC —
44330-20020 note Valve Assy, Flow Control
1989-06 → 1989-08 ended
AT160 TWC —
44330-20030 note Valve Assy, Flow Control
1989-06 → 1989-08 ended
AT160 TWC —
44330-20040 note Valve Assy, Flow Control
1989-06 → 1989-08 ended
AT160 TWC —
44330-20050 note Valve Assy, Flow Control
1989-06 → 1989-08 ended
AT160 TWC —
44330-20060 note Valve Assy, Flow Control
1989-06 → 1989-08 ended
AT160 TWC —
44330A — Spring, Compression(FOR FLOW CONTROL VALVE)
90501-12103 Spring, Compression(FOR FLOW CONTROL VALVE)
1987-08 → 1988-08 ended
AT160 CBR —
90501-12103 Spring, Compression(FOR FLOW CONTROL VALVE)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44330C — Ring, Snap(FOR FLOW CONTROL VALVE)
96151-01700 Ring, Snap(FOR FLOW CONTROL VALVE)
1987-08 → 1988-08 ended
AT160 CBR —
96151-01700 Ring, Snap(FOR FLOW CONTROL VALVE)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44338A — Ring, O(FOR PRESSURE PORT UNION)
90301-19003 note Ring, O(FOR PRESSURE PORT UNION)
1987-08 → 1988-08 ended
AT160 CBR —
90301-19003 note Ring, O(FOR PRESSURE PORT UNION)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44341 — Plate, Vane Pump Side, Front
44341-12030 Plate, Vane Pump Side, Front
1987-08 → 1987-12 ended
AT160,ST16# —
44341-12030 Plate, Vane Pump Side, Front
1987-12 → 1988-04 ended
AT160,ST162 —
44341-32010 Plate, Vane Pump Side, Front
1987-12 → 1988-04 ended
ST165 —
44341-32010 Plate, Vane Pump Side, Front
1988-08 → 1989-08 ended
AT160,ST16# TWC —
44341-32010 Plate, Vane Pump Side, Front
1988-04 → 1988-08 ended
AT160,ST16# —
44341A — Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-25001 note Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1987-08 → 1988-08 ended
AT160 CBR —
90301-25001 note Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
90301-52001 note Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1987-08 → 1988-08 ended
AT160 CBR —
90301-52001 note Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44342 — Plate, Vane Pump Side, Rear
44342-12021 Plate, Vane Pump Side, Rear
1987-08 → 1987-12 ended
AT160,ST16# —
44342-12021 Plate, Vane Pump Side, Rear
1987-12 → 1988-04 ended
AT160,ST162 —
44342-32010 Plate, Vane Pump Side, Rear
1987-12 → 1988-04 ended
ST165 —
44342-32010 Plate, Vane Pump Side, Rear
1988-04 → 1988-08 ended
AT160,ST16# —
44342-32010 Plate, Vane Pump Side, Rear
1988-08 → 1989-08 ended
AT160,ST16# TWC —
44342A — Ring, O(FOR VANE PUMP SIDE PLATE REAR)
90301-52001 Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1987-08 → 1988-08 ended
AT160 CBR —
90301-52001 Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44343 — Seat, Flow Control Spring
44343-12010 Seat, Flow Control Spring
1987-08 → 1988-08 ended
AT160 CBR —
44343-12010 Seat, Flow Control Spring
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44343A — Ring, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014 Ring, O(FOR FLOW CONTROL SPRING SEAT)
1987-08 → 1989-08 ended
AT160,ST16# TWC —
96711-19014 Ring, O(FOR FLOW CONTROL SPRING SEAT)
1987-08 → 1988-08 ended
AT160 CBR —
44345B — Plate, Vane Pump
44345-12010 note Plate, Vane Pump
1987-08 → 1988-08 ended
AT160 CBR —
44345-12010 note Plate, Vane Pump
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44345-12020 note Plate, Vane Pump
1987-08 → 1988-08 ended
AT160 CBR —
44345-12020 note Plate, Vane Pump
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44345-12030 note Plate, Vane Pump
1987-08 → 1988-08 ended
AT160 CBR —
44345-12030 note Plate, Vane Pump
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44345-12040 note Plate, Vane Pump
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44345-12040 note Plate, Vane Pump
1987-08 → 1988-08 ended
AT160 CBR —
44345-12050 note Plate, Vane Pump
1987-08 → 1988-08 ended
AT160 CBR —
44345-12050 note Plate, Vane Pump
1987-08 → 1989-08 ended
AT160,ST16# TWC —
44360 — Reservoir Assy, Vane Pump Oil
44306-12030 Reservoir Assy, Vane Pump Oil
1987-08 → 1988-08 ended
AT160 CBR —
44360-20070 Reservoir Assy, Vane Pump Oil
1987-08 → 1989-08 ended
AT160 TWC —
44360-20080 Reservoir Assy, Vane Pump Oil
1987-10 → 1989-08 ended
ST165 —
44360-20090 Reservoir Assy, Vane Pump Oil
1987-08 → 1989-08 ended
ST162 —
44362A — Ring, O(FOR VANE PUMP OIL RESERVOIR)
90301-12003 Ring, O(FOR VANE PUMP OIL RESERVOIR)
1987-08 → 1988-08 ended
AT160 CBR —
44391 — Plate, Power Steering Oil Reservoir Caution
44391-12020 Plate, Power Steering Oil Reservoir Caution
1987-08 → 1988-08 ended
AT160 CBR —
44441B — Bracket, Pump, Front
44441-12020 Bracket, Pump, Front
1987-08 → 1988-08 ended
AT160 CBR —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
