Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

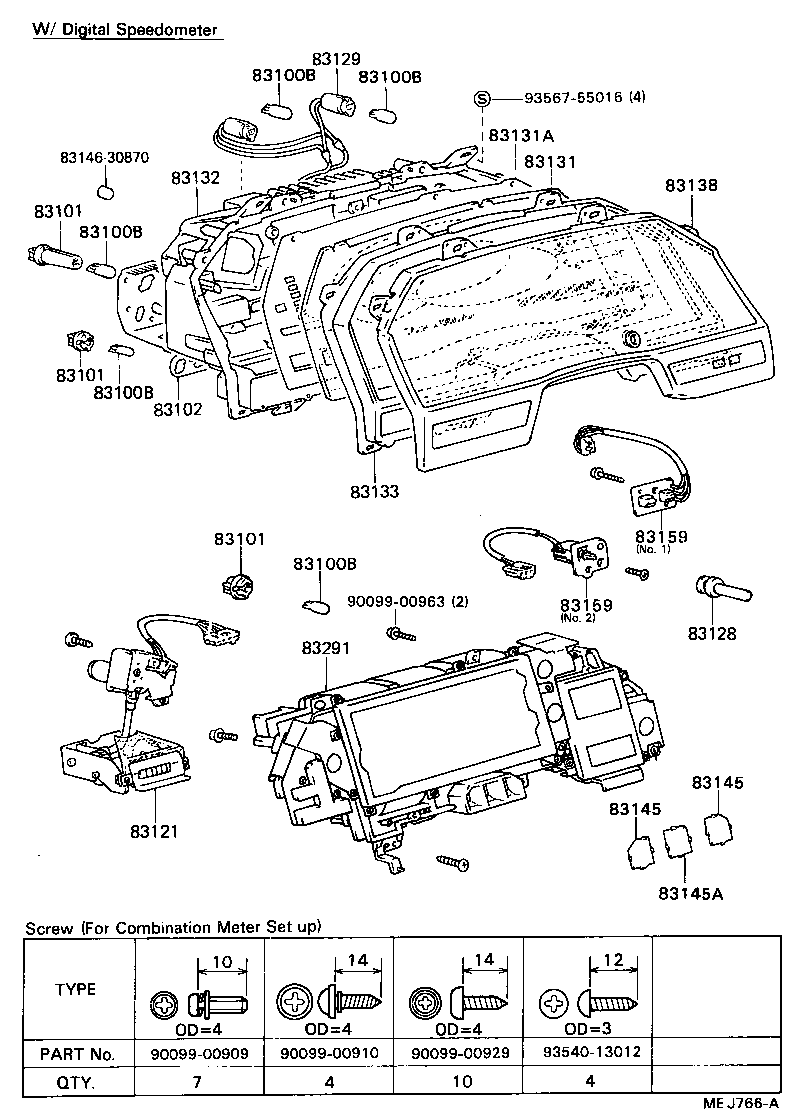

Exploded illustration MEJ766A 83129 — WIRE, METER (1 parts) 83100B — BULB, COMBINATION METER, NO.1 (16 parts) 83100B — BULB, COMBINATION METER, NO.1 (16 parts) 9356755016 — not listed in this catalogue 83131A — DIAL, METER, NO.2 (2 parts) 8314630870 — not listed in this catalogue 83131 — DIAL, METER, NO.1 (2 parts) 83132 — CASE, COMBINATION METER (9 parts) 83138 — GLASS, SPEEDOMETER (3 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (8 parts) 83100B — BULB, COMBINATION METER, NO.1 (16 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (8 parts) 83100B — BULB, COMBINATION METER, NO.1 (16 parts) 83102 — PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 (9 parts) 83133 — PLATE, COMBINATION METER, NO.1 (3 parts) 83159 — SWITCH, METER, NO.1 (2 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (8 parts) 83100B — BULB, COMBINATION METER, NO.1 (16 parts) 9009900963 — not listed in this catalogue 83159 — SWITCH, METER, NO.1 (2 parts) 83128 — KNOB, TRIP COUNTER (1 parts) 83291 — COMPUTER, COMBINATION METER (3 parts) 83145 — LENS, METER, NO.1 (1 parts) 83145 — LENS, METER, NO.1 (1 parts) 83121 — COUNTER, TOTAL (1 parts) 83145A — LENS, METER, NO.2 (1 parts) 9354013012 — not listed in this catalogue 9009900909 — not listed in this catalogue 9009900910 — not listed in this catalogue 9009900929 — not listed in this catalogue
MEJ766A · 23 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
83100B — Bulb, Combination Meter, NO.1
83101-20080 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST162 4FC —
83109-24020 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
AT160,ST16# —
83109-24030 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83109-24040 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
90981-11018 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
AT160 CBR —
90981-11018 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
AT160 TWC —
90981-11018 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST16# 5F —
90981-11018 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST162 4FC —
90981-11018 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
90981-11038 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
99132-12034 note Bulb, Combination Meter, NO.1
1988-08 → 1989-08 ended
ST162 LHD 5F —
99132-12034 note Bulb, Combination Meter, NO.1
1987-08 → 1988-08 ended
AT160 FRG;ST162 LHD 5F +1 —
99132-12034 note Bulb, Combination Meter, NO.1
1988-08 → 1989-08 ended
ST162 4FC;ST162 RHD 5F;AT160,ST165 +1 —
99132-12034 note Bulb, Combination Meter, NO.1
1987-10 → 1989-08 ended
ST165 RHD —
99132-12034 note Bulb, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
99132-12034 note Bulb, Combination Meter, NO.1
1987-08 → 1988-08 ended
AT160 EUG;ST162 RHD;ST16# LHD +3 —
83101 — Socket Sub-assy, Combination Meter Bulb
83101-12020 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1989-08 ended
AT160,ST16# —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1989-08 ended
AT160 CBR —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1989-08 ended
AT160 TWC —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1989-08 ended
ST16# 5F —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1989-08 ended
ST162 4FC —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83101-20090 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83102 — Plate Sub-assy, Combination Meter Circuit, NO.1
83247-1D080 Plate Sub-assy, Combination Meter Circuit, NO.1
1987-08 → 1989-08 ended
AT160 CBR —
83247-1D100 Plate Sub-assy, Combination Meter Circuit, NO.1
1987-08 → 1989-08 ended
AT160 TWC —
83247-1D120 Plate Sub-assy, Combination Meter Circuit, NO.1
1987-08 → 1989-08 ended
ST162 LHD 5F —
83247-1D140 Plate Sub-assy, Combination Meter Circuit, NO.1
1987-08 → 1989-08 ended
ST162 LHD 4FC —
83247-1D160 Plate Sub-assy, Combination Meter Circuit, NO.1
1987-10 → 1989-08 ended
ST165 LHD —
83247-1D580 Plate Sub-assy, Combination Meter Circuit, NO.1
1987-10 → 1989-08 ended
ST165 RHD —
83247-1D790 note Plate Sub-assy, Combination Meter Circuit, NO.1
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83247-1J860 Plate Sub-assy, Combination Meter Circuit, NO.1
1987-08 → 1989-08 ended
ST162 RHD 5F —
83247-1J880 Plate Sub-assy, Combination Meter Circuit, NO.1
1987-08 → 1989-08 ended
ST162 RHD 4FC —
83121 — Counter, Total
83121-14170 Counter, Total
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83128 — Knob, Trip Counter
83128-14610 Knob, Trip Counter
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83129 — Wire, Meter
83129-14150 Wire, Meter
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83131 — Dial, Meter, NO.1
83131-1J330 Dial, Meter, NO.1
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD 5F —
83131-1J350 Dial, Meter, NO.1
1987-08 → 1989-08 ended
ST162 RHD 4FC —
83131A — Dial, Meter, NO.2
83131-1J110 Dial, Meter, NO.2
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD 5F —
83131-1J130 Dial, Meter, NO.2
1987-08 → 1989-08 ended
ST162 RHD 4FC —
83132 — Case, Combination Meter
83132-1D380 Case, Combination Meter
1987-08 → 1989-08 ended
ST162 RHD 5F —
83132-1D460 Case, Combination Meter
1987-08 → 1989-08 ended
AT160 CBR —
83132-1D480 Case, Combination Meter
1987-08 → 1989-08 ended
ST162 LHD 5F —
83132-1D500 Case, Combination Meter
1987-08 → 1989-08 ended
ST162 LHD 4FC —
83132-1D520 Case, Combination Meter
1987-10 → 1989-08 ended
ST165 LHD —
83132-1D540 Case, Combination Meter
1987-08 → 1989-08 ended
AT160 TWC —
83132-1D580 Case, Combination Meter
1987-08 → 1989-08 ended
ST162 RHD 4FC —
83132-1D850 note Case, Combination Meter
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83132-1D880 Case, Combination Meter
1987-10 → 1989-08 ended
ST165 RHD —
83133 — Plate, Combination Meter, NO.1
83133-1B290 note Plate, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST162 RHD 4FC —
83133-1B470 Plate, Combination Meter, NO.1
1987-08 → 1989-08 ended
ST16# RHD —
83133-1B490 Plate, Combination Meter, NO.1
1987-08 → 1989-08 ended
AT160,ST16# LHD —
83138 — Glass, Speedometer
83138-1B030 note Glass, Speedometer
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83138-1B130 Glass, Speedometer
1987-08 → 1989-08 ended
ST16# RHD —
83138-1B150 Glass, Speedometer
1987-08 → 1989-08 ended
AT160,ST16# LHD —
83145 — Lens, Meter, NO.1
83145-14170 Lens, Meter, NO.1
1987-08 → 1989-08 ended
ST162 RHD 4FC —
83145A — Lens, Meter, NO.2
83145-14190 Lens, Meter, NO.2
1987-08 → 1989-08 ended
ST162 RHD 4FC —
83159 — Switch, Meter, NO.1
83159-14130 note Switch, Meter, NO.1
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83159-14150 note Switch, Meter, NO.1
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD —
83291 — Computer, Combination Meter
83291-20070 Computer, Combination Meter
1987-08 → 1989-08 ended
ST162 (CP,LB) RHD 5F —
83291-20080 Computer, Combination Meter
1987-08 → 1988-08 ended
ST162 RHD 4FC —
83291-20081 Computer, Combination Meter
1988-08 → 1989-08 ended
ST162 RHD 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
