Toyota Celica
1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe
Discontinued model
Data version 1990-03

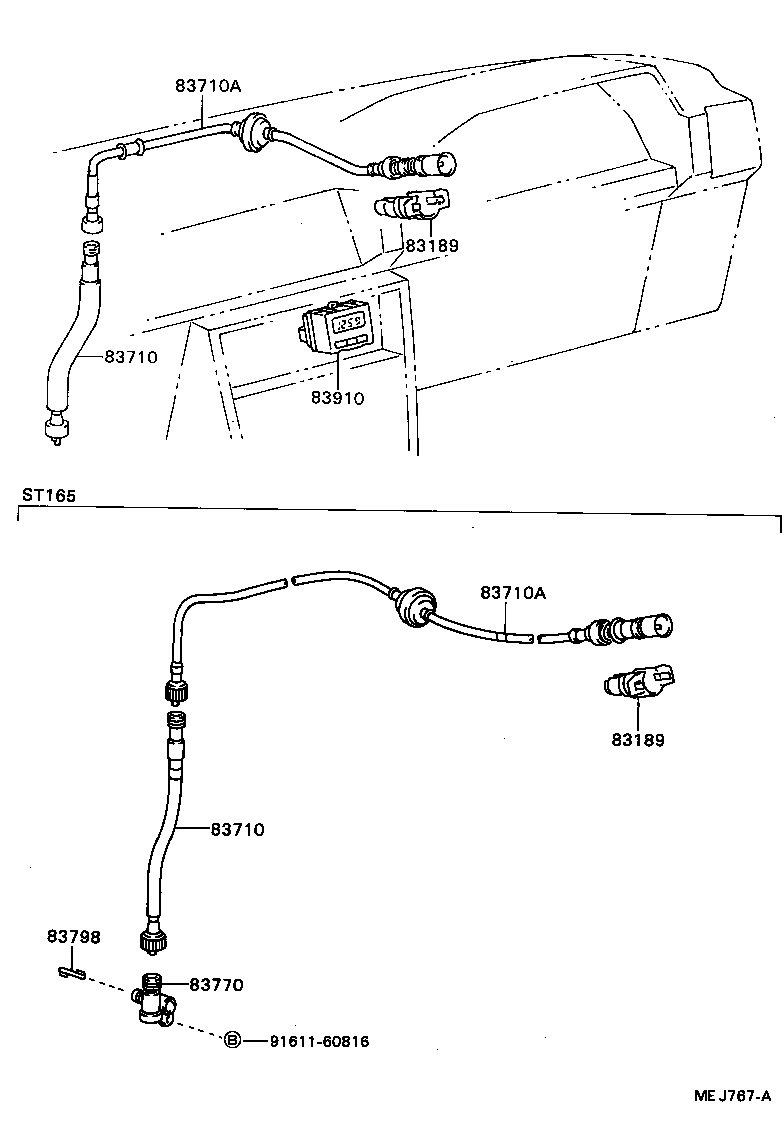

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83189 — Bracket, Meter | ||||
| 83189-20020 |
Bracket, Meter
1987-08 → 1989-08
ended
|
AT160,ST16# | — | |
| 83710 — Cable Assy, Speedometer Drive, NO.1 | ||||
| 83710-20340 |
Cable Assy, Speedometer Drive, NO.1
1987-10 → 1989-08
ended
|
ST165 LHD | — | |
| 83710-20440 |
Cable Assy, Speedometer Drive, NO.1
1987-10 → 1989-08
ended
|
ST165 RHD | — | |
| 83710-20510 |
Cable Assy, Speedometer Drive, NO.1
1987-08 → 1989-08
ended
|
AT160,ST162 LHD | — | |
| 83710-20610 |
Cable Assy, Speedometer Drive, NO.1
1987-08 → 1989-08
ended
|
ST162 RHD | — | |
| 83710A — Cable Assy, Speedometer Drive, NO.2 | ||||
| 83710-20330 |
Cable Assy, Speedometer Drive, NO.2
1987-10 → 1989-08
ended
|
ST165 LHD | — | |
| 83710-20521 |
Cable Assy, Speedometer Drive, NO.2
1987-08 → 1989-08
ended
|
ST162 RHD | — | |
| 83710-20530 |
Cable Assy, Speedometer Drive, NO.2
1987-08 → 1989-08
ended
|
AT160,ST162 LHD | — | |
| 83710-20630 |
Cable Assy, Speedometer Drive, NO.2
1987-10 → 1989-08
ended
|
ST165 RHD | — | |
| 83770 — Adapter Assy, Speedometer Cable | ||||
| 83770-17010 |
Adapter Assy, Speedometer Cable
1987-10 → 1989-08
ended
|
ST165 LHD | — | |
| 83770-30070 |
Adapter Assy, Speedometer Cable
1987-10 → 1989-08
ended
|
ST165 RHD | — | |
| 83798 — Key, Speedometer Cable Adapter | ||||
| 83798-17010 |
Key, Speedometer Cable Adapter
1987-10 → 1989-08
ended
|
ST165 LHD | — | |
| 83910 — Clock Assy | ||||
| 83910-20581 |
Clock Assy
1987-08 → 1989-08
ended
|
AT160,ST16# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
