Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MEK745B 9046400248 — not listed in this catalogue 9046400248 — not listed in this catalogue 83550A — HOSE, ED MONITOR GAGE (9 parts) 83550B — UNION OR WAY, ED MONITOR GAGE (3 parts) 9046400074 — not listed in this catalogue 83550A — HOSE, ED MONITOR GAGE (9 parts) 8401 — not listed in this catalogue 8717 — not listed in this catalogue 8717 — not listed in this catalogue 9046400220 — not listed in this catalogue 9046400220 — not listed in this catalogue 83550B — UNION OR WAY, ED MONITOR GAGE (3 parts) 83550A — HOSE, ED MONITOR GAGE (9 parts) 83550A — HOSE, ED MONITOR GAGE (9 parts) 8401 — not listed in this catalogue 9046400151 — not listed in this catalogue 9046400220 — not listed in this catalogue 83550A — HOSE, ED MONITOR GAGE (9 parts) 9046400220 — not listed in this catalogue 9040451010 — not listed in this catalogue 83550B — UNION OR WAY, ED MONITOR GAGE (3 parts) 83550A — HOSE, ED MONITOR GAGE (9 parts) 83550A — HOSE, ED MONITOR GAGE (9 parts) 83550A — HOSE, ED MONITOR GAGE (9 parts) 8401 — not listed in this catalogue 83550B — UNION OR WAY, ED MONITOR GAGE (3 parts) 9046400220 — not listed in this catalogue 9046400151 — not listed in this catalogue 9046400220 — not listed in this catalogue

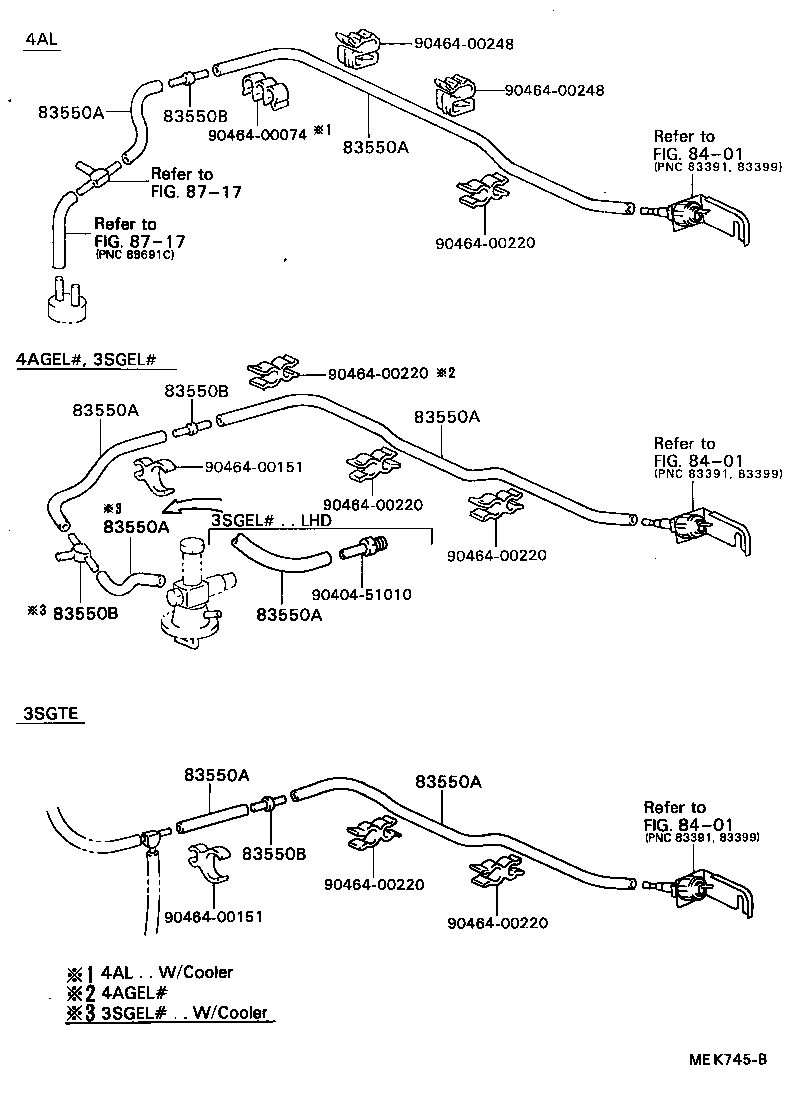

MEK745B · 12 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
12 parts on this figure
Part number Description Fitment Price
83550A — Hose, ED Monitor Gage
95411-10030 note Hose, ED Monitor Gage
1987-08 → 1989-08 ended
AT160 CBR —
95411-10030 note Hose, ED Monitor Gage
1987-08 → 1989-08 ended
AT160 TWC —
95411-10030 note Hose, ED Monitor Gage
1987-08 → 1989-08 ended
ST162 LHD —
95411-10030 note Hose, ED Monitor Gage
1987-08 → 1989-08 ended
AT160 CBR;ST162 LHD —
95411-10030 note Hose, ED Monitor Gage
1987-10 → 1989-08 ended
ST165 LHD —
95411-10060 note Hose, ED Monitor Gage
1987-08 → 1989-08 ended
ST162 LHD —
95411-10060 note Hose, ED Monitor Gage
1987-10 → 1989-08 ended
ST165 LHD —
95411-10095 note Hose, ED Monitor Gage
1987-08 → 1989-08 ended
AT160 CBR —
95411-10095 note Hose, ED Monitor Gage
1987-08 → 1989-08 ended
AT160 TWC —
83550B — Union OR Way, ED Monitor Gage
90412-05001 note Union OR Way, ED Monitor Gage
1987-08 → 1989-08 ended
ST162 LHD —
90412-05001 note Union OR Way, ED Monitor Gage
1987-08 → 1989-08 ended
AT160,ST16# LHD —
90413-04001 note Union OR Way, ED Monitor Gage
1987-08 → 1989-08 ended
ST162 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
