Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

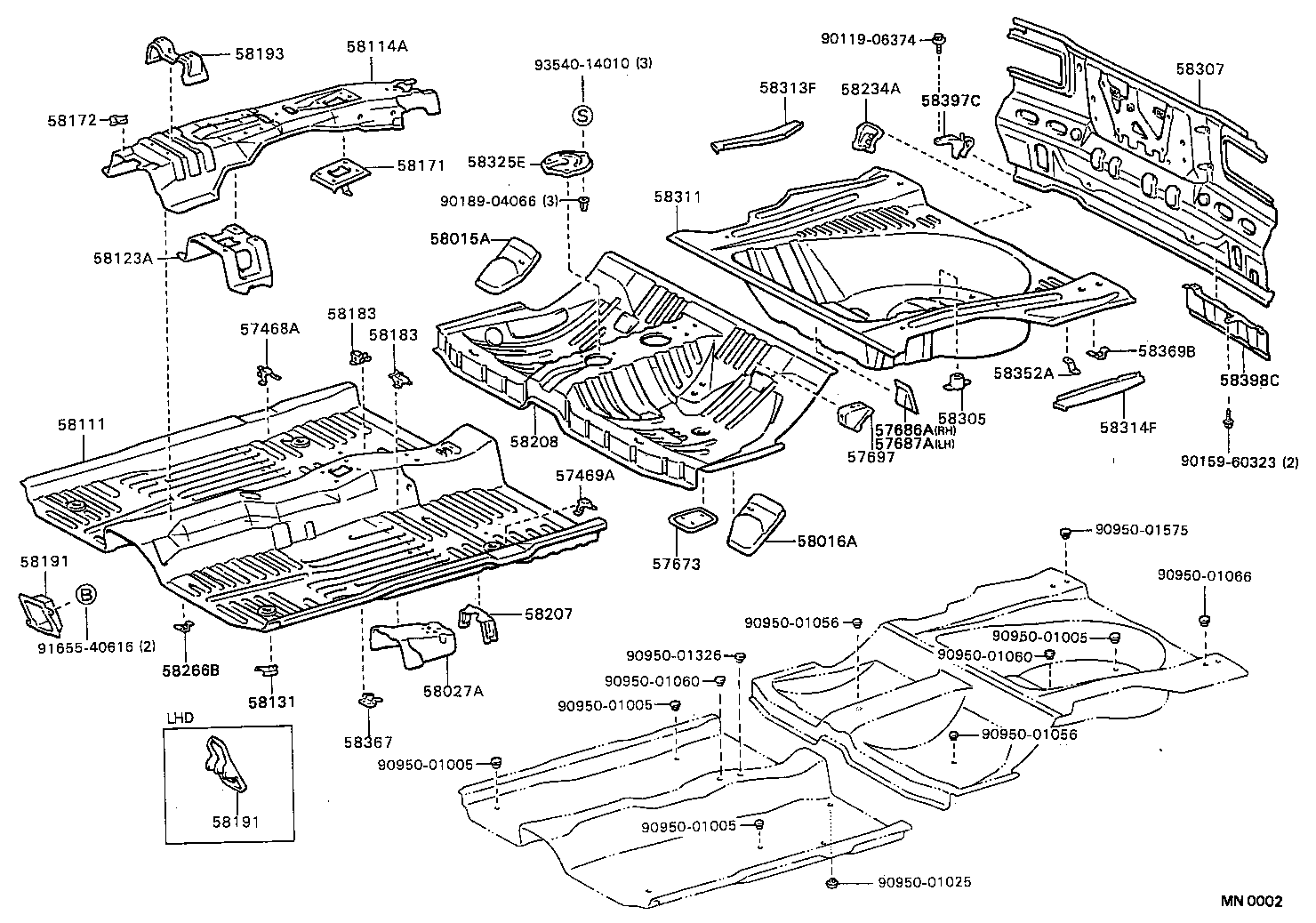

Exploded illustration MN0002 9011906374 — not listed in this catalogue 58114A — REINFORCEMENT, FRONT FLOOR PANEL (2 parts) 58193 — BRACKET, INSTRUMENT PANEL BRACE MOUNTING (2 parts) 9354014010 — not listed in this catalogue 58307 — PANEL SUB-ASSY, BODY LOWER BACK (6 parts) 58313F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH (3 parts) 58234A — BRACKET, EXHAUST PIPE MOUNTING, INNER (2 parts) 58397C — COVER, BODY LOWER BACK, RH (1 parts) 58172 — BRACKET, COMPUTER MOUNTING, NO.3 (1 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (2 parts) 58171 — REINFORCEMENT, PARKING BRAKE BASE (2 parts) 58311 — PAN, REAR FLOOR (3 parts) 9018904066 — not listed in this catalogue 58015A — REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH (1 parts) 58123A — SUPPORT, SHIFT & SELECT LEVER (1 parts) 58183 — BRACKET, FRONT SEAT MOUNTING, INNER (2 parts) 57468A — BRACKET, FRONT SEAT, OUTSIDE, REAR RH (1 parts) 58183 — BRACKET, FRONT SEAT MOUNTING, INNER (2 parts) 58369B — BRACKET, FUEL TUBE, NO.3 (3 parts) 58352A — BRACKET, REAR FLOOR STAY (1 parts) 58398C — COVER, BODY LOWER BACK, LH (2 parts) 58305 — BRACKET SUB-ASSY, SPARE WHEEL CLAMP (1 parts) 58111 — PAN, FRONT FLOOR (3 parts) 58314F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH (3 parts) 57686A — BRACKET, FUEL TANK MOUNTING, REAR RH (1 parts) 58208 — PAN, CENTER FLOOR (2 parts) 57687A — BRACKET, FUEL TANK MOUNTING, REAR LH (1 parts) 57697 — RETAINER, REAR SEAT CUSHION (2 parts) 9015960323 — not listed in this catalogue 57469A — BRACKET, FRONT SEAT, OUTSIDE, REAR LH (1 parts) 9095001575 — not listed in this catalogue 58016A — REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH (1 parts) 58191 — FOOTREST, FRONT FLOOR (3 parts) 57673 — BRACKET, REAR SEATBACK HINGE MOUNTING (2 parts) 9095001066 — not listed in this catalogue 58207 — BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 (2 parts) 9095001056 — not listed in this catalogue 9095001005 — not listed in this catalogue 9165540616 — not listed in this catalogue 9095001060 — not listed in this catalogue 9095001326 — not listed in this catalogue 58266B — BRACKET, FUEL TUBE CLAMP (2 parts) 9095001060 — not listed in this catalogue 58027A — REINFORCE SUB-ASSY, SEAT BELT ANCHOR (2 parts) 58131 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (1 parts) 9095001005 — not listed in this catalogue 9095001056 — not listed in this catalogue 58367 — BRACKET, FUEL TUBE CLAMP (1 parts) 9095001005 — not listed in this catalogue 58191 — FOOTREST, FRONT FLOOR (3 parts) 9095001005 — not listed in this catalogue 9095001025 — not listed in this catalogue
MN0002 · 35 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
57468A — Bracket, Front Seat, Outside, Rear RH
57468-20040 Bracket, Front Seat, Outside, Rear RH
1987-08 → 1989-08 ended
AT160,ST16# —
57469A — Bracket, Front Seat, Outside, Rear LH
57469-20040 Bracket, Front Seat, Outside, Rear LH
1987-08 → 1989-08 ended
AT160,ST16# —
57673 — Bracket, Rear Seatback Hinge Mounting
57671-20040 Bracket, Rear Seatback Hinge Mounting
1987-10 → 1989-08 ended
ST165 —
57673-20060 Bracket, Rear Seatback Hinge Mounting
1987-08 → 1989-08 ended
AT160 LB CBR;AT160,ST162 TWC —
57686A — Bracket, Fuel Tank Mounting, Rear RH
57686-20030 Bracket, Fuel Tank Mounting, Rear RH
1987-08 → 1989-08 ended
AT160,ST162 —
57687A — Bracket, Fuel Tank Mounting, Rear LH
57686-20030 Bracket, Fuel Tank Mounting, Rear LH
1987-08 → 1989-08 ended
AT160,ST162 —
57697 — Retainer, Rear Seat Cushion
57697-20010 Retainer, Rear Seat Cushion
1987-08 → 1989-08 ended
AT160,ST162 —
57697-20010 Retainer, Rear Seat Cushion
1987-10 → 1989-08 ended
ST165 —
58015A — Reinforce Sub-assy, Belt Anchor, NO.3 RH
58015-20031 Reinforce Sub-assy, Belt Anchor, NO.3 RH
1987-08 → 1989-08 ended
AT160,ST162 —
58016A — Reinforce Sub-assy, Belt Anchor, NO.3 LH
58016-20031 Reinforce Sub-assy, Belt Anchor, NO.3 LH
1987-08 → 1989-08 ended
AT160,ST162 —
58027A — Reinforce Sub-assy, Seat Belt Anchor
58027-20030 Reinforce Sub-assy, Seat Belt Anchor
1987-08 → 1989-08 ended
AT160,ST162 —
58027-20041 Reinforce Sub-assy, Seat Belt Anchor
1987-10 → 1989-08 ended
ST165 —
58111 — Pan, Front Floor
58111-20100 Pan, Front Floor
1987-08 → 1989-08 ended
AT160,ST162 —
58111-20111 Pan, Front Floor
1987-10 → 1988-12 ended
ST165 —
58111-20113 Pan, Front Floor
1988-12 → 1989-08 ended
ST165 —
58114A — Reinforcement, Front Floor Panel
58114-20020 Reinforcement, Front Floor Panel
1987-08 → 1989-08 ended
AT160,ST162 —
58114-20030 Reinforcement, Front Floor Panel
1987-10 → 1989-08 ended
ST165 —
58123A — Support, Shift & Select Lever
58123-20010 Support, Shift & Select Lever
1987-08 → 1989-08 ended
AT160,ST162 —
58131 — Bracket, Front Floor Heat Insulator, NO.1
58131-20050 Bracket, Front Floor Heat Insulator, NO.1
1987-08 → 1989-08 ended
AT160,ST162 —
58171 — Reinforcement, Parking Brake Base
58107-20050 Reinforcement, Parking Brake Base
1987-08 → 1989-08 ended
AT160,ST162 —
58171-20090 Reinforcement, Parking Brake Base
1987-10 → 1989-08 ended
ST165 —
58172 — Bracket, Computer Mounting, NO.3
58172-20020 Bracket, Computer Mounting, NO.3
1987-08 → 1989-08 ended
AT160,ST162 —
58183 — Bracket, Front Seat Mounting, Inner
58183-20050 note Bracket, Front Seat Mounting, Inner
1987-08 → 1989-08 ended
AT160,ST162 —
58184-20050 note Bracket, Front Seat Mounting, Inner
1987-08 → 1989-08 ended
AT160,ST162 —
58191 — Footrest, Front Floor
58191-20020 Footrest, Front Floor
1987-08 → 1989-08 ended
ST162 RHD —
58191-20030 Footrest, Front Floor
1987-10 → 1989-08 ended
ST165 RHD —
58192-20010 Footrest, Front Floor
1987-08 → 1989-08 ended
AT160,ST16# LHD —
58193 — Bracket, Instrument Panel Brace Mounting
58193-20040 Bracket, Instrument Panel Brace Mounting
1987-08 → 1989-08 ended
AT160,ST162 —
58193-20060 Bracket, Instrument Panel Brace Mounting
1987-10 → 1989-08 ended
ST165 —
58207 — Bracket Sub-assy, Parking Brake Cable, NO.1
58207-20080 Bracket Sub-assy, Parking Brake Cable, NO.1
1987-08 → 1989-08 ended
AT160,ST162 —
58207-20090 Bracket Sub-assy, Parking Brake Cable, NO.1
1987-10 → 1989-08 ended
ST165 —
58208 — Pan, Center Floor
58211-20191 Pan, Center Floor
1987-08 → 1989-08 ended
AT160,ST162 —
58211-20220 Pan, Center Floor
1987-10 → 1989-08 ended
ST165 —
58234A — Bracket, Exhaust Pipe Mounting, Inner
58234-20020 Bracket, Exhaust Pipe Mounting, Inner
1987-08 → 1989-08 ended
AT160,ST162 —
58234-20030 Bracket, Exhaust Pipe Mounting, Inner
1987-10 → 1989-08 ended
ST165 —
58266B — Bracket, Fuel Tube Clamp
58266-22040 Bracket, Fuel Tube Clamp
1987-08 → 1989-08 ended
AT160,ST162 —
58266-22040 Bracket, Fuel Tube Clamp
1987-10 → 1989-08 ended
ST165 —
58305 — Bracket Sub-assy, Spare Wheel Clamp
58305-10011 Bracket Sub-assy, Spare Wheel Clamp
1987-08 → 1989-08 ended
AT160,ST16# —
58307 — Panel Sub-assy, Body Lower Back
58307-20460 note Panel Sub-assy, Body Lower Back
1987-08 → 1989-08 ended
ST162 (CP,CVT) FRG —
58307-20500 Panel Sub-assy, Body Lower Back
1987-08 → 1989-08 ended
AT160,ST162 CP,CVT —
58307-20510 note Panel Sub-assy, Body Lower Back
1987-08 → 1989-08 ended
ST162 LB FRG —
58307-20530 Panel Sub-assy, Body Lower Back
1987-08 → 1989-08 ended
AT160,ST162 LB —
58307-20570 note Panel Sub-assy, Body Lower Back
1987-10 → 1989-08 ended
ST165 LHD —
58307-20610 Panel Sub-assy, Body Lower Back
1987-10 → 1989-08 ended
ST165 —
58311 — Pan, Rear Floor
58311-20220 Pan, Rear Floor
1988-01 → 1989-08 ended
AT160,ST162 —
58311-20231 Pan, Rear Floor
1987-10 → 1989-08 ended
ST165 —
58311-20240 Pan, Rear Floor
1987-08 → 1988-01 ended
AT160,ST162 —
58313F — Extension, Rear Floor Pan TO Quarter Panel, RH
58313-20160 Extension, Rear Floor Pan TO Quarter Panel, RH
1987-08 → 1989-08 ended
AT160,ST162 CP,CVT —
58313-20170 Extension, Rear Floor Pan TO Quarter Panel, RH
1987-08 → 1989-08 ended
AT160,ST162 LB —
58313-20220 Extension, Rear Floor Pan TO Quarter Panel, RH
1987-10 → 1989-08 ended
ST165 —
58314F — Extension, Rear Floor Pan TO Quarter Panel, LH
58314-20141 Extension, Rear Floor Pan TO Quarter Panel, LH
1987-08 → 1989-08 ended
AT160,ST162 CP,CVT —
58314-20150 Extension, Rear Floor Pan TO Quarter Panel, LH
1987-08 → 1989-08 ended
AT160,ST162 LB —
58314-20200 Extension, Rear Floor Pan TO Quarter Panel, LH
1987-10 → 1989-08 ended
ST165 —
58325E — Cover, Rear Floor Service Hole
58325-20030 Cover, Rear Floor Service Hole
1987-08 → 1989-08 ended
AT160,ST162 —
58325-20040 Cover, Rear Floor Service Hole
1987-10 → 1989-08 ended
ST165 —
58352A — Bracket, Rear Floor Stay
58352-20040 Bracket, Rear Floor Stay
1987-08 → 1989-08 ended
AT160,ST162 —
58367 — Bracket, Fuel Tube Clamp
58367-20040 Bracket, Fuel Tube Clamp
1987-08 → 1989-08 ended
AT160,ST16# —
58369B — Bracket, Fuel Tube, NO.3
58369-20010 Bracket, Fuel Tube, NO.3
1987-08 → 1988-08 ended
AT160,ST162 —
58369-20010 Bracket, Fuel Tube, NO.3
1987-10 → 1989-08 ended
ST165 —
58369-20010 Bracket, Fuel Tube, NO.3
1988-08 → 1989-08 ended
AT160,ST162 —
58397C — Cover, Body Lower Back, RH
58397-20050 Cover, Body Lower Back, RH
1987-08 → 1989-08 ended
AT160,ST162 —
58398C — Cover, Body Lower Back, LH
58398-20030 Cover, Body Lower Back, LH
1987-08 → 1989-08 ended
AT160,ST162 CP,CVT —
58398-20040 Cover, Body Lower Back, LH
1987-08 → 1989-08 ended
AT160,ST162 LB —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
