Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

29 part groups · 8 illustrations

Illustrations

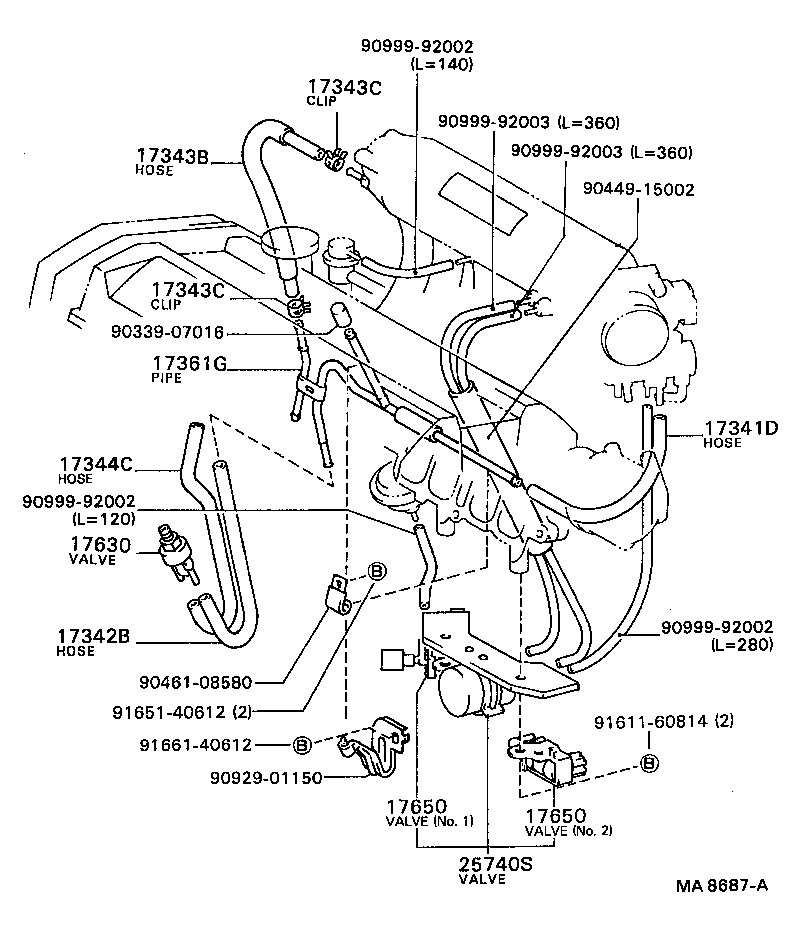

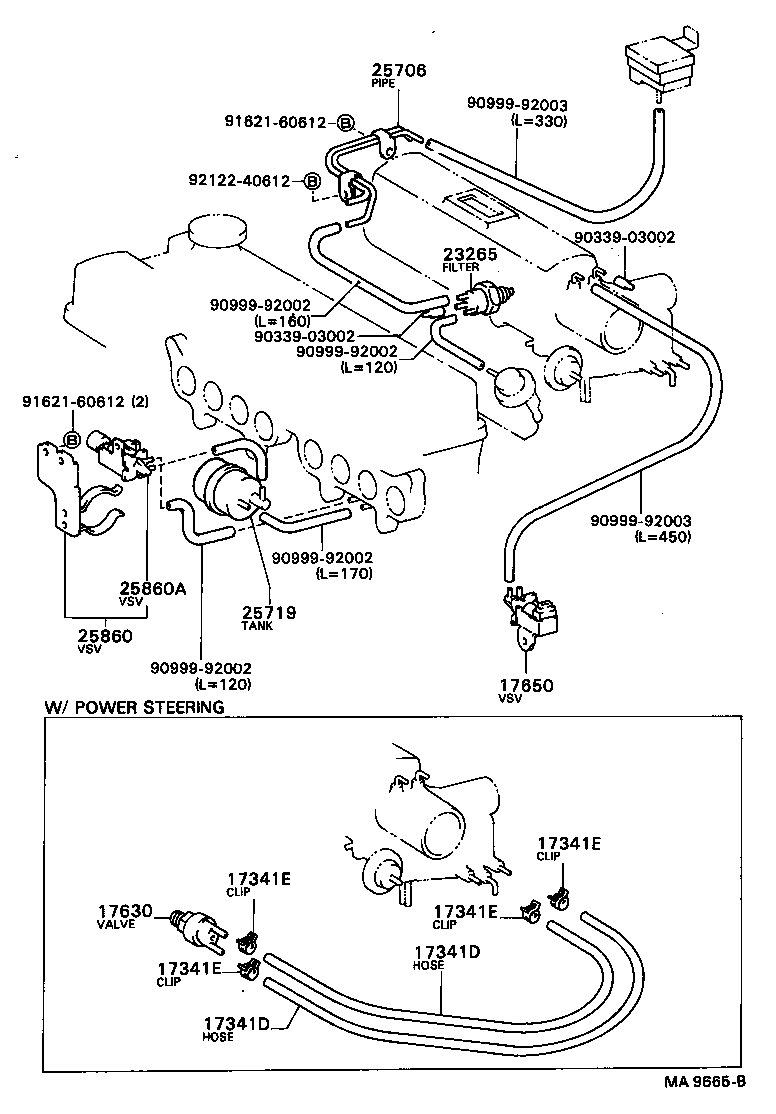

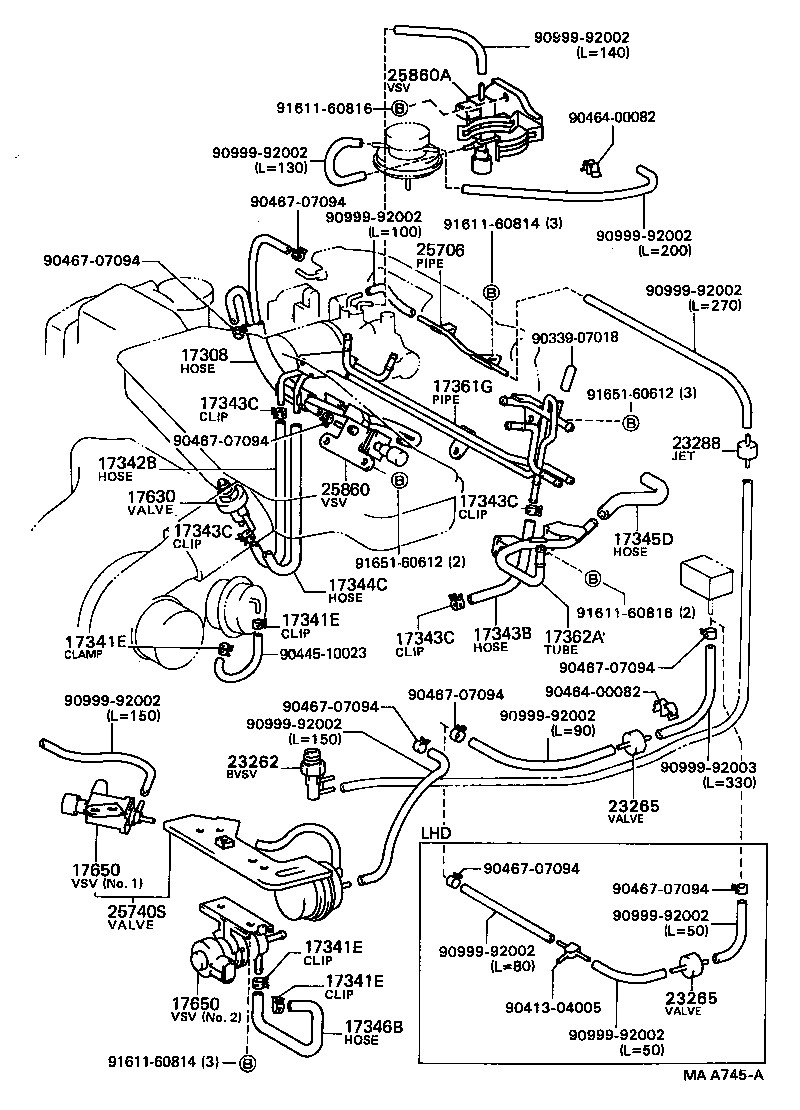

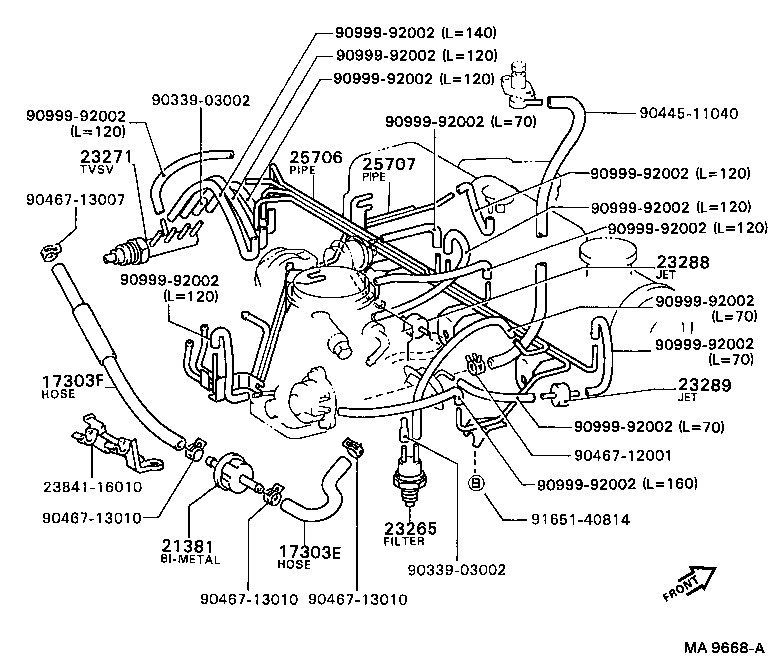

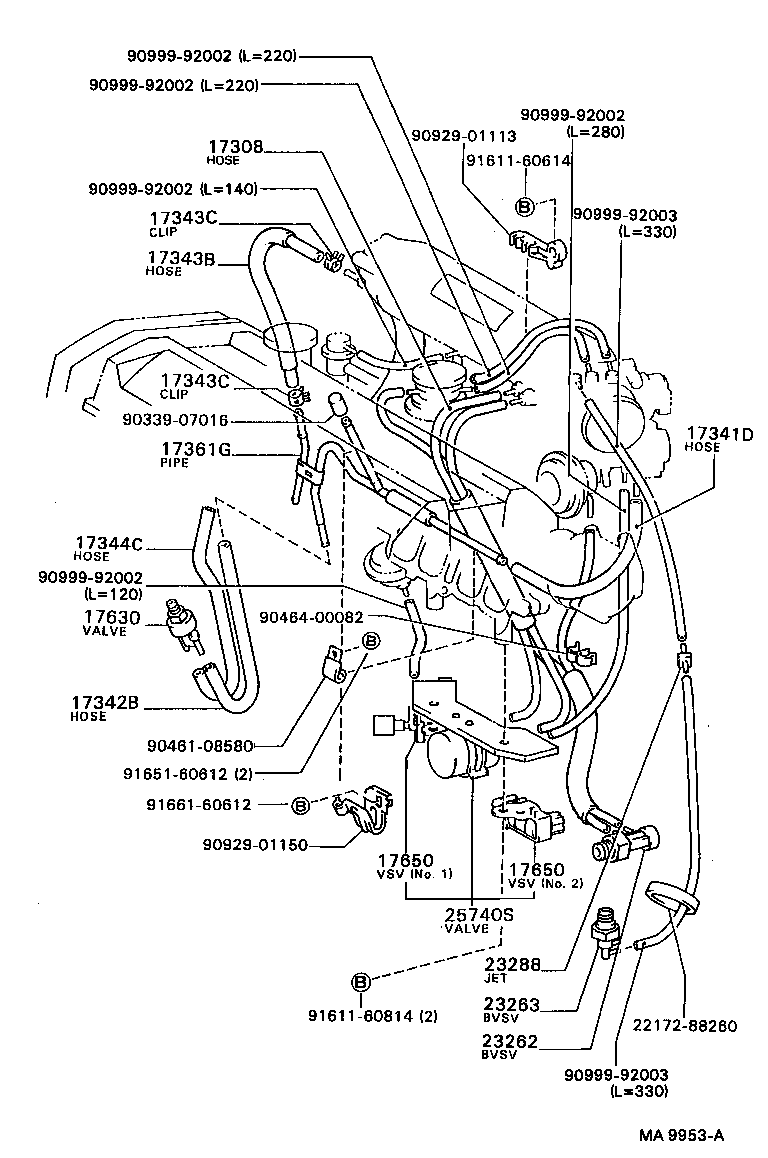

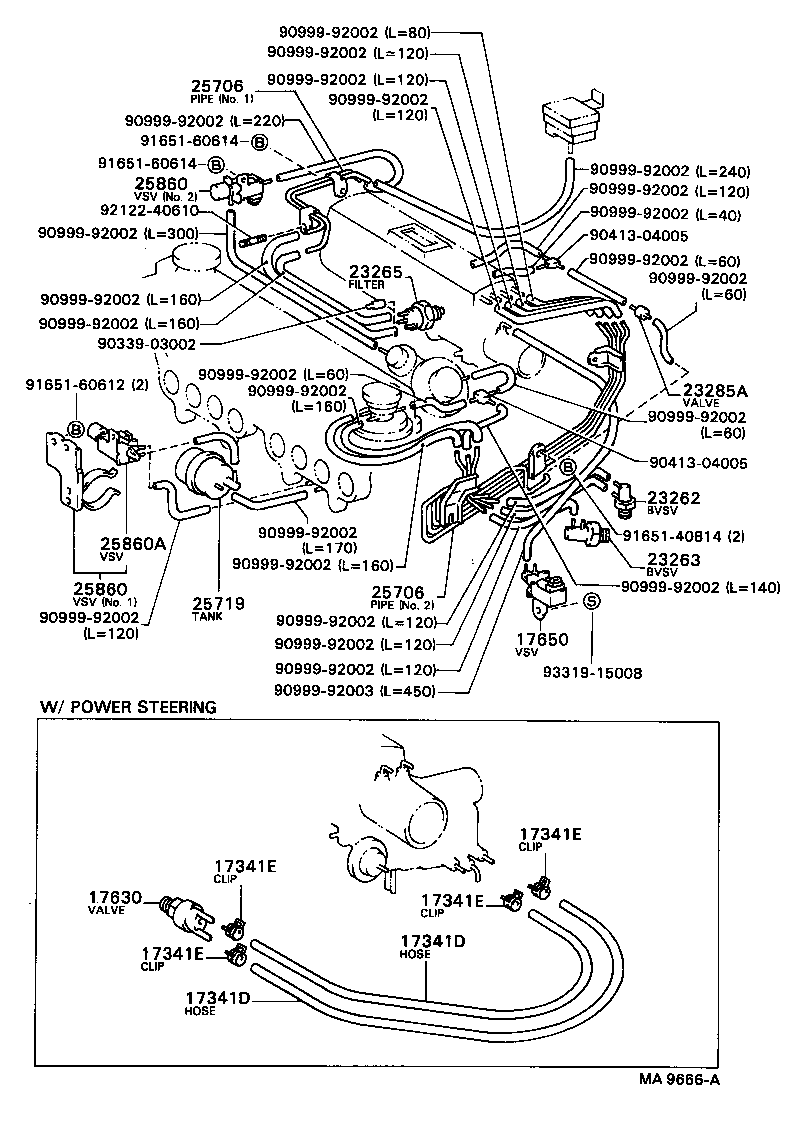

Figure MA9504B MA9504B 1987-08 → — Figure MA9668A MA9668A 1987-08 → — Figure MA9665B MA9665B 1987-08 → — Figure MA9666A MA9666A 1987-08 → — Figure MA9504B MA9504B 1987-08 → — Figure MA8687A MA8687A 1987-08 → — Figure MA9953A MA9953A 1987-08 → — Figure MAA745A MAA745A 1987-10 → —

Part groups

PNCDescription
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
