Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03

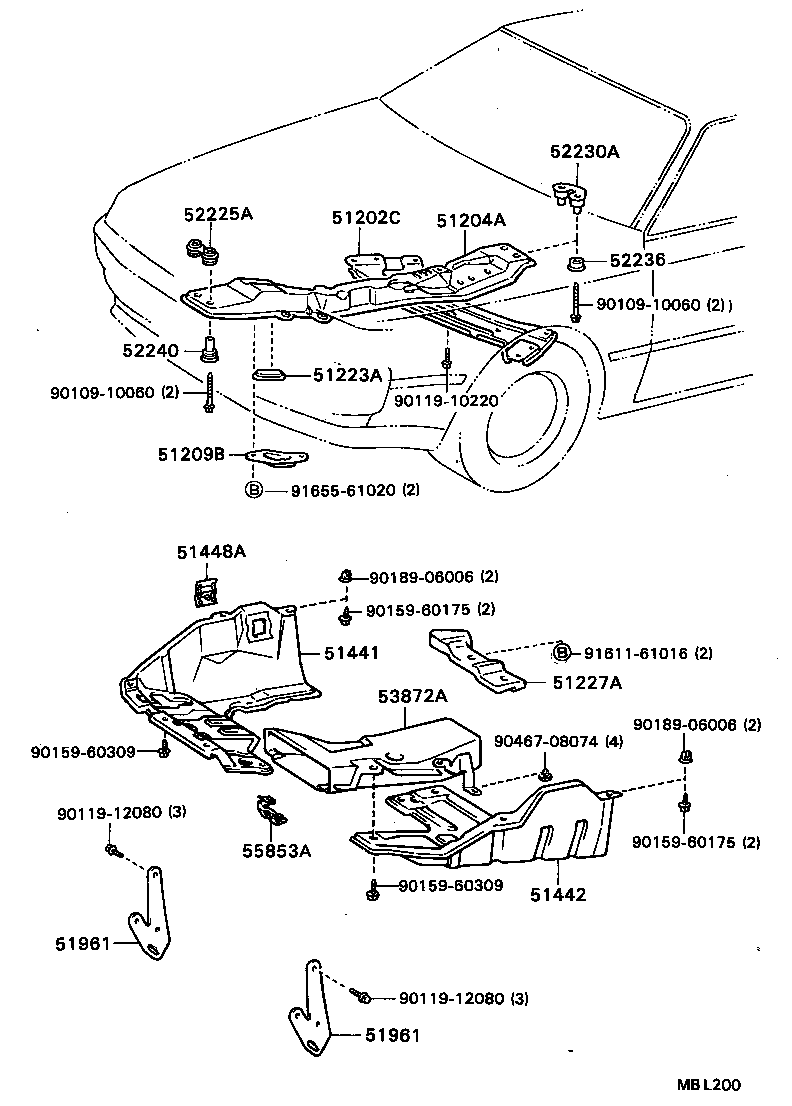

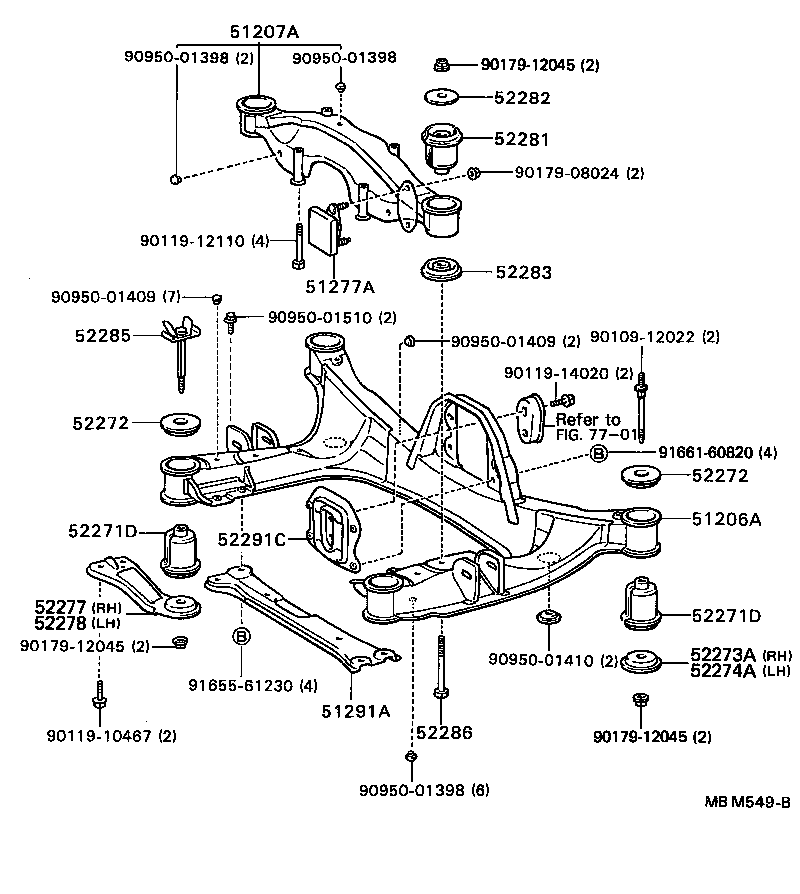

Suspension Crossmember & Under Cover

34 part groups · 3 illustrations

PNC	Description
51202C	Crossmember Sub-assy, Front Suspension, Lower
51204A	Member Sub-assy, Engine Mounting, Center
51206A	Member Sub-assy, Rear Suspension
51207A	Member Sub-assy, Differential Support
51209B	Protector Sub-assy, Center Member, Front
51223A	Cover, Engine Mounting Hole
51227A	Weight, Front Suspension Member Damper, RH
51228A	Weight, Front Suspension Member Damper, LH
51277A	Weight, Differential Support Member
51291A	Member, Frame Rear Cross
51441	Cover, Engine Under, NO.1
51442	Cover, Engine Under, NO.2
51443B	Cover, Engine Under, NO.3
51447	Guide, Engine Under Cover Air
51448A	Cover, Engine Side Under, RH
51961	Hook, NO.1
52225A	Cushion, Center Member Mounting, Front Upper
52230A	Cushion Assy, Center Member Mounting, Rear Upper
52236	Cushion, Center Member Mounting, Rear Lower
52240	Cushion Assy, Center Member Mounting, Front Lower
52271D	Cushion, Rear Suspension Member Body Mounting, Front
52272	Stopper, Rear Suspension Member, Upper
52273A	Stopper, Rear Suspension Member, Lower RH
52274A	Stopper, Rear Suspension Member, Lower LH
52277	Retainer, Rear Suspension Member Lower Stopper, RH
52278	Retainer, Rear Suspension Member Lower Stopper, LH
52281	Cushion, Differential Support Member
52282	Stopper, Differential Support Member, Upper
52283	Stopper, Differential Support Member, Lower
52285	Bolt, Differential Support Member Mounting, NO.1
52286	Bolt, Differential Support Member Mounting, NO.2
52291C	Cushion, Differential Support Member, Rear
53872A	Duct, Air, Lower
55853A	Retainer, Air Duct, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
