Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

13 part groups · 6 illustrations

Illustrations

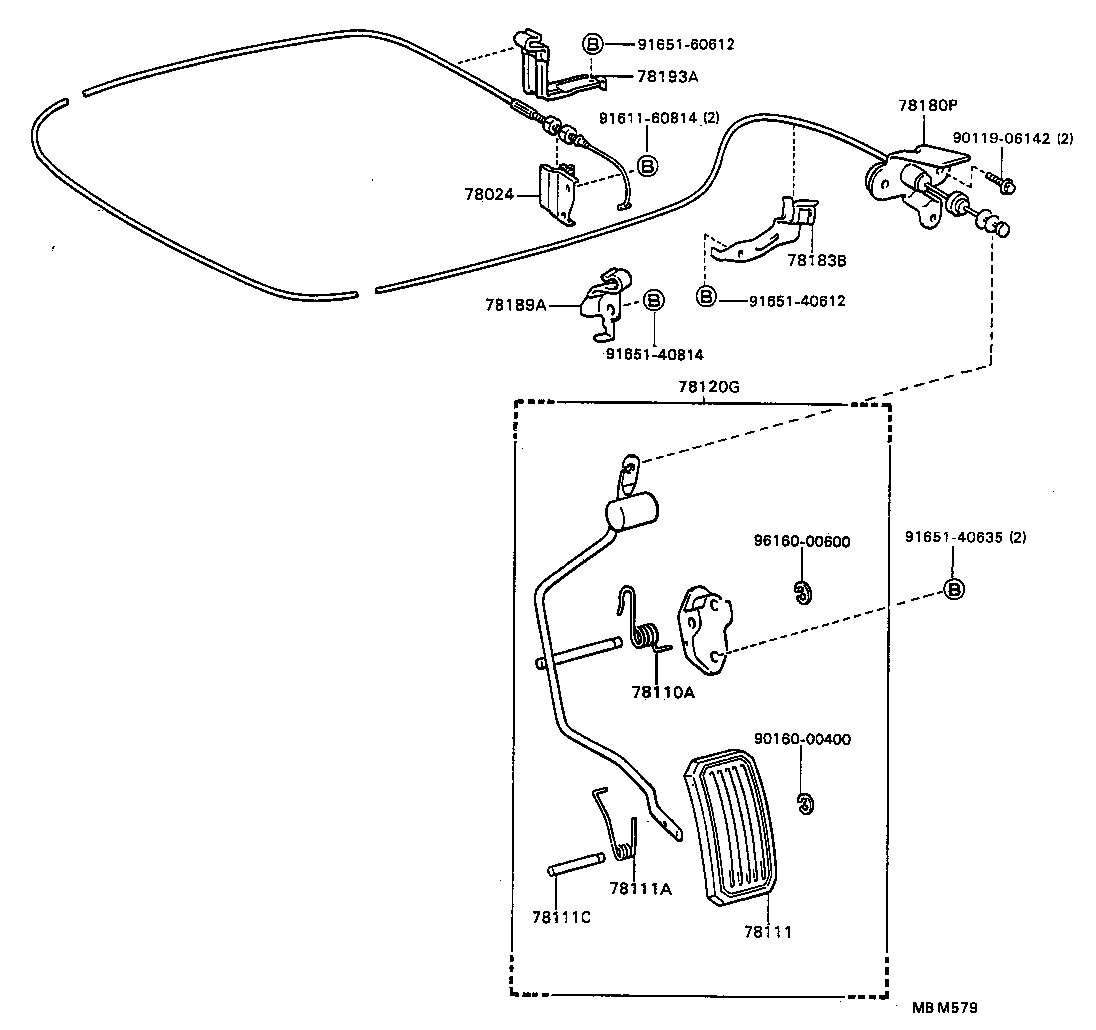

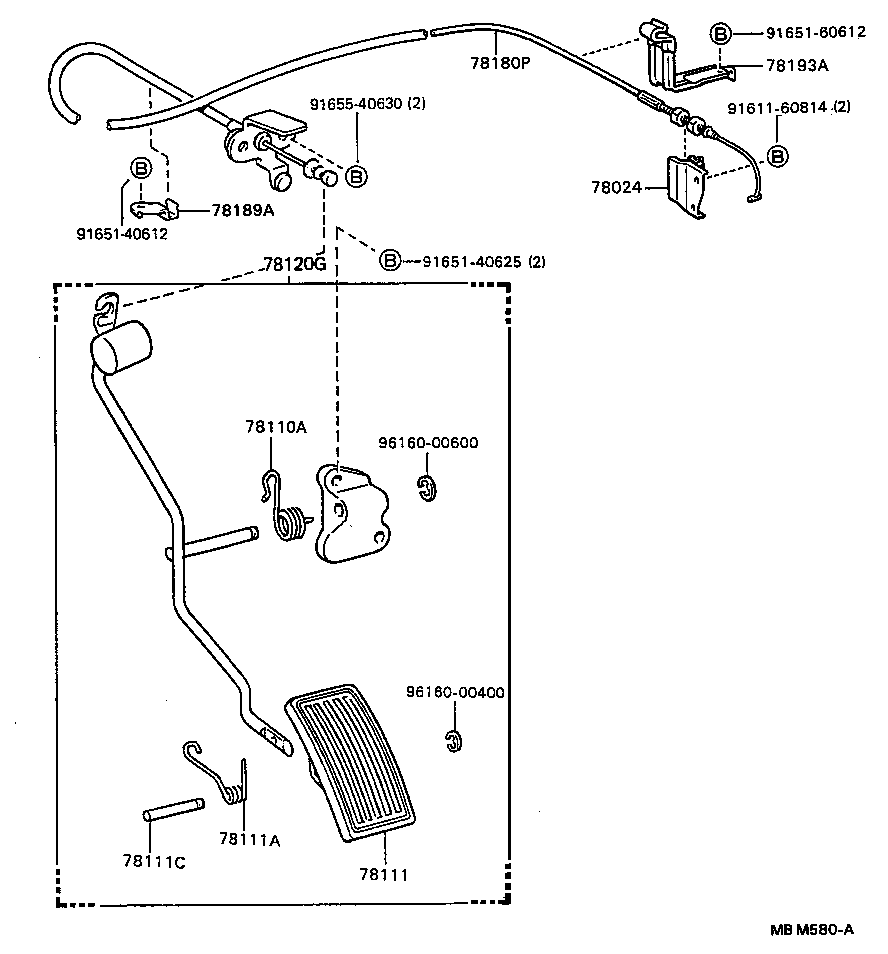

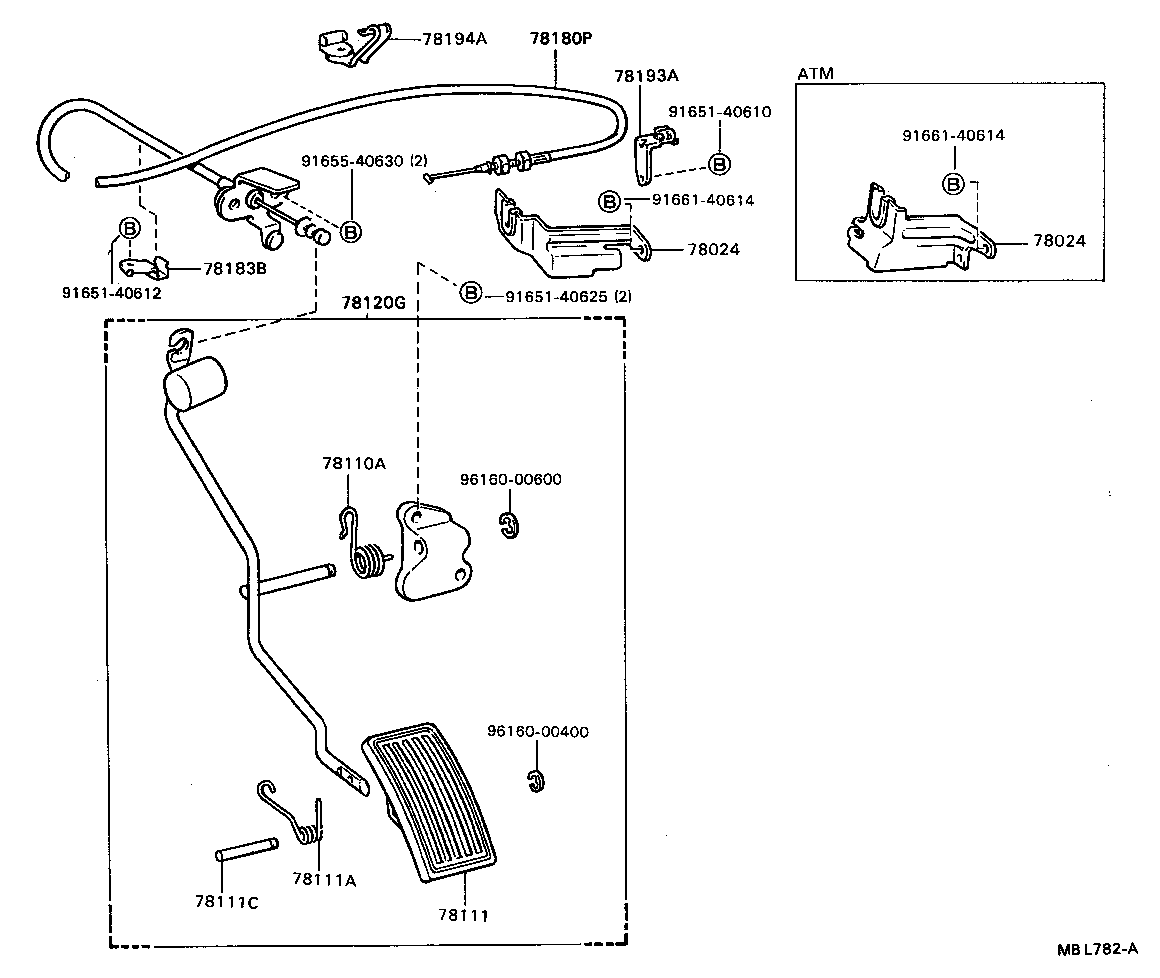

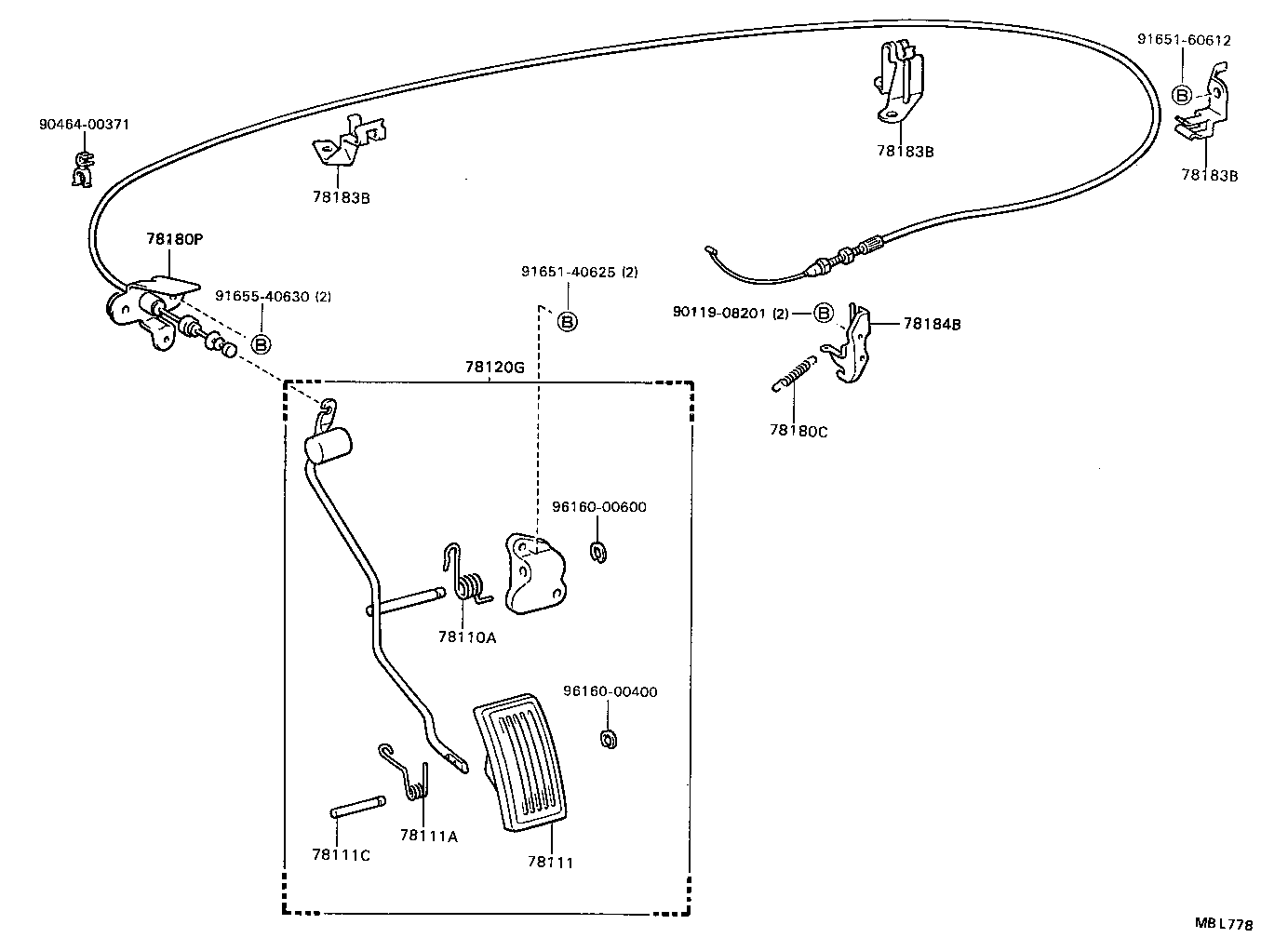

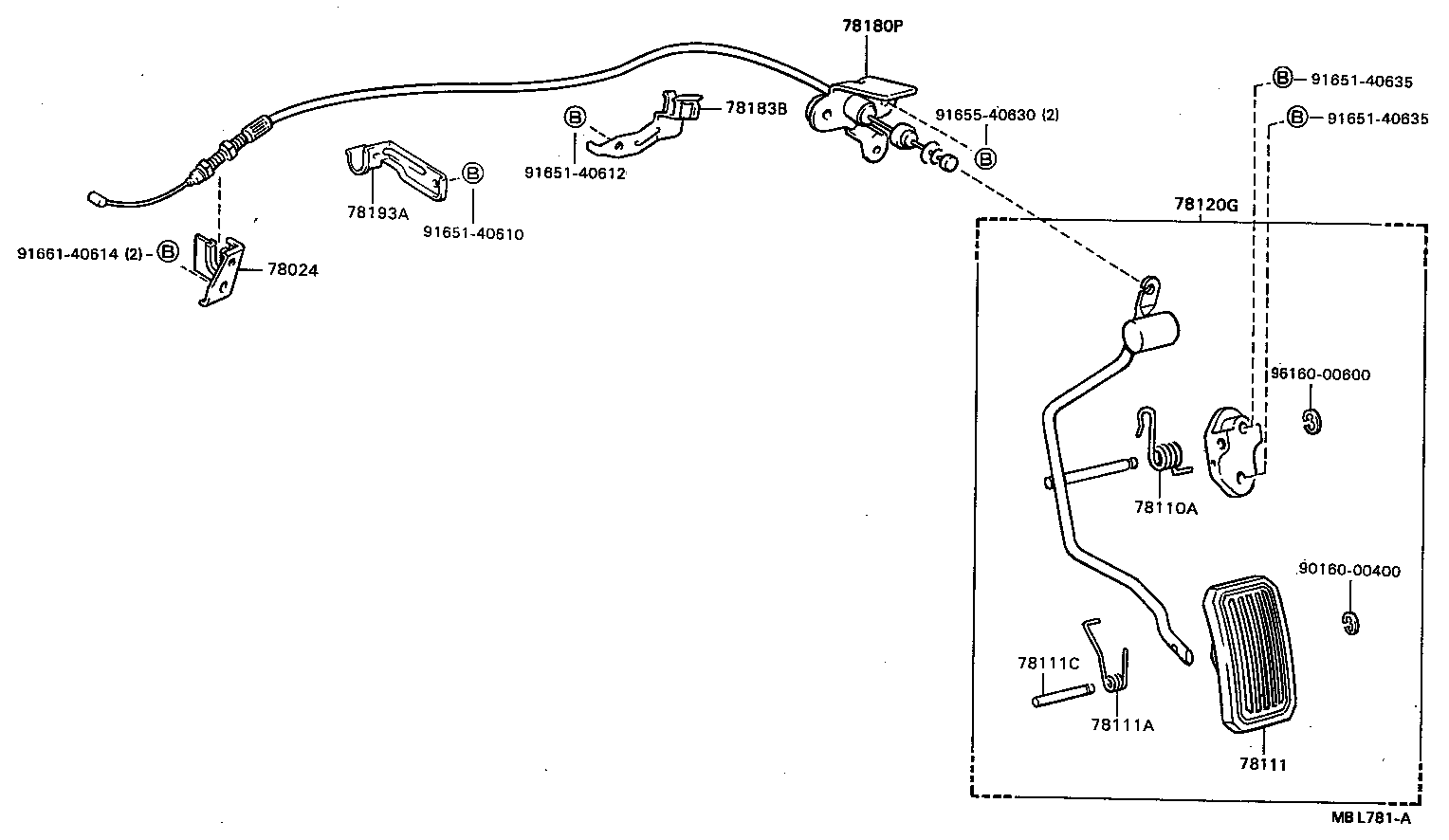

Figure MBL776 MBL776 1987-08 → — Figure MBL778 MBL778 1987-08 → — Figure MBL781A MBL781A 1987-08 → — Figure MBL782A MBL782A 1987-08 → — Figure MBM579 MBM579 1987-10 → — Figure MBM580A MBM580A 1987-10 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78180C Spring, Tension (FOR ACCELERATOR WIRE)
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78189A Support, Accelerator Control Cable, NO.2
78193A Support, Accelerator Control Cable, NO.3
78194A Support, Accelerator Control Cable, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
