Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

16 part groups · 3 illustrations

Illustrations

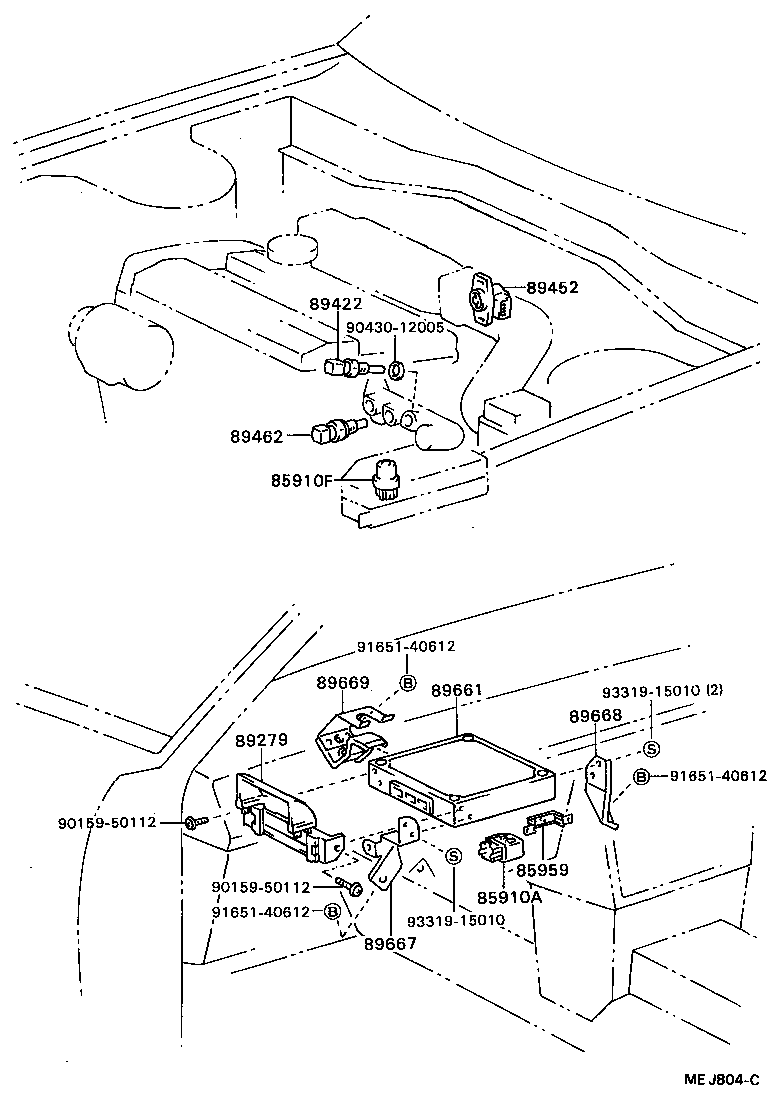

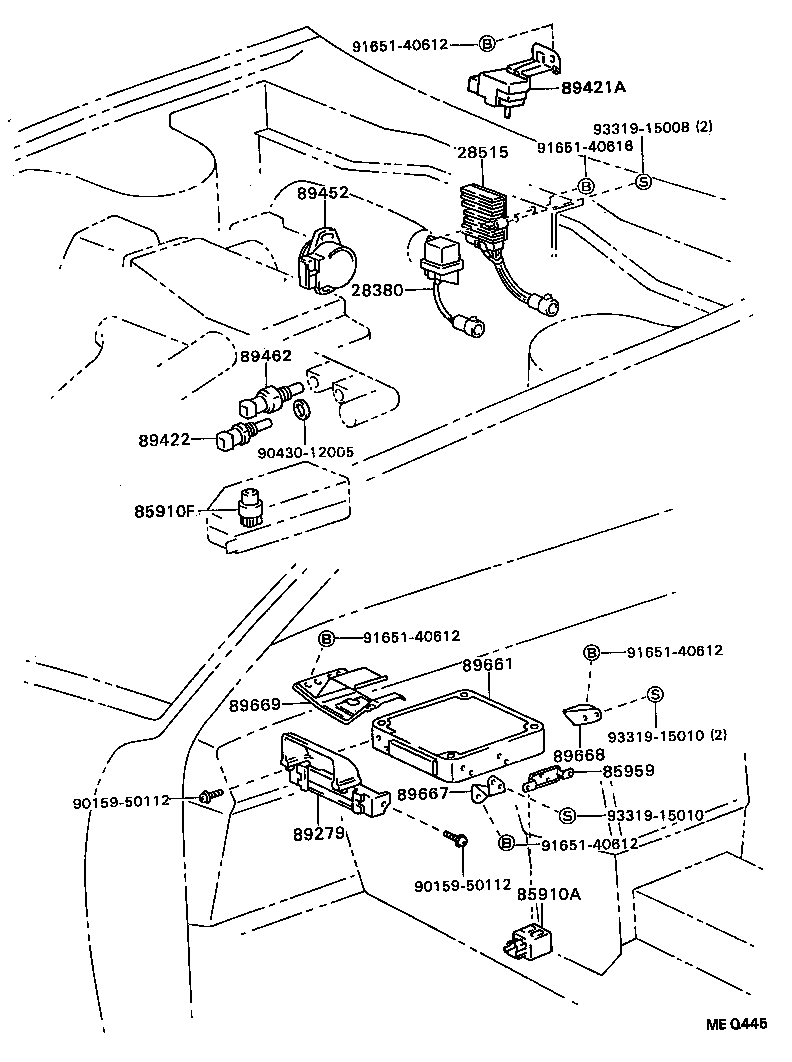

Figure MEJ802C MEJ802C 1987-08 → — Figure MEJ804C MEJ804C 1987-08 → — Figure MEQ445 MEQ445 1987-10 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
28515 Resistor, Solenoid
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
85959 Holder, Relay
89279 Cover, Engine Control Computer
89421A Sensor, Turbo Pressure
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89456 Resistor, Variable
89462 Switch, Start Injector Time
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
