Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 2 illustrations

Illustrations

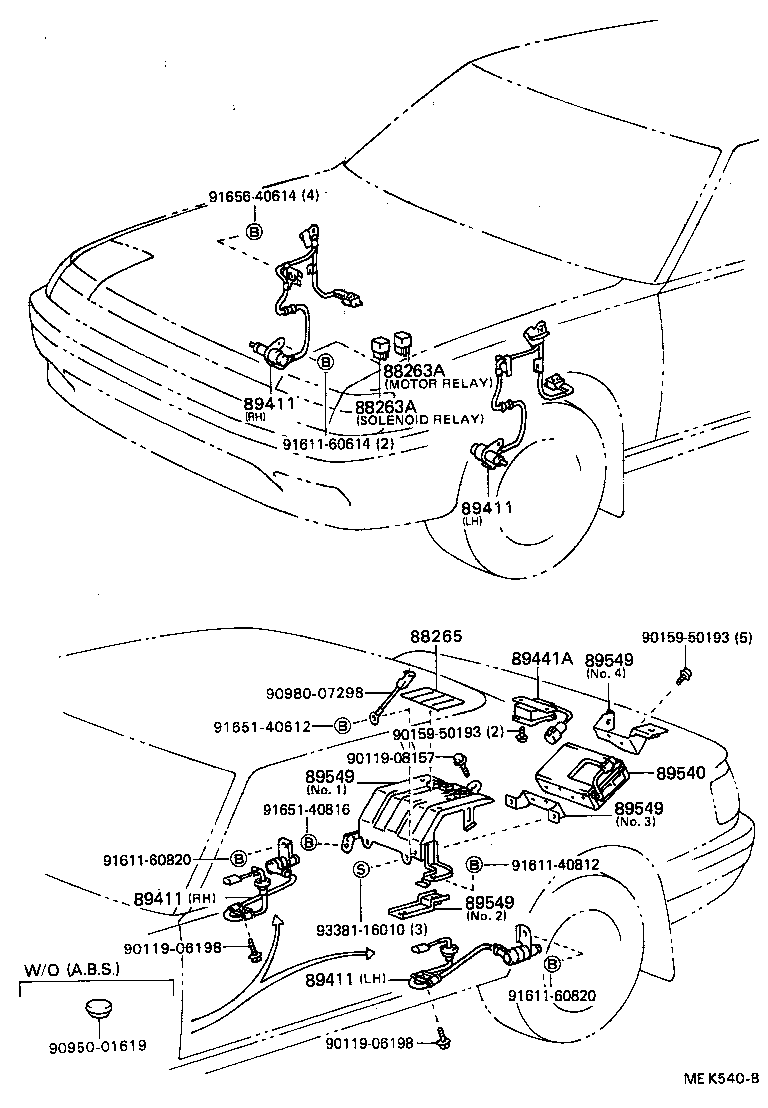

Figure MEJ820 MEJ820 1987-08 → — Figure MEK540B MEK540B 1987-08 → —

Part groups

PNCDescription
88263A Relay, Skid Control
88265 Label, Skid Control Caution
89411 Sensor, Speed
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89549 Bracket, Skid Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
