Toyota Celica

1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe

Discontinued model Data version 1990-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

6 part groups · 2 illustrations

Illustrations

Figure MEJ393A

MEJ393A 1987-08 → —

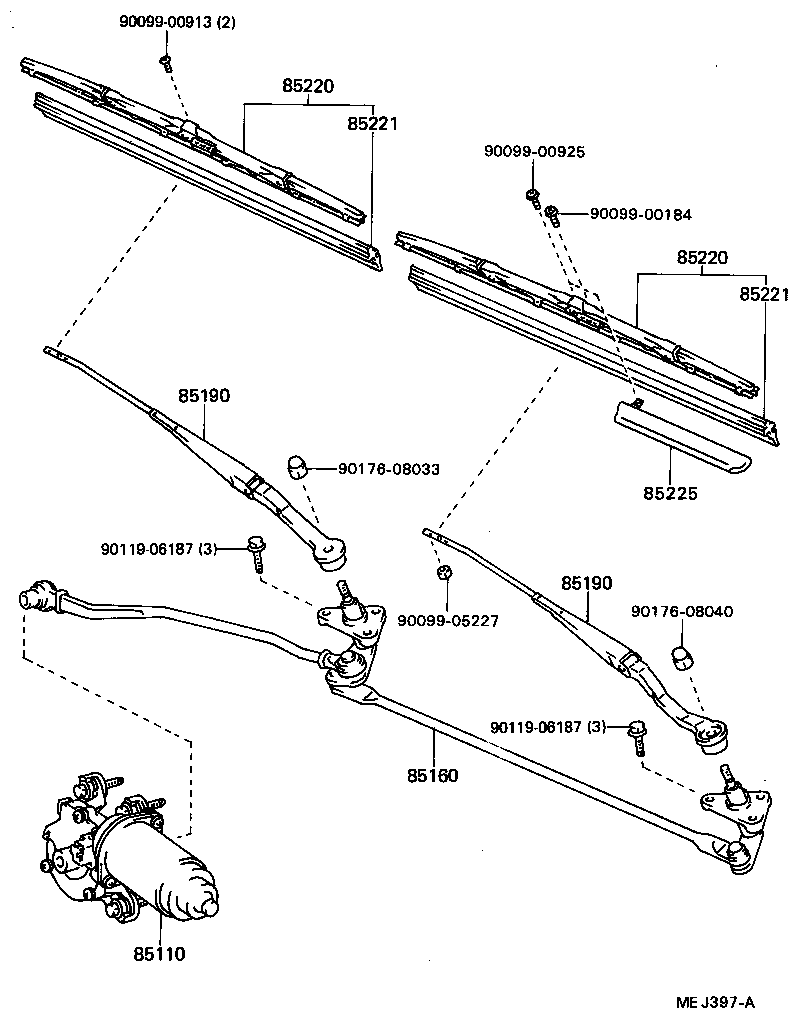

Figure MEJ397A

MEJ397A 1987-08 → —

Part groups

PNC	Description
85110	Motor Assy, Windshield Wiper
85160	Link Assy, Windshield Wiper
85190	Arm Assy, Windshield Wiper
85220	Blade Assy, Windshield Wiper
85221	Blade, Windshield Wiper
85225	Wing, Wiper Blade

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
