Toyota Celica
1987-08 → 1989-08 · chassis AT160,ST16# · catalogue 252550 · Europe
Discontinued model
Data version 1990-03
Heating & Air Conditioning - Compressor
32 part groups · 4 illustrations
Part groups

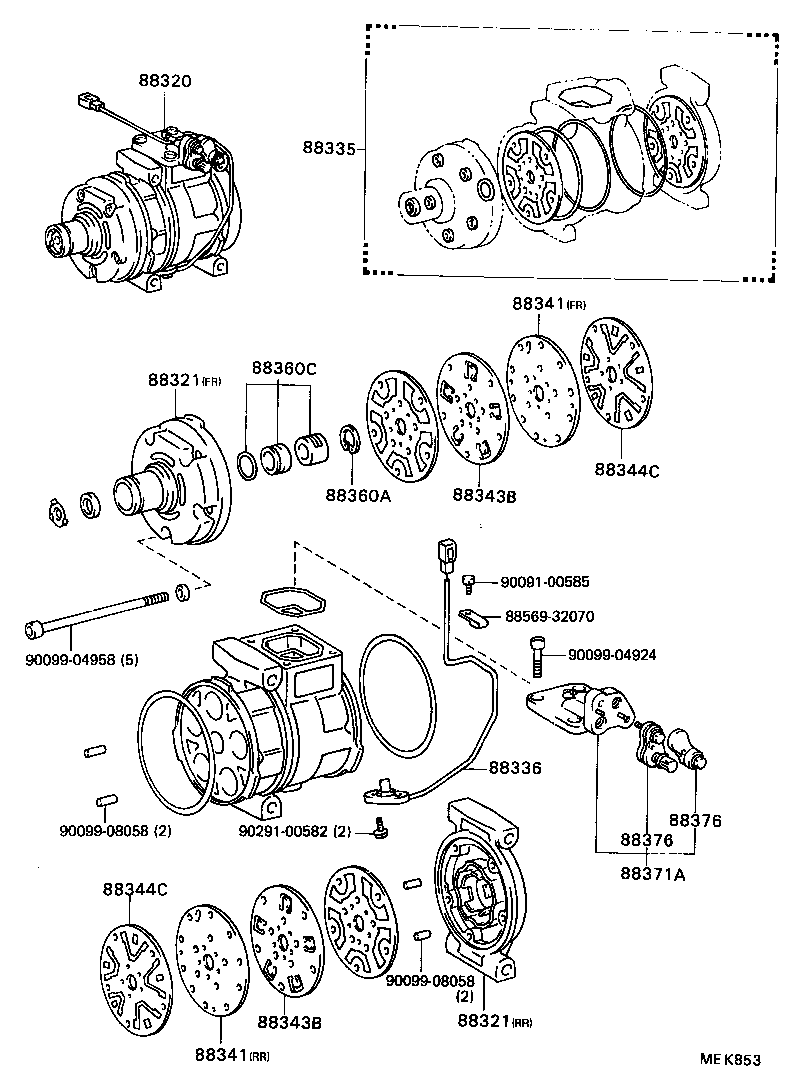

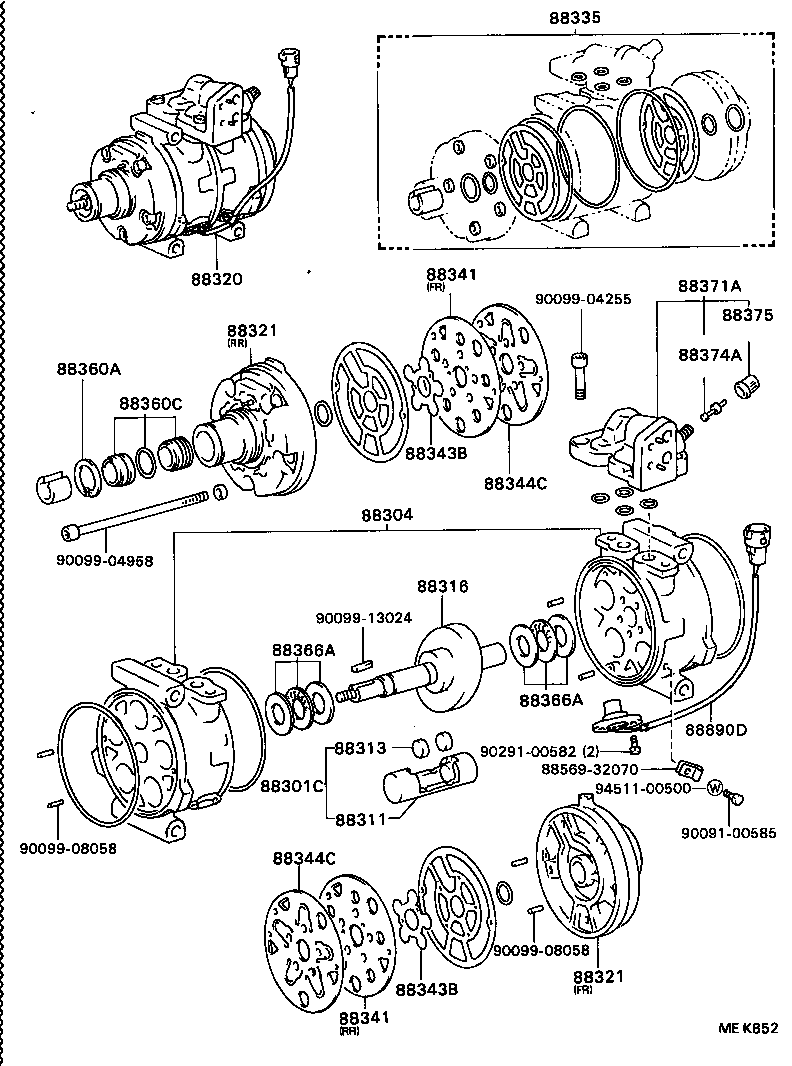

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88301B | Ring, Snap (FOR MAGNET CLUTCH) |
| 88301C | Piston Sub-assy |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88304 | Cylinder Sub-assy, Cooler Compressor |
| 88311 | Piston |
| 88313 | Shoe,Piston |
| 88316 | Crankshaft, Cooler Compressor |
| 88320 | Compressor Assy, Cooler |
| 88321 | Head, Cooler Compressor Cylinder |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88330C | Ring, Snap (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88336 | Sensor, Compressor |
| 88341 | Plate, Front Valve |
| 88343B | Reed, Suction Valve |
| 88344C | Reed, Discharge Valve |
| 88356 | Label, Compressor Caution |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88366A | Bearing,Compressor |
| 88371A | Valve, Suction |
| 88374A | Valve, Service |
| 88375 | Cap, Cooler Compressor Service Valve |
| 88376 | Cap, Blind |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88437A | Attachment, Compressor |
| 88595 | Pulley, Cooler Compressor Idle |
| 88890D | Sensor,Compressor |
| 88892F | Cover, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
