Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

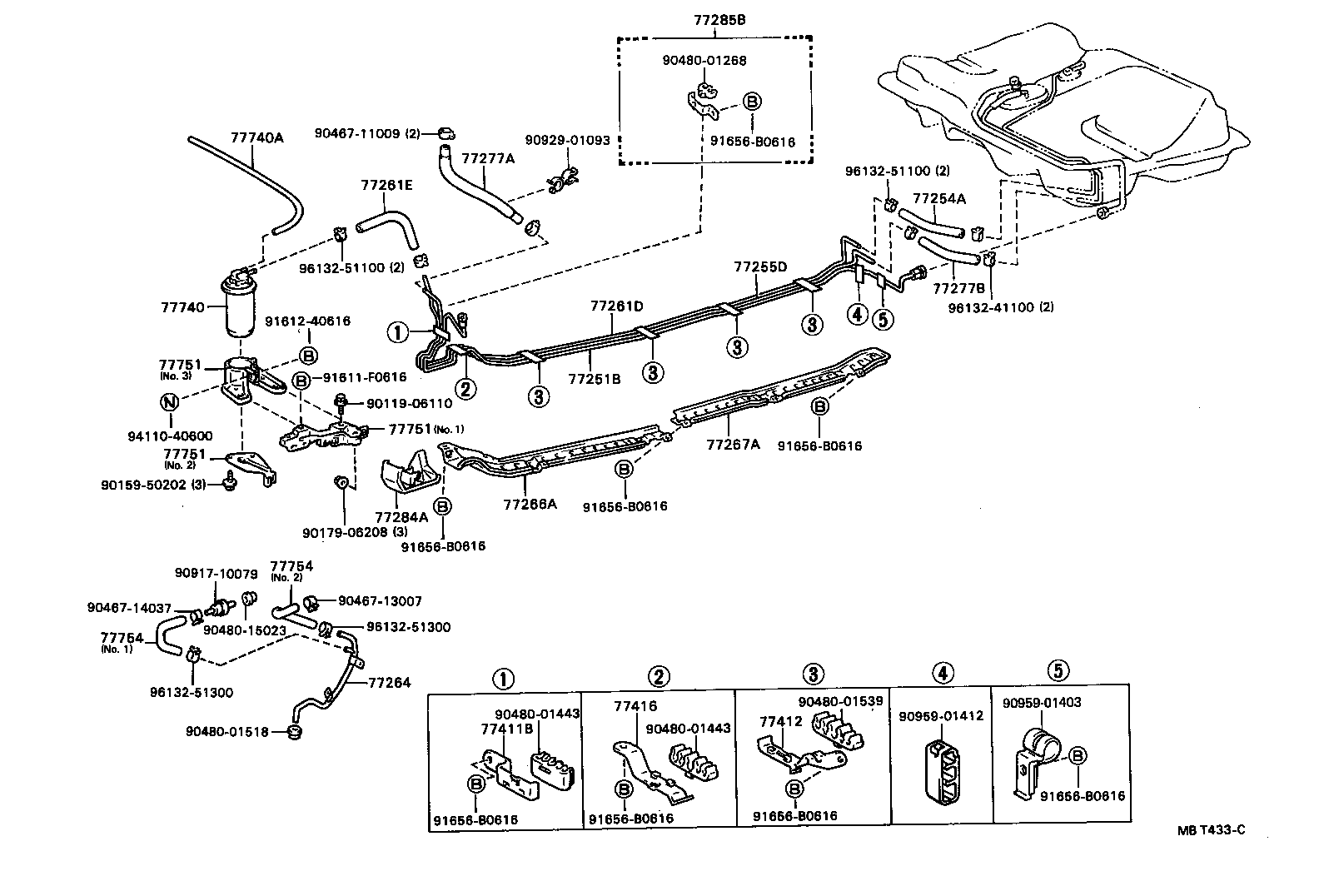

Exploded illustration MBT433C 77285B — CLAMP, FUEL TUBE W/GROMMET, NO.1 (3 parts) 9048001268 — not listed in this catalogue 9046711009 — not listed in this catalogue 77740A — HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) (1 parts) 9092901093 — not listed in this catalogue 91656B0616 — not listed in this catalogue 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (3 parts) 9613251100 — not listed in this catalogue 77261E — HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) (1 parts) 77254A — HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) (6 parts) 77255D — TUBE, FUEL RETURN (5 parts) 9613251100 — not listed in this catalogue 77277B — HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) (5 parts) 77261D — TUBE, FUEL TANK TO CANISTER (4 parts) 77740 — CANISTER ASSY, CHARCOAL (1 parts) 9613241100 — not listed in this catalogue 9161240616 — not listed in this catalogue 77751 — BRACKET, CHARCOAL CANISTER BASE (7 parts) 91611F0616 — not listed in this catalogue 77251B — TUBE, FUEL MAIN (5 parts) 9011906110 — not listed in this catalogue 77751 — BRACKET, CHARCOAL CANISTER BASE (7 parts) 9411040600 — not listed in this catalogue 77267A — PROTECTOR, FUEL TUBE, NO.2 (3 parts) 91656B0616 — not listed in this catalogue 77751 — BRACKET, CHARCOAL CANISTER BASE (7 parts) 9015950202 — not listed in this catalogue 77266A — PROTECTOR, FUEL TUBE, NO.1 (3 parts) 91656B0616 — not listed in this catalogue 77284A — PROTECTOR, FUEL TUBE, NO.3 (2 parts) 9017906208 — not listed in this catalogue 91656B0616 — not listed in this catalogue 77754 — HOSE, CHARCOAL CANISTER OUTLET, NO.1 (12 parts) 9091710079 — not listed in this catalogue 9046713007 — not listed in this catalogue 9046714037 — not listed in this catalogue 9613251300 — not listed in this catalogue 9048015023 — not listed in this catalogue 77754 — HOSE, CHARCOAL CANISTER OUTLET, NO.1 (12 parts) 77264 — TUBE, CANISTER TO FRONT SIDE MEMBER (3 parts) 9613251300 — not listed in this catalogue 9048001539 — not listed in this catalogue 9095901403 — not listed in this catalogue 77416 — SUPPORT, FUEL TUBE GROMMET, NO.6 (3 parts) 9048001443 — not listed in this catalogue 9095901412 — not listed in this catalogue 77412 — SUPPORT, FUEL TUBE GROMMET, NO.2 (3 parts) 77411B — SUPPORT, FUEL TUBE GROMMET, NO.1 (2 parts) 9048001443 — not listed in this catalogue 9048001518 — not listed in this catalogue 91656B0616 — not listed in this catalogue 91656B0616 — not listed in this catalogue 91656B0616 — not listed in this catalogue 91656B0616 — not listed in this catalogue
MBT433C · 22 callouts, 32 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-20580 Tube, Fuel Main
1989-10 → 1993-11 ended
ST182 RHD —
77251-20630 Tube, Fuel Main
1989-10 → 1991-08 ended
AT180,ST182 LHD —
77251-20630 Tube, Fuel Main
1991-08 → 1993-11 ended
AT180;ST182 LHD G;ST182 LHD +2 —
77251-20660 Tube, Fuel Main
1989-10 → 1993-11 ended
ST185 RHD —
77251-20670 Tube, Fuel Main
1989-10 → 1993-11 ended
ST185 LHD —
77254A — Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
95333-06020 note Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1989-10 → 1990-08 ended
AT180,ST182 G —
95333-06020 note Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1990-10 → 1991-08 ended
AT180,ST182 G —
95333-06020 note Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1991-08 → 1991-09 ended
ST182 CVT G —
95333-06020 note Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1991-08 → 1991-09 ended
AT180,ST182 LB G —
95333-06020 note Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1989-10 → 1993-11 ended
ST185 —
95333-06020 note Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1991-09 → 1993-11 ended
AT180,ST182 G —
77255D — Tube, Fuel Return
77255-20450 Tube, Fuel Return
1989-10 → 1993-11 ended
ST182 RHD —
77255-20500 Tube, Fuel Return
1989-10 → 1991-08 ended
AT180,ST182 LHD —
77255-20500 Tube, Fuel Return
1991-08 → 1993-11 ended
AT180;ST182 LHD G;ST182 LHD +2 —
77255-20530 Tube, Fuel Return
1989-10 → 1993-11 ended
ST185 RHD —
77255-20540 Tube, Fuel Return
1989-10 → 1993-11 ended
ST185 LHD —
77261D — Tube, Fuel Tank TO Canister
77261-20240 Tube, Fuel Tank TO Canister
1989-10 → 1993-11 ended
AT180,ST182 LHD G —
77261-20290 Tube, Fuel Tank TO Canister
1991-08 → 1993-11 ended
ST182 RHD G —
77261-20320 Tube, Fuel Tank TO Canister
1989-10 → 1993-11 ended
ST185 RHD —
77261-20330 Tube, Fuel Tank TO Canister
1989-10 → 1993-11 ended
ST185 LHD —
77261E — Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-20090 note Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1989-10 → 1993-11 ended
AT180,ST18# G —
77264 — Tube, Canister TO Front Side Member
77264-20080 Tube, Canister TO Front Side Member
1989-10 → 1991-08 ended
AT180 G —
77264-20080 Tube, Canister TO Front Side Member
1991-08 → 1991-09 ended
AT180,ST18# LB G —
77264-20080 Tube, Canister TO Front Side Member
1991-09 → 1993-11 ended
AT180,ST18# G —
77266A — Protector, Fuel Tube, NO.1
77266-20080 Protector, Fuel Tube, NO.1
1989-10 → 1993-11 ended
ST185 —
77266-20110 Protector, Fuel Tube, NO.1
1989-10 → 1991-08 ended
AT180,ST182 —
77266-20110 Protector, Fuel Tube, NO.1
1991-08 → 1993-11 ended
AT180;ST182 RHD;ST182 LHD G;ST182 +3 —
77267A — Protector, Fuel Tube, NO.2
77267-20040 Protector, Fuel Tube, NO.2
1989-10 → 1993-11 ended
ST185 —
77267-20070 Protector, Fuel Tube, NO.2
1989-10 → 1991-08 ended
AT180,ST182 —
77267-20070 Protector, Fuel Tube, NO.2
1991-08 → 1993-11 ended
AT180;ST182 RHD;ST182 LHD G;ST182 +3 —
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
90447-12084 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1989-10 → 1993-11 ended
ST182 RHD;ST182 LHD NOB;ST182 +3 —
90447-12116 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1989-10 → 1993-11 ended
AT180 —
95333-06020 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1989-10 → 1993-11 ended
AT180 —
77277B — Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77259-20110 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1989-10 → 1991-08 ended
AT180,ST182 —
77259-20110 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1991-08 → 1991-09 ended
ST182 CVT —
77259-20130 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1991-09 → 1993-11 ended
AT180;ST182 RHD;ST182 LHD G —
77259-20130 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1991-08 → 1991-09 ended
AT180;ST182 RHD LB;ST182 LHD +2 —
95333-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1989-10 → 1993-11 ended
ST185 —
77284A — Protector, Fuel Tube, NO.3
77284-20020 Protector, Fuel Tube, NO.3
1991-08 → 1993-11 ended
ST182 RHD;AT180,ST185;ST182 LHD G;ST182 +3 —
77284-20020 Protector, Fuel Tube, NO.3
1989-10 → 1991-08 ended
AT180,ST18# —
77285B — Clamp, Fuel Tube W/Grommet, NO.1
77285-20060 Clamp, Fuel Tube W/Grommet, NO.1
1989-10 → 1993-11 ended
ST18# RHD —
77285-20070 Clamp, Fuel Tube W/Grommet, NO.1
1989-10 → 1991-08 ended
AT180,ST18# LHD —
77285-20070 Clamp, Fuel Tube W/Grommet, NO.1
1991-08 → 1993-11 ended
ST182 LHD G;AT180,ST185 LHD;ST182 +3 —
77411B — Support, Fuel Tube Grommet, NO.1
77411-20030 Support, Fuel Tube Grommet, NO.1
1989-10 → 1991-08 ended
AT180,ST18# —
77411-20030 Support, Fuel Tube Grommet, NO.1
1991-08 → 1993-11 ended
ST182 RHD;AT180,ST185;ST182 LHD G;ST182 +3 —
77412 — Support, Fuel Tube Grommet, NO.2
77412-20020 Support, Fuel Tube Grommet, NO.2
1989-10 → 1991-08 ended
AT180,ST182 —
77412-20020 Support, Fuel Tube Grommet, NO.2
1991-08 → 1993-11 ended
AT180;ST182 RHD;ST182 LHD G;ST182 +3 —
77412-20030 Support, Fuel Tube Grommet, NO.2
1989-10 → 1993-11 ended
ST185 —
77416 — Support, Fuel Tube Grommet, NO.6
77416-20010 Support, Fuel Tube Grommet, NO.6
1989-10 → 1991-08 ended
AT180,ST182 —
77416-20010 Support, Fuel Tube Grommet, NO.6
1991-08 → 1993-11 ended
AT180;ST182 RHD;ST182 LHD G;ST182 +3 —
77416-20020 Support, Fuel Tube Grommet, NO.6
1989-10 → 1993-11 ended
ST185 —
77740 — Canister Assy, Charcoal
77704-20270 Canister Assy, Charcoal
1989-10 → 1993-11 ended
AT180,ST18# G —
77740A — Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
90445-08274 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1989-10 → 1993-11 ended
AT180 G —
77751 — Bracket, Charcoal Canister Base
77751-20240 note Bracket, Charcoal Canister Base
1989-10 → 1991-08 ended
ST182 RHD;ST182 WIB G;AT180,ST185 +3 —
77751-20240 note Bracket, Charcoal Canister Base
1991-08 → 1993-11 ended
ST182 LHD G;AT180,ST185 G;ST182 +5 —
77751-20240 Bracket, Charcoal Canister Base
1991-08 → 1993-11 ended
ST182 LB W —
77751-20260 note Bracket, Charcoal Canister Base
1989-10 → 1993-11 ended
ST18# G —
77751-20270 note Bracket, Charcoal Canister Base
1989-10 → 1993-11 ended
ST18# G —
77751-20280 note Bracket, Charcoal Canister Base
1989-10 → 1993-11 ended
AT180 G —
77751-20290 note Bracket, Charcoal Canister Base
1989-10 → 1993-11 ended
AT180 G —
77754 — Hose, Charcoal Canister Outlet, NO.1
77754-20110 note Hose, Charcoal Canister Outlet, NO.1
1989-10 → 1991-08 ended
ST18# G —
77754-20110 note Hose, Charcoal Canister Outlet, NO.1
1991-08 → 1991-09 ended
ST185;ST182 CVT G —
77754-20110 note Hose, Charcoal Canister Outlet, NO.1
1991-08 → 1991-09 ended
ST182 LB G —
77754-20110 note Hose, Charcoal Canister Outlet, NO.1
1989-10 → 1993-11 ended
AT180 G —
77754-20110 note Hose, Charcoal Canister Outlet, NO.1
1991-09 → 1993-11 ended
ST185 —
77754-20110 note Hose, Charcoal Canister Outlet, NO.1
1991-09 → 1993-11 ended
ST182 G —
77754-20120 note Hose, Charcoal Canister Outlet, NO.1
1989-10 → 1991-08 ended
ST18# G —
77754-20120 note Hose, Charcoal Canister Outlet, NO.1
1991-08 → 1991-09 ended
ST185;ST182 CVT G —
77754-20120 note Hose, Charcoal Canister Outlet, NO.1
1991-08 → 1991-09 ended
ST182 LB G —
77754-20120 note Hose, Charcoal Canister Outlet, NO.1
1989-10 → 1993-11 ended
AT180 G —
77754-20120 note Hose, Charcoal Canister Outlet, NO.1
1991-09 → 1993-11 ended
ST185 —
77754-20120 note Hose, Charcoal Canister Outlet, NO.1
1991-09 → 1993-11 ended
ST182 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
