Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

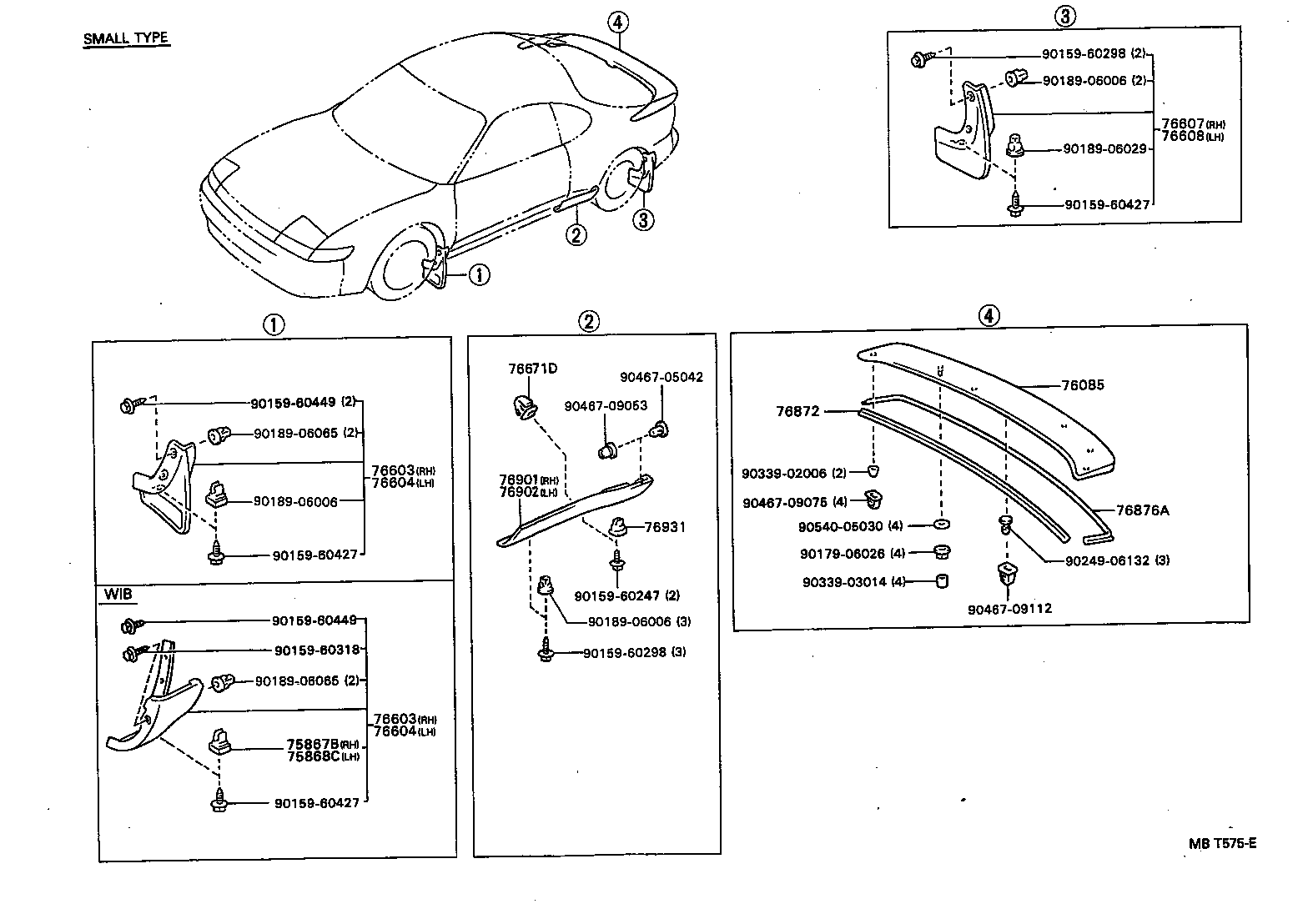

Exploded illustration MBT575E 9015960298 — not listed in this catalogue 9018906006 — not listed in this catalogue 76607 — MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH (12 parts) 76608 — MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH (12 parts) 9018906029 — not listed in this catalogue 9015960427 — not listed in this catalogue 76671D — CLIP, SIDE MUDGUARD (3 parts) 9046705042 — not listed in this catalogue 76085 — SPOILER SUB-ASSY, REAR (9 parts) 9015960449 — not listed in this catalogue 9046709053 — not listed in this catalogue 76872 — PROTECTOR, REAR SPOILER, NO.1 (5 parts) 9018906065 — not listed in this catalogue 76603 — MUDGUARD SUB-ASSY, FRONT FENDER, RH (33 parts) 9033902006 — not listed in this catalogue 76901 — MUDGUARD SUB-ASSY, SIDE, RH (21 parts) 76604 — MUDGUARD SUB-ASSY, FRONT FENDER, LH (33 parts) 76902 — MUDGUARD SUB-ASSY, SIDE, LH (21 parts) 9018906006 — not listed in this catalogue 9046709075 — not listed in this catalogue 76876A — PROTECTOR, REAR SPOILER, NO.10 (11 parts) 9054005030 — not listed in this catalogue 76931 — RETAINER, SIDE MUDGUARD, NO.3 (3 parts) 9017906026 — not listed in this catalogue 9015960427 — not listed in this catalogue 9024906132 — not listed in this catalogue 9033903014 — not listed in this catalogue 9015960247 — not listed in this catalogue 9046709112 — not listed in this catalogue 9015960449 — not listed in this catalogue 9018906006 — not listed in this catalogue 9015960318 — not listed in this catalogue 9015960298 — not listed in this catalogue 9018906065 — not listed in this catalogue 76603 — MUDGUARD SUB-ASSY, FRONT FENDER, RH (33 parts) 76604 — MUDGUARD SUB-ASSY, FRONT FENDER, LH (33 parts) 75867B — CLIP, ROCKER PANEL MOULDING (3 parts) 75868C — CLIP, REAR SPOILER, NO.2 (3 parts) 9015960427 — not listed in this catalogue
MBT575E · 15 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
169 parts on this figure
Part number Description Fitment Price
75867B — Clip, Rocker Panel Moulding
75867-20100 Clip, Rocker Panel Moulding
1990-08 → 1991-08 ended
ST182 WIB —
75867-20100 Clip, Rocker Panel Moulding
1989-10 → 1991-08 ended
ST185 —
75867-20100 Clip, Rocker Panel Moulding
1991-08 → 1993-11 ended
ST18# WIB —
75868C — Clip, Rear Spoiler, NO.2
75868-20020 Clip, Rear Spoiler, NO.2
1989-10 → 1991-08 ended
ST185 —
75868-20020 Clip, Rear Spoiler, NO.2
1990-08 → 1991-08 ended
ST182 WIB —
75868-20020 Clip, Rear Spoiler, NO.2
1991-08 → 1993-11 ended
ST18# WIB —
76085 — Spoiler Sub-assy, Rear
76085-20902 Spoiler Sub-assy, Rear
1989-10 → 1989-11 ended
ST182 W —
76085-20902 Spoiler Sub-assy, Rear
1989-10 → 1991-08 ended
ST182 LB NOB G —
76085-20902 Spoiler Sub-assy, Rear
1989-11 → 1991-08 ended
ST182 LB W;ST18# WIB +1 —
76085-20902 Spoiler Sub-assy, Rear
1991-08 → 1993-11 ended
ST18# LB —
76085-20904 note Spoiler Sub-assy, Rear
1989-10 → 1990-08 ended
ST182 G —
76085-20904 note Spoiler Sub-assy, Rear
1989-10 → 1990-08 ended
ST185 LHD —
76085-20904 note Spoiler Sub-assy, Rear
1990-08 → 1991-08 ended
ST182 LB NOB G —
76085-20904 Spoiler Sub-assy, Rear
1989-10 → 1993-11 ended
AT180 LB —
76085-20907 Spoiler Sub-assy, Rear
1990-08 → 1993-11 ended
AT180,ST182 CP,CVT —
76603 — Mudguard Sub-assy, Front Fender, RH
76603-29145-02 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76603-29145-03 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76603-29145-08 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76603-29145-C0 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76603-29145-D0 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76603-29145-H0 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76603-29145-J0 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76603-29165 Mudguard Sub-assy, Front Fender, RH
1989-10 → 1991-08 ended
AT180,ST182 (CP,LB) NOB —
76603-29175-01 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
ST18# WIB —
76603-29175-01 note Mudguard Sub-assy, Front Fender, RH
1990-08 → 1991-08 ended
ST182 WIB —
76603-29175-01 note Mudguard Sub-assy, Front Fender, RH
1989-10 → 1991-08 ended
ST185 —
76603-29175-02 note Mudguard Sub-assy, Front Fender, RH
1990-08 → 1991-08 ended
ST182 WIB —
76603-29175-02 note Mudguard Sub-assy, Front Fender, RH
1989-10 → 1991-08 ended
ST185 —
76603-29175-03 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
ST18# WIB —
76603-29175-03 note Mudguard Sub-assy, Front Fender, RH
1990-08 → 1991-08 ended
ST182 WIB —
76603-29175-03 note Mudguard Sub-assy, Front Fender, RH
1989-10 → 1991-08 ended
ST185 —
76603-29175-08 note Mudguard Sub-assy, Front Fender, RH
1990-08 → 1991-08 ended
ST182 WIB —
76603-29175-08 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
ST18# WIB —
76603-29175-08 note Mudguard Sub-assy, Front Fender, RH
1989-10 → 1991-08 ended
ST185 —
76603-29175-12 note Mudguard Sub-assy, Front Fender, RH
1990-08 → 1991-08 ended
ST182 WIB —
76603-29175-12 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
ST18# WIB —
76603-29175-12 note Mudguard Sub-assy, Front Fender, RH
1989-10 → 1991-08 ended
ST185 —
76603-29175-13 note Mudguard Sub-assy, Front Fender, RH
1990-08 → 1991-08 ended
ST182 WIB —
76603-29175-13 note Mudguard Sub-assy, Front Fender, RH
1990-08 → 1991-08 ended
ST185 —
76603-29175-14 note Mudguard Sub-assy, Front Fender, RH
1989-10 → 1991-08 ended
ST185 —
76603-29175-14 note Mudguard Sub-assy, Front Fender, RH
1990-08 → 1991-08 ended
ST182 WIB —
76603-29175-D0 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
ST182 WIB —
76603-29175-H0 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
ST18# WIB —
76603-29175-J0 note Mudguard Sub-assy, Front Fender, RH
1991-08 → 1993-11 ended
ST182 WIB —
76621-29095 Mudguard Sub-assy, Front Fender, RH
1990-10 → 1991-09 ended
ST182 CVT —
76621-29105-01 note Mudguard Sub-assy, Front Fender, RH
1991-09 → 1993-11 ended
ST182 CVT —
76621-29105-02 note Mudguard Sub-assy, Front Fender, RH
1991-09 → 1993-11 ended
ST182 CVT —
76621-29105-08 note Mudguard Sub-assy, Front Fender, RH
1991-09 → 1993-11 ended
ST182 CVT —
76604 — Mudguard Sub-assy, Front Fender, LH
76604-29145-02 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76604-29145-03 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76604-29145-08 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76604-29145-C0 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76604-29145-D0 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76604-29145-H0 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76604-29145-J0 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76604-29165 Mudguard Sub-assy, Front Fender, LH
1989-10 → 1991-08 ended
AT180,ST182 (CP,LB) NOB —
76604-29175-01 note Mudguard Sub-assy, Front Fender, LH
1990-08 → 1991-08 ended
ST182 WIB —
76604-29175-01 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
ST18# WIB —
76604-29175-01 note Mudguard Sub-assy, Front Fender, LH
1989-10 → 1991-08 ended
ST185 —
76604-29175-02 note Mudguard Sub-assy, Front Fender, LH
1990-08 → 1991-08 ended
ST182 WIB —
76604-29175-02 note Mudguard Sub-assy, Front Fender, LH
1989-10 → 1991-08 ended
ST185 —
76604-29175-03 note Mudguard Sub-assy, Front Fender, LH
1989-10 → 1991-08 ended
ST185 —
76604-29175-03 note Mudguard Sub-assy, Front Fender, LH
1990-08 → 1991-08 ended
ST182 WIB —
76604-29175-03 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
ST18# WIB —
76604-29175-08 note Mudguard Sub-assy, Front Fender, LH
1989-10 → 1991-08 ended
ST185 —
76604-29175-08 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
ST18# WIB —
76604-29175-08 note Mudguard Sub-assy, Front Fender, LH
1990-08 → 1991-08 ended
ST182 WIB —
76604-29175-12 note Mudguard Sub-assy, Front Fender, LH
1989-10 → 1991-08 ended
ST185 —
76604-29175-12 note Mudguard Sub-assy, Front Fender, LH
1990-08 → 1991-08 ended
ST182 WIB —
76604-29175-12 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
ST18# WIB —
76604-29175-13 note Mudguard Sub-assy, Front Fender, LH
1990-08 → 1991-08 ended
ST182 WIB —
76604-29175-13 note Mudguard Sub-assy, Front Fender, LH
1990-08 → 1991-08 ended
ST185 —
76604-29175-14 note Mudguard Sub-assy, Front Fender, LH
1990-08 → 1991-08 ended
ST182 WIB —
76604-29175-14 note Mudguard Sub-assy, Front Fender, LH
1989-10 → 1991-08 ended
ST185 —
76604-29175-D0 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
ST182 WIB —
76604-29175-H0 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
ST18# WIB —
76604-29175-J0 note Mudguard Sub-assy, Front Fender, LH
1991-08 → 1993-11 ended
ST182 WIB —
76622-29095 Mudguard Sub-assy, Front Fender, LH
1990-10 → 1991-09 ended
ST182 CVT —
76622-29105-01 note Mudguard Sub-assy, Front Fender, LH
1991-09 → 1993-11 ended
ST182 CVT —
76622-29105-02 note Mudguard Sub-assy, Front Fender, LH
1991-09 → 1993-11 ended
ST182 CVT —
76622-29105-08 note Mudguard Sub-assy, Front Fender, LH
1991-09 → 1993-11 ended
ST182 CVT —
76607 — Mudguard Sub-assy, Quarter Panel, Rear RH
76607-29195-01 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-08 → 1991-09 ended
AT180,ST182 (CP,LB) NOB —
76607-29195-01 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-09 → 1993-11 ended
AT180,ST182 NOB —
76607-29195-02 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-08 → 1991-09 ended
AT180,ST182 (CP,LB) NOB —
76607-29195-02 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-09 → 1993-11 ended
AT180,ST182 NOB —
76607-29195-03 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76607-29195-08 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-09 → 1993-11 ended
AT180,ST182 NOB —
76607-29195-08 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-08 → 1991-09 ended
AT180,ST182 (CP,LB) NOB —
76607-29195-D0 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76607-29195-H0 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76607-29195-J0 note Mudguard Sub-assy, Quarter Panel, Rear RH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76607-29235 Mudguard Sub-assy, Quarter Panel, Rear RH
1991-08 → 1991-09 ended
ST182 CVT —
76607-29235 Mudguard Sub-assy, Quarter Panel, Rear RH
1989-10 → 1991-08 ended
AT180,ST182 NOB —
76608 — Mudguard Sub-assy, Quarter Panel, Rear LH
76608-29195-01 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-08 → 1991-09 ended
AT180,ST182 (CP,LB) NOB —
76608-29195-01 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-09 → 1993-11 ended
AT180,ST182 NOB —
76608-29195-02 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-08 → 1991-09 ended
AT180,ST182 (CP,LB) NOB —
76608-29195-02 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-09 → 1993-11 ended
AT180,ST182 NOB —
76608-29195-03 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76608-29195-08 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-09 → 1993-11 ended
AT180,ST182 NOB —
76608-29195-08 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-08 → 1991-09 ended
AT180,ST182 (CP,LB) NOB —
76608-29195-D0 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76608-29195-H0 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76608-29195-J0 note Mudguard Sub-assy, Quarter Panel, Rear LH
1991-08 → 1993-11 ended
AT180,ST182 (CP,LB) NOB —
76608-29235 Mudguard Sub-assy, Quarter Panel, Rear LH
1991-08 → 1991-09 ended
ST182 CVT —
76608-29235 Mudguard Sub-assy, Quarter Panel, Rear LH
1989-10 → 1991-08 ended
AT180,ST182 NOB —
76671D — Clip, Side Mudguard
76671-14010 Clip, Side Mudguard
1989-10 → 1991-08 ended
ST185 —
76671-14010 Clip, Side Mudguard
1990-08 → 1991-08 ended
ST182 WIB —
76671-14010 Clip, Side Mudguard
1991-08 → 1993-11 ended
ST18# WIB —
76872 — Protector, Rear Spoiler, NO.1
76872-20100 Protector, Rear Spoiler, NO.1
1989-10 → 1990-08 ended
ST185 LHD —
76872-20100 Protector, Rear Spoiler, NO.1
1989-10 → 1993-05 ended
AT180 LB —
76872-20100 Protector, Rear Spoiler, NO.1
1990-08 → 1991-08 ended
ST182 LB NOB G —
76872-20100 Protector, Rear Spoiler, NO.1
1989-10 → 1990-08 ended
ST182 G —
76872-20101 Protector, Rear Spoiler, NO.1
1993-05 → 1993-11 ended
AT180 LB —
76876A — Protector, Rear Spoiler, NO.10
76876-20040 Protector, Rear Spoiler, NO.10
1990-08 → 1993-11 ended
AT180,ST182 CP,CVT —
76876-20060 Protector, Rear Spoiler, NO.10
1991-08 → 1993-11 ended
ST18# LB —
76876-20060 Protector, Rear Spoiler, NO.10
1989-10 → 1991-08 ended
ST182 LB NOB G —
76876-20060 Protector, Rear Spoiler, NO.10
1989-10 → 1991-08 ended
ST182 LB W;ST18# WIB +1 —
76876-20070 Protector, Rear Spoiler, NO.10
1989-10 → 1989-12 ended
AT180 LB —
76876-20070 Protector, Rear Spoiler, NO.10
1989-12 → 1993-11 ended
AT180 LB —
76876-20070 note Protector, Rear Spoiler, NO.10
1990-08 → 1991-08 ended
ST182 LB NOB G —
76876-20070 note Protector, Rear Spoiler, NO.10
1989-12 → 1990-08 ended
ST182 G —
76876-20070 note Protector, Rear Spoiler, NO.10
1989-10 → 1989-12 ended
ST185 LHD —
76876-20070 note Protector, Rear Spoiler, NO.10
1989-10 → 1989-12 ended
ST182 G —
76876-20070 note Protector, Rear Spoiler, NO.10
1989-12 → 1990-08 ended
ST185 LHD —
76901 — Mudguard Sub-assy, Side, RH
76901-20030-01 note Mudguard Sub-assy, Side, RH
1991-08 → 1993-11 ended
ST18# WIB —
76901-20030-01 note Mudguard Sub-assy, Side, RH
1990-08 → 1991-08 ended
ST182 WIB —
76901-20030-01 note Mudguard Sub-assy, Side, RH
1989-10 → 1991-08 ended
ST185 —
76901-20030-02 note Mudguard Sub-assy, Side, RH
1989-10 → 1991-08 ended
ST185 —
76901-20030-02 note Mudguard Sub-assy, Side, RH
1990-08 → 1991-08 ended
ST182 WIB —
76901-20030-03 note Mudguard Sub-assy, Side, RH
1990-08 → 1991-08 ended
ST185 —
76901-20030-03 note Mudguard Sub-assy, Side, RH
1990-08 → 1991-08 ended
ST182 WIB —
76901-20030-08 note Mudguard Sub-assy, Side, RH
1989-10 → 1991-08 ended
ST185 —
76901-20030-08 note Mudguard Sub-assy, Side, RH
1990-08 → 1991-08 ended
ST182 WIB —
76901-20030-08 note Mudguard Sub-assy, Side, RH
1991-08 → 1993-11 ended
ST18# WIB —
76901-20030-12 note Mudguard Sub-assy, Side, RH
1989-10 → 1991-08 ended
ST185 —
76901-20030-12 note Mudguard Sub-assy, Side, RH
1990-08 → 1991-08 ended
ST182 WIB —
76901-20030-12 note Mudguard Sub-assy, Side, RH
1991-08 → 1993-11 ended
ST18# WIB —
76901-20030-13 note Mudguard Sub-assy, Side, RH
1989-10 → 1991-08 ended
ST185 —
76901-20030-13 note Mudguard Sub-assy, Side, RH
1991-08 → 1993-11 ended
ST18# WIB —
76901-20030-13 note Mudguard Sub-assy, Side, RH
1990-08 → 1991-08 ended
ST182 WIB —
76901-20030-14 note Mudguard Sub-assy, Side, RH
1989-10 → 1991-08 ended
ST185 —
76901-20030-14 note Mudguard Sub-assy, Side, RH
1990-08 → 1991-08 ended
ST182 WIB —
76901-20030-D0 note Mudguard Sub-assy, Side, RH
1991-08 → 1993-11 ended
ST182 WIB —
76901-20030-H0 note Mudguard Sub-assy, Side, RH
1991-08 → 1993-11 ended
ST18# WIB —
76901-20030-J0 note Mudguard Sub-assy, Side, RH
1991-08 → 1993-11 ended
ST182 WIB —
76902 — Mudguard Sub-assy, Side, LH
76902-20030-01 note Mudguard Sub-assy, Side, LH
1989-10 → 1991-08 ended
ST185 —
76902-20030-01 note Mudguard Sub-assy, Side, LH
1991-08 → 1993-11 ended
ST18# WIB —
76902-20030-01 note Mudguard Sub-assy, Side, LH
1990-08 → 1991-08 ended
ST182 WIB —
76902-20030-02 note Mudguard Sub-assy, Side, LH
1989-10 → 1991-08 ended
ST185 —
76902-20030-02 note Mudguard Sub-assy, Side, LH
1990-08 → 1991-08 ended
ST182 WIB —
76902-20030-03 note Mudguard Sub-assy, Side, LH
1990-08 → 1991-08 ended
ST182 WIB —
76902-20030-03 note Mudguard Sub-assy, Side, LH
1990-08 → 1991-08 ended
ST185 —
76902-20030-08 note Mudguard Sub-assy, Side, LH
1990-08 → 1991-08 ended
ST182 WIB —
76902-20030-08 note Mudguard Sub-assy, Side, LH
1991-08 → 1993-11 ended
ST18# WIB —
76902-20030-08 note Mudguard Sub-assy, Side, LH
1989-10 → 1991-08 ended
ST185 —
76902-20030-12 note Mudguard Sub-assy, Side, LH
1989-10 → 1991-08 ended
ST185 —
76902-20030-12 note Mudguard Sub-assy, Side, LH
1990-08 → 1991-08 ended
ST182 WIB —
76902-20030-12 note Mudguard Sub-assy, Side, LH
1991-08 → 1993-11 ended
ST18# WIB —
76902-20030-13 note Mudguard Sub-assy, Side, LH
1989-10 → 1991-08 ended
ST185 —
76902-20030-13 note Mudguard Sub-assy, Side, LH
1991-08 → 1993-11 ended
ST18# WIB —
76902-20030-13 note Mudguard Sub-assy, Side, LH
1990-08 → 1991-08 ended
ST182 WIB —
76902-20030-14 note Mudguard Sub-assy, Side, LH
1990-08 → 1991-08 ended
ST182 WIB —
76902-20030-14 note Mudguard Sub-assy, Side, LH
1989-10 → 1991-08 ended
ST185 —
76902-20030-D0 note Mudguard Sub-assy, Side, LH
1991-08 → 1993-11 ended
ST182 WIB —
76902-20030-H0 note Mudguard Sub-assy, Side, LH
1991-08 → 1993-11 ended
ST18# WIB —
76902-20030-J0 note Mudguard Sub-assy, Side, LH
1991-08 → 1993-11 ended
ST182 WIB —
76931 — Retainer, Side Mudguard, NO.3
76931-20020 Retainer, Side Mudguard, NO.3
1989-10 → 1991-08 ended
ST185 —
76931-20020 Retainer, Side Mudguard, NO.3
1990-08 → 1991-08 ended
ST182 WIB —
76931-20020 Retainer, Side Mudguard, NO.3
1991-08 → 1993-11 ended
ST18# WIB —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
