Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

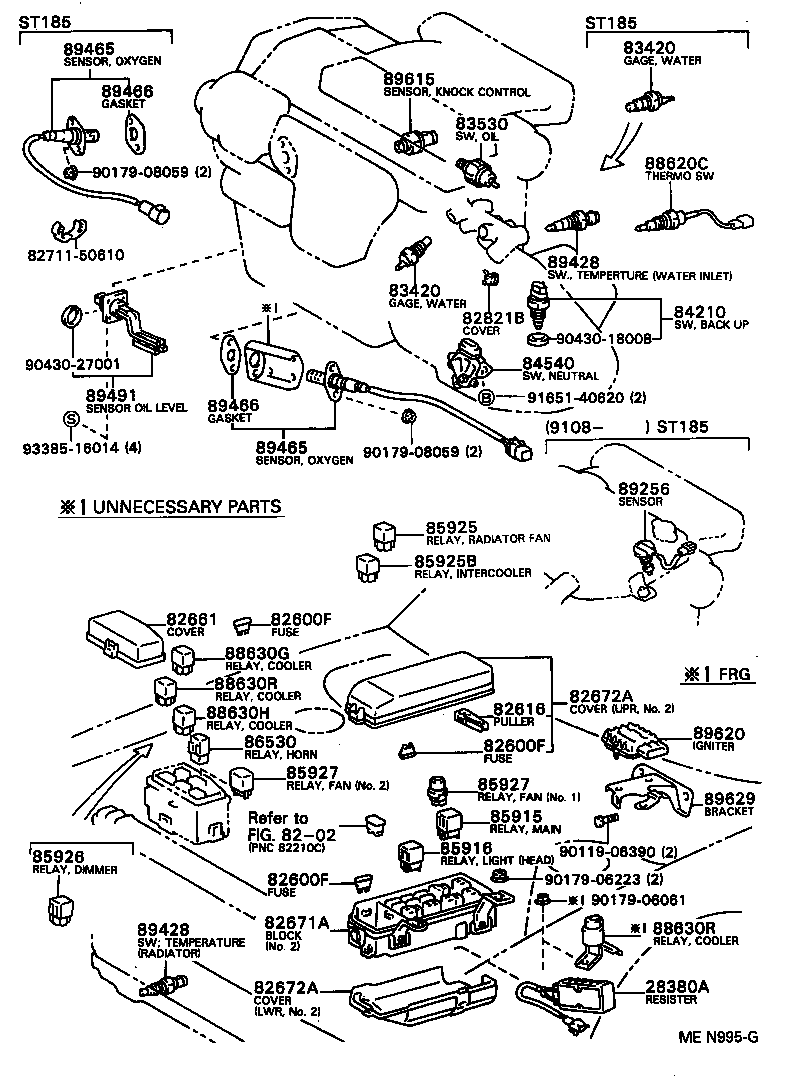

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28380A — Resister, Fuel Pump | ||||
| 23285-74010 |
Resister, Fuel Pump
1989-10 → 1993-11
ended
|
3SGTE ST185 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-07011 note |
Fuse, Fuse Block
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 90982-09002 note |
Fuse, Fuse Block
1989-10 → 1990-11
ended
|
AT180 G | — | |
| 90982-09002 note |
Fuse, Fuse Block
1991-08 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 90982-09002 note |
Fuse, Fuse Block
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 90982-09002 note |
Fuse, Fuse Block
1990-11 → 1991-08
ended
|
ST185 LHD | — | |
| 90982-09002 note |
Fuse, Fuse Block
1990-11 → 1991-08
ended
|
AT180 G | — | |
| 90982-09002 note |
Fuse, Fuse Block
1989-10 → 1991-08
ended
|
AT180,ST185 LHD | — | |
| 90982-09002 note |
Fuse, Fuse Block
1989-10 → 1991-08
ended
|
ST182 LHD;ST185 RHD | — | |
| 90982-09002 note |
Fuse, Fuse Block
1989-10 → 1990-11
ended
|
ST185 LHD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-10 → 1993-11
ended
|
AT180,ST18# LHD (CVT,LB) G | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 90982-09003 note |
Fuse, Fuse Block
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 90982-09004 note |
Fuse, Fuse Block
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 90982-09004 note |
Fuse, Fuse Block
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 90982-09005 note |
Fuse, Fuse Block
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 82616 — Puller, Fuse | ||||
| 82616-12020 |
Puller, Fuse
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 82661 — Cover, Relay Block, NO.1 | ||||
| 82662-20010 |
Cover, Relay Block, NO.1
1989-10 → 1993-11
ended
|
ST185 | — | |
| 82662-20020 note |
Cover, Relay Block, NO.1
1989-10 → 1993-11
ended
|
ST185 LHD | — | |
| 82662-20040 |
Cover, Relay Block, NO.1
1989-10 → 1993-11
ended
|
AT180,ST182 | — | |
| 82662-20050 note |
Cover, Relay Block, NO.1
1989-10 → 1993-11
ended
|
AT180,ST182 LHD (CVT,LB) G | — | |
| 82671A — Block, Junction | ||||
| 82671-20150 |
Block, Junction
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 82671-20210 |
Block, Junction
1989-10 → 1993-11
ended
|
AT180,ST182 | — | |
| 82671-20220 |
Block, Junction
1989-10 → 1993-11
ended
|
ST185 | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-20490 note |
Cover, Junction Block
1990-08 → 1991-09
ended
|
ST182 LHD CVT | — | |
| 82672-20490 note |
Cover, Junction Block
1990-03 → 1990-08
ended
|
ST18# RHD | — | |
| 82672-20490 note |
Cover, Junction Block
1989-10 → 1990-03
ended
|
AT180,ST18# | — | |
| 82672-20491 note |
Cover, Junction Block
1990-08 → 1993-11
ended
|
ST18# RHD | — | |
| 82672-20500 note |
Cover, Junction Block
1990-03 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 82672-20520 note |
Cover, Junction Block
1989-10 → 1993-11
ended
|
AT180,ST182 | — | |
| 82672-20530 note |
Cover, Junction Block
1989-10 → 1993-11
ended
|
AT180,ST182 LHD (CVT,LB) G | — | |
| 82672-20550 note |
Cover, Junction Block
1989-10 → 1993-11
ended
|
ST185 | — | |
| 82672-20560 note |
Cover, Junction Block
1989-10 → 1993-11
ended
|
ST185 LHD | — | |
| 82672-20570 note |
Cover, Junction Block
1989-10 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 82672-20590 note |
Cover, Junction Block
1989-10 → 1993-11
ended
|
ST182 | — | |
| 82672-20600 note |
Cover, Junction Block
1989-10 → 1993-11
ended
|
ST185 | — | |
| 82672-20610 note |
Cover, Junction Block
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 82672-20750 note |
Cover, Junction Block
1989-10 → 1993-11
ended
|
AT180 | — | |
| 82821B — Cover, Connector | ||||
| 82821-12250 |
Cover, Connector
1991-08 → 1991-09
ended
|
AT180,ST18# (CP,LB) MTM | — | |
| 82821-12250 |
Cover, Connector
1991-09 → 1992-03
ended
|
AT180,ST18# MTM | — | |
| 82821-12251 |
Cover, Connector
1992-03 → 1993-11
ended
|
AT180,ST18# MTM | — | |
| 82821-35010 |
Cover, Connector
1991-08 → 1993-11
ended
|
ST182 ATM | — | |
| 83420 — Gage Assy, Water Temperature Sender | ||||
| 83420-16020 |
Gage Assy, Water Temperature Sender
1989-10 → 1993-11
ended
|
AT180 | — | |
| 83420-16040 note |
Gage Assy, Water Temperature Sender
1992-11 → 1993-11
ended
|
ST18# | — | |
| 83420-20020 |
Gage Assy, Water Temperature Sender
1989-10 → 1992-11
ended
|
ST18# | — | |
| 83420-20030 note |
Gage Assy, Water Temperature Sender
1992-11 → 1993-11
ended
|
ST18# | — | |
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-30050 |
Switch Assy, Oil Pressure (FOR ENGINE)
1989-10 → 1990-03
ended
|
AT180 | — | |
| 83530-30051 |
Switch Assy, Oil Pressure (FOR ENGINE)
1990-03 → 1993-11
ended
|
AT180 | — | |
| 83530-30080 |
Switch Assy, Oil Pressure (FOR ENGINE)
1989-10 → 1993-11
ended
|
ST18# | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-12040 |
Switch Assy, Back-up Lamp
1989-10 → 1993-11
ended
|
AT180,ST18# MTM | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-12170 |
Switch Assy, Neutral Start
1989-10 → 1993-11
ended
|
ST182 ATM | — | |
| 85915 — Relay, Main | ||||
| 85925-17010 |
Relay, Main
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 85916 — Relay, Light Control | ||||
| 90987-02006 note |
Relay, Light Control
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 90987-02008 note |
Relay, Light Control
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 85925 — Relay, Radiator Fan | ||||
| 85925-32010 |
Relay, Radiator Fan
1991-08 → 1992-02
ended
|
ST185 | — | |
| 85925B — Relay, Intercooler | ||||
| 85925-20010 |
Relay, Intercooler
1991-08 → 1992-02
ended
|
ST185 | — | |
| 85926 — Relay, Headlamp Dimmer | ||||
| 85926-30020 note |
Relay, Headlamp Dimmer
1989-10 → 1993-11
ended
|
AT180,ST18# LHD (CVT,LB) G | — | |
| 85927 — Relay, Cooling Fan | ||||
| 28380-30010 note |
Relay, Cooling Fan
1989-10 → 1993-11
ended
|
ST182 | — | |
| 90987-03001 note |
Relay, Cooling Fan
1989-10 → 1993-11
ended
|
AT180,ST18# GTI,STI,TBO4W | — | |
| 86530 — Relay Assy, Horn | ||||
| 86530-20070 |
Relay Assy, Horn
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 88620C — Thermo Switch Assy | ||||
| 88625-20300 |
Thermo Switch Assy
1989-10 → 1991-08
ended
|
ST185 | — | |
| 88630G — Relay Assy, Cooler | ||||
| 90987-04003 |
Relay Assy, Cooler
1992-02 → 1993-11
ended
|
ST18# RHD;AT180 CP G;AT180,ST182 +2 | — | |
| 90987-04003 |
Relay Assy, Cooler
1989-10 → 1991-08
ended
|
ST18# LHD LB G | — | |
| 90987-04003 |
Relay Assy, Cooler
1992-02 → 1993-11
ended
|
AT180,ST18# LHD LB G | — | |
| 90987-04003 |
Relay Assy, Cooler
1991-08 → 1992-02
ended
|
ST185 RHD;AT180,ST182 CP,LB | — | |
| 90987-04003 |
Relay Assy, Cooler
1990-08 → 1991-08
ended
|
AT180;ST185 RHD;ST182 LB W | — | |
| 90987-04003 |
Relay Assy, Cooler
1989-10 → 1990-08
ended
|
ST182 W;ST185 RHD | — | |
| 90987-04003 |
Relay Assy, Cooler
1991-08 → 1992-02
ended
|
ST185 LHD | — | |
| 88630H — Relay Assy, Cooler | ||||
| 90987-02009 note |
Relay Assy, Cooler
1991-08 → 1993-11
ended
|
ST18# RHD LB;ST182 LB +2 | — | |
| 90987-02009 note |
Relay Assy, Cooler
1991-08 → 1993-11
ended
|
AT180,ST185 LHD;ST182 LHD LB +1 | — | |
| 90987-02009 note |
Relay Assy, Cooler
1991-08 → 1993-11
ended
|
ST18# LB (GTI,TBO4W) | — | |
| 90987-02010 note |
Relay Assy, Cooler
1991-08 → 1993-11
ended
|
AT180,ST185 LHD;ST182 LHD LB +1 | — | |
| 90987-02010 note |
Relay Assy, Cooler
1991-08 → 1993-11
ended
|
AT180 | — | |
| 90987-02010 note |
Relay Assy, Cooler
1991-08 → 1993-11
ended
|
ST18# RHD LB;ST182 LB +2 | — | |
| 90987-02010 |
Relay Assy, Cooler
1990-08 → 1991-08
ended
|
AT180;ST185 RHD;ST182 LB W | — | |
| 90987-02010 |
Relay Assy, Cooler
1989-10 → 1991-08
ended
|
ST18# LHD LB G | — | |
| 90987-02010 |
Relay Assy, Cooler
1989-10 → 1990-08
ended
|
ST182 W;ST185 RHD | — | |
| 88630R — Relay Assy, Cooler, NO.3 | ||||
| 88630-20170 note |
Relay Assy, Cooler, NO.3
1992-02 → 1993-11
ended
|
AT180,ST18# LHD LB G | — | |
| 88630-20170 note |
Relay Assy, Cooler, NO.3
1989-10 → 1991-08
ended
|
ST18# LHD LB G | — | |
| 88630-20170 note |
Relay Assy, Cooler, NO.3
1990-08 → 1991-08
ended
|
AT180 | — | |
| 88630-20170 note |
Relay Assy, Cooler, NO.3
1991-08 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) (GTI,STI,TBO4W) | — | |
| 88630-20250 note |
Relay Assy, Cooler, NO.3
1991-08 → 1992-02
ended
|
ST185 LHD | — | |
| 90987-02009 |
Relay Assy, Cooler, NO.3
1990-08 → 1991-08
ended
|
ST18# LHD LB G | — | |
| 90987-02009 note |
Relay Assy, Cooler, NO.3
1991-08 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 90987-02009 |
Relay Assy, Cooler, NO.3
1991-08 → 1993-11
ended
|
ST18# LHD LB (GTI,TBO4W) | — | |
| 90987-02009 |
Relay Assy, Cooler, NO.3
1991-08 → 1993-11
ended
|
ST18# RHD LB (GTI,TBO4W) | — | |
| 90987-02009 note |
Relay Assy, Cooler, NO.3
1991-08 → 1993-11
ended
|
ST18# RHD LB | — | |
| 90987-02009 |
Relay Assy, Cooler, NO.3
1990-08 → 1991-08
ended
|
AT180;ST185 RHD;ST182 LB W | — | |
| 90987-02010 |
Relay Assy, Cooler, NO.3
1991-08 → 1993-11
ended
|
AT180 | — | |
| 90987-02010 note |
Relay Assy, Cooler, NO.3
1991-08 → 1993-11
ended
|
ST18# RHD LB | — | |
| 90987-02010 note |
Relay Assy, Cooler, NO.3
1991-08 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 90987-02010 |
Relay Assy, Cooler, NO.3
1989-10 → 1990-08
ended
|
ST182 W;ST185 RHD | — | |
| 90987-02010 |
Relay Assy, Cooler, NO.3
1989-10 → 1990-08
ended
|
ST18# LHD G | — | |
| 89256 — Sensor, Level Warning | ||||
| 89256-20010 |
Sensor, Level Warning
1991-08 → 1992-02
ended
|
ST185 | — | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-12150 note |
Switch, Temperature Detect, NO.2
1991-08 → 1993-11
ended
|
AT180 | — | |
| 89428-12160 note |
Switch, Temperature Detect, NO.2
1991-08 → 1993-11
ended
|
AT180 | — | |
| 89428-15011 note |
Switch, Temperature Detect, NO.2
1989-10 → 1991-08
ended
|
AT180 | — | |
| 89428-15030 note |
Switch, Temperature Detect, NO.2
1989-10 → 1991-08
ended
|
ST18# | — | |
| 89428-15030 note |
Switch, Temperature Detect, NO.2
1991-08 → 1991-09
ended
|
ST182 CVT | — | |
| 89428-20100 note |
Switch, Temperature Detect, NO.2
1991-09 → 1993-11
ended
|
ST182 | — | |
| 89428-20100 note |
Switch, Temperature Detect, NO.2
1991-08 → 1991-09
ended
|
ST182 LB | — | |
| 89428-30090 note |
Switch, Temperature Detect, NO.2
1991-08 → 1991-09
ended
|
ST182 CVT | — | |
| 89428-30090 note |
Switch, Temperature Detect, NO.2
1989-10 → 1991-08
ended
|
ST182 | — | |
| 89428-33010 note |
Switch, Temperature Detect, NO.2
1991-08 → 1991-09
ended
|
ST18# LB | — | |
| 89428-33010 note |
Switch, Temperature Detect, NO.2
1991-09 → 1993-11
ended
|
ST18# | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-29365 |
Sensor, Oxygen
1989-10 → 1993-11
ended
|
ST185 | — | |
| 89465-29375 |
Sensor, Oxygen
1989-10 → 1991-08
ended
|
AT180,ST182 G | — | |
| 89465-29375 |
Sensor, Oxygen
1991-08 → 1991-09
ended
|
ST182 CVT G | — | |
| 89465-29545 |
Sensor, Oxygen
1991-08 → 1991-09
ended
|
AT180,ST182 LB G | — | |
| 89465-29545 |
Sensor, Oxygen
1991-09 → 1993-09
ended
|
AT180,ST182 G | — | |
| 89466 — Gasket, Oxygen Sensor | ||||
| 89466-20020 |
Gasket, Oxygen Sensor
1989-10 → 1993-11
ended
|
AT180,ST182 G | — | |
| 89466-20030 |
Gasket, Oxygen Sensor
1989-10 → 1993-11
ended
|
ST185 | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-20050 |
Sensor, Engine Oil Level
1989-10 → 1993-11
ended
|
ST18# | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20010 |
Sensor, Knock Control
1990-08 → 1991-08
ended
|
ST18# | — | |
| 89615-20010 |
Sensor, Knock Control
1991-08 → 1991-09
ended
|
ST182 CVT | — | |
| 89615-20020 |
Sensor, Knock Control
1989-10 → 1990-08
ended
|
ST18# | — | |
| 89615-50010 |
Sensor, Knock Control
1991-08 → 1991-09
ended
|
ST18# LB | — | |
| 89615-50010 |
Sensor, Knock Control
1991-09 → 1993-11
ended
|
ST18# | — | |
| 89620 — Igniter Assy | ||||
| 89620-12430 |
Igniter Assy
1991-08 → 1993-11
ended
|
AT180 | — | |
| 89621-12010 |
Igniter Assy
1989-10 → 1991-08
ended
|
ST18# | — | |
| 89621-12010 |
Igniter Assy
1991-08 → 1991-09
ended
|
ST182 CVT | — | |
| 89621-12050 |
Igniter Assy
1991-08 → 1991-09
ended
|
ST18# LB | — | |
| 89621-12050 |
Igniter Assy
1991-09 → 1993-11
ended
|
ST18# | — | |
| 89629 — Bracket, Igniter Assy | ||||
| 89629-20120 |
Bracket, Igniter Assy
1989-10 → 1993-11
ended
|
ST18# G | — | |
| 89629-20130 |
Bracket, Igniter Assy
1989-10 → 1993-11
ended
|
ST182 W | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
