Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

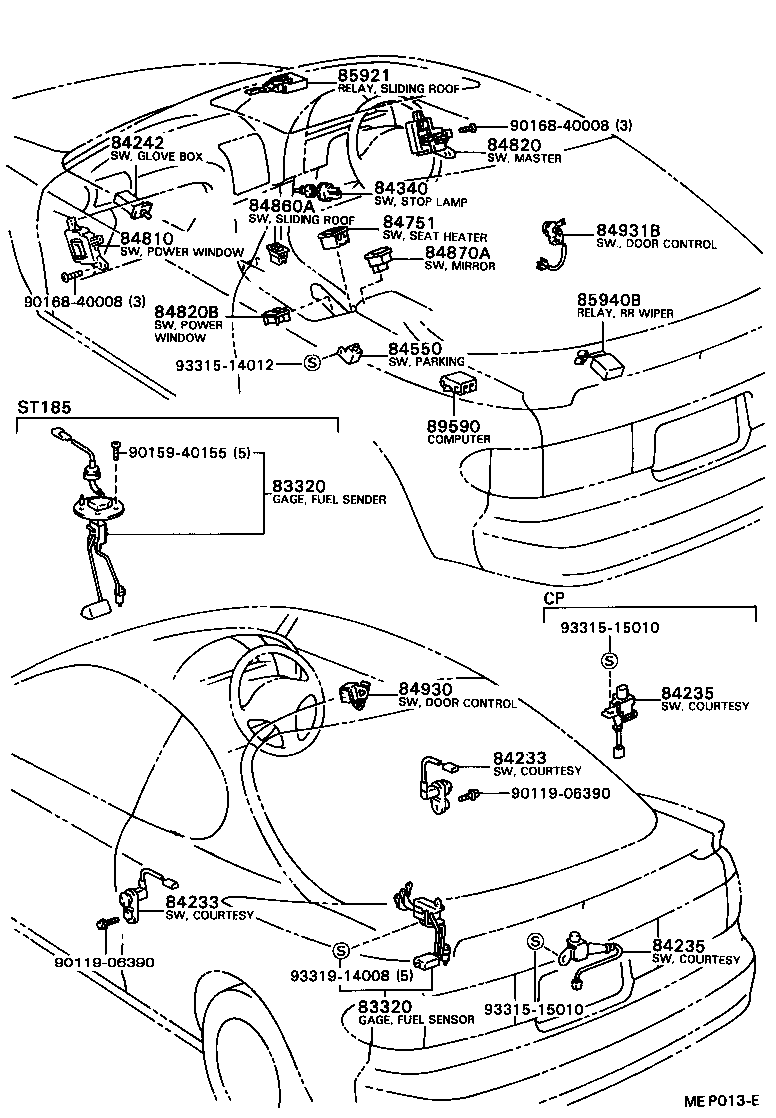

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-80140 |
Gage Assy, Fuel Sender
1989-10 → 1993-09
ended
|
AT180,ST182 | — | |
| 83320-80141 |
Gage Assy, Fuel Sender
1989-10 → 1993-11
ended
|
ST185 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-20210 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1989-10 → 1990-07
ended
|
AT180,ST18# | — | |
| 84231-32050 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1990-07 → 1993-11
ended
|
AT180,ST18# | — | |
| 84235 — Switch Assy, Courtesy Lamp(FOR BACK DOOR) | ||||
| 84231-20180 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1989-10 → 1993-11
ended
|
AT180,ST182 CP,CVT | — | |
| 84231-20190 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1989-10 → 1993-11
ended
|
AT180,ST18# LB | — | |
| 84242 — Switch, Glove Box Lamp | ||||
| 84242-20030 |
Switch, Glove Box Lamp
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-32030 |
Switch Assy, Stop Lamp
1989-10 → 1990-08
ended
|
AT180,ST18# | — | |
| 84340-32090 |
Switch Assy, Stop Lamp
1990-08 → 1993-11
ended
|
AT180,ST18# | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-12060 |
Switch Assy, Parking Brake
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-20100 |
Switch, Seat Heater
1991-08 → 1993-11
ended
|
ST18# LHD LB | — | |
| 84751-28010 |
Switch, Seat Heater
1989-10 → 1991-08
ended
|
ST18# LHD LB | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-20150 |
Switch Assy, Power Window Regulator
1989-10 → 1989-11
ended
|
ST182 RHD | — | |
| 84810-20150 |
Switch Assy, Power Window Regulator
1989-11 → 1993-11
ended
|
ST18# RHD | — | |
| 84810-20160 |
Switch Assy, Power Window Regulator
1989-11 → 1992-08
ended
|
ST18# LHD | — | |
| 84810-20160 |
Switch Assy, Power Window Regulator
1989-10 → 1989-11
ended
|
ST182 LHD | — | |
| 84810-20160 |
Switch Assy, Power Window Regulator
1992-08 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-20330 |
Master Switch Assy, Power Window Regulator
1989-10 → 1989-11
ended
|
ST182 RHD | — | |
| 84820-20330 |
Master Switch Assy, Power Window Regulator
1989-11 → 1993-11
ended
|
ST18# RHD LB | — | |
| 84820-20340 |
Master Switch Assy, Power Window Regulator
1990-10 → 1991-09
ended
|
ST182 RHD CVT | — | |
| 84820-20350 |
Master Switch Assy, Power Window Regulator
1989-10 → 1989-11
ended
|
ST182 LHD | — | |
| 84820-20350 |
Master Switch Assy, Power Window Regulator
1989-11 → 1992-08
ended
|
ST18# LHD LB | — | |
| 84820-20350 |
Master Switch Assy, Power Window Regulator
1992-08 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 84820-20360 |
Master Switch Assy, Power Window Regulator
1990-10 → 1993-11
ended
|
ST182 LHD CVT | — | |
| 84820B — Switch Set, Power Window | ||||
| 84801-20330 |
Switch Set, Power Window
1990-10 → 1991-09
ended
|
ST182 CVT | — | |
| 84801-20331 |
Switch Set, Power Window
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 84860A — Switch Assy, Sliding Roof | ||||
| 84860-20010 |
Switch Assy, Sliding Roof
1990-10 → 1991-09
ended
|
ST182 CVT | — | |
| 84860-20011 |
Switch Assy, Sliding Roof
1991-09 → 1993-11
ended
|
ST182 CVT | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-20080 |
Switch Assy, Outer Mirror
1989-10 → 1993-11
ended
|
AT180,ST18# | — | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-20070 |
Switch Assy, Door Control
1989-10 → 1993-11
ended
|
ST18# RHD | — | |
| 84930-20080 |
Switch Assy, Door Control
1989-10 → 1992-08
ended
|
ST18# LHD | — | |
| 84930-20080 |
Switch Assy, Door Control
1992-08 → 1993-11
ended
|
AT180,ST18# LHD | — | |
| 84931B — Switch, Door Control | ||||
| 84931-20130 note |
Switch, Door Control
1991-09 → 1992-08
ended
|
ST18# | — | |
| 84931-20130 note |
Switch, Door Control
1992-08 → 1993-11
ended
|
AT180,ST18# | — | |
| 84931-20130 note |
Switch, Door Control
1991-08 → 1991-09
ended
|
ST18# LB | — | |
| 84931-20180 note |
Switch, Door Control
1991-08 → 1991-09
ended
|
ST18# LB | — | |
| 84931-20180 note |
Switch, Door Control
1991-09 → 1992-08
ended
|
ST18# | — | |
| 84931-20180 note |
Switch, Door Control
1992-08 → 1993-09
ended
|
AT180,ST18# | — | |
| 85921 — Relay, Sliding Roof Control | ||||
| 85915-20050 |
Relay, Sliding Roof Control
1990-10 → 1993-11
ended
|
ST182 CVT | — | |
| 85921-20060 |
Relay, Sliding Roof Control
1989-10 → 1993-11
ended
|
AT180,ST18# CP,LB | — | |
| 85940B — Relay Assy, Rear Wiper | ||||
| 85940-20080 |
Relay Assy, Rear Wiper
1989-10 → 1989-11
ended
|
AT180 LB | — | |
| 85940-20080 |
Relay Assy, Rear Wiper
1989-11 → 1993-11
ended
|
AT180,ST18# LHD LB | — | |
| 85940-20120 |
Relay Assy, Rear Wiper
1989-10 → 1993-11
ended
|
ST18# RHD LB | — | |
| 89590 — Computer Assy, Condition Indicator | ||||
| 89590-20120 |
Computer Assy, Condition Indicator
1989-10 → 1993-11
ended
|
ST18# LB | — | |
| 89590-20130 |
Computer Assy, Condition Indicator
1990-10 → 1993-11
ended
|
ST182 CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
