Toyota Celica

1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

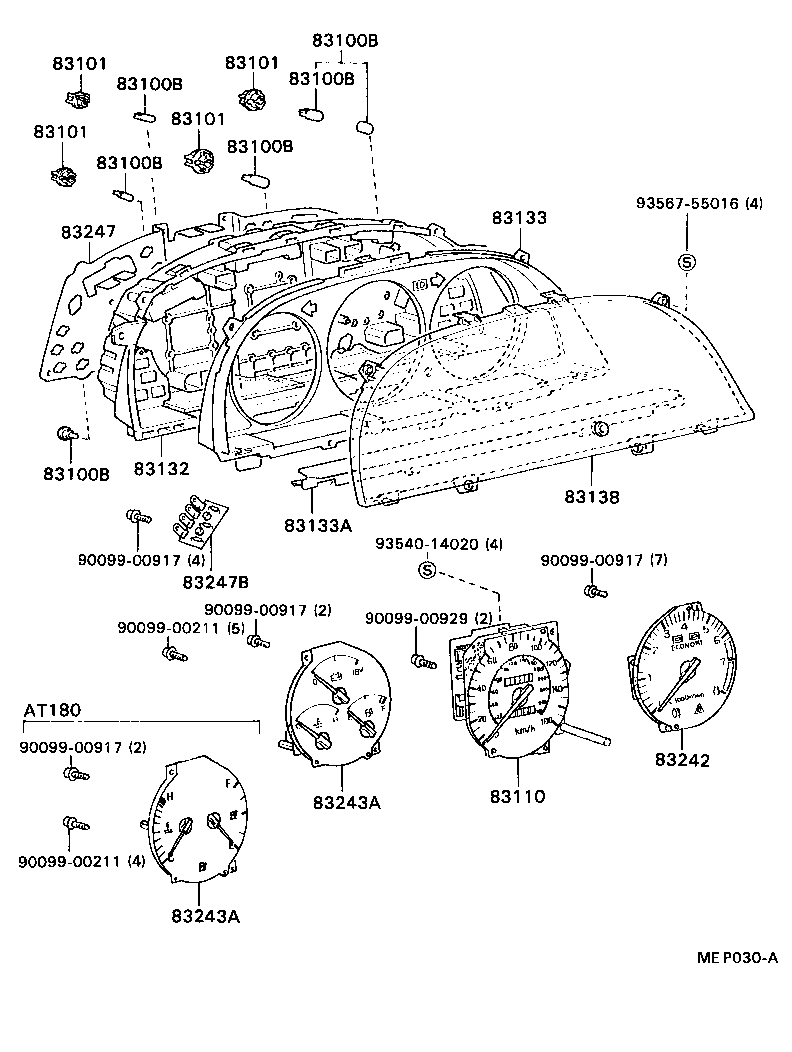

Exploded illustration MEP030A 83100B — BULB, COMBINATION METER, NO.1 (35 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (12 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (12 parts) 83100B — BULB, COMBINATION METER, NO.1 (35 parts) 83100B — BULB, COMBINATION METER, NO.1 (35 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (12 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (12 parts) 83100B — BULB, COMBINATION METER, NO.1 (35 parts) 83100B — BULB, COMBINATION METER, NO.1 (35 parts) 9356755016 — not listed in this catalogue 83133 — PLATE, COMBINATION METER, NO.1 (1 parts) 83247 — PLATE, METER CIRCUIT (8 parts) 83132 — CASE, COMBINATION METER (5 parts) 83100B — BULB, COMBINATION METER, NO.1 (35 parts) 83138 — GLASS, SPEEDOMETER (1 parts) 83133A — PLATE, COMBINATION METER, NO.2 (1 parts) 9354014020 — not listed in this catalogue 9009900917 — not listed in this catalogue 9009900917 — not listed in this catalogue 83247B — PLATE, METER CIRCUIT, NO.2 (1 parts) 9009900917 — not listed in this catalogue 9009900929 — not listed in this catalogue 9009900211 — not listed in this catalogue 9009900917 — not listed in this catalogue 83242 — TACHOMETER ASSY, ENGINE (14 parts) 83110 — SPEEDOMETER ASSY (5 parts) 83243A — GAUGE SUB-ASSY, FUEL RECEIVER (9 parts) 9009900211 — not listed in this catalogue 83243A — GAUGE SUB-ASSY, FUEL RECEIVER (9 parts)
MEP030A · 20 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
92 parts on this figure
Part number Description Fitment Price
83100B — Bulb, Combination Meter, NO.1
83101-20080 note Bulb, Combination Meter, NO.1
1991-09 → 1993-11 ended
AT180,ST18# —
83101-20080 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
AT180,ST18# CP,LB —
83101-20080 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
AT180,ST18# —
83101-20080 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
ST182 CVT —
83109-24010 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
AT180,ST18# LHD —
83109-24010 note Bulb, Combination Meter, NO.1
1991-08 → 1993-11 ended
ST18# RHD LB —
83109-24010 note Bulb, Combination Meter, NO.1
1991-08 → 1993-11 ended
ST182 RHD MTM W —
83109-24010 note Bulb, Combination Meter, NO.1
1991-09 → 1993-11 ended
AT180,ST18# LHD —
83109-24010 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
AT180,ST18# LHD (CP,LB) —
83109-24010 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
ST182 LHD CVT —
83109-24010 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
ST18# RHD —
83109-24020 note Bulb, Combination Meter, NO.1
1991-08 → 1993-11 ended
ST18# RHD LB —
83109-24020 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
ST182 LHD CVT —
83109-24020 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
AT180,ST18# LHD (CP,LB) —
83109-24020 note Bulb, Combination Meter, NO.1
1991-08 → 1993-11 ended
ST182 RHD MTM W —
83109-24020 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
ST18# RHD —
83109-24020 note Bulb, Combination Meter, NO.1
1991-09 → 1993-11 ended
AT180,ST18# LHD —
83109-24020 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
AT180,ST18# LHD —
83119-32010 note Bulb, Combination Meter, NO.1
1991-08 → 1993-11 ended
ST18# RHD LB —
90981-11018 note Bulb, Combination Meter, NO.1
1991-09 → 1993-11 ended
ST18# MTM —
90981-11018 note Bulb, Combination Meter, NO.1
1991-08 → 1993-11 ended
ST182 ATM —
90981-11018 note Bulb, Combination Meter, NO.1
1991-08 → 1993-11 ended
AT180 —
90981-11018 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
ST18# LB MTM —
90981-11018 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
ST182 LHD CVT —
90981-11018 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
AT180 —
90981-11018 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
ST18# LHD —
90981-11018 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
ST182 ATM —
90981-11018 note Bulb, Combination Meter, NO.1
1989-10 → 1991-09 ended
ST185 RHD TBO4W;ST182 RHD +2 —
99132-12034 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
ST182 RHD MTM W —
99132-12034 note Bulb, Combination Meter, NO.1
1991-09 → 1993-11 ended
AT180,ST18# LHD —
99132-12034 note Bulb, Combination Meter, NO.1
1991-08 → 1993-11 ended
ST18# RHD LB —
99132-12034 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
AT180,ST18# LHD (CP,LB) —
99132-12034 note Bulb, Combination Meter, NO.1
1991-08 → 1991-09 ended
ST182 LHD CVT —
99132-12034 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
AT180,ST18# LHD —
99132-12034 note Bulb, Combination Meter, NO.1
1989-10 → 1991-08 ended
ST18# RHD —
83101 — Socket Sub-assy, Combination Meter Bulb
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1991-09 → 1993-11 ended
AT180,ST18# LHD —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1991-08 → 1993-11 ended
ST18# RHD LB —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1991-08 → 1991-09 ended
ST182 RHD MTM W;AT180,ST18# +2 —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1991-08 → 1991-09 ended
ST182 LHD CVT —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1989-10 → 1991-08 ended
ST182 LHD —
83101-14030 note Socket Sub-assy, Combination Meter Bulb
1989-10 → 1991-08 ended
ST182 RHD;AT180,ST185 —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1989-10 → 1991-08 ended
ST182 ATM —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1991-08 → 1993-11 ended
ST182 ATM —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1989-10 → 1993-11 ended
ST185 TBO4W;ST182 MTM W;ST18# +3 —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1989-10 → 1993-11 ended
AT180 —
83101-14040 note Socket Sub-assy, Combination Meter Bulb
1991-08 → 1993-11 ended
ST18# RHD G —
83101-32020 note Socket Sub-assy, Combination Meter Bulb
1991-08 → 1993-11 ended
ST18# RHD LB —
83110 — Speedometer Assy
83110-2B890 Speedometer Assy
1989-10 → 1991-08 ended
ST18# RHD —
83110-2B890 Speedometer Assy
1991-08 → 1991-09 ended
ST182 RHD MTM W —
83110-2B891 Speedometer Assy
1991-08 → 1993-11 ended
ST18# RHD LB —
83110-2D190 Speedometer Assy
1989-10 → 1993-11 ended
AT180 —
83110-2D200 Speedometer Assy
1989-10 → 1993-11 ended
ST18# LHD —
83132 — Case, Combination Meter
83132-1B360 Case, Combination Meter
1989-10 → 1991-09 ended
ST185 RHD TBO4W;ST182 RHD +2 —
83132-1B380 Case, Combination Meter
1989-10 → 1991-08 ended
ST182 ATM —
83132-1B560 Case, Combination Meter
1989-10 → 1993-11 ended
AT180 —
83132-1B580 Case, Combination Meter
1989-10 → 1993-11 ended
ST18# LHD —
83132-1J120 Case, Combination Meter
1991-08 → 1993-11 ended
ST18# RHD LB —
83133 — Plate, Combination Meter, NO.1
83133-1D010 Plate, Combination Meter, NO.1
1989-10 → 1993-11 ended
AT180,ST18# —
83133A — Plate, Combination Meter, NO.2
83133-1D030 Plate, Combination Meter, NO.2
1989-10 → 1993-11 ended
AT180,ST18# —
83138 — Glass, Speedometer
83138-1B250 Glass, Speedometer
1989-10 → 1993-11 ended
AT180,ST18# —
83242 — Tachometer Assy, Engine
83242-15750 Tachometer Assy, Engine
1989-10 → 1991-08 ended
ST182 ATM —
83242-15810 Tachometer Assy, Engine
1989-10 → 1991-08 ended
ST185 RHD —
83242-1J050 Tachometer Assy, Engine
1989-10 → 1991-08 ended
AT180 —
83242-1J070 Tachometer Assy, Engine
1989-10 → 1991-08 ended
ST185 LHD —
83242-1J110 Tachometer Assy, Engine
1989-10 → 1991-09 ended
ST182 RHD MTM W —
83242-1J130 Tachometer Assy, Engine
1991-08 → 1991-09 ended
ST182 LHD CVT —
83242-1J130 Tachometer Assy, Engine
1989-10 → 1991-08 ended
ST182 LHD —
83242-1J590 Tachometer Assy, Engine
1991-08 → 1993-11 ended
ST182 RHD G —
83242-1J610 Tachometer Assy, Engine
1991-08 → 1993-11 ended
ST182 ATM —
83242-1J630 Tachometer Assy, Engine
1991-08 → 1993-11 ended
ST185 RHD —
83242-1U110 Tachometer Assy, Engine
1991-08 → 1993-11 ended
AT180 —
83242-1U130 Tachometer Assy, Engine
1991-08 → 1991-09 ended
ST182 LHD LB —
83242-1U130 Tachometer Assy, Engine
1991-09 → 1993-11 ended
ST182 LHD —
83242-1U150 Tachometer Assy, Engine
1991-08 → 1993-11 ended
ST185 LHD —
83243A — Gauge Sub-assy, Fuel Receiver
83243-1B150 Gauge Sub-assy, Fuel Receiver
1989-10 → 1991-08 ended
ST182 RHD —
83243-1B150 Gauge Sub-assy, Fuel Receiver
1991-08 → 1991-09 ended
ST182 RHD MTM W —
83243-1B170 Gauge Sub-assy, Fuel Receiver
1989-10 → 1991-08 ended
ST185 RHD —
83243-1B250 Gauge Sub-assy, Fuel Receiver
1989-10 → 1993-11 ended
AT180 —
83243-1B270 Gauge Sub-assy, Fuel Receiver
1989-10 → 1993-11 ended
ST182 LHD —
83243-1B290 Gauge Sub-assy, Fuel Receiver
1989-10 → 1993-11 ended
ST185 LHD —
83243-1B370 Gauge Sub-assy, Fuel Receiver
1991-08 → 1993-11 ended
ST182 RHD G —
83243-1B410 Gauge Sub-assy, Fuel Receiver
1991-08 → 1993-11 ended
ST185 RHD —
83243-1B430 Gauge Sub-assy, Fuel Receiver
1991-08 → 1993-11 ended
ST182 ATM —
83247 — Plate, Meter Circuit
83247-15010 Plate, Meter Circuit
1989-10 → 1991-08 ended
ST182 RHD —
83247-15010 Plate, Meter Circuit
1991-08 → 1991-09 ended
ST182 RHD MTM W —
83247-15030 Plate, Meter Circuit
1989-10 → 1991-08 ended
ST185 RHD —
83247-15550 Plate, Meter Circuit
1991-08 → 1993-11 ended
ST182 RHD LB —
83247-15570 Plate, Meter Circuit
1991-08 → 1993-11 ended
ST185 RHD —
83247-1B640 Plate, Meter Circuit
1989-10 → 1993-11 ended
AT180 —
83247-1B740 Plate, Meter Circuit
1989-10 → 1993-11 ended
ST182 LHD —
83247-1B760 Plate, Meter Circuit
1989-10 → 1993-11 ended
ST185 LHD —
83247B — Plate, Meter Circuit, NO.2
83247-1B400 Plate, Meter Circuit, NO.2
1989-10 → 1993-11 ended
ST185 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
