Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

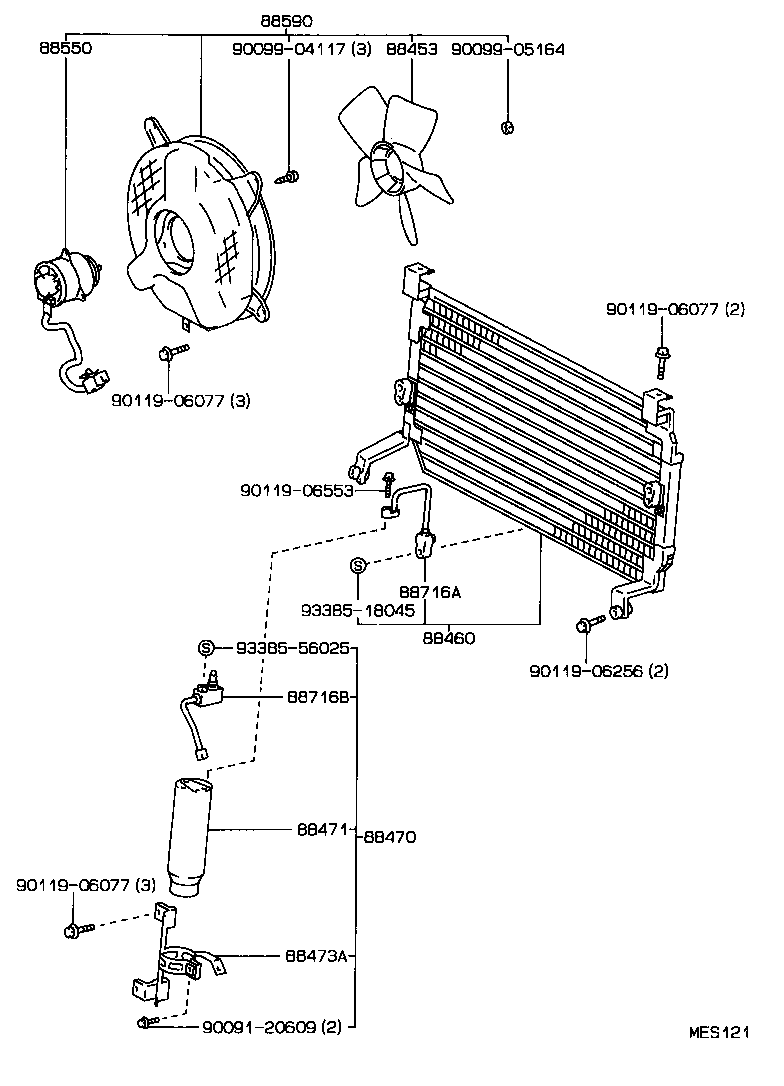

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88453 — Fan, Cooling (FOR CONDENSER) | ||||
| 88453-20060 |
Fan, Cooling (FOR CONDENSER)
1990-08 → 1993-11
ended
|
AT180,ST18# CP,LB | — | |
| 88453-20060 |
Fan, Cooling (FOR CONDENSER)
1989-10 → 1990-08
ended
|
ST18# | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-20300 |
Condenser Assy, Cooler
1989-10 → 1991-08
ended
|
ST185 RHD | — | |
| 88460-20300 note |
Condenser Assy, Cooler
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88460-20301 note |
Condenser Assy, Cooler
1991-08 → 1993-11
ended
|
ST18# RHD LB (GTI,TBO4W) | — | |
| 88460-20310 |
Condenser Assy, Cooler
1990-08 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 88460-20310 |
Condenser Assy, Cooler
1989-10 → 1990-08
ended
|
ST18# LHD | — | |
| 88460-20330 note |
Condenser Assy, Cooler
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88460-20330 note |
Condenser Assy, Cooler
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88460-20330 note |
Condenser Assy, Cooler
1992-02 → 1993-11
ended
|
ST185 RHD | — | |
| 88460-20350 note |
Condenser Assy, Cooler
1991-08 → 1992-02
ended
|
ST185 | — | |
| 88470 — Receiver & Dryer Assy, Cooler | ||||
| 88470-20100 |
Receiver & Dryer Assy, Cooler
1991-08 → 1992-02
ended
|
ST185 | — | |
| 88471 — Tank, Receiver Air Conditioner | ||||
| 88471-16040 |
Tank, Receiver Air Conditioner
1989-10 → 1990-08
ended
|
ST18# | — | |
| 88471-16040 |
Tank, Receiver Air Conditioner
1990-08 → 1993-11
ended
|
AT180,ST18# CP,LB | — | |
| 88473A — Holder, Receiver | ||||
| 88473-20080 |
Holder, Receiver
1989-10 → 1990-08
ended
|
ST18# | — | |
| 88473-20080 |
Holder, Receiver
1990-08 → 1993-11
ended
|
AT180,ST18# CP,LB | — | |
| 88550 — Motor Assy, Blower (FOR CONDENSER) | ||||
| 88550-20070 |
Motor Assy, Blower (FOR CONDENSER)
1989-10 → 1990-08
ended
|
ST18# | — | |
| 88550-20070 |
Motor Assy, Blower (FOR CONDENSER)
1990-08 → 1993-11
ended
|
AT180,ST18# (CP,LB) (GTI,STI,TBO4W) | — | |
| 88550-20080 |
Motor Assy, Blower (FOR CONDENSER)
1991-08 → 1992-02
ended
|
ST185 | — | |
| 88590 — Blower Assy, W/Shroud | ||||
| 88590-20230 note |
Blower Assy, W/Shroud
1992-02 → 1993-11
ended
|
AT180,ST18# CP,LB | — | |
| 88590-20230 note |
Blower Assy, W/Shroud
1991-09 → 1992-02
ended
|
ST182 RHD | — | |
| 88590-20230 note |
Blower Assy, W/Shroud
1991-08 → 1991-09
ended
|
AT180,ST182 CP,LB | — | |
| 88590-20230 note |
Blower Assy, W/Shroud
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88590-20230 |
Blower Assy, W/Shroud
1989-10 → 1991-08
ended
|
ST185;ST182 LHD LB | — | |
| 88590-20240 note |
Blower Assy, W/Shroud
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88590-20240 note |
Blower Assy, W/Shroud
1991-08 → 1991-09
ended
|
AT180,ST182 LHD (CP,LB) | — | |
| 88590-20240 note |
Blower Assy, W/Shroud
1991-09 → 1992-02
ended
|
AT180,ST182 LHD (CP,LB) | — | |
| 88590-20240 note |
Blower Assy, W/Shroud
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88590-20240 note |
Blower Assy, W/Shroud
1992-02 → 1993-11
ended
|
AT180,ST185;ST182 LHD LB | — | |
| 88590-20240 |
Blower Assy, W/Shroud
1990-08 → 1991-08
ended
|
AT180 | — | |
| 88590-20250 note |
Blower Assy, W/Shroud
1991-08 → 1992-02
ended
|
ST185 | — | |
| 88716A — Pipe, Cooler Refrigerant Liquid, A | ||||
| 88716-2B760 note |
Pipe, Cooler Refrigerant Liquid, A
1991-08 → 1993-11
ended
|
ST185 TB4WA | — | |
| 88716-2B760 |
Pipe, Cooler Refrigerant Liquid, A
1990-08 → 1993-11
ended
|
AT180,ST18# (CP,LB) (GTI,STI,TBO4W) | — | |
| 88716-2B760 |
Pipe, Cooler Refrigerant Liquid, A
1989-10 → 1990-08
ended
|
ST18# | — | |
| 88716-2B880 note |
Pipe, Cooler Refrigerant Liquid, A
1991-08 → 1992-02
ended
|
ST185 | — | |
| 88716B — Pipe, Cooler Refrigerant Liquid, B | ||||
| 88716-2B740 |
Pipe, Cooler Refrigerant Liquid, B
1989-10 → 1991-08
ended
|
ST185 RHD | — | |
| 88716-2B740 note |
Pipe, Cooler Refrigerant Liquid, B
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88716-2B750 |
Pipe, Cooler Refrigerant Liquid, B
1989-10 → 1990-08
ended
|
ST18# LHD | — | |
| 88716-2B750 |
Pipe, Cooler Refrigerant Liquid, B
1990-08 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) (GTI,STI,TBO4W) | — | |
| 88716-2B750 note |
Pipe, Cooler Refrigerant Liquid, B
1991-08 → 1993-11
ended
|
ST185 LHD TB4WA | — | |
| 88716-2B850 note |
Pipe, Cooler Refrigerant Liquid, B
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88716-2B850 note |
Pipe, Cooler Refrigerant Liquid, B
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88716-2B850 note |
Pipe, Cooler Refrigerant Liquid, B
1992-02 → 1993-11
ended
|
ST185 RHD | — | |
| 88716-2B870 note |
Pipe, Cooler Refrigerant Liquid, B
1991-08 → 1993-11
ended
|
ST18# RHD LB (GTI,TBO4W) | — | |
| 88716-2D050 note |
Pipe, Cooler Refrigerant Liquid, B
1991-08 → 1992-02
ended
|
ST185 LHD | — | |
| 88716-2D050 |
Pipe, Cooler Refrigerant Liquid, B
1991-08 → 1993-11
ended
|
ST182 ATM | — | |
| 88716-2D050 |
Pipe, Cooler Refrigerant Liquid, B
1991-08 → 1993-11
ended
|
ST182 RHD G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
