Toyota Celica
1989-10 → 1993-11 · chassis AT180,ST18# · catalogue 252560 · Europe
Discontinued model
Data version 1994-04

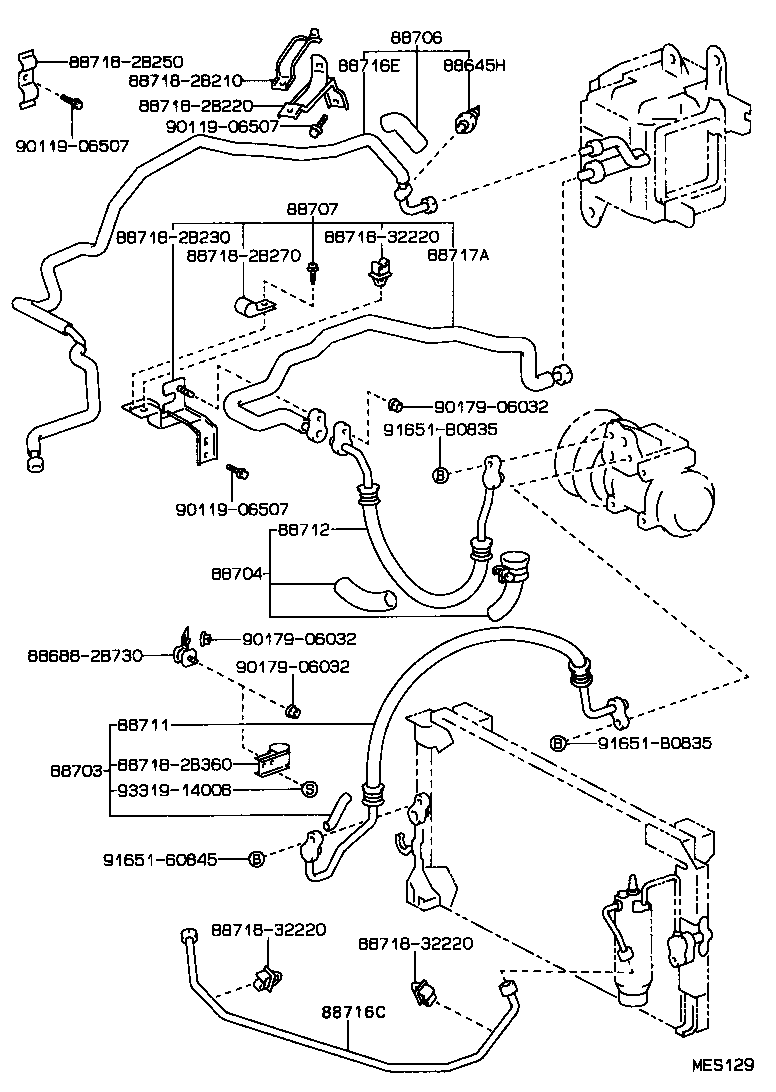

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88645H — Switch, Pressure NO.1 | ||||
| 88645-20040 note |
Switch, Pressure NO.1
1989-10 → 1990-10
ended
|
ST182 RHD | — | |
| 88645-20040 |
Switch, Pressure NO.1
1992-01 → 1993-11
ended
|
AT180,ST18# (CP,LB) (GTI,STI,TBO4W) | — | |
| 88645-20040 |
Switch, Pressure NO.1
1990-08 → 1990-10
ended
|
AT180 | — | |
| 88645-20040 |
Switch, Pressure NO.1
1990-10 → 1992-01
ended
|
AT180,ST18# CP,LB | — | |
| 88645-50010 |
Switch, Pressure NO.1
1989-10 → 1990-10
ended
|
ST182 RHD | — | |
| 88645-50010 |
Switch, Pressure NO.1
1989-10 → 1990-10
ended
|
ST185;ST182 LHD | — | |
| 88703 — Hose Sub-assy, Discharge | ||||
| 88703-20050 |
Hose Sub-assy, Discharge
1990-08 → 1991-08
ended
|
AT180 | — | |
| 88703-20051 |
Hose Sub-assy, Discharge
1991-08 → 1993-11
ended
|
AT180 | — | |
| 88703-20060 |
Hose Sub-assy, Discharge
1989-10 → 1991-08
ended
|
ST182 LB | — | |
| 88703-20061 |
Hose Sub-assy, Discharge
1991-08 → 1993-11
ended
|
ST182 LHD LB | — | |
| 88703-20061 note |
Hose Sub-assy, Discharge
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88703-20070 |
Hose Sub-assy, Discharge
1989-10 → 1991-08
ended
|
ST185 | — | |
| 88703-20071 |
Hose Sub-assy, Discharge
1992-02 → 1993-11
ended
|
ST185 LHD | — | |
| 88703-20071 note |
Hose Sub-assy, Discharge
1992-02 → 1993-11
ended
|
ST185 RHD | — | |
| 88703-20081 |
Hose Sub-assy, Discharge
1991-08 → 1992-02
ended
|
ST185 | — | |
| 88703-20100 note |
Hose Sub-assy, Discharge
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88703-20110 note |
Hose Sub-assy, Discharge
1992-02 → 1993-11
ended
|
ST185 RHD | — | |
| 88704 — Hose Sub-assy, Suction | ||||
| 88704-20110 |
Hose Sub-assy, Suction
1989-10 → 1991-08
ended
|
ST18# RHD LB | — | |
| 88704-20111 |
Hose Sub-assy, Suction
1991-08 → 1993-11
ended
|
ST18# RHD LB | — | |
| 88704-20120 |
Hose Sub-assy, Suction
1989-10 → 1991-08
ended
|
ST18# LHD LB | — | |
| 88704-20121 |
Hose Sub-assy, Suction
1991-08 → 1993-11
ended
|
ST18# LHD LB | — | |
| 88706 — Pipe Sub-assy, Liquid | ||||
| 88706-20051 |
Pipe Sub-assy, Liquid
1989-10 → 1991-08
ended
|
ST185 RHD | — | |
| 88706-20051 note |
Pipe Sub-assy, Liquid
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88706-20060 |
Pipe Sub-assy, Liquid
1989-10 → 1990-08
ended
|
ST18# LHD | — | |
| 88706-20060 |
Pipe Sub-assy, Liquid
1990-08 → 1991-08
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 88706-20061 |
Pipe Sub-assy, Liquid
1992-01 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) (GTI,STI,TBO4W) | — | |
| 88706-20061 |
Pipe Sub-assy, Liquid
1991-08 → 1992-01
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 88706-20070 note |
Pipe Sub-assy, Liquid
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88706-20070 note |
Pipe Sub-assy, Liquid
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88706-20070 note |
Pipe Sub-assy, Liquid
1992-02 → 1993-11
ended
|
ST185 RHD | — | |
| 88706-20091 note |
Pipe Sub-assy, Liquid
1991-08 → 1993-11
ended
|
ST18# RHD LB (GTI,TBO4W) | — | |
| 88706-20100 |
Pipe Sub-assy, Liquid
1991-08 → 1992-01
ended
|
ST185 RHD | — | |
| 88707 — Pipe Sub-assy, Suction | ||||
| 88707-20010 |
Pipe Sub-assy, Suction
1989-10 → 1991-08
ended
|
ST18# LHD LB | — | |
| 88707-20010 |
Pipe Sub-assy, Suction
1991-08 → 1992-01
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 88707-20010 |
Pipe Sub-assy, Suction
1992-01 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) (GTI,STI,TBO4W) | — | |
| 88707-20031 |
Pipe Sub-assy, Suction
1991-08 → 1992-01
ended
|
ST185 RHD | — | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-20700 |
Hose, Cooler Refrigerant Discharge, NO.1
1990-08 → 1991-08
ended
|
AT180 | — | |
| 88711-20700 note |
Hose, Cooler Refrigerant Discharge, NO.1
1991-08 → 1993-11
ended
|
AT180 | — | |
| 88711-20710 note |
Hose, Cooler Refrigerant Discharge, NO.1
1991-08 → 1993-11
ended
|
ST182 LHD LB;ST185 RHD +1 | — | |
| 88711-20710 note |
Hose, Cooler Refrigerant Discharge, NO.1
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88711-20710 |
Hose, Cooler Refrigerant Discharge, NO.1
1989-10 → 1991-08
ended
|
ST182 LB | — | |
| 88711-20720 |
Hose, Cooler Refrigerant Discharge, NO.1
1989-10 → 1991-08
ended
|
ST185 | — | |
| 88711-20720 note |
Hose, Cooler Refrigerant Discharge, NO.1
1992-02 → 1993-11
ended
|
ST185 LHD | — | |
| 88711-20751 |
Hose, Cooler Refrigerant Discharge, NO.1
1991-08 → 1992-02
ended
|
ST185 | — | |
| 88711-20780 note |
Hose, Cooler Refrigerant Discharge, NO.1
1992-02 → 1993-11
ended
|
ST185 | — | |
| 88711-20790 note |
Hose, Cooler Refrigerant Discharge, NO.1
1991-08 → 1993-11
ended
|
ST182 LB | — | |
| 88711-20800 note |
Hose, Cooler Refrigerant Discharge, NO.1
1991-08 → 1993-11
ended
|
AT180 | — | |
| 88712 — Hose, Cooler Refrigerant Suction, NO.1 | ||||
| 88712-2B070 |
Hose, Cooler Refrigerant Suction, NO.1
1990-08 → 1991-08
ended
|
AT180 | — | |
| 88712-2B071 |
Hose, Cooler Refrigerant Suction, NO.1
1991-08 → 1993-11
ended
|
AT180 | — | |
| 88712-2B080 note |
Hose, Cooler Refrigerant Suction, NO.1
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88712-2B080 |
Hose, Cooler Refrigerant Suction, NO.1
1989-10 → 1991-08
ended
|
ST185 RHD | — | |
| 88712-2B090 |
Hose, Cooler Refrigerant Suction, NO.1
1989-10 → 1991-08
ended
|
ST18# LHD LB | — | |
| 88712-2B091 note |
Hose, Cooler Refrigerant Suction, NO.1
1991-08 → 1993-11
ended
|
ST18# LHD LB (GTI,TBO4W) | — | |
| 88712-2B121 note |
Hose, Cooler Refrigerant Suction, NO.1
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88712-2B121 note |
Hose, Cooler Refrigerant Suction, NO.1
1992-02 → 1993-11
ended
|
ST185 RHD | — | |
| 88712-2B121 note |
Hose, Cooler Refrigerant Suction, NO.1
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88712-2B180 |
Hose, Cooler Refrigerant Suction, NO.1
1991-08 → 1992-02
ended
|
ST185 RHD | — | |
| 88712-2B180 note |
Hose, Cooler Refrigerant Suction, NO.1
1991-08 → 1993-11
ended
|
ST18# RHD LB (GTI,TBO4W) | — | |
| 88712-2B190 note |
Hose, Cooler Refrigerant Suction, NO.1
1991-08 → 1993-11
ended
|
ST18# LHD LB (GTI,TBO4W) | — | |
| 88712-2B190 |
Hose, Cooler Refrigerant Suction, NO.1
1991-08 → 1992-02
ended
|
ST185 LHD | — | |
| 88716C — Pipe, Cooler Refrigerant Liquid, C | ||||
| 88716-2B890 |
Pipe, Cooler Refrigerant Liquid, C
1991-08 → 1992-02
ended
|
ST185 LHD | — | |
| 88716E — Pipe, Cooler Refrigerant Liquid, E | ||||
| 88716-2B771 |
Pipe, Cooler Refrigerant Liquid, E
1989-10 → 1991-08
ended
|
ST185 RHD | — | |
| 88716-2B771 note |
Pipe, Cooler Refrigerant Liquid, E
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88716-2B780 |
Pipe, Cooler Refrigerant Liquid, E
1989-10 → 1990-08
ended
|
ST18# LHD | — | |
| 88716-2B780 note |
Pipe, Cooler Refrigerant Liquid, E
1991-08 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) (GTI,STI,TBO4W) | — | |
| 88716-2B780 |
Pipe, Cooler Refrigerant Liquid, E
1990-08 → 1991-08
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 88716-2B781 |
Pipe, Cooler Refrigerant Liquid, E
1991-08 → 1992-01
ended
|
ST185 LHD | — | |
| 88716-2B781 note |
Pipe, Cooler Refrigerant Liquid, E
1991-08 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) (GTI,STI,TBO4W) | — | |
| 88716-2B860 note |
Pipe, Cooler Refrigerant Liquid, E
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88716-2B860 note |
Pipe, Cooler Refrigerant Liquid, E
1991-08 → 1993-11
ended
|
ST185 RHD | — | |
| 88716-2B860 note |
Pipe, Cooler Refrigerant Liquid, E
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88716-2D021 note |
Pipe, Cooler Refrigerant Liquid, E
1991-08 → 1993-11
ended
|
ST18# RHD LB (GTI,TBO4W) | — | |
| 88716-2D030 note |
Pipe, Cooler Refrigerant Liquid, E
1991-08 → 1992-01
ended
|
ST185 RHD | — | |
| 88717A — Pipe, Cooler Refrigerant Suction, A | ||||
| 88717-2B011 |
Pipe, Cooler Refrigerant Suction, A
1989-10 → 1991-08
ended
|
ST185 RHD | — | |
| 88717-2B011 note |
Pipe, Cooler Refrigerant Suction, A
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88717-2B050 note |
Pipe, Cooler Refrigerant Suction, A
1989-10 → 1991-08
ended
|
ST182 RHD LB | — | |
| 88717-2B050 note |
Pipe, Cooler Refrigerant Suction, A
1991-08 → 1993-11
ended
|
ST182 RHD LB | — | |
| 88717-2B050 note |
Pipe, Cooler Refrigerant Suction, A
1992-02 → 1993-11
ended
|
ST185 RHD | — | |
| 88717-2B060 |
Pipe, Cooler Refrigerant Suction, A
1989-10 → 1990-08
ended
|
ST18# LHD | — | |
| 88717-2B060 |
Pipe, Cooler Refrigerant Suction, A
1990-08 → 1992-01
ended
|
AT180,ST18# LHD (CP,LB) | — | |
| 88717-2B060 |
Pipe, Cooler Refrigerant Suction, A
1992-01 → 1993-11
ended
|
AT180,ST18# LHD (CP,LB) (GTI,STI,TBO4W) | — | |
| 88717-2B150 note |
Pipe, Cooler Refrigerant Suction, A
1991-08 → 1993-11
ended
|
ST18# RHD LB (GTI,TBO4W) | — | |
| 88717-2B250 |
Pipe, Cooler Refrigerant Suction, A
1991-08 → 1992-01
ended
|
ST185 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
